self support and self lock metal roofing sheet bending machine

Product Overview

Description

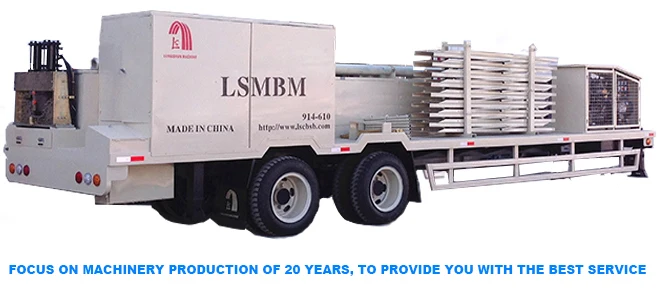

self support and self lock metal roofing sheet bending machine

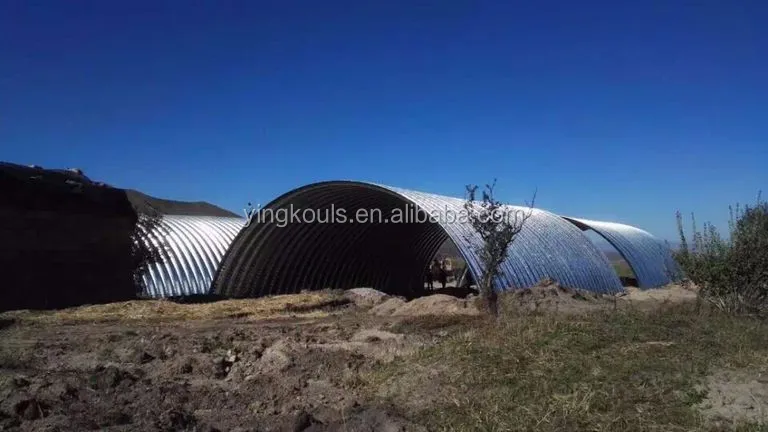

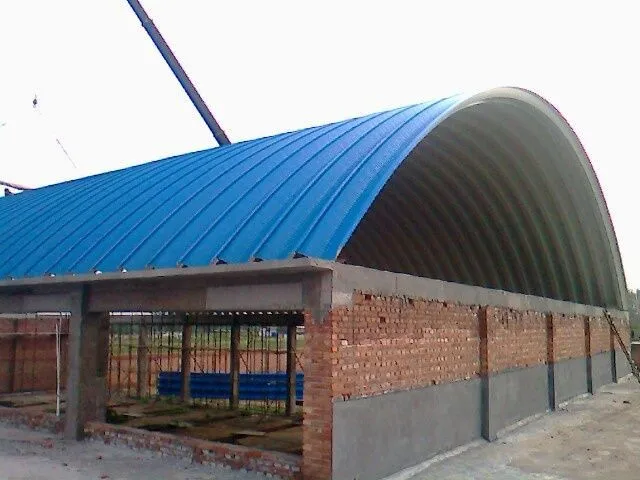

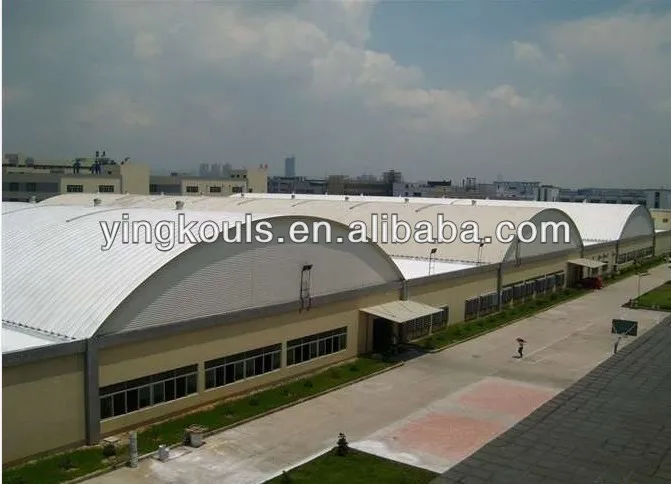

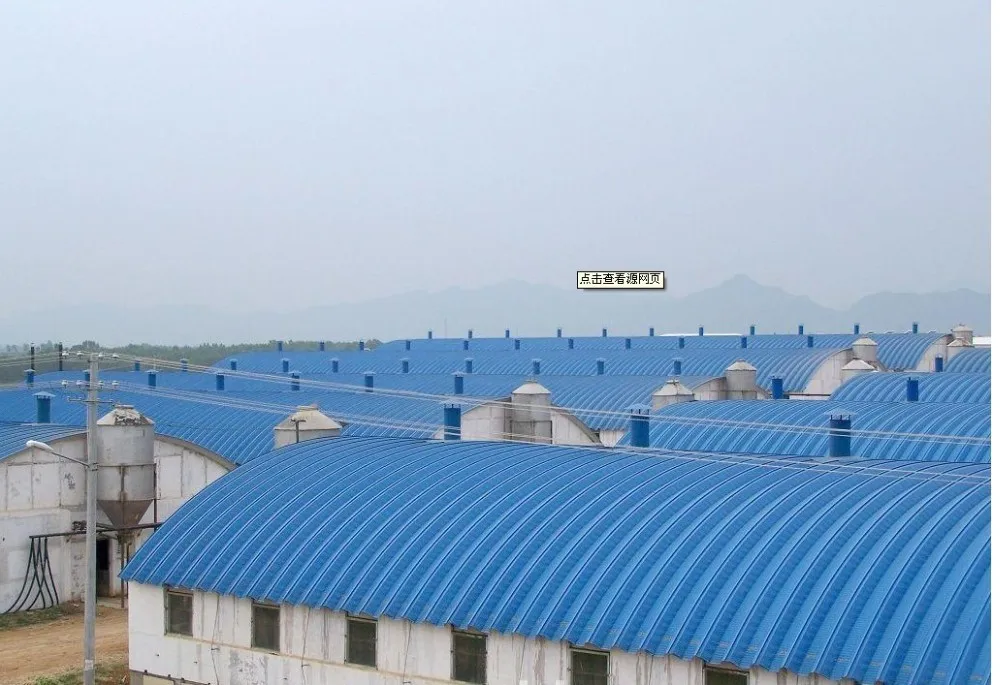

The intended use of this machine are for storages, hangars, warehouse, working shop, garages, medical facilites and agricaltural so on.

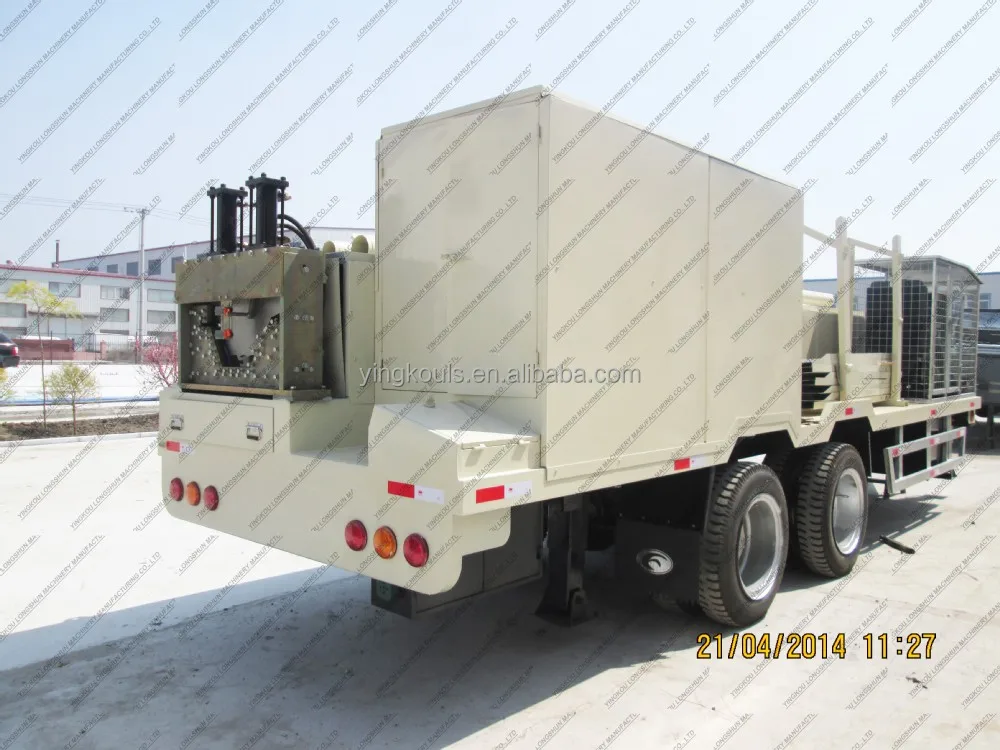

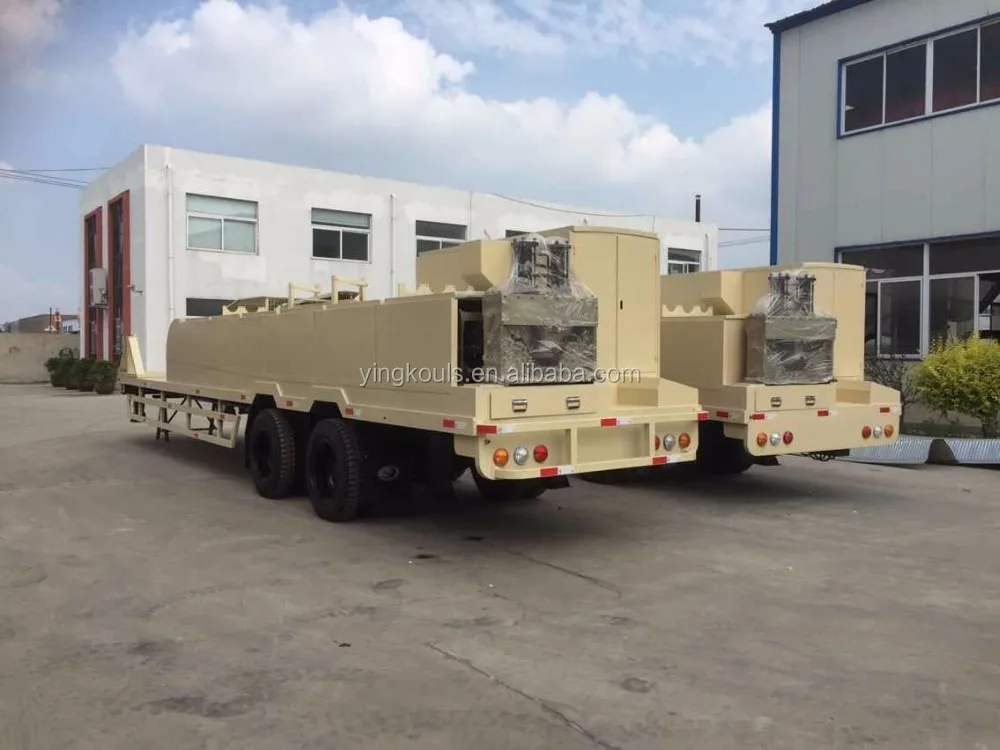

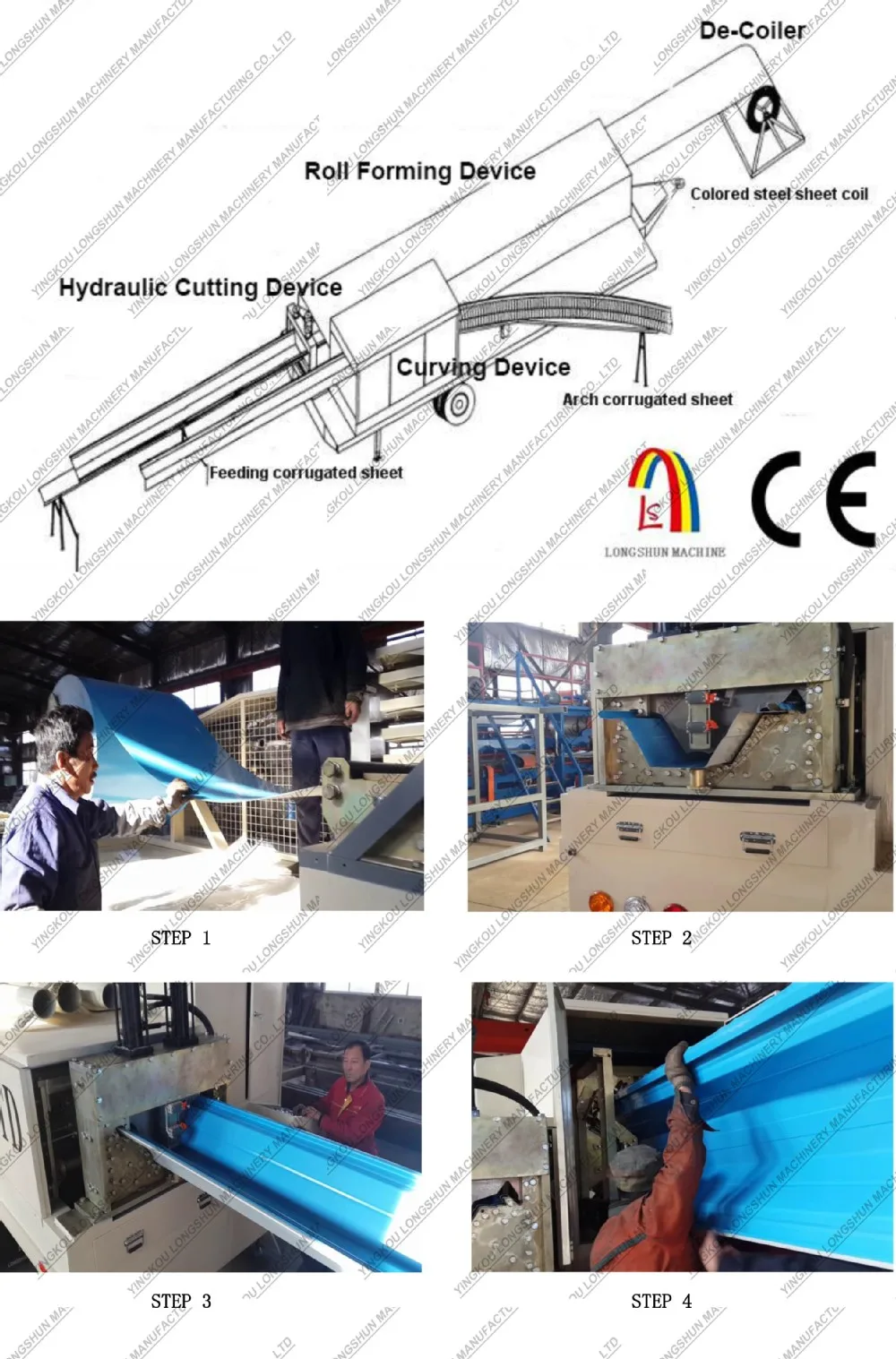

The movable k arch steel building machine come with below parts:

a) De-coiler	b) Roll-forming device
c) Hydraulic cutter	d) PLC control system
e) Curving device	f) Standard Accessories (with 30 KW Generator)





K Arch steel building roof panels roll forming machine models



Type link	Feeding width	Effective Width	Coil Thickness	Max span	Use ratio	The depth of the groove
LS-1250-800	1250mm	800mm	1.0-1.5 mm	≤45m	64%	320mm
LS-1000-800	1000mm	800mm	0.8-1.5 mm	≤25m	80%	114mm
LS-1000-750	1000mm	750mm	0.8-1.5 mm	≤28m	75%	138mm
LS-1000-700	1000mm	700mm	0.8-1.5 mm	≤25m	70%	175mm
LS-1000-680	1000mm	680mm	0.8-1.5 mm	≤30m	68%	223mm
LS-1000-610	1000mm	610mm	0.8-1.5 mm	≤45m	61%	243mm
LS-1000-550	1000mm	550mm	0.8-1.5 mm	≤45m	55%	187.5mm
LS-1000-400	1000mm	400mm	0.8-1.5 mm	≤45m	40%	253mm
LS-914-750	914mm	750mm	0.8-1.5 mm	≤20m	82%	86mm
LS-914-700	914mm	700mm	0.8-1.5 mm	≤25m	76%	123mm
LS-914-650	914mm	650mm	0.8-1.5 mm	≤28m	71%	181mm
LS-914-610	914mm	610mm	0.8-1.5 mm	≤38m	66%	203mm
LS-914-400	914mm	400mm	0.8-1.5 mm	≤45m	43%	210mm
LS-600-305	600mm	305mm	0.8-1.5 mm	≤28m	51%	109mm

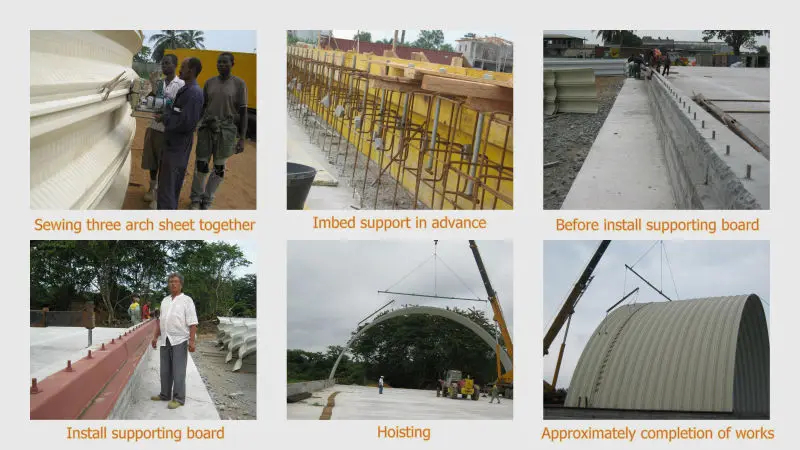

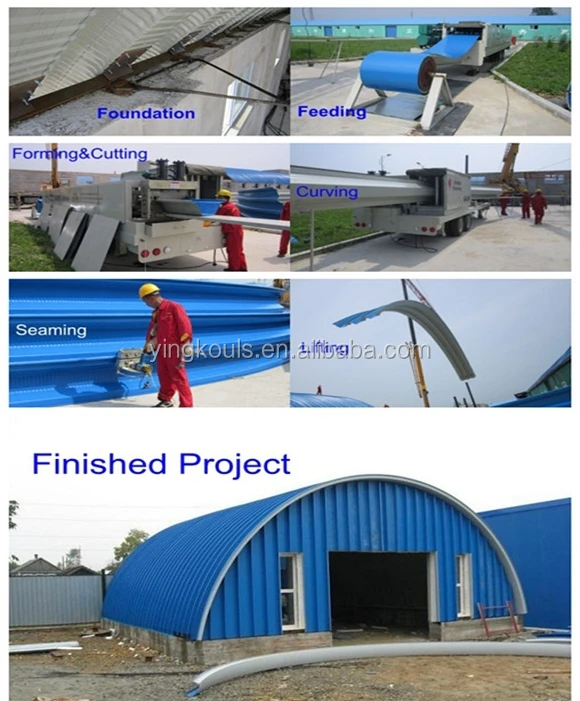

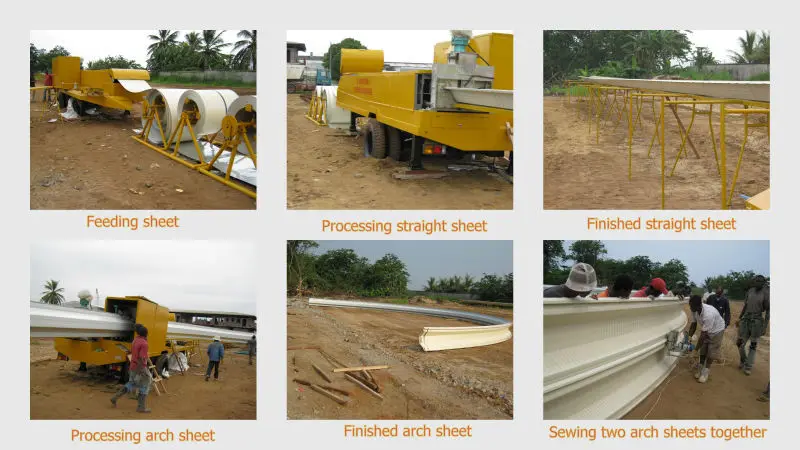

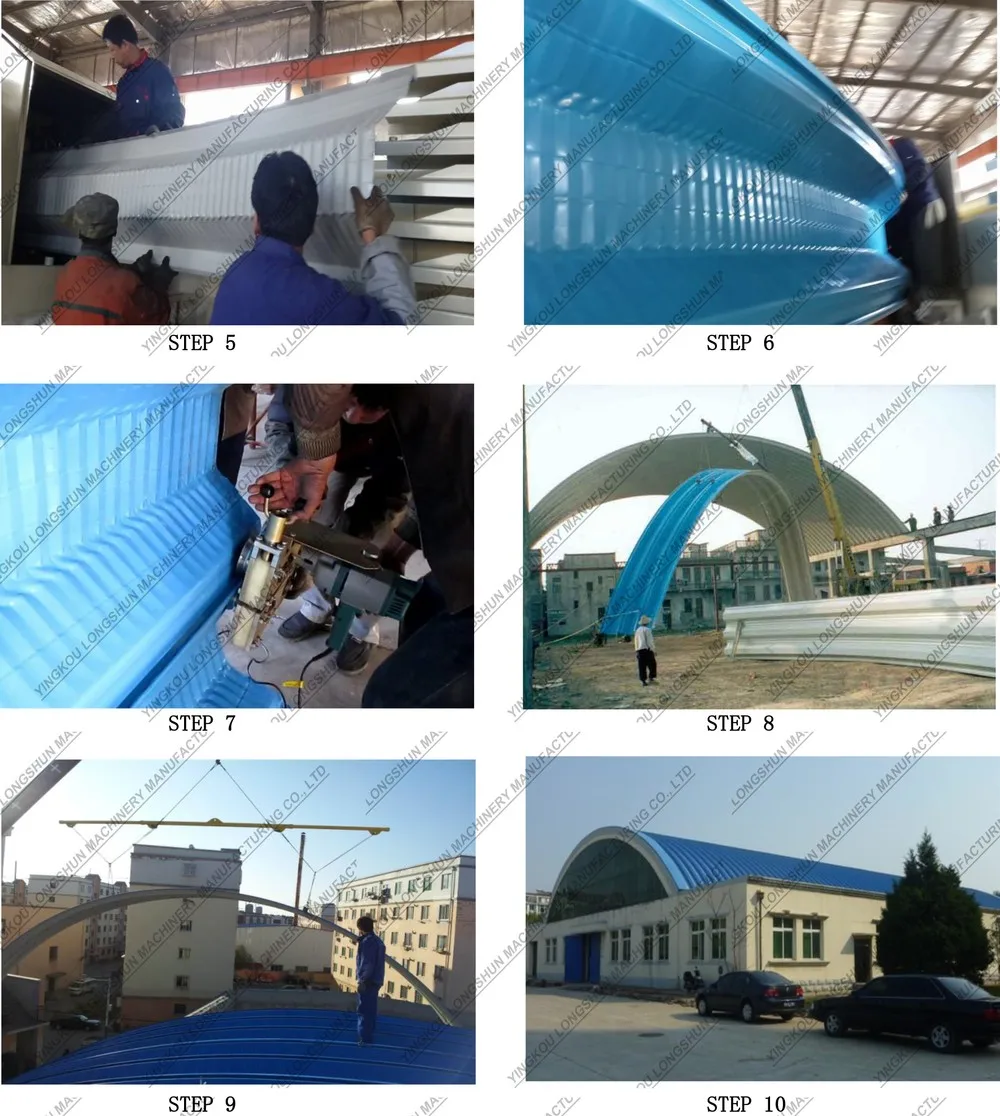

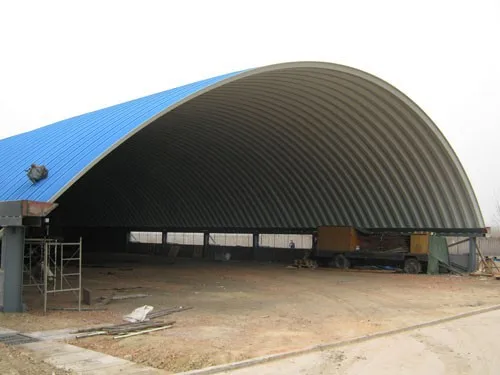

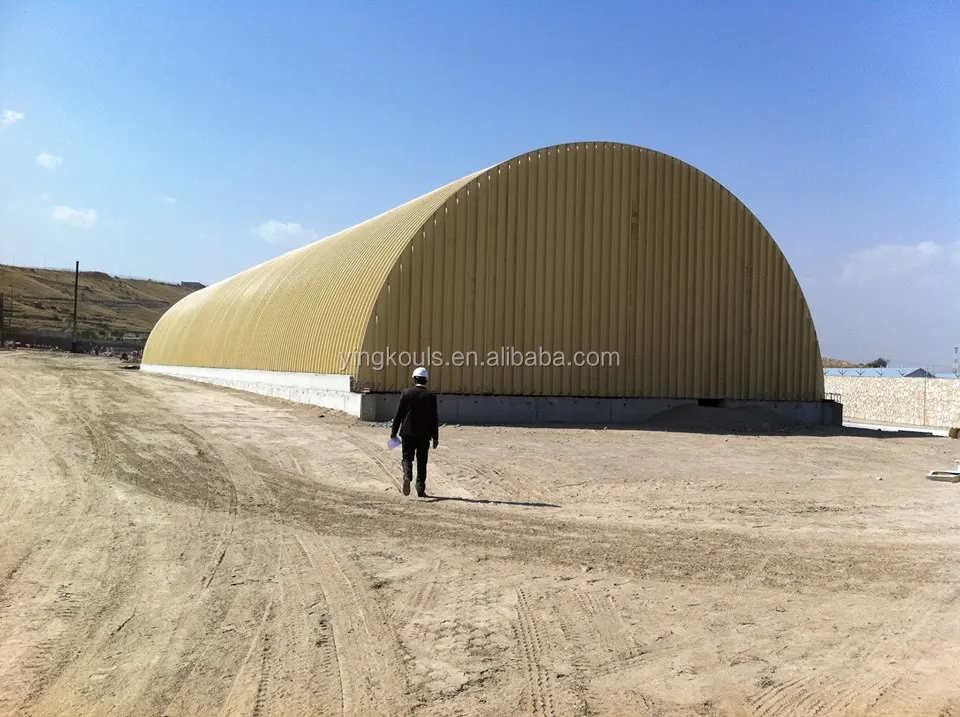

K Arch steel building roof panels roll forming machine Construction show

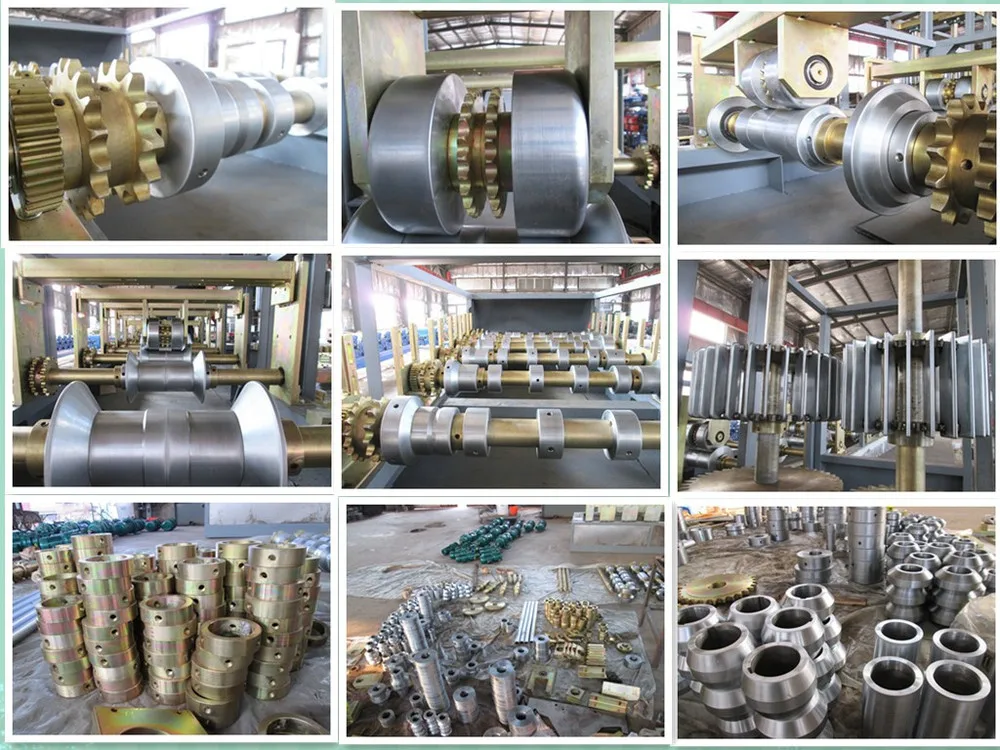

K arch steel building roof panels roll forming machine high quality materials
