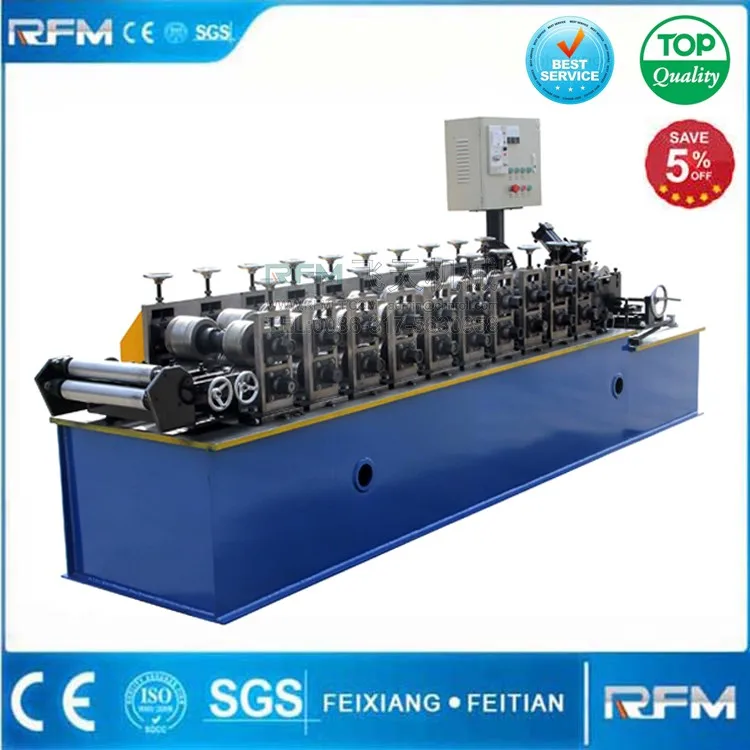

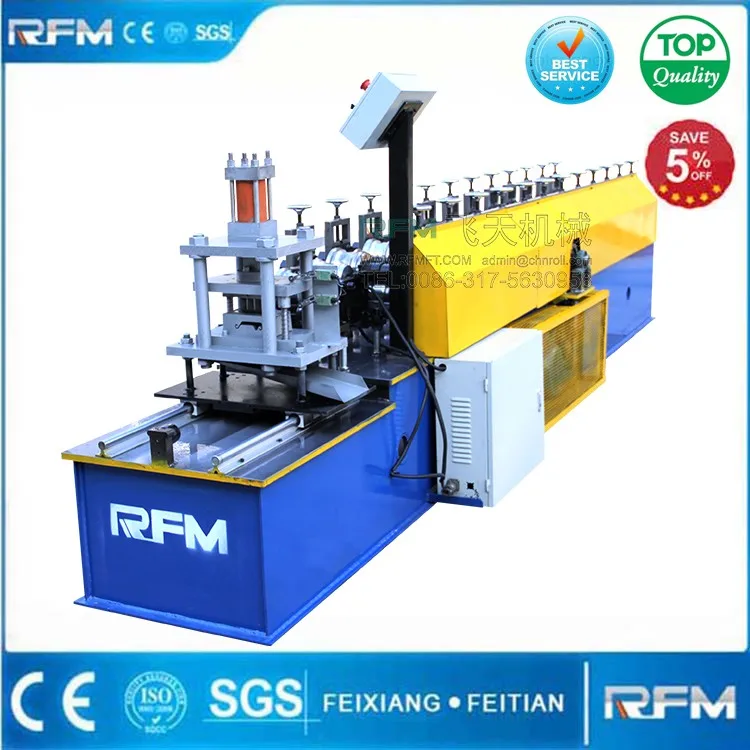

Steel Profile Door Slat Roll Former Mould Cutter Roller Door Roll Forming Machine
- Category: Steel Frame & Purlin Machines >>>
- Supplier: Dongguang County Feitian Cold Roll Forming Machinery Co. Ltd.
Share on (60325502190):
Product Overview
Description
Steel Profile Door Slat Roll Former Mould Cutter Roller Door Roll Forming Machine
Product Description
Summary of mould cutter roller door machine
1). To design and make the best roll forming machine, we took EUROPEAN quality standard;
2). Choose the best material and components, and adopting our 1 7 + years experience ;
3). We achieves that the machine capacity is double of the competitors;
4). The machine working speed can be 60m/min ;
5). Very easy to install and operate the roll forming machine.

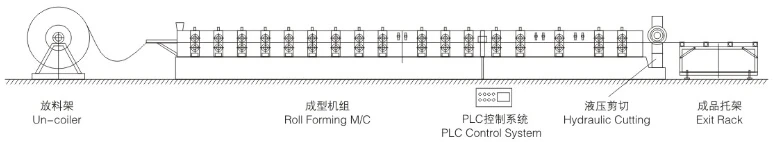

Machine working flow of mould cutter roller door machine :
Machine Technical Specifications of mould cutter roller door machine:
About raw material and product for roll forming machine
Material &product | Feeding width | according to profile |
Effective width | according to profile | |
Raw material | galvanized steel strip | |
T hickness | 0.3-0.7 mm | |
Yield strength | 280-350 MPA |
How to load the material??→Decoiler
Manual decoiler | Inner diameter:450-550mm | Expand by band |
Outer diameter:1500mm | ||
Max Coil width :30 0mm | ||
Capacity: 1.5T | ||
Decoiler dimension:1.5 *1.5*1.5m | ||
Decoiler weight:355KGS | ||
Quantity: 1set | ||
Usage: It is used to support the steel coil and uncoil it in a turntable way. Passive uncoil pulled by roll forming system | ||
What the main forming machine will be???→as below
Main Forming machine | Forming steps | 12 steps |
Shaft diameter | 50mm | |
Machine stand | Individual Arch Plate | |
Machine frame | steel plate welded | |
roller material | Cr12 | |
shaft material | 45# steel with quenching and tempering | |
Work speed | standard: 20---25m/min; 45---60m/min | |
Transport | By gear | |
Power of main machine | 4kw | |
Voltage | 380V-50HZ-3P(as required) | |
Machine dimension | 5.5*0.8*1.5m | |
Machine weight | About 2.5T | |
Machine color | Yellow and blue(as required) | |
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working Feature : Ensure stability , precision and lifetime. | ||

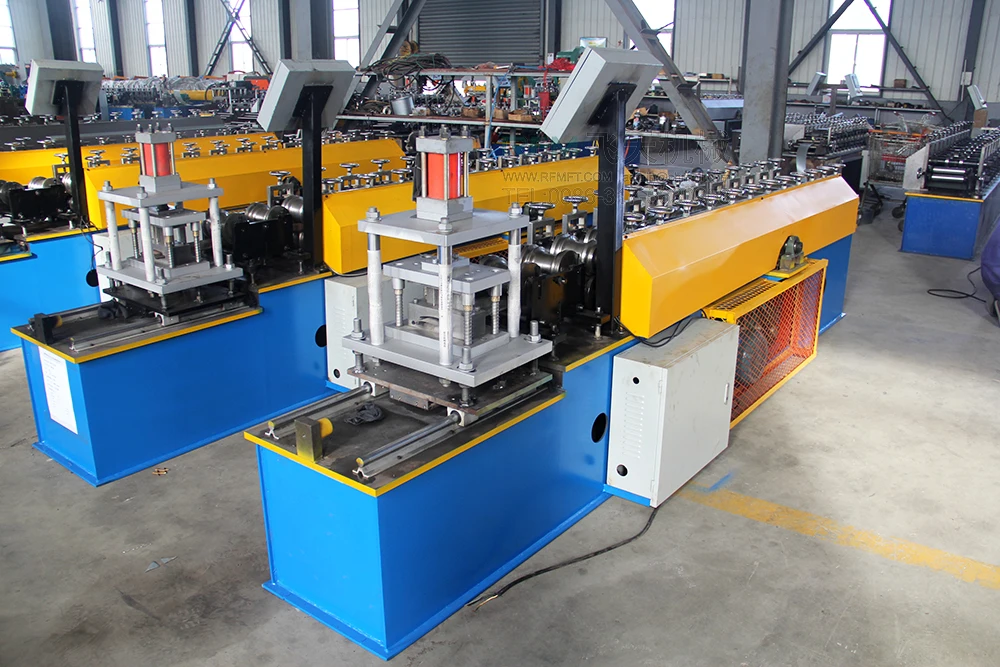

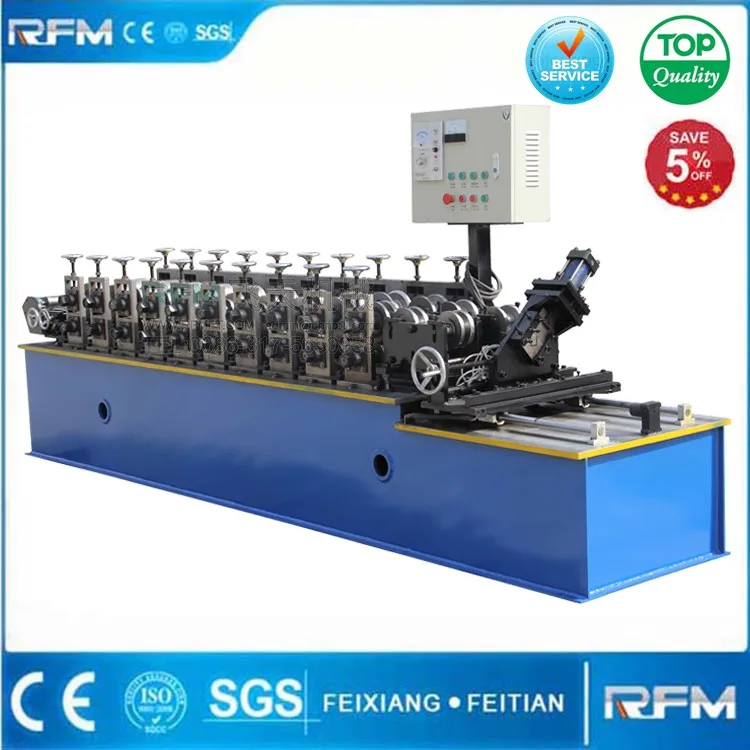

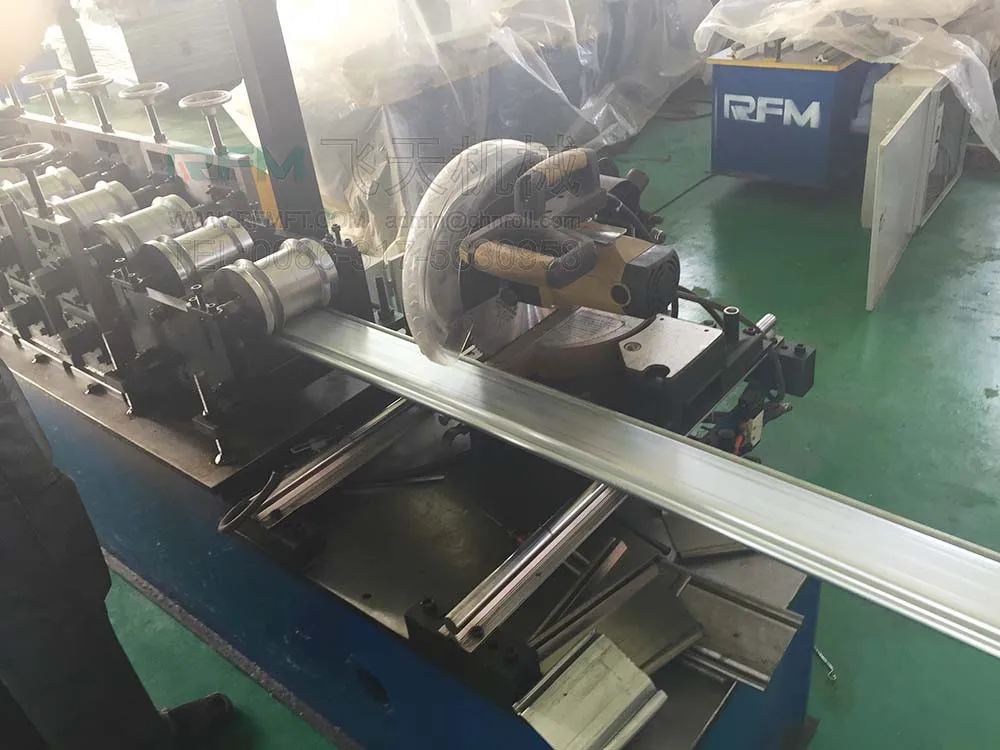

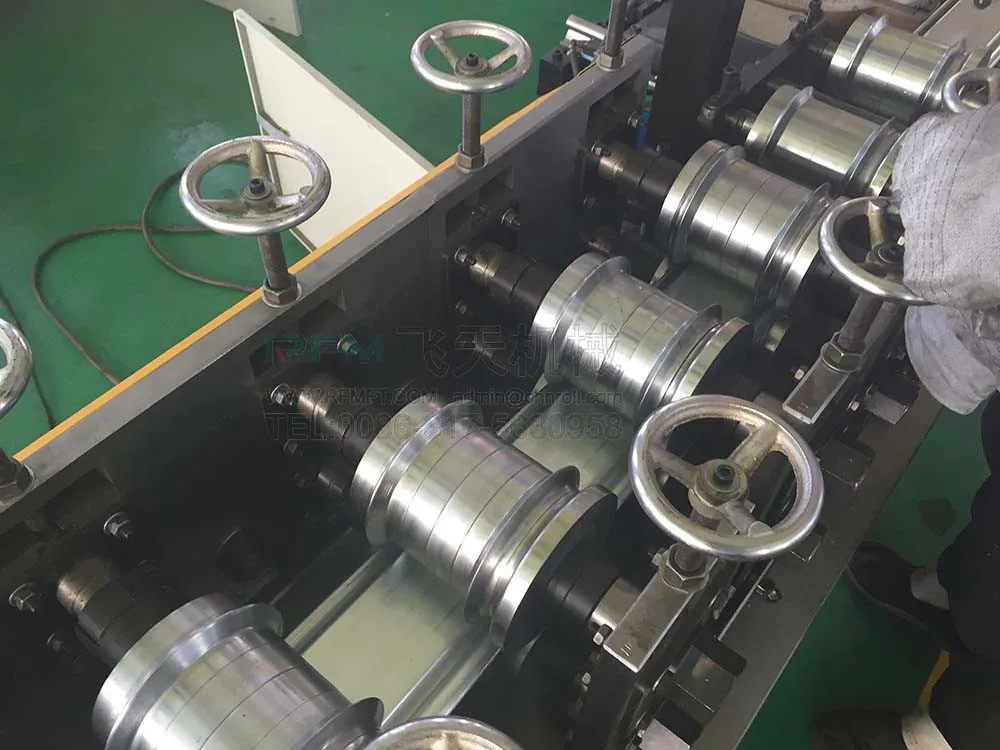

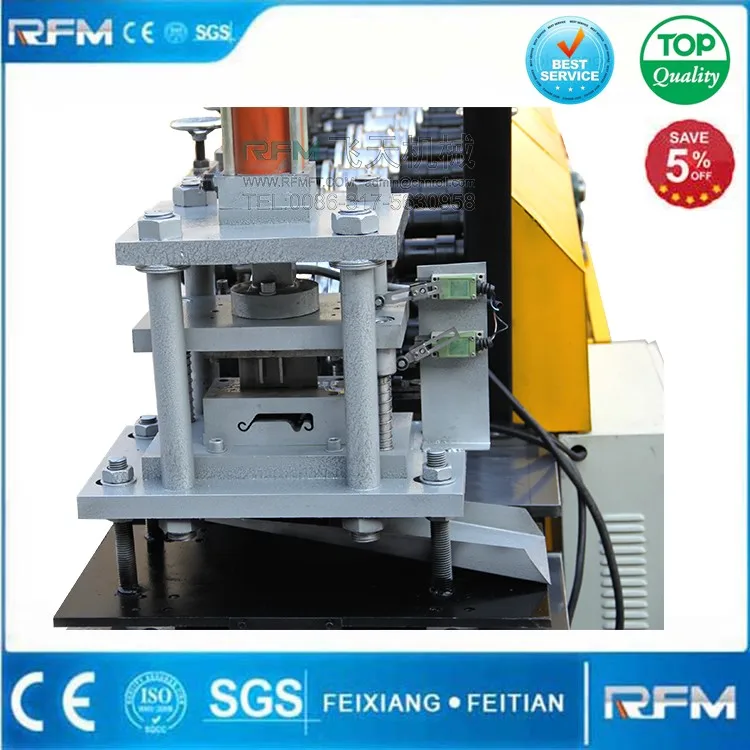

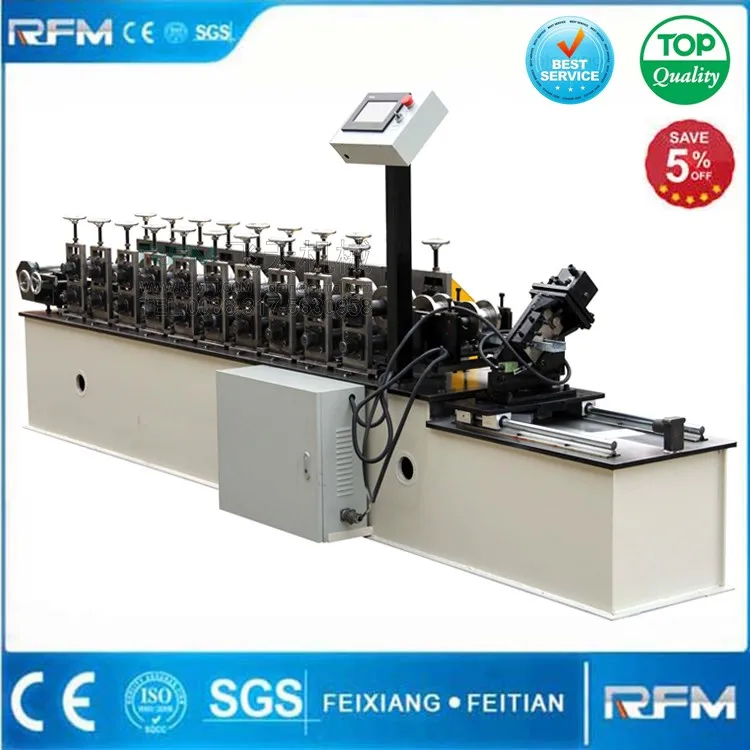

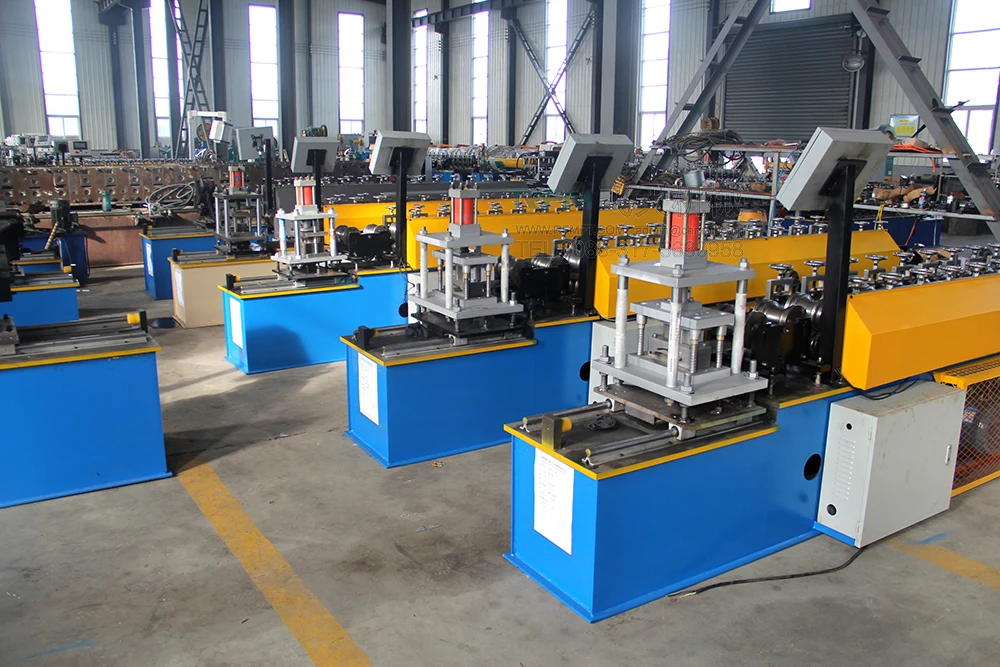

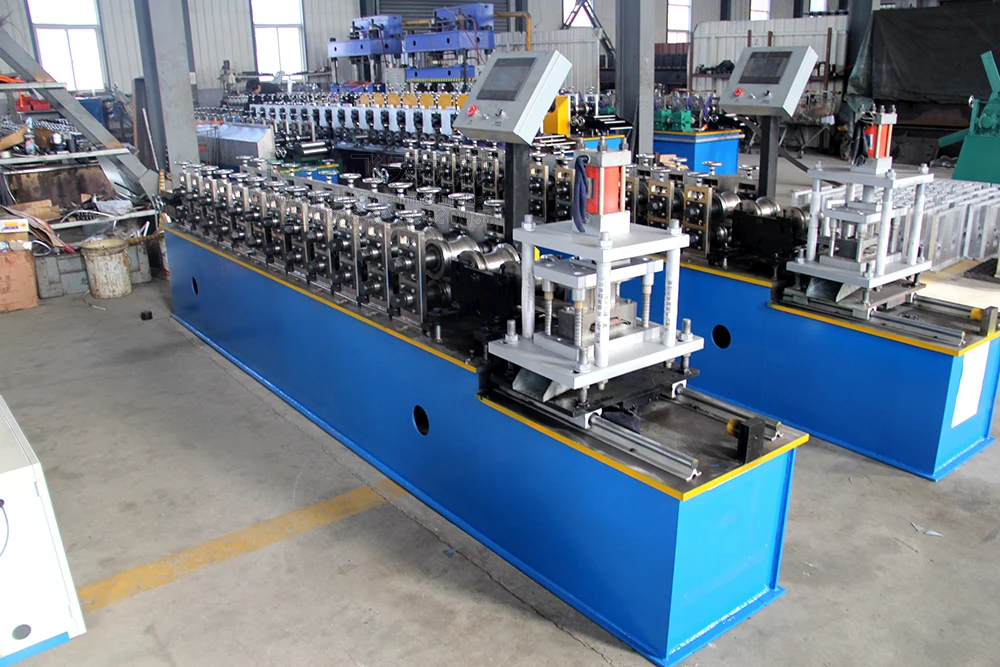

Product Pictures
Our Customers
We do together , dear customers !
Meeting you, growing with you, enjoying with you, supporting you!
Shipment
Package
Main machine: all rollers will be brushed unti-rusty oil, and packed with waterproof plastic film
Control box: be packed with thick cardboard, and outer side thick waterproof plastic film
All parts inside container will be fixed very well which can keep safety and fixed for long time sea transportation
Control box: be packed with thick cardboard, and outer side thick waterproof plastic film
All parts inside container will be fixed very well which can keep safety and fixed for long time sea transportation
