Product Overview

Description

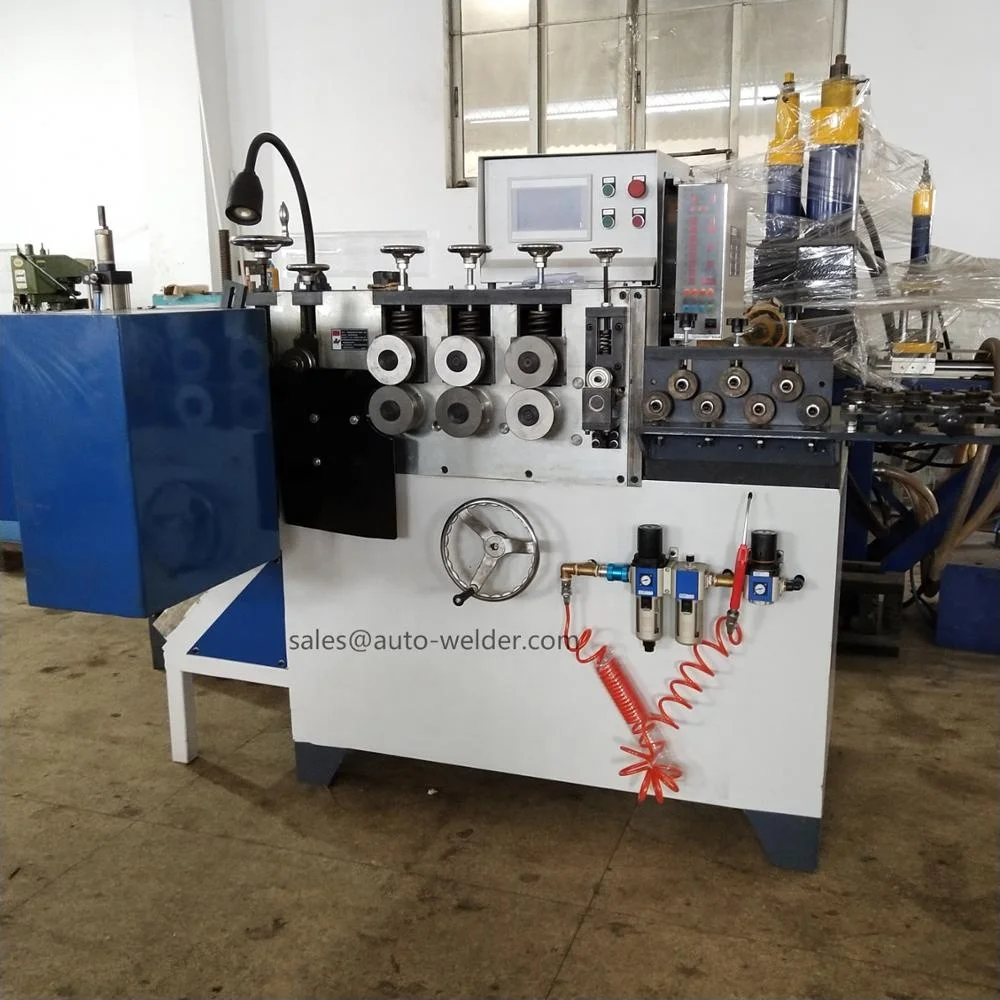

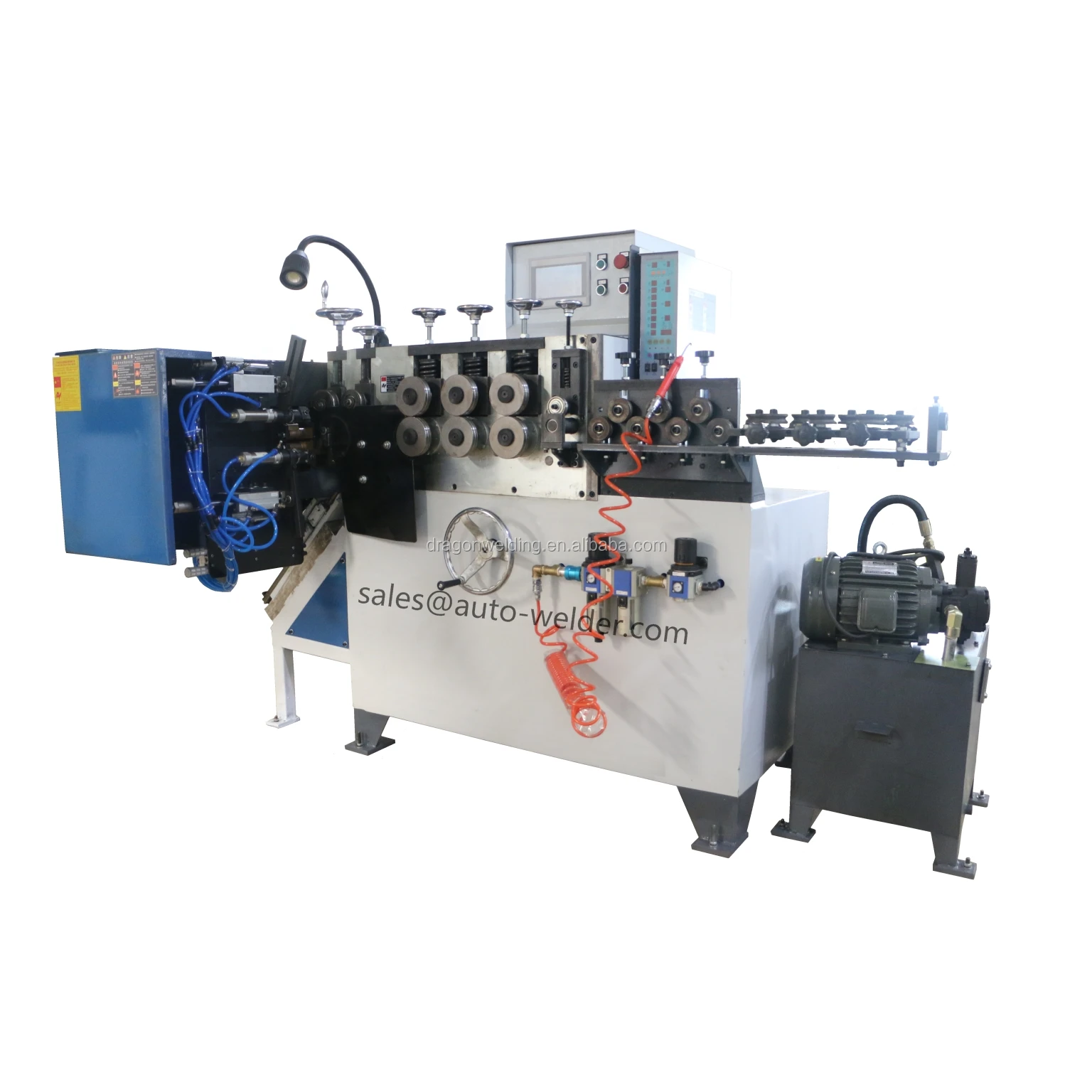

Automatic Wire Ring Making and Welding Machine



Used for bending the metal wire or metal strip into full circle,semicircle or any angle and any length concentric arcs.









Automatic Wire Ring Making and Welding Machine





1. Ring making and welding machine is a fully automatic equipment that is controlled by PLC to complete a series of actions such as feeding, straightening, ring forming, cutting, welding, etc., without manual operation, saving energy, saving time and labor;

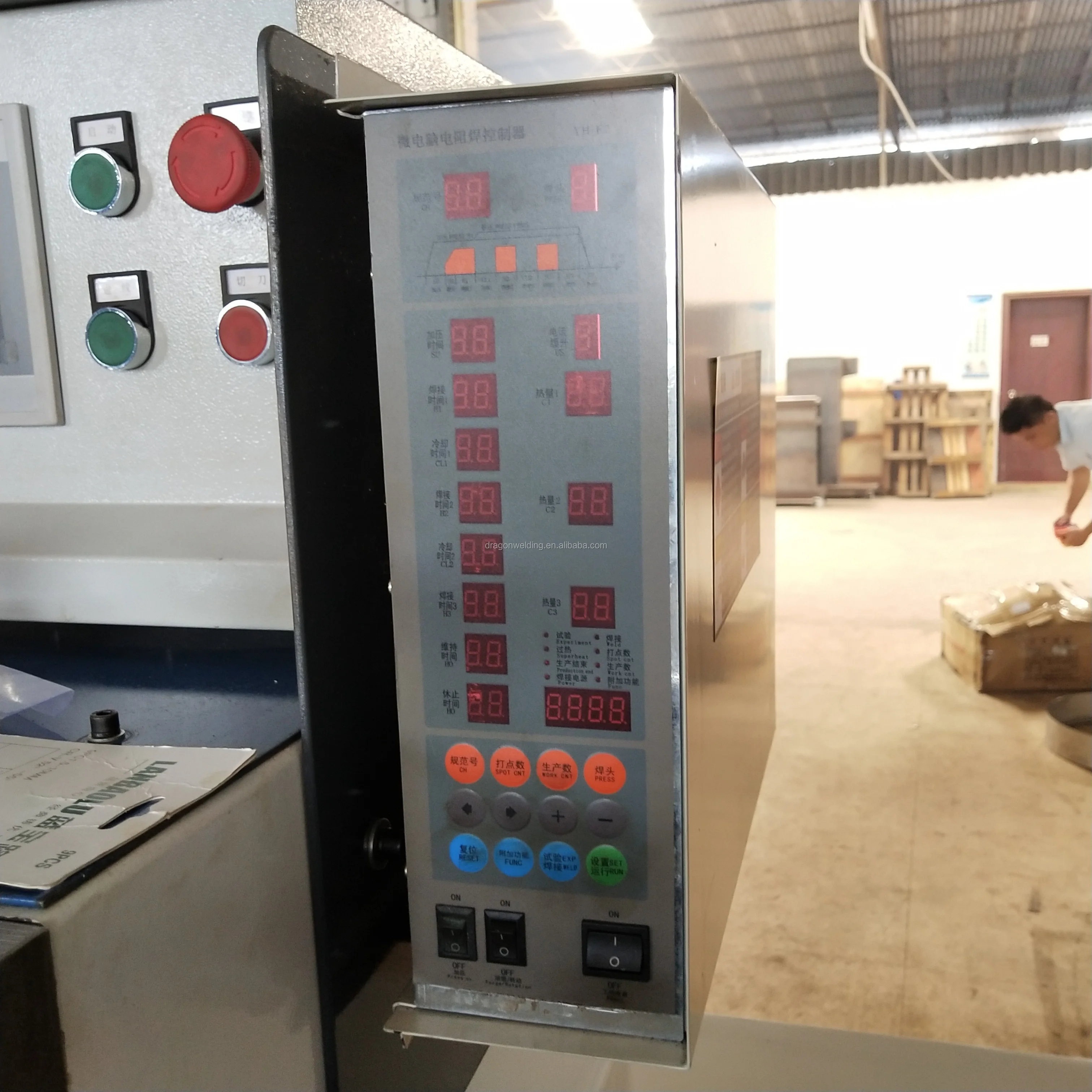

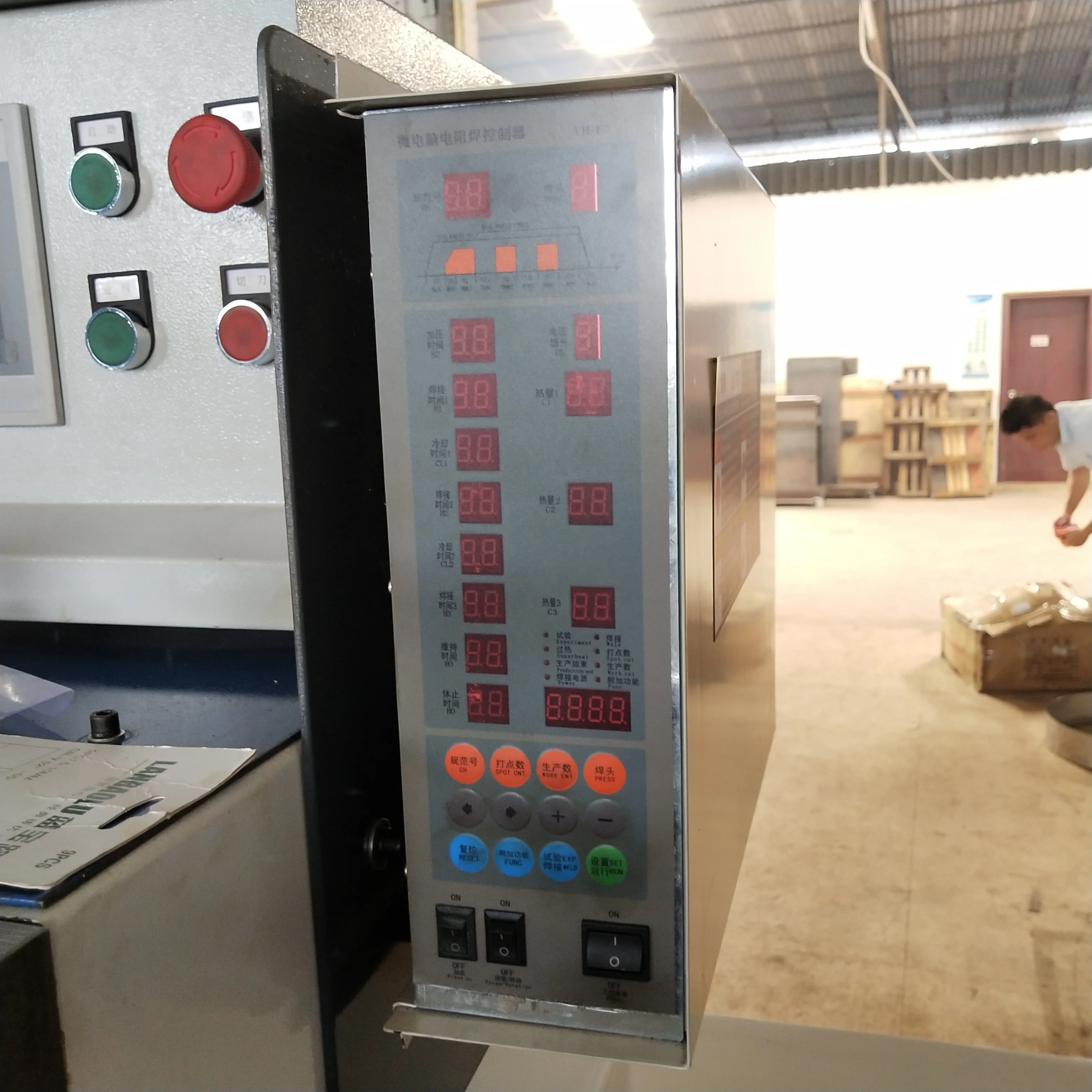

2. The control system is easy to operate, and the LCD touch screen can quickly and easily set various dimensions of the workpiece (different diameters, different diameters, etc.);

3. Servo motor feeding, gas-liquid pressurized cylinder cutting, energy-saving and high efficient, fast and high accurate;

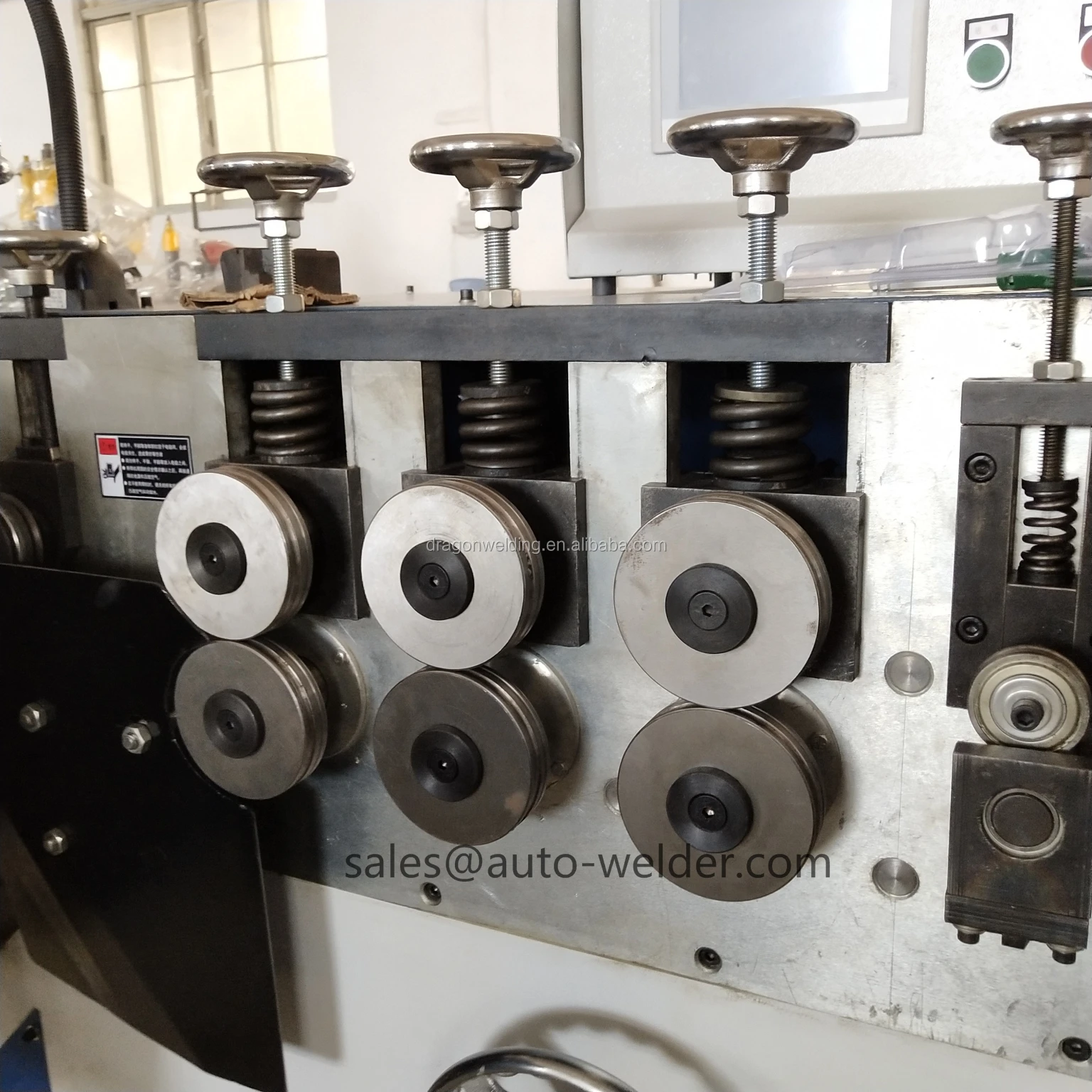

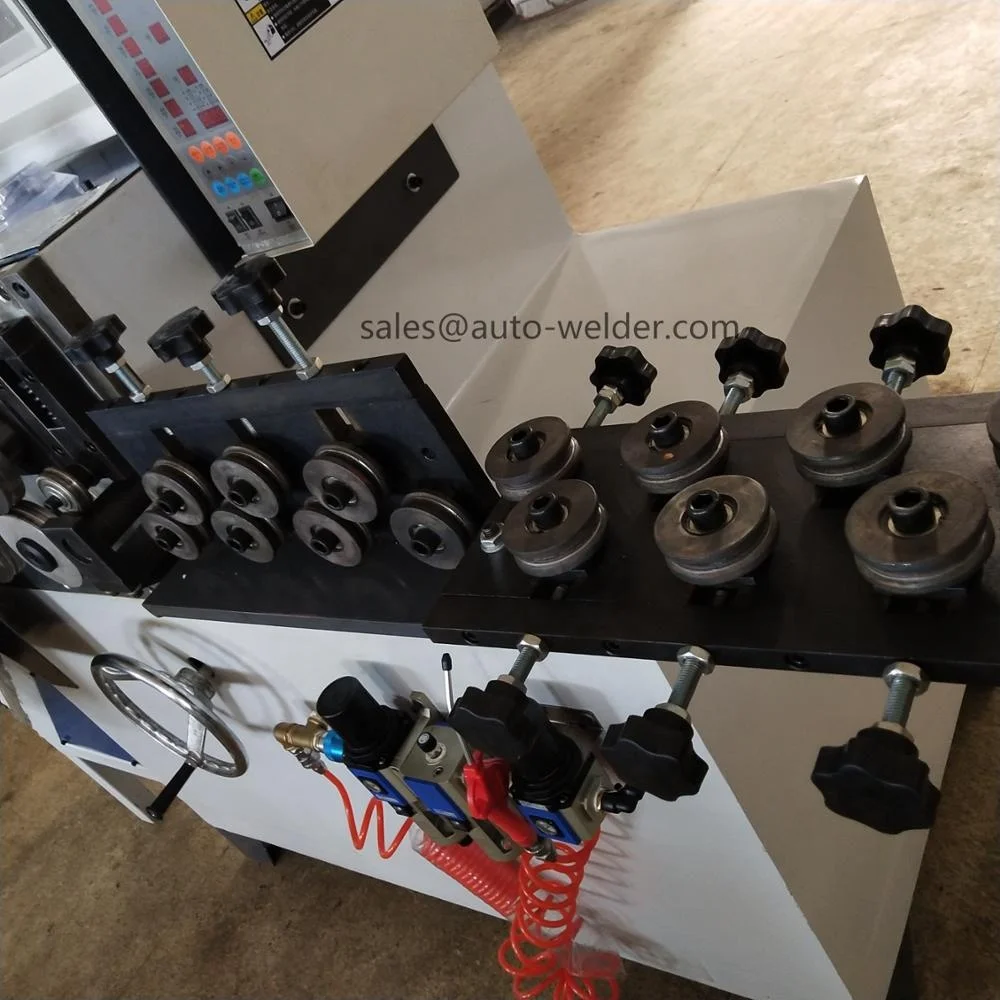

4. The straightening parts adopts X and Y double-axis rollers to straighten, and the straightening effect is more better than the traditional one; the control system adopts PLC program control, and the main parts adopt imported components to ensure the high precision and stability of the machine;

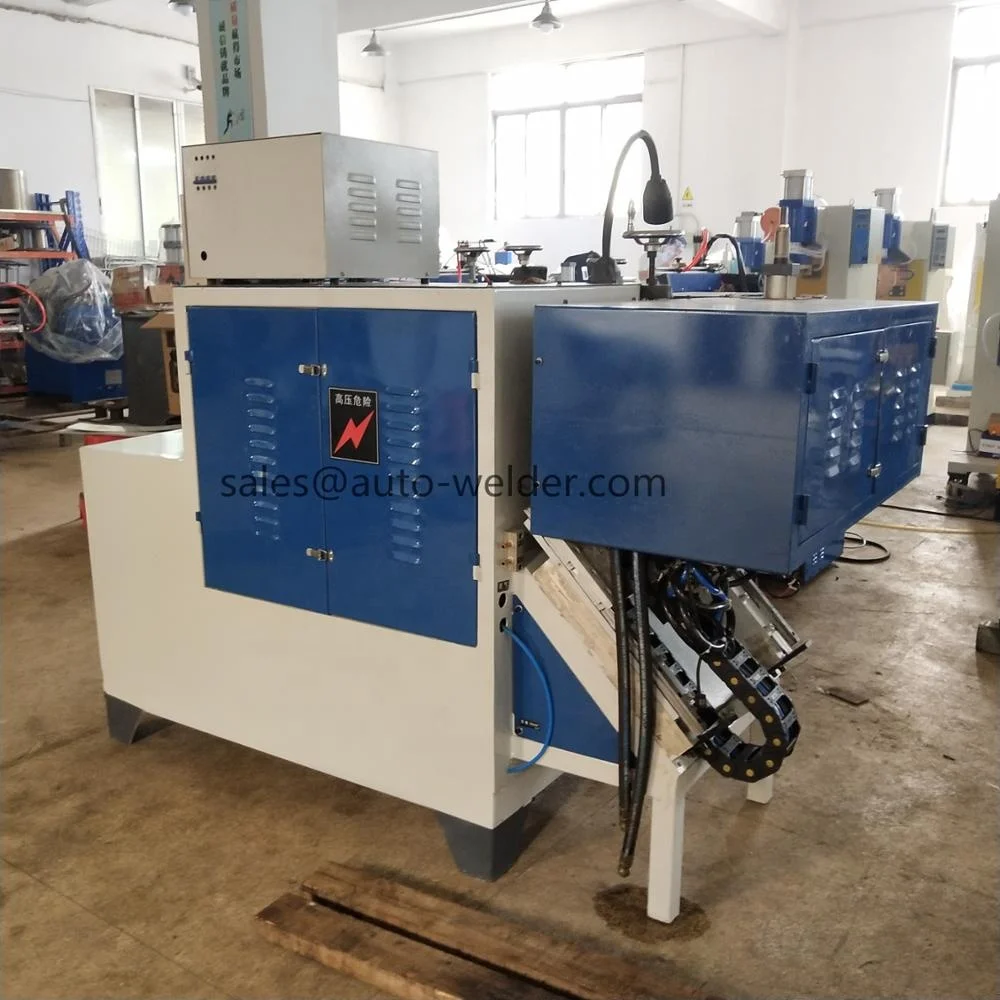

5. The welding mechanism adopts pneumatic mechanical arm welding, the action is flexible, the welding spatter is small, the use is convenient, and the performance is stable; the welding current can be adjusted according to the wire diameter, and the welding transformer is not energized when it is not working, saving energy and electricity;

6. The frame adopts steel structural parts, the whole machine is equipped with reasonable design, stable and convenient operation, long service life and simple and convenient maintenance;

7. This machine is suitable for ring forming and welding of metal wires such as iron wire, steel wire and stainless steel. It is one of the special equipment for metal wire processing industry. It is widely used in fan net cover, iron wire crafts, daily hardware and other industries.



   Automatic Wire Ring Making and Welding Machine

Model	HL-DD-6	HL-DD-8	HL-DD-6B
Wire Diameter	2-6mm	5-8mm	2-6mm
Min.ID of Ring	60mm	70mm	400mm
Max.ID of Ring	550mm	550mm	1000mm
Servo Motor Power	2.0KW	2.6KW	5KW
Max.Speed	30m/min	30m/min	30m/min











Our Products include Spot Welders,Butt Welders,Flash Butt Welders,Seam Welders,Medium Frequency Inverter DC Welders,Single-phase/Three phase Secondary Rectifier Spot Welder,Wire Mesh Welding Machines,

Sink Producing Line,Automatic Argon Arc Seam Welding Machines,High/Ultrasonic/Medium Frequency Induction Heating Machines,and other automatic equipments.







 The delivery time for standard machine is about 15-20days.(By Sea,by Air or by Express Way can be choosed)

Q1: What does your factory produce ?

  A: We produce and export all kinds of automatic welding machine and induction heating machine. We also can design and develop the welding machines according to your requirements.



Q2: What about your standard delivery date ?

  A: Usually 20-30 days. Our company provide just-in-time delivery



Q3:Do your factory sale directly ?

 A:YES,it is our factory sale directly,competitive price with high quality and excellent after-sale service.

Our quality products have been export to many countries,such as Germany,Russia,USA,Canada, Argentina,Peru,Turkey,Bazil,Spain,South Asia and Middle East countries.



Q4: Do you have CE Certificate?

  A: YES,we have.



Q5: Can you export machines by your factory?

  A; YES,we can.



Q6: Where are your factory?

  A: Our factory located in Panyu District , Guangzhou City, Guangdong Province, China.



Q7: Will you send engineer to help installing the welding machine?

  A : Yes, if need,we can send our engineer to go to your factory to help installing our welding machine, train the workers and make sure the welding machine running well before he leave.



Q8: If the machine get damaged, what can I do ?

   A: In the guarantee time (1 year) , we will send the spare parts to you for free. And provide the technical consultant for anytime.if more terrible,we can send our engineers to your factory.

  We will provide same good after-sale service as the pre-sale service, any of your questions,

we will be replied within 12 hours.
