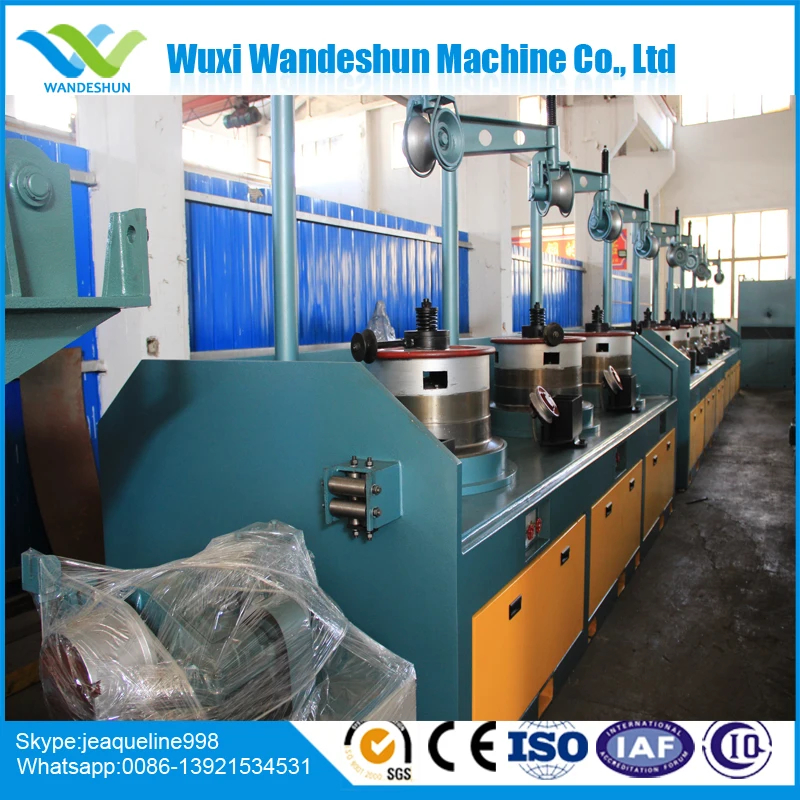

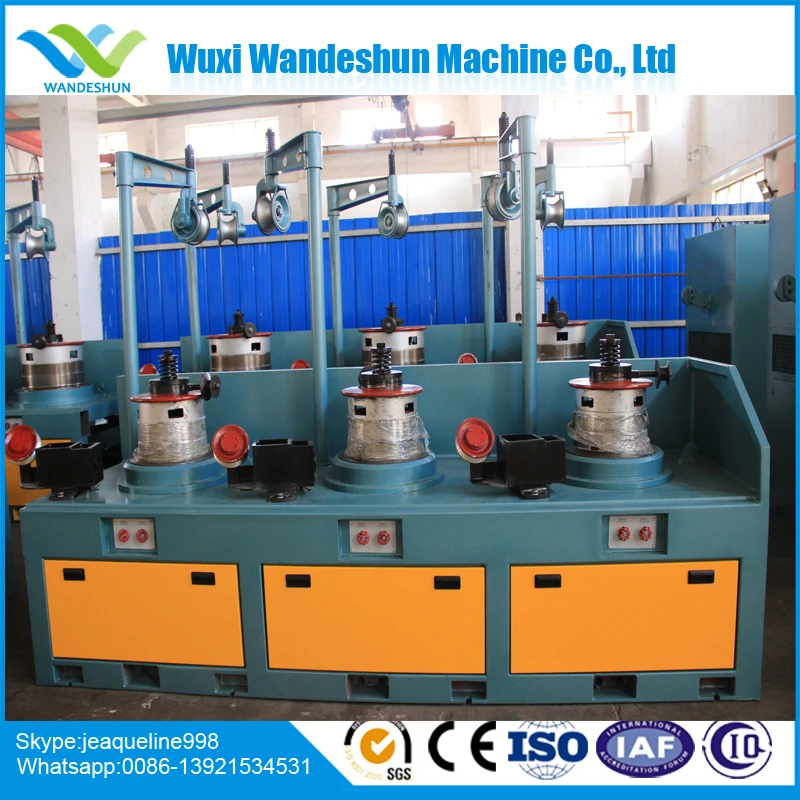

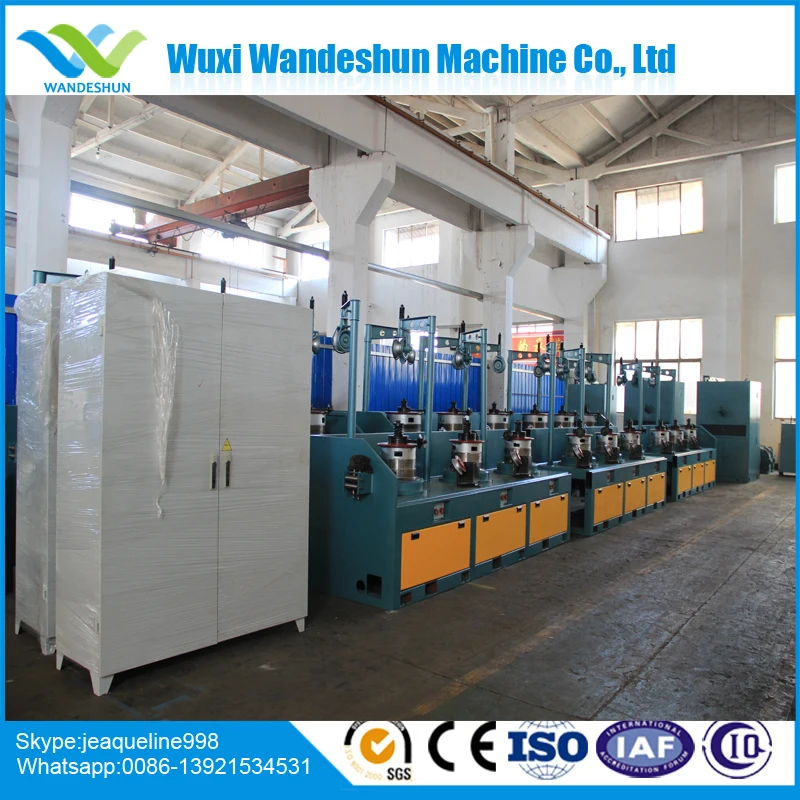

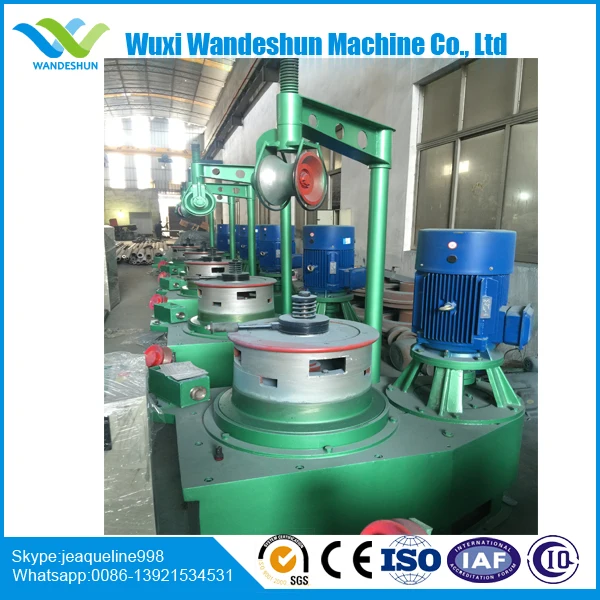

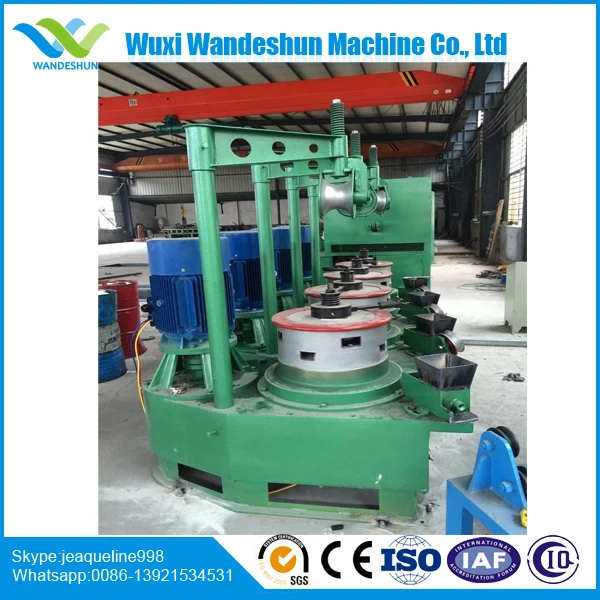

OTO Type/pully Steel Wire Drawing Machine LW9/560 Controlled by PLC/nail wire making machine

Product Overview

Description

Wuxi Wandeshun Machine Co., Ltd  (we are professional factory)



 1.    About us



Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.



Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia, Uzbekistan Kenya, South Africa,Algeria,Egypt, Iran, Turkey and so on.



Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.

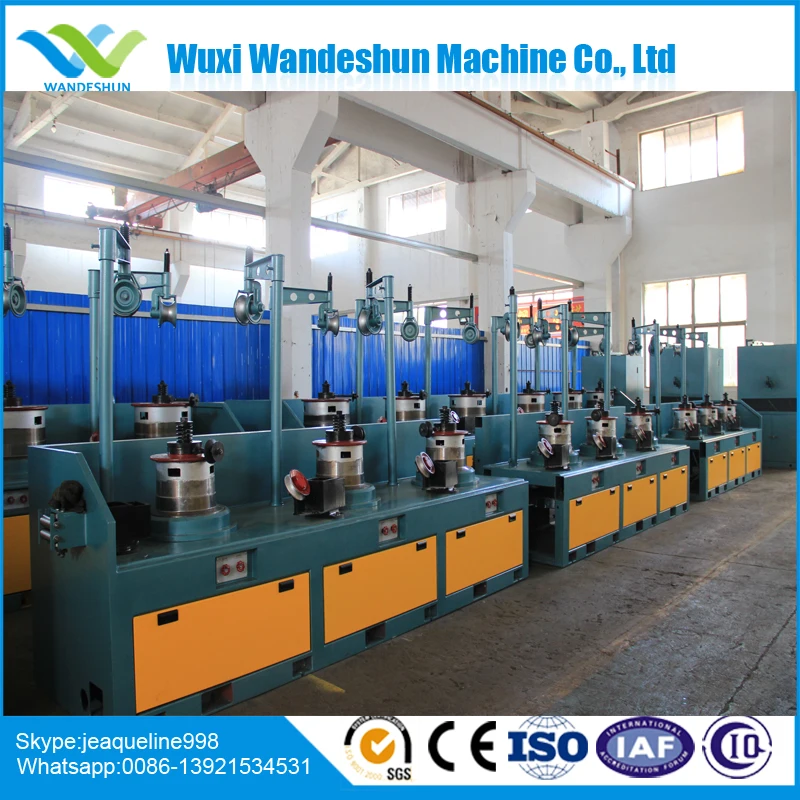

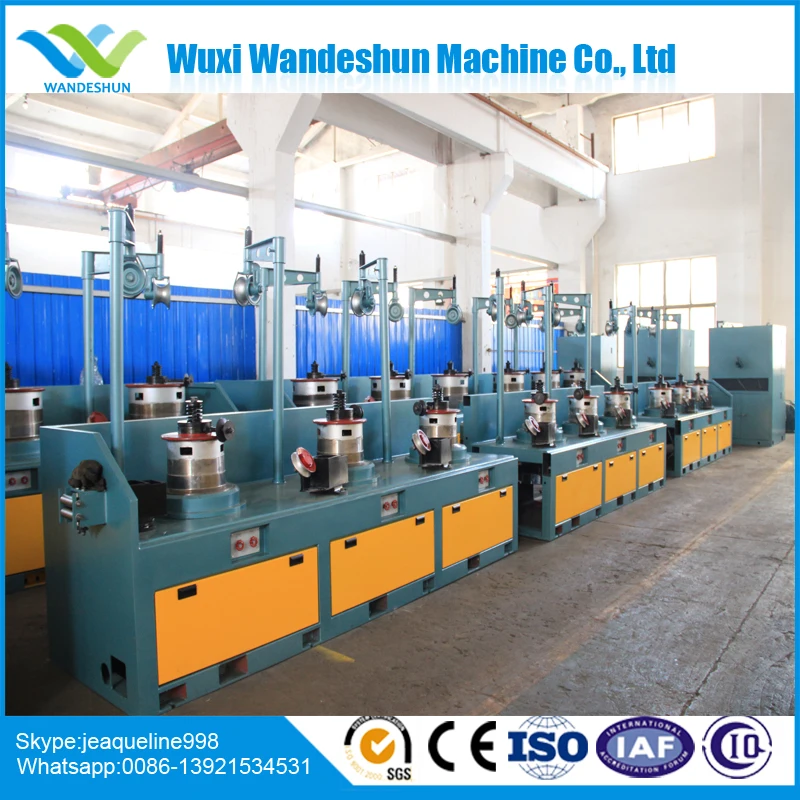

OTO Type/pully Steel Wire Drawing Machine LW9/560 Controlled by PLC/nail wire making machine





Our company is a big private enterprise manufacturing various wire drawing machines with more than 25 years professional experience. We supply advanced wire drawing machine and excellent after-sales service for Chinese and overseas metallic industry.



Features:



1.Controlled by PLC

2.Easy operation

3.High speed

4.High efficient

5.Low noise

6.Excellent after-sale services

7.Low operation cost

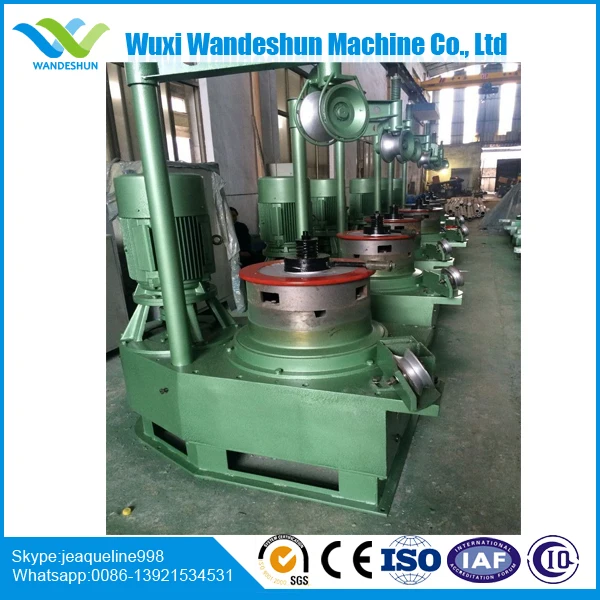

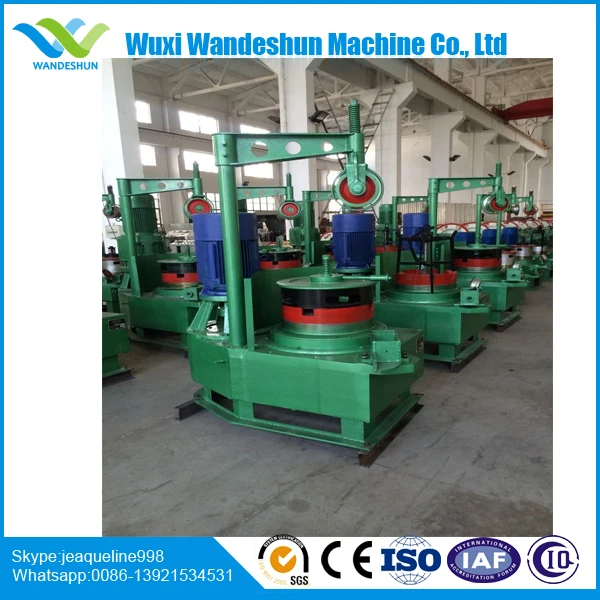

 Structure:

The equipment consists of main reduction box,die casing,wheel frame,sash brace and

electrical control system.The spinning drawing blocks are driven by JZT series motor,with gear coupling runs changeful gears to reduce speed. The drawing blocks are verticaly fixed in sealed box body.The gear pair are lubricated with oil.

 Specification

Diameter of capstan	350-450	560	mm
Drawing dies	9	9	Time
Maximum diamter of inlet wire	2.5-3.0	6.5	mm
Minimum diameter of outlet wire	0.8	2.0	mm
Total compression rate	91	90.53	%
Average compression rate	23.5	23.04	%
Maximum linear speed	12	6	m/s
Unit motor power	7.5-11	18.5-30	kw
Unit dimension	9000×1650×2250	12000×1850×2250	mm
Unit weight	2	2	t
Inlet variable-frequency	Controlled by PLC	Controlled by PLC



Note: We can produce according to customers' requirements.

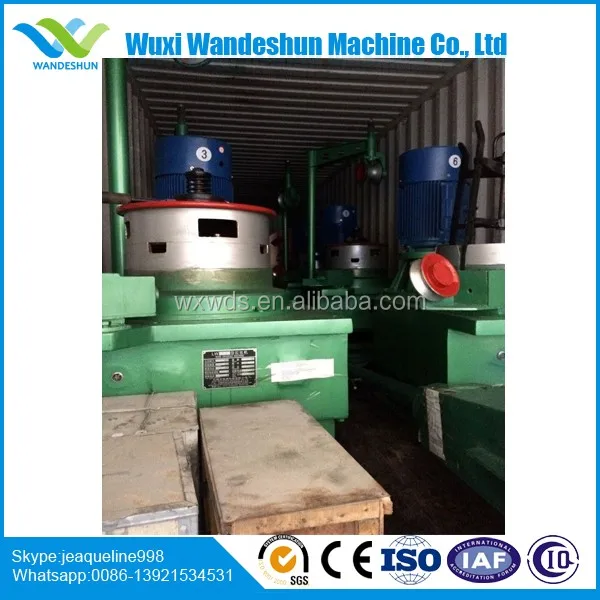

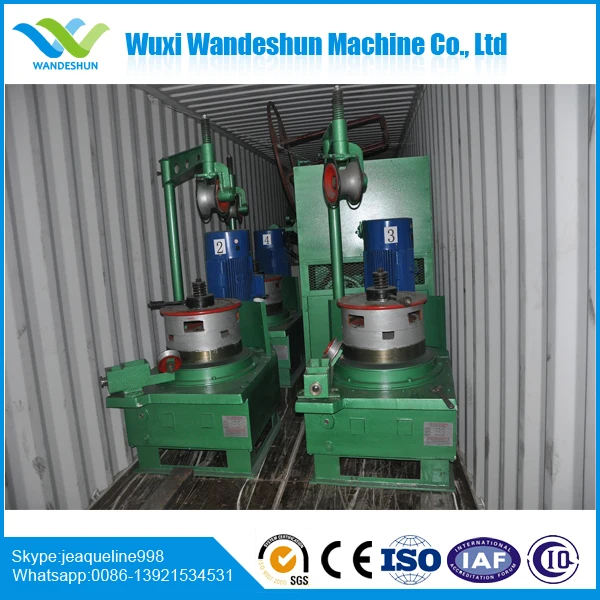

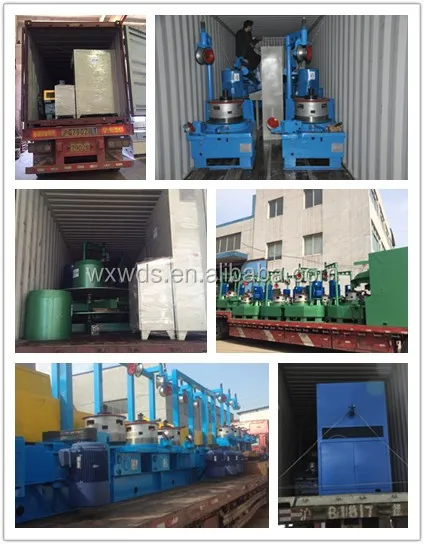

 our loading and shipment  photos

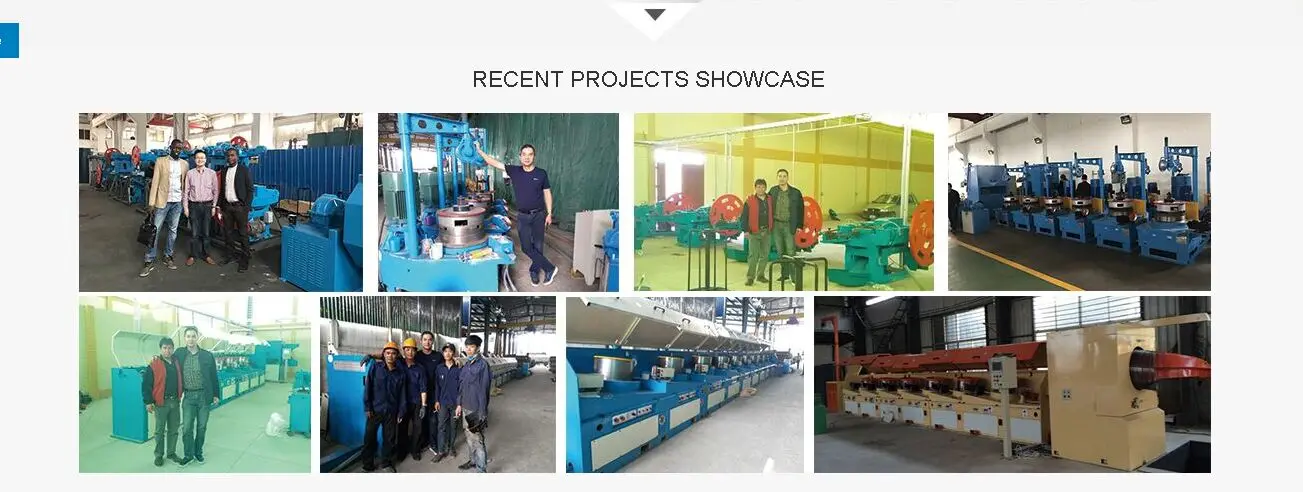

 our clients and our machine
