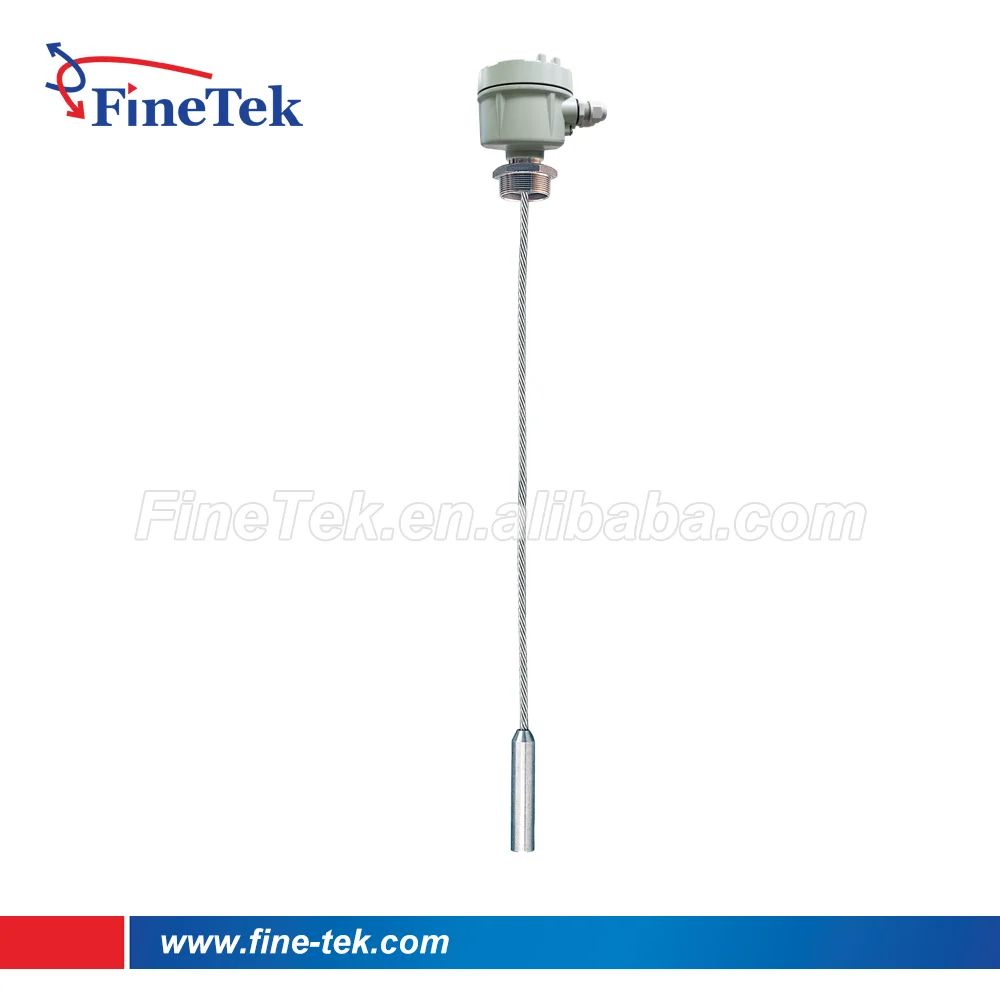

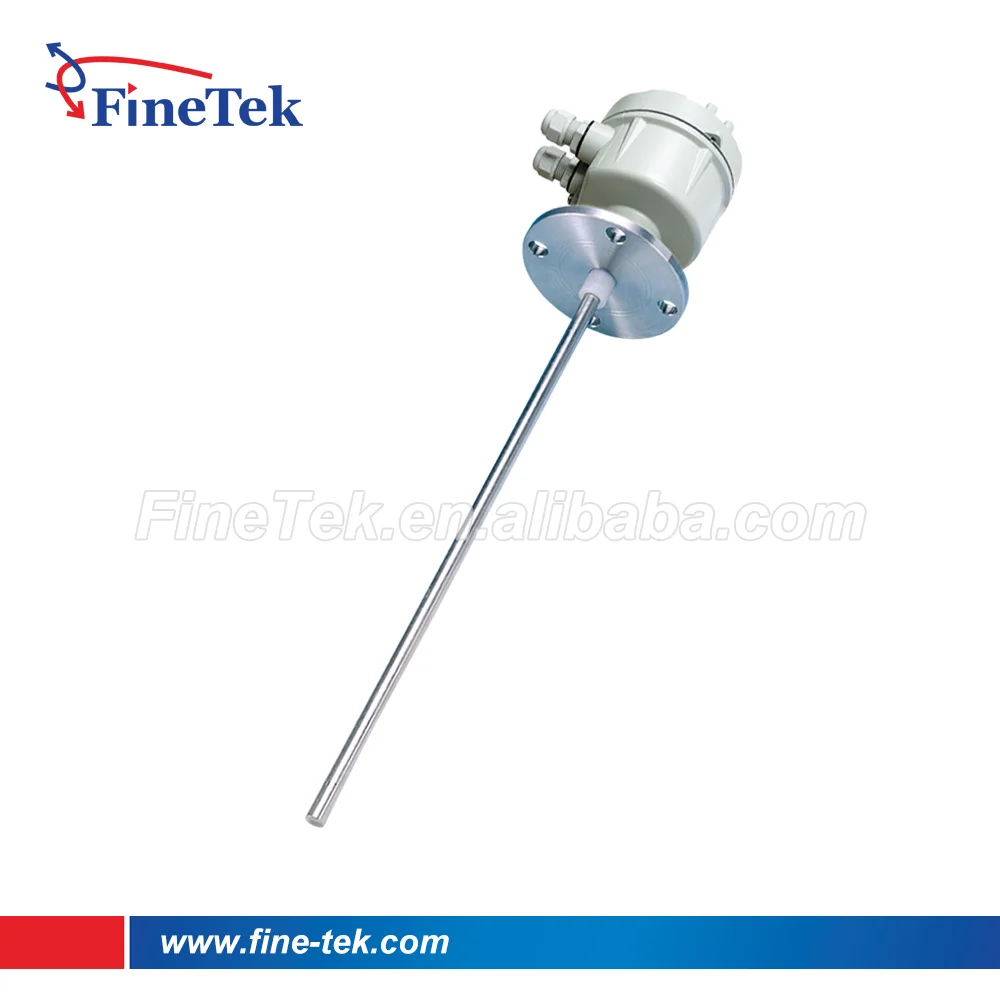

High reliability measurement RF admittance capacitive Liquid Level Transmitter

Product Overview

Description



Capacitance Level Indicator: Utilizes the capacitance formed between the sensing probe and the metallic vessel wall. A high frequency sine-wave is applied between the probe and the vessel wall.



A change of the medium level will induce a change in the current of the applied sine wave.
From Z=1/2pfc, when the capacitance in the vessel increase, impedance will decrease and current will increase. Vice-versa, when the capacitance in the vessel is small, the impedance will increase and current will decrease accordingly.



•

  Suitable for high temperature, high pressure and corrosive environment.




•

  Not affected by noisy, dusty, misty and changes in the temperature.




•

  No blind distance, ideal for different tanks.




•

  Economic for large tanks




•

  4~20mA output compatible for most control systems and meters
