Automatic 1 colour cylinder screen serigraph printing machine GW 1C UV

Product Overview

Description

Automatic 1-colour cylinder screen serigraph printing machine GW-1C-UV

Feature:

the full automatic one color curve screen printer is widely applicable to high-precision pictures & words printing on the container surface in cosmetic, medicine, food, electric appliance, toy, cabinet and many other fields. The demand of Arc surface printing ,such as cylindrical, elliptic cylindrical and other heterotype containers,could always be meet,and the machine is compatible for plastic bottle,glass bottle,metal materials. The electric control system consists of PLC and advanced touch screen as to intelligent operation for the whole machine .The new transmission system consisted of advanced imported motor,speed converter device and pneumatic component which has the function of electrodeless variable-speed,synchronous transmission ,auto allocation and no-workpiece-no –printing.

The machine is with flame treatment system , can treatment surface of round product.automatic drying after printing.



Application:

Full-automatic Screen Printing Machine is used for printing various patterns on the surface of cylindrical or oval container, the printing materials may be used by plastics ,bottle, glass , ceramics and metals etc.



Technical parameter:

⊕ Round printing diameter:20mm~108mm ⊕ Round printing height:20mm~280mm ⊕ Oval printing diameter:R20mm~R180mm ⊕ Oval printing height:20mm~280mm ⊕ Max printing speed:3600Pcs/Hour ⊕ Power supply:AC220V 1 PAHSE/AC380V 3Phase 50Hz/60Hz ⊕ Rated power:15KW ⊕ Air pressure:5~8bar ⊕ Machine dimension:(L2000mm*W1200mm*H1750mm)*2 pcs ⊕ Machine weight:2000kgs

Machine main motor:MOTOVARIO ⊕ PLC:OMRON ⊕ Photoeletric switch:OMRON ⊕ Touch screen:KINCO ⊕ Button switch:APT ⊕ Contactor:SCHNEIDER ⊕ Relay: OMRON ⊕ Frequency converter: PANASONIC ⊕ UV coating system:HONOVIA ⊕ Pneumatic components:SMC/AIRTAC

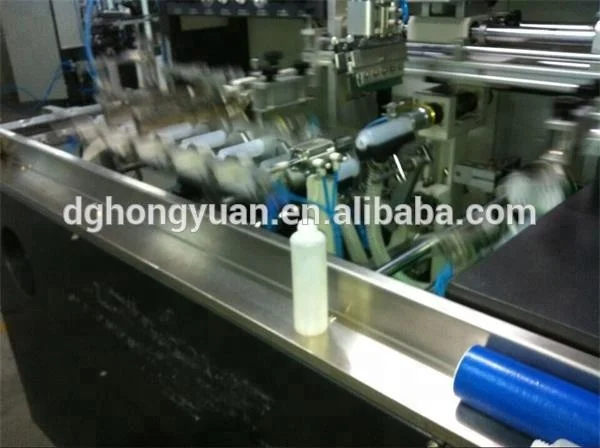

Actual machine picture:
