capillary thermometer with Gas Filled Thermometers

Product Overview

Description

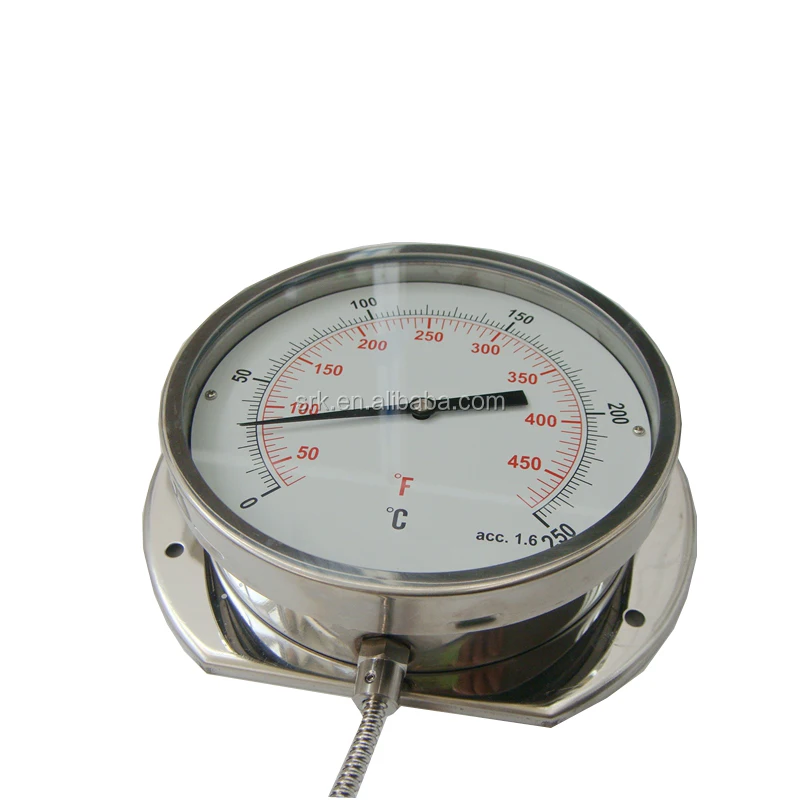

 Name:Capillary thermometer with Gas Filled Thermometers



Beijing ShengRuiKe offer a complete range of made to order, high quality mechanical dial capillary thermometers available with a wide range of options to meet the requirements of most industrial applications





I. Gas Filled Thermometers   Main technician parameter





Dial Size:	3", 4" 5", 6"
Stem diameter:	Φ6.3, Φ8, Φ10
Temperature probe :	Φ14 x 60,100,150, 200, 250, 300mm
Connection:	Bottom, and back connection
Capillary length :	≤ 20 m
Connection thread:	1/4", 3/8", 1/2" BSP, BSPT, NPT
Case ring:	304 stainless steel
Window (lens):	Polycarbonate lens, tempered glass available
Accuracy:	1.6% full scale
Option Info:	Other materials, ranges, connections are available upon request





II. Gas Filled Thermometers  More Specification for Choice



 1. Dial Size?



2. Temperature Range?



3. Back or Bottom or Adjustable Type?



4. What is the thread size?



5. Display C&F or only C?



6.Capillary Length?



 III. Gas Filled Thermometers  Show







Remote Reading Thermometer
