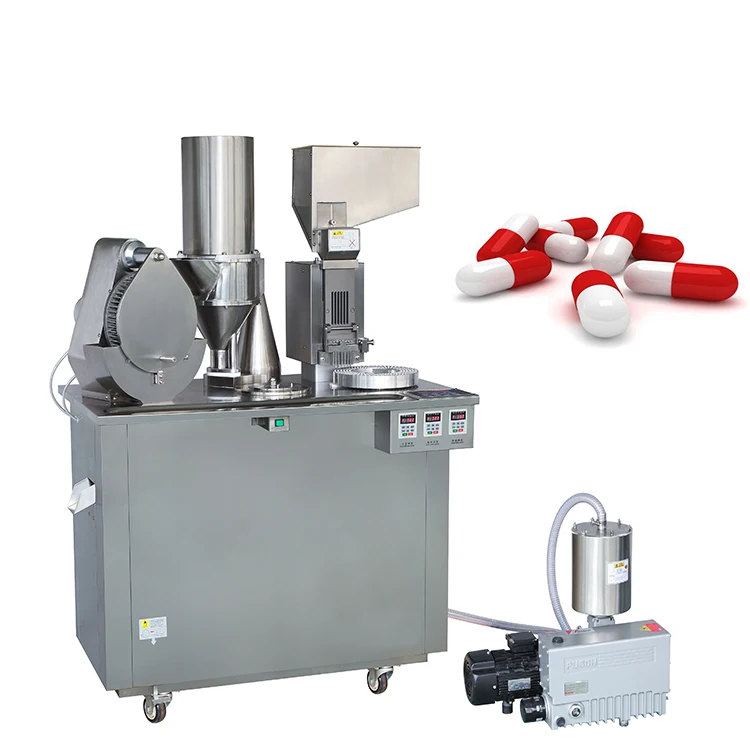

Hot sale CGN208-D pharmaceutical powder granule manual small semi automatic capsule filling machine









Product Description





1. Semi Automatic Capsule Filling Machine is a new type of medicine filling machine with novel structure and attractive appearance.
2. Under both electrical and pneumatic control and equipped with and automatic electronic counter and computer-controlled speed-adjusting device, the machine can accomplish the positioning, separation and locking etc. of capsules.
3. In place of manual capsule-filling, it can reduce labor intensity and raise productivity. Its filling amounts are accurate and up to sanitary standards for pharmaceutics.
4. The machine consists of capsule-feeding, U-turning and separating mechanism, material medicine-filling mechanism, locking device, electronic speed varying and adjusting mechanism, electrical and pneumatic control system protection device as well as accessories such as vacuum pump and air pump.
5. China machine-made capsules or the imported are applicable to this machine, with which the finished product qualification rate can be above 97%.








Technical Parameter:





















































Model



CGN208-D



Output(pcs/min)



1000-25000 pcs/hour



Capsule Size



#000-#4



Total Power



4.0KW



Filling formulation



Power(no wet and viscosity); small Granules



Air pressure



0.03m3/min   0.7Mpa






Vacuum pump



(Pumping rate)40m3/h






Net Weight(KG)



380kgs



Gross weight



450kgs



Dimension(mm)



1140×700×1630



Dimension of Export Package(mm)



1650 X 800 X 1750

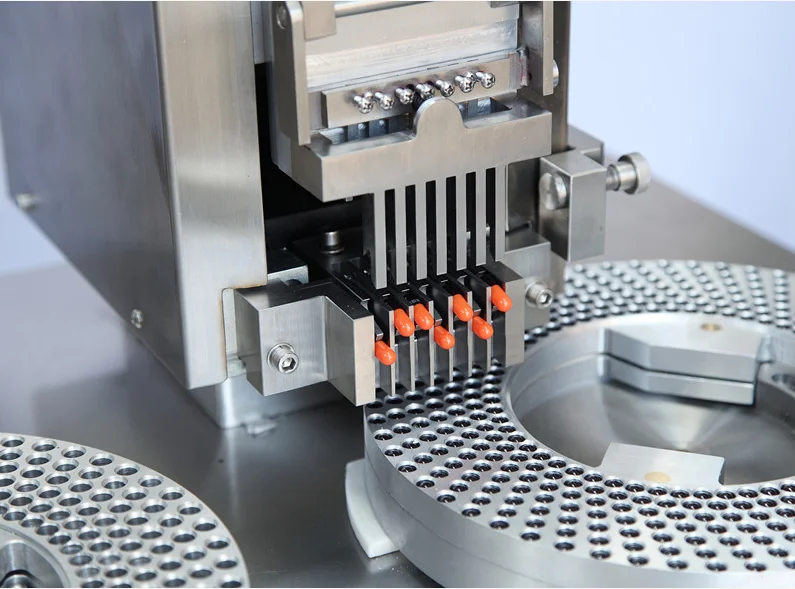

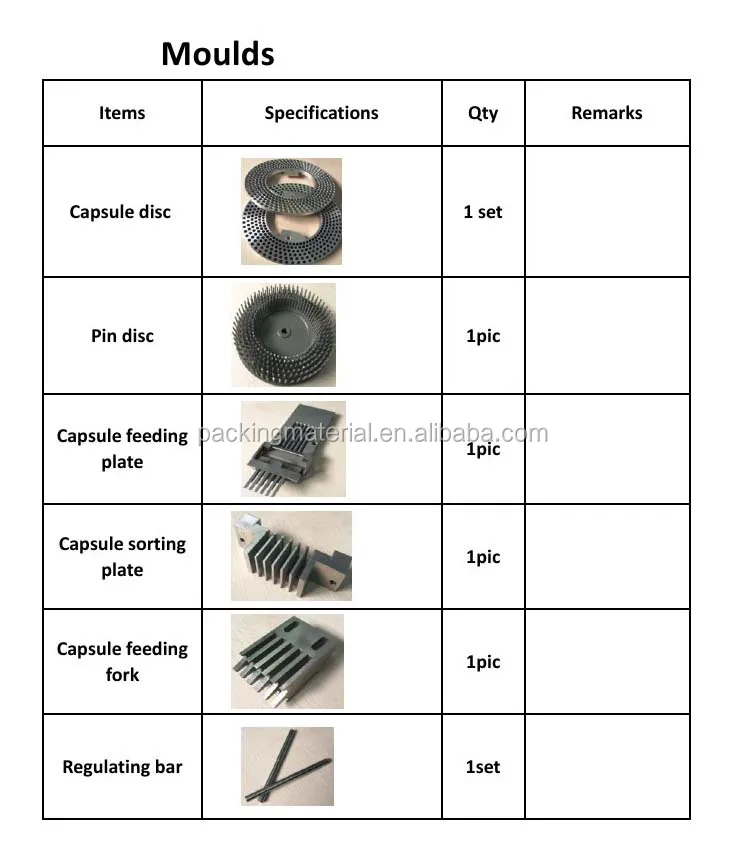

 1 (1).png1 (2).png0001.jpg001_.jpg


 2 (2).jpg

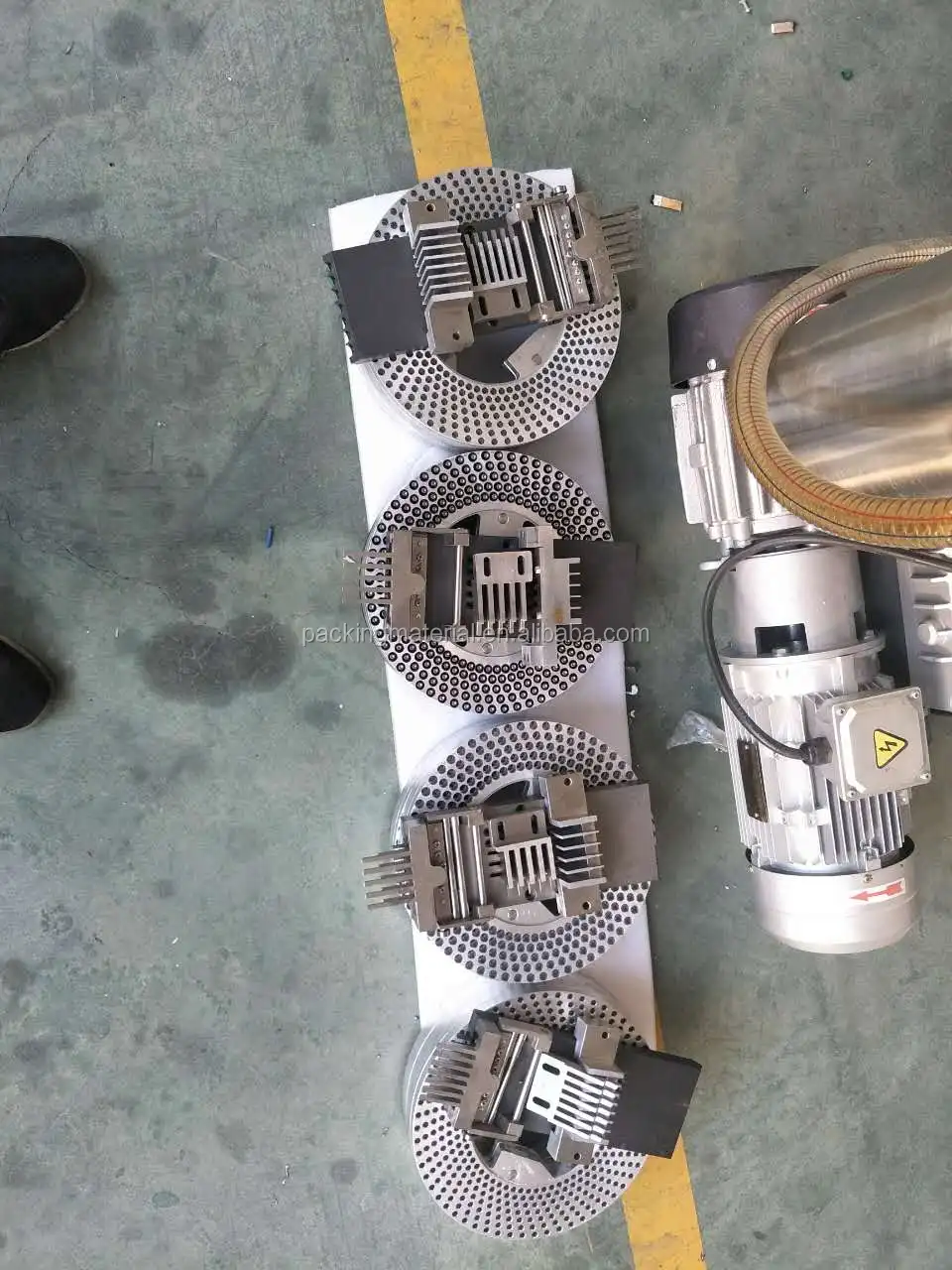

Mould for CGN208-D.jpg








Packaging & Shipping















Our Services








Installing and Commission:


We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging&Boarding expenses shall be payable by you. In case the stay of our technician, additional service fee will be charged .








Warranty period:


 One year for fully machine guarantee. And in this year if the machine broken caused by mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
