7m Round Turning Table Foam Cutting Machine
- Category: Foam Cutting Machine >>>
- Supplier: Dongguan U-Long Machinery Co. Ltd.
Share on (60331860878):
Product Overview
Description

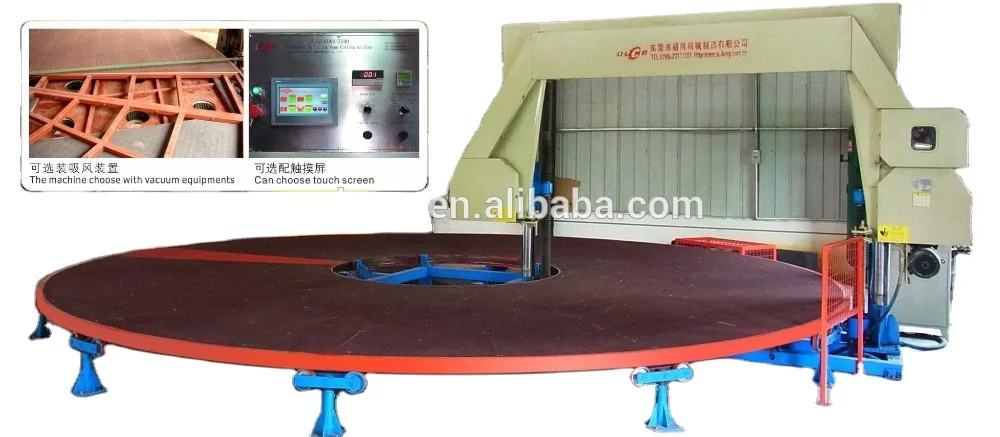

ULYP-7280 Round Turning Table Foam Cutting Machine
This machine can cut multi-blocks at one time,so the working efficiency is high,and the following items are optional:
1.vacuum devices,which can make the foam more stable when cutting
2.TaiWan ball screw,it is more durable and the cutting is more exactly
3.PLC control system & touch screen,the operation is more simple
| Model | ULYP-6000 | ULYP-7280 | ULYP-10500 |
| Cutting foam size | W1.5xL2xH1.2m(4pcs) | W1.5xL2xH1.2m(6pcs) | W1.5xL2xH1.2m(8pcs) |
| Cutting foam size(max) | W1.5xL2xH1.2m(4pcs) | W2.15xL3xH1.2m(6pcs) | W2.15xL4.5xH1.2m(6pcs) |
| Total power | 8.92Kw | 8.92Kw | 11.92Kw |
| Worktable turning speed | 0-3.5r/min | 0-3.0r/min | 0-2.0r/min |
| Blade length | 8980mm | 10000mm | 10240mm |
| Add the optional stationary front and back pressure roller | 9220mm | 10240mm | 10470mm |
| Worktable dia | 6000mm | 7280mm | 10500mm |
| Cutting thickness | 2-150mm | 2-150mm | 2-150mm |
| Machine weigh | 3300Kg | 3500Kg | 4500Kg |
| Machine external size(LxWxH) | L6.9mxW6mxH2.4m | L7.9mxW7mxH2.4m | L11.5mxW10.5mxH2.4m |
