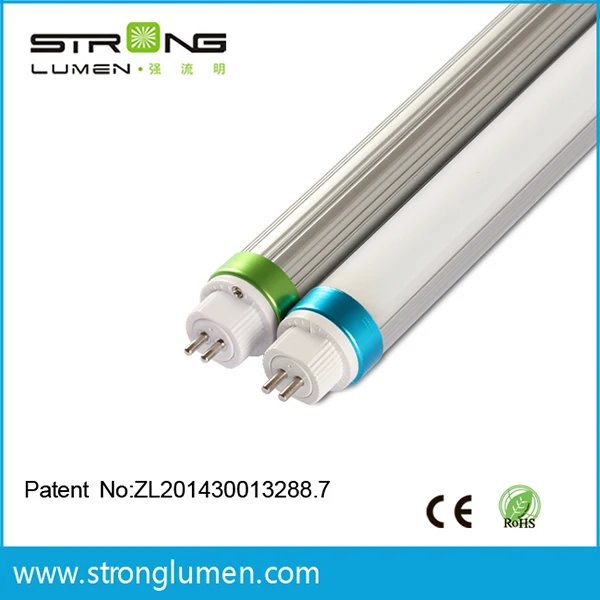

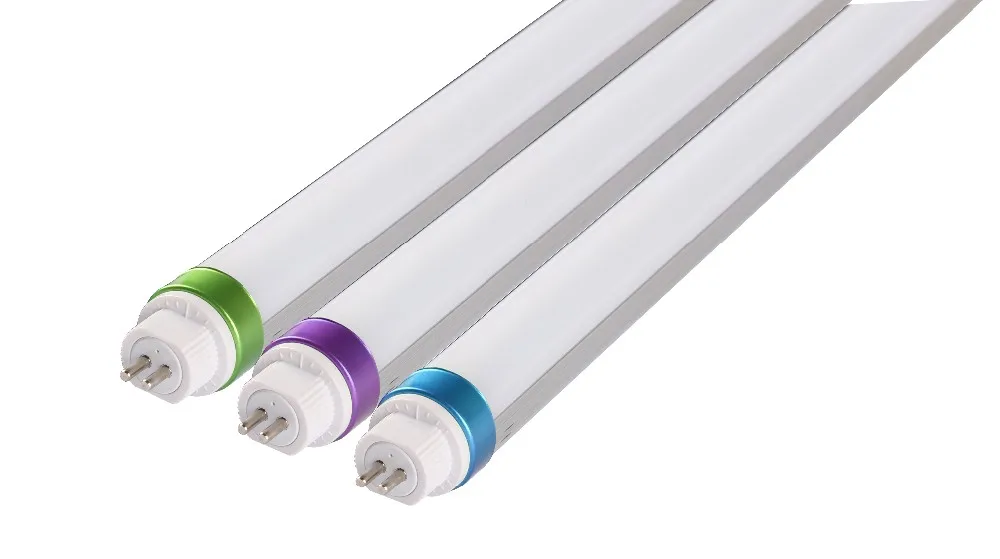

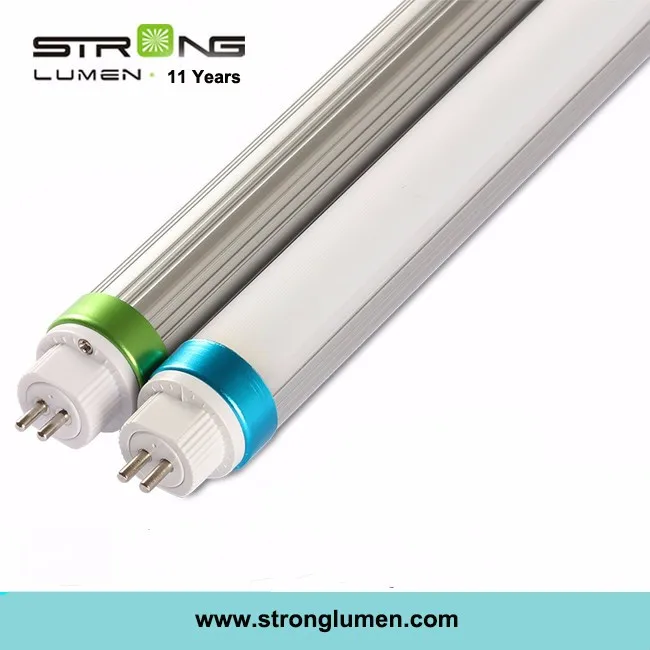

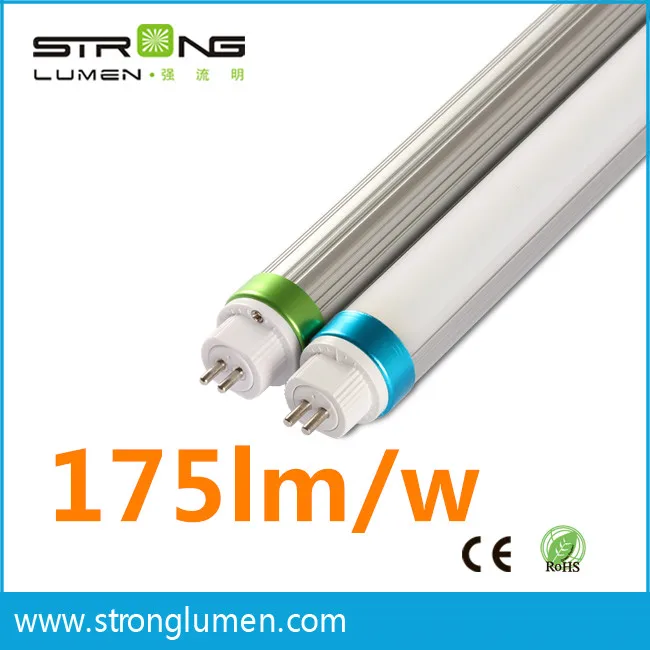

180LM/W T5 Led Tubes with G5 endcap
- Category: LED Tube Lights >>>
- Supplier: Shenzhen Strong Lumen Opto Co. Ltd.
Share on (60332288543):
Product Overview
Description
Product Description
Specifications of T5 LED Tube:
Physical details
| Product Code | SL-DGA00-424WT-G5-T-U |
| Material | Aluminium |
| Dimension | L1148*D22mm |
| Weight | 300g |

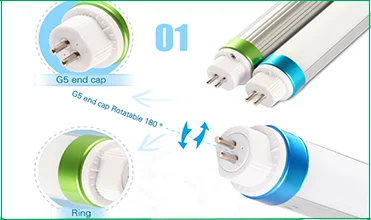

| Lamp Base | T5(G5) |
| Work Environment | Indoor (applicable for dry environment) |
Electrical Specifications
| Luminous Flux | 4000-4250lm |
| Input Voltage | AC100-277V |
| Power Consumption | 24W |
| Lighting Source | SMD 2835LED |
| LED Quantity | 192pcs |
| Operation Temperature | -20~40℃ (-4~104℉) |
Optical Specifications
| Part Number | SL-DGA00-29WT-G5--T-U | SL-DGA00-415WT-G5-T-U | SL-DGA00-418WT-G5-T-U |
| Lumens | 1500-1650lm | 2600-2700lm | 3100-3250lm |
| Luminous Efficacy | 170~180 lm/W | 170~180 lm/W | 170~180 lm/W |
| Color Temperature | 3000~6500 K | 3000~6500 K | 3000~6500 K |
| CRI | >80 | >80 | >80 |
| Beam Angle | 120 | ||
| Lumen Maintenance | >95%@5,0000hours | ||
Features of t5 led tube
| Energy saving up to 80%. high intensity |
| Good light quality and good heat dissipation |
| Special different view angles mixing lighting design |
| Instant start, no flickering, no humming |
| High efficiency (>88%),PF>0.9, constant current driver, with heat protection system can work under unstable voltage |
| Special circuit design, each LED work separately, avoiding the single broken LED influence problem |
| Electric wave resistant |
| No fluorescent flickering |
| No hazard of mercury or lead entering the environment |
| No RF interference |
Packaging & Shipping
Packaging Information
Carton:588*22*22cm Carton:1200*22*22cm
Net Weight: 4.3kg Net Weight: 6.25kg
Gross Weight: 7.5kg Gross Weight: 8.25kg
Quantity:25pcs/carton Quantity:25pcs/carton
0.6M 1.2M

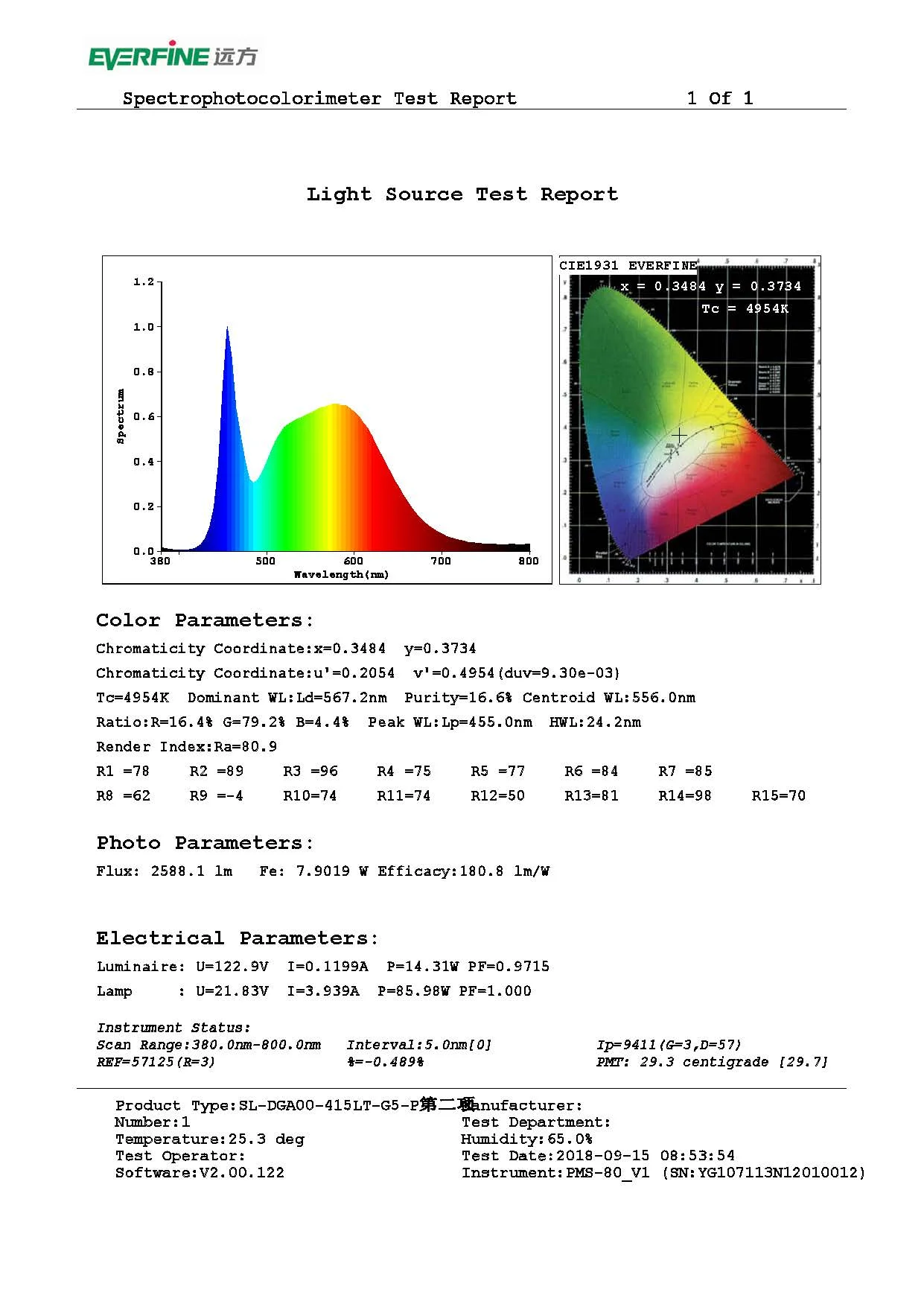

Test report

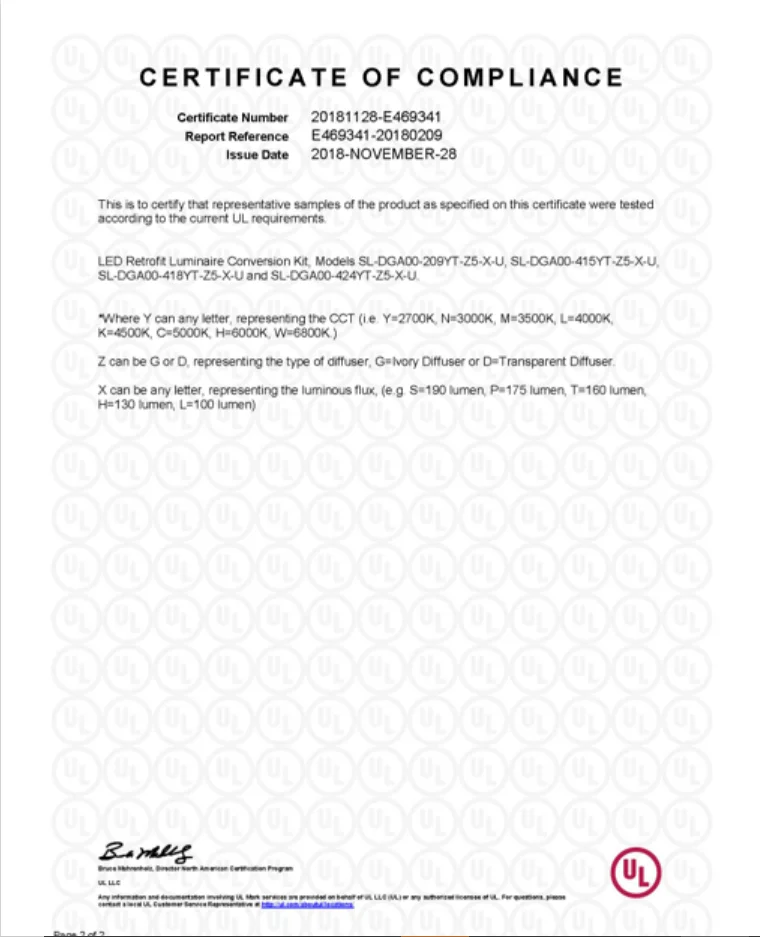

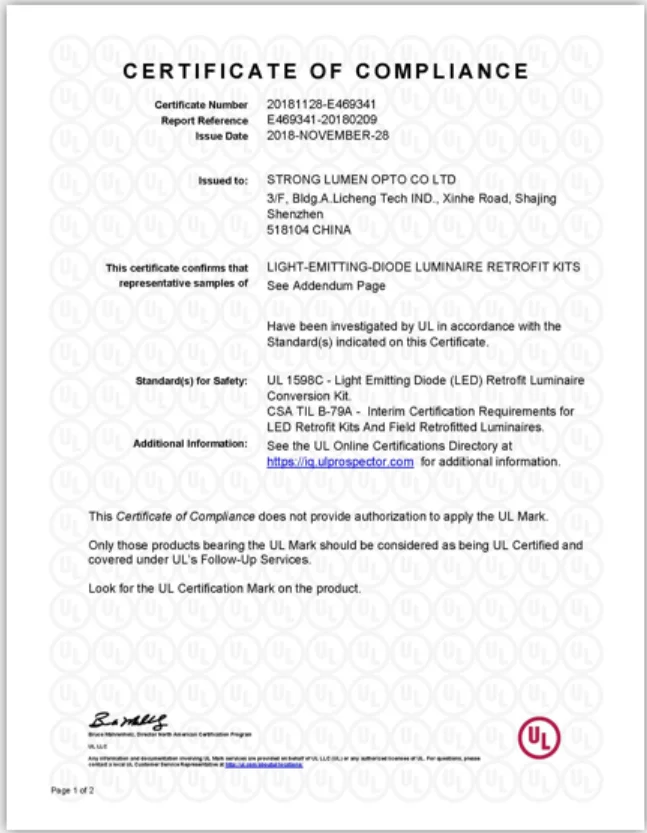

Certifications
Sales Team
Our Services
· Professional R&D team which has more than 8 years experience and is the first one to get the certification during the LED industry.
· Competitive price & Quality assurance & Double win cooperation & Satisfactory service
· Product quality is the most important factor that we concentrate on.
· We accept sample order if you need and you should pay for it.
· Any quality problems can contact with us and we will give you refund or exchange after your final confirmation.
· Experienced response of all your inquiries ASAP.
· Striving for a long term Cooperative partner !
Trade term
| 1. | Payment: T/T, Western Union L/C are acceptable. |
| 2. | Delivery Time:3-5 days for samples, 10-15 days for large quantity. |
| 3. | Shipping: By Express (DHL, UPS, etc.), By Air or By Sea. |
| 4. | OEM is welcome. |
| 5. | Port of loading: Shenzhen/Guangzhou. |
| 6. | Discounts are offered base on the order quantity. |
FAQ
Q1: What is the Warranty for the tube light?
A1: For the tube light, we have 3 years warranty. And some special offer with 5 years warranty as customers request.
Q2: What is colour temperature?
A2: Stronglumen LED Lighting offer lights in warm, natural and cool white with colour temperatures measured in Kelvin (K).
- Warm white = 2800K-3300K
- Natural white =3800K-4300K
- Cool white = 5800K-6400K
Q3:: What is CRI?
A3: CRI is a figure which feedback the real objects colors. Higher CRI with higher cost. For LED tubes, the CRI is higher than 80. For the outdoor light, the CRI higher than 70 is OK at most of applications.
Q4: What is the AC Voltage tolerance for our LED tubes?
A4: Their AC voltage tolerance is +/- 10%.
Q5: Is there cheap shipping cost to import to our country?
A5: For small order, express will be best. And for bulk order, sea ship way is best but take much time. For urgent orders, we suggest via air to airport plus our ship partner send to your door.
Q6: Could you offer OEM tube light?
A6: Yes, we offer OEM tube light, the OEM tube light could offer your laber and your color box.
