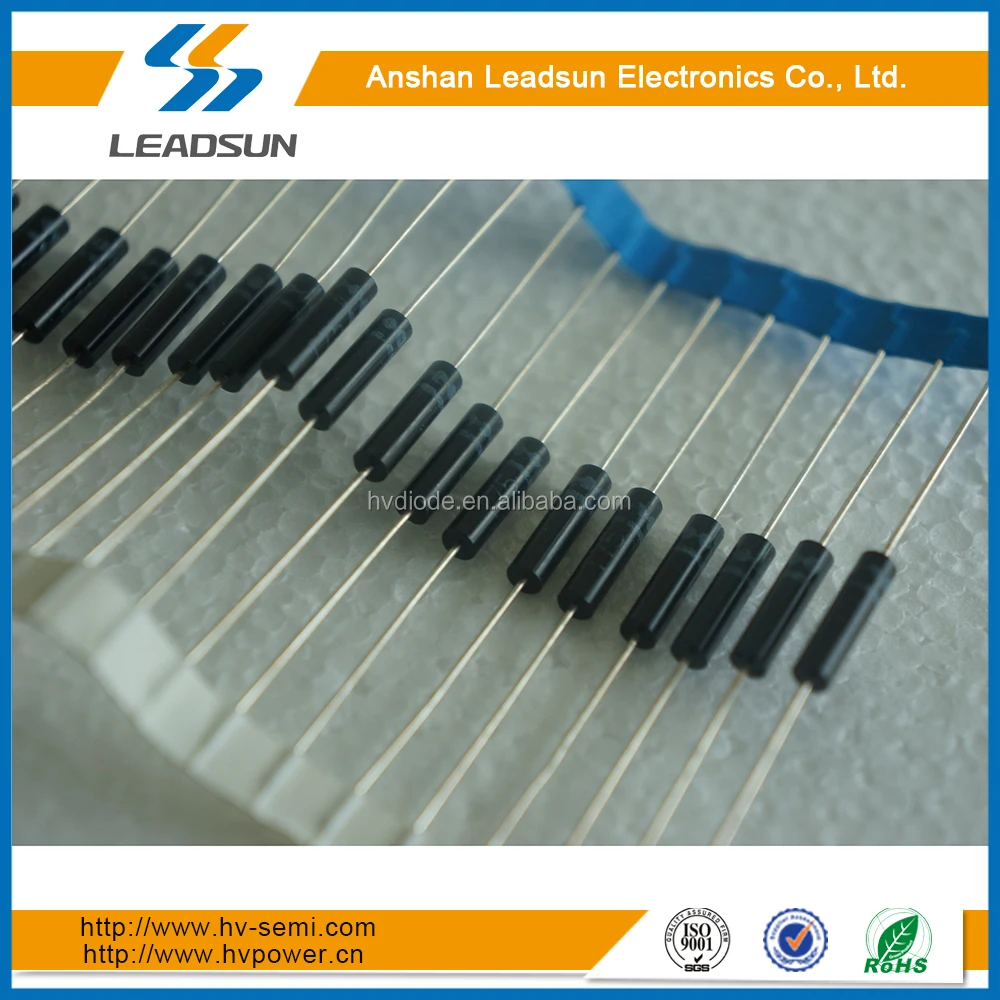

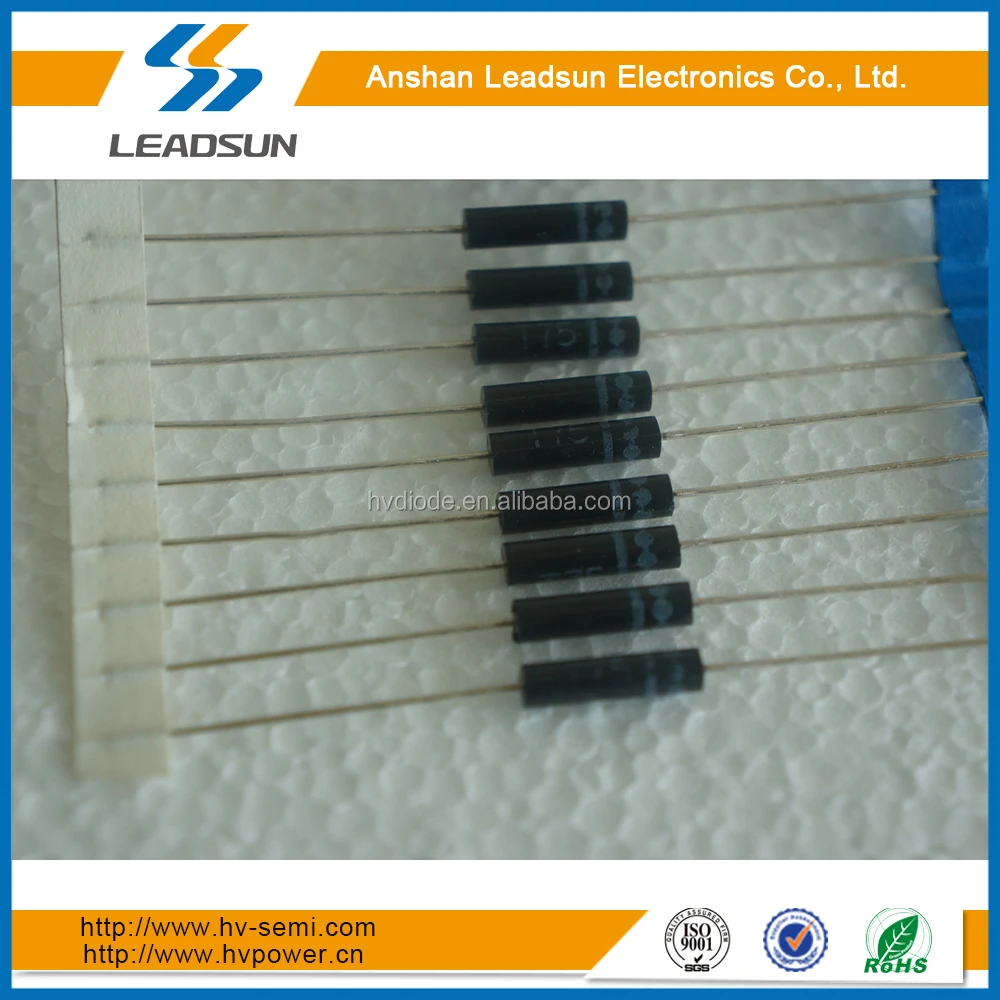

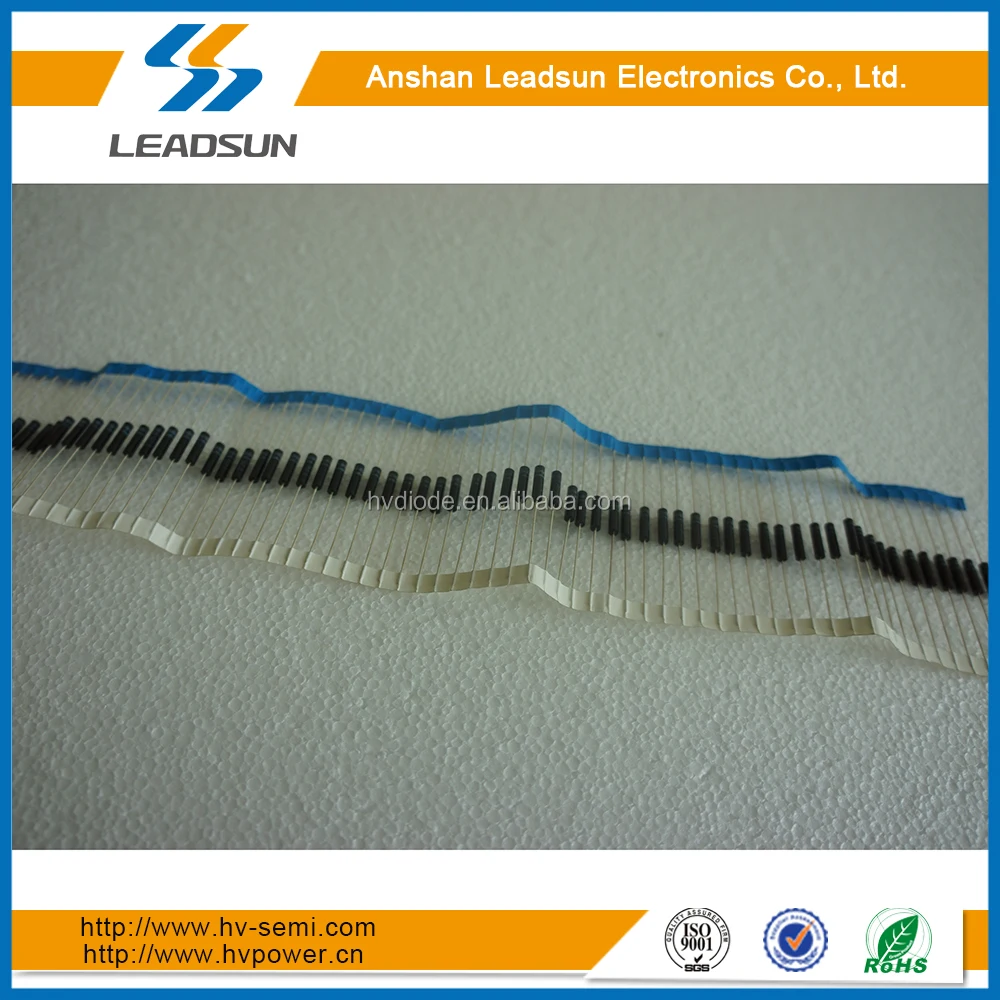

High voltage 2CL75 diode for particle accelerator for electrostatic powder coating, electrostatic flocking

Product Overview

Description

High voltage 2CL75 diode for particle accelerator for electrostatic powder coating, electrostatic flocking :

Type	Peak reverse repetitive voltage VRRM	Forward average rectifier current IF(AV)	Max forward voltage VFM	Max forward surge current IFSM	Normal Temperature leakage current  IRRM	Time of reverse recovery trr
	KV	A	V	A	μA	nS
2CLG30KV/5mA	30	5	60	0.5	2.0	100
2CLG30KV/10mA	30	10	60	0.5	2.0	100
2CLG50KV/10mA	50	10	100	0.5	2.0	100
2CLG30KV/20mA	30	20	60	1	2.0	100
2CLG40KV/20mA	40	20	80	1	2.0	100
2CLG50KV/20mA	50	20	100	1	2.0	100
2CLG40KV/30mA	40	30	80	2	2.0	100
2CLG50KV/30mA	50	30	100	2	2.0	100
2CLG40KV/50mA	40	50	80	5	2.0	100
2CLG50KV/50mA	50	50	100	5	2.0	100
2CLG30KV/100mA	30	100	60	10	2.0	100
2CLG40KV/100mA	40	100	80	10	2.0	100
2CL72	10	5	30.0	0.5	2.0	100
2CL73	12	5	37.5	0.5	2.0	100
2CL74	14	5	42.5	0.5	2.0	100
2CL75	16	5	50.0	0.5	2.0	100
2CL77	20	5	62.5	0.5	2.0	100



We not only supply standard high-voltage rectifier blocks, but customized ones too.
Our products range from 1,000V to 500KV, from 5mA to 50A and from 10 to 300KHz. The leakage current is

aslow as 0.5uA, and custom shape are not a problem. Samples can be ready for you within 10 days. Quality

control is strict with our 10-member QC team carrying out marry different tests to ensure products meet RoHS

standards. Smaller orders are welcome, and you can start with an order of just $500 worth of goods.

1.We can ship the products all the world.
2.DHL, FedEx, TNT, UPS, EMS, China Post, Hongkong Post are all available.
3.The item will be sent out with 7days after receiving the payment.
4.We accept L/C, T/T, Western Union payment.
5.Please make sure your delivery address and contact telephone number are correct when you bid the item.
6.You can track the situation of your product on website after they are shipped out.

















Patent	No.
Industrial waste gas treatment of high frequency high voltage power supply	ZL 2013 2 0269785.3
EHV adjustable ventilation load device	ZL 2012 2 0096537.9
High frequency high power pulse laser power supply	ZL 2012 2 0099007.x
Combined PCB high-voltage load device	ZL 2012 2 0098995.6
High frequency voltage multiplier assembly	ZL 2012 2 0099008.4
Dry type high frequency high voltage transformer	ZL 2012 2 0098417.2
Power resistive load test device	ZL 2012 20096569.9
High power high voltage plug	ZL 2012 2 2299106.8



• Leadsun focus on OEM,ODM and custom service, we have experienced engineers to supply the technical supports including design,operation, adjustment and failure analysis.


• Leadsun has Latest Standard product assembly series, including worldwide popular product series, and special customized series. There are Thousands of  Types and Models for your choosing


• Leadsun technical center record every order and product characteristics; sales department focus on market development tendency, will supply you Full Service.


• Leadsun take quality as foundation of success, we feel honored to supply customer requried products and customer success. We keep focusing on product Innovation and Development to stay ahead in the industry.


• Year 2014, Leadsun will move to new industrial center, new platform, new hope,dream starts here.

For more information,please contact me.
We can also customize the products as your need.
