3D leather wall panel making machine

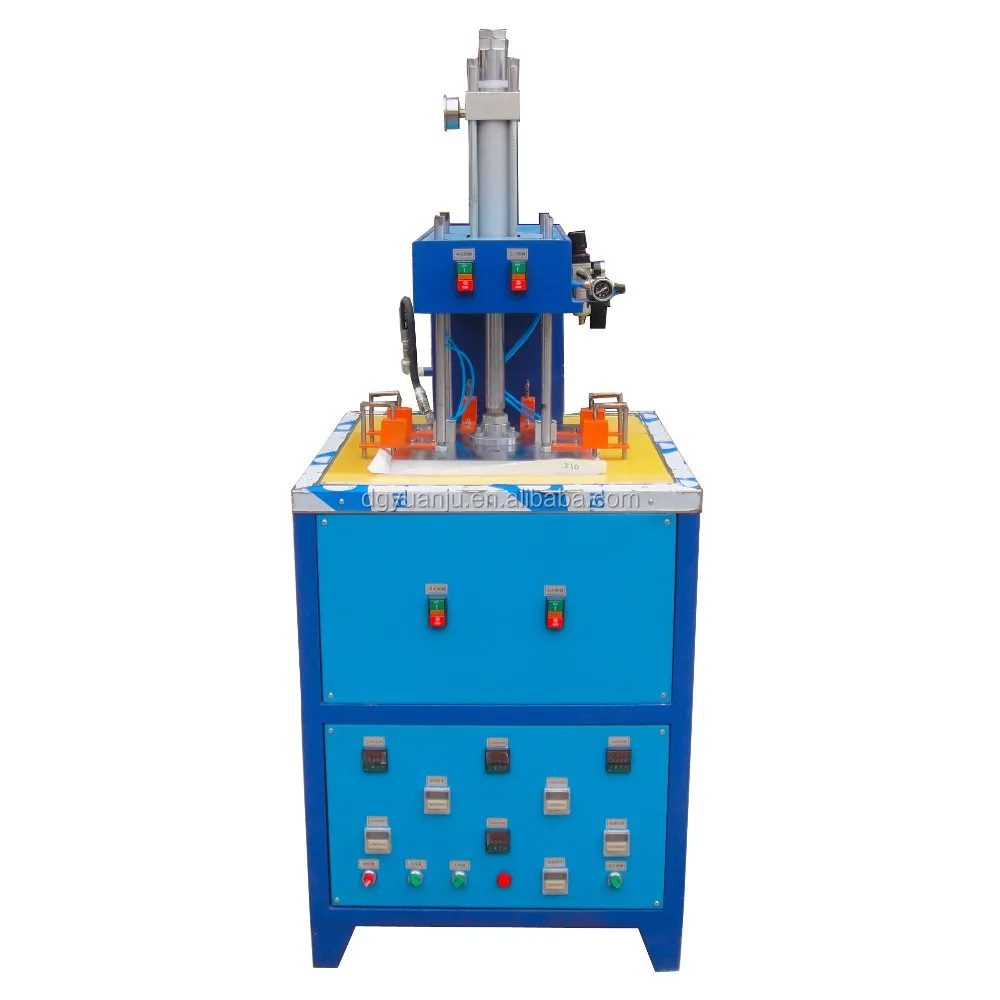

                                     3-station automatic molding machine

1, The machine adopts the supercharged pressure cylinder, 1-3 t adjustable mechanical pressure, pressure to make mechanical foaming materials will not leak at work, make the production edge tidy, absolutely not round edge now
2, Machinery is equipped with a vacuum system, without external pipe, solve the problem of vacuum pipe too long .
3, The machine is equipped with base plate positioning function, solve the prolbem of artificial board is not accurate,And the edge of the distance of ills,
4 The functions, automatic package edge delaydelay, finalize the design completed at the same time, and time is adjustable between, multi-usage, solve the shortcomings of artificial bag edge is not neat and time-consuming,
5, The machine molding time arbitrary set up, meaning when used in the production of different products can change, real space can produce panels soft package products produce different effect
6,The mechanical package edge time can arbitrary set up, and temperature as well, temperature can be set according to different leather material.
7,The automatic exhaust function, can according to different products and products molding time can be set up exhaust time, can also according to the different model shape and change the direction of the exhaust around (bottom)
8,The  backboard position can be adjusted according to different mould,
9, The power supply voltage: 380 v power 2 kw mechanical volume for appearance: H1800MM D800 L900 * * and weight is about: 600 kg use pneumatic pressure: 2-7 MPA

 Our factory is China's first professional production of fine-grade 3D wall board and the  production equipment, machine line which produce of wall plates compared with common molding wall panels made of high product fineness, corner flat which is easy to install, More automation machinery, save operating time.

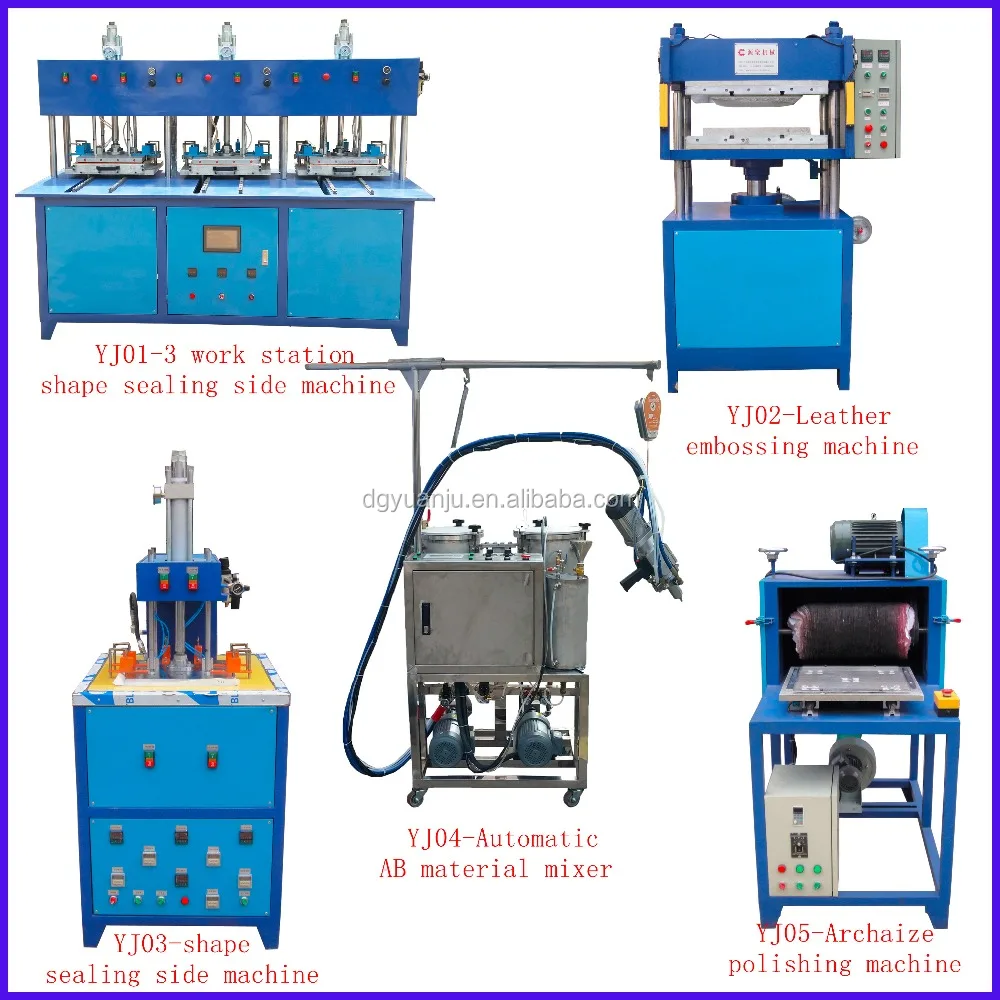

 The manufacture complete sets of equipment are like this :

1.  Leather embossing machine: -combined with embossing die on an embossed antique leather fire, the smooth leather embossing press out the fine leather surface details even grain pattern

 2.shape sealing side machine –when its working to make sure the bubble material never leak material, automatically package side function makes production out of produced corner neatly package side out of effect straight, guarantee future installation convenient, absolute not now round side, here other imitation I factory mechanical cannot reached of effect, automatically exhaust, booster type pressure cylinder, these are make the guarantee for making the The high-qualitygoods

 3.Automatic AB material mixer--stainless steel rack, automatic high speed mixed quantitative precision, 60 free group to set parameters, adjustable mixing ratio any, hand-held light filling gun, easy operation and automatic cleaning function.

 4.Archaize polishing machine – access to the polishing speed is adjustable,the power is adjustable, easy polishing wheel replacement, wheel flat, polished effect doesn’t appear the lines.

 Specific parameters please browse the various mechanical characteristics, source polymer machinery factory has professional production equipment, for you more granular and more high-quality .3D leather wall panels provide powerful protection; there are more professional and technical personnel to provide you with all aspects of production technology, We are welcome to visit our factory, to learn more about the fine high-end 3D leather wall panels and general 3D leather wall panels distinguishes.

Every consumer in choosing carving may encounter such a problem, while in the building materials market, carving manufacturers there are many, the price difference is also great, Seems to be carving soft pack and, sometimes, it is difficult to distinguish,

 As not very professional for consumers, it is difficult to determine the good or not .The Carving-fine carving, carving a brand manufacturers to produce a genuine qualifying product, starting from the source, machinery and equipment is the key. Because now the artificial carving soft bag production is impossible, so each manufacturer entering carving products, device already determines the location of the factory's products in the future.

 Now some tiny carving manufacturer, even some family or workshops was done by some simple equipment and labor, mostly one-time molding, process almost no real carving soft bags vary widely. Only carving industry is not mature, consumers are not familiar with, and even some agents are also involved, rely on price to seize the market.

 Second is the carving materials, carving soft leather is very high. If not qualified cannot be embossed leather, embossed or cannot be stereotyped, a long rebound, unable to prove his technique, or even faded. So, this kind of leather is expensive, 5-8 times higher than ordinary leather prices, of course, making carving package costs many factors aspects will affect the quality of products and processes. With carving the market matures, consumer knowledge of carving soft bags are familiar with, the current imbalance in economic development environment has also made the people's income. Carving soft package for catering to this era also entered the era of high, medium and low market segment. Carving soft bag in the future consumption will be high profile carving time, low-end "carving" slowly being replaced in this market.

  Match the following machinery to produce fine products

machine number	style & specifications	Way to work	picture
YJ01(YJ03)	Single color, Ordinary style,300*600MM,400*400MM	Artificial mixed filling materials
YJ01(YJ03)+YJ04	Single color, Ordinary style	Automatic mixed filling materials
(YJ03)YJ01+YJ02+YJ04           YJ01 output is YJ03 finished product number three times	Single color, Ordinary style+Subtle patterns effect,Fire retardant,moisture-proof leather            300*600MM ,400*400MM	Automatic sealing side,Automatic mixed filling materials
(YJ03)YJ01+YJ02+YJ04+YJ05	Double color,Ordinary style+Subtle patterns effect,Fire retardant,moisture-proof leather,           Archaize         300*600MM ,400*400MM	Automatic sealing side,Automatic mixed filling materials ,polishing

                      YJ02-Leather embossing machine

1, The machine adopted four pillar type pressure type design, make the machine up and down more balance, guarantee the embossing, the strength of the equilibrium.
2, The heating plate area is 500 mm * 600 mm, and the whole machine 18 kw power, three phase power supply of 380 v, 50 hz,
3,The molding time from 0.01 S to 0.01 H arbitrary adjustable set up.

4,The intelligent PID temperature controller, the real temperature and set temperature difference only 1degree .Independent control of heating up and down;
5, 32 # anti-wear hydraulic oil, 5.5 KW motor, Taiwan EALY HPV - 40-140 - kg pumps,
6, The oil cylinder stroke, 150 mm, automatic constant pressure, pressure maintaining time and pressure adjustable, maximum pressure of 200 MPA
7, The machinery is equipped with quick die change T slot;
8, 1-50 t adjustable machine pressure.Electricity connecting point pressure regulator can be adjusted according to different mould also used by the pressure
9, The mechanical operating side is equipped with safety grating, more effective protection of operating personnel, mechanical impurities or hand in the grating, mechanical do not move, to ensure the safety problems in the machine will not be wrong operation surface
10, mechanical volume: D100 L1300 * * 1600 mm is about 1300 kg in weight

                    YJ04-Automatic AB material mixer

 1, The machine adopts full stainless steel frame, safety and reliable, easy to clean, with the wheels under the machine can easily move.

2, The head of mixer with high-speed motor, can make the AB material more mixing, foaming materials more delicate.
3, PLC parameters can be adjusted, and the AB material mixture ratio of arbitrary setting,
4, The machine A and B material barrels are equipped with automatic constant temperature system, the material can maintain at A certain temperature, to shorten the time of foam molding, work efficiency can be increased by 50% - 80,
5, The Mixer using precision metering pump (less than 0.3% fine determine) makes the proportion of AB material accurate, solve the man not precise ingredients product hardness uneven defect.
6,The portable and lightweight perfusion gun, convenient operation, easy maintenance, filling and cleaning action simply click on the button can be done automatically,
7, 1-60 sets of data storage, data automatically depending on the mold to jump, according to the different data corresponding gram weight material
8,The mixer machine have automatic alarm to remind cleaning function,

Mechanical power, power supply voltage: 220 v 4 kw use pneumatic pressure: 2-7 mpa mechanical volume is about L900 * 700 * H1700MM weight is about 200 kg

                       YJ05-Archaize polishing machine

1, Automatic conveying polishing, adjustable speed, automatic gethering dust
2, The automatic wax system, can automatically according to the different leather on the cloth wheel brush color coated with wax
3.According to automatic elastic system, it can be very skin carved in the shape of a cloth of automatically adjust the pressure between the wheel and workpiece, make products more even,
4, the cloth wheel speed can be arbitrary adjusted, according to different leather is not free to change speed.
5, Themachinery according to product the shape of the workpiece automatic brush try around before and after the change,

Power, power supply voltage: 380 v, 5 kw size: 1500 mm * 800 mm * H1600MM

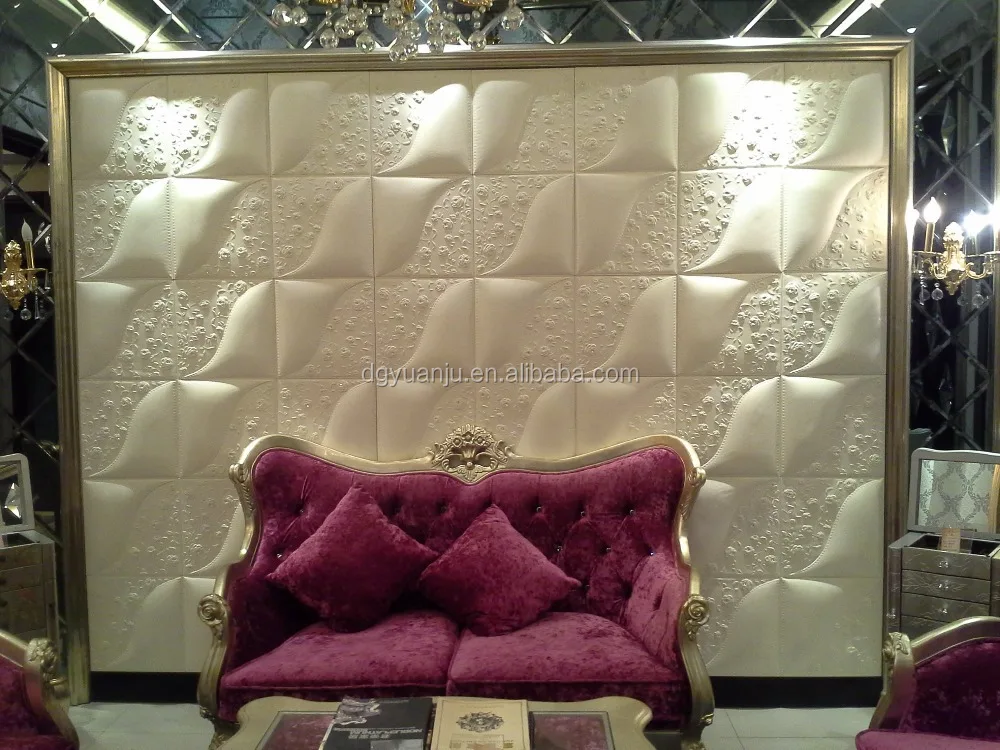

  1. the background wall of TV, sofa, bed head background wall, vestibule,  staircase, children’s room, study room etc

2.Building decoration for background walls of company image projection, conference room, teahouse,
all kinds of chain-store, Hotel beautiful 3d faux leather wall panels for home and restaurants, kindergarten.

3. Public space decoration for the walls of VIP Room of stations, dock, airport, background walls of

 1. Fire-Resistant and Pro-environment

2.  Soundproof ,Eco-friendly, fireproof, moisture-proof, lightweight.

3. 3D and Embossed Design

4.  Easy installation, Eco-friendly, fireproof, moisture-proof, lightweight.

5. Suitable for Interior wall, exterior wall and ceiling.

6. Easy to buy raw materials.

7. Simple technique and low cost of production, PU environmental protection material

8. Not easy to change color, natural leather texture, modern, retro effect, the pattern is clear

  Click to understand product production process

    Our factory is China's first professional production of fine-grade 3D wall board and the  production equipment, machine line which produce of wall plates compared with common molding wall panels made of high product fineness, corner flat which is easy to install.

    Our machine have tow kind of to make the effert : Machinery has a general effect of forming in one time finished mechanical machinery and high-end fine effect combinations by many set of machinery, whichi is also  can be customized according to coustmer request , to make the the  other size of Other specifications of the machinery.

    3D leather wall panels provide powerful protection; there are more professional and technical personnel to provide you with all aspects of production technology, We are welcome to visit our factory, to learn more about the fine high-end 3D leather wall panels and general 3D leather wall panels distinguishes.
