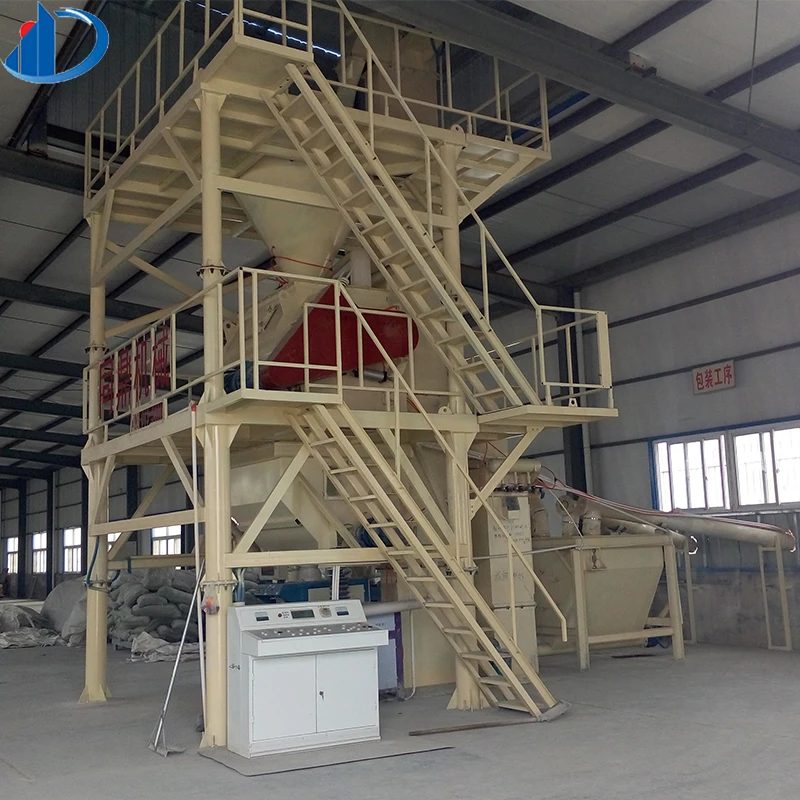

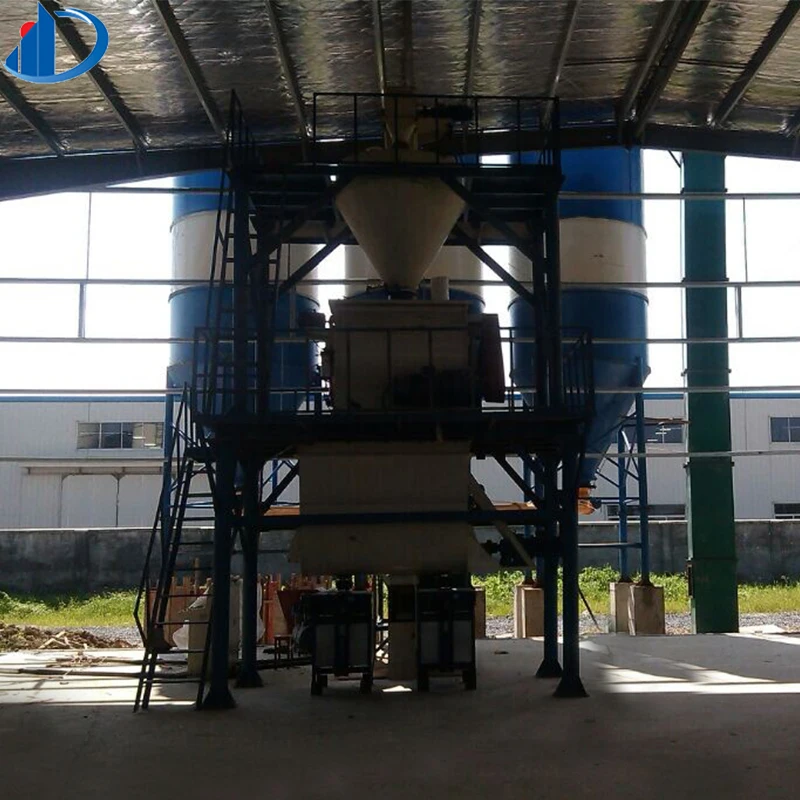

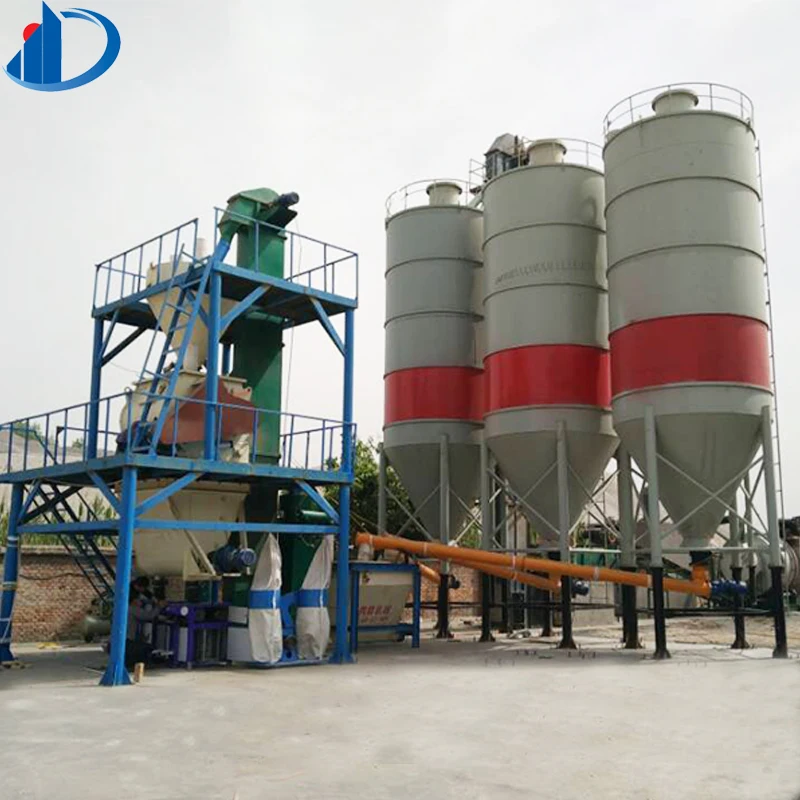

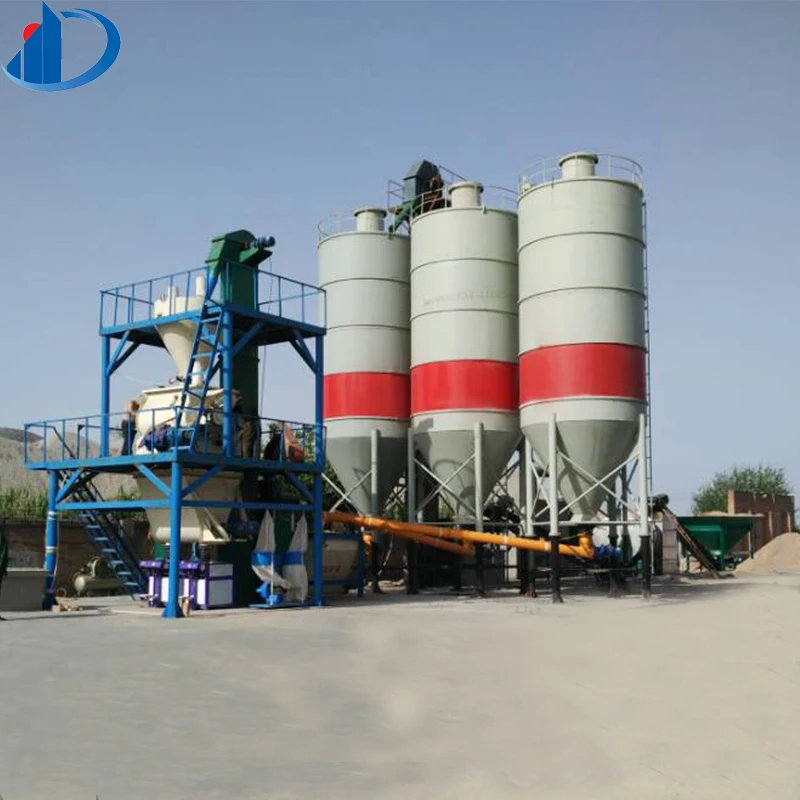

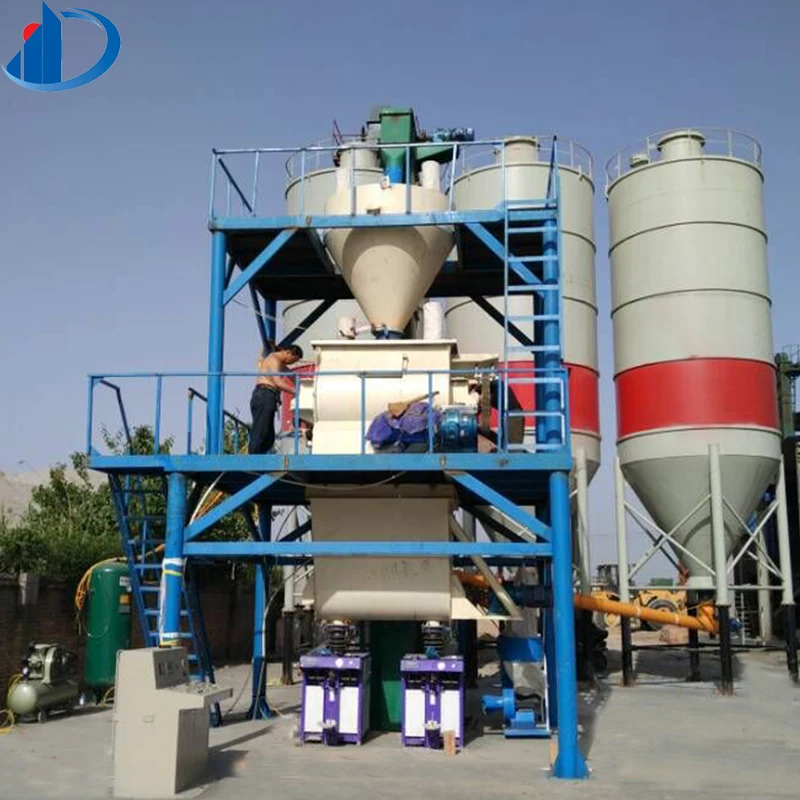

China new products cement glue/putty powder dry mix mortar production line machinery

Product Overview

Description

    China new products cement glue/putty powder dry mix mortar production line machinery



1. Introduction of  20-25T/H cement glue/putty powder dry mix mortar production line machinery

We are one of the leading companies in China dry-mixed mortar equipment industry.With over 16 years'experience, we keep improve the machine quality to provide customer's stable, efficienct dry-mixed mortar production line.

Dry mortar is also called pre-mixed mortar, which made in the factory by precise batching and uniform mixing. It can be used directly just by adding water in construction site. It has different properties though adding different additives.

2. Application of  20-25T/H cement glue/putty powder dry mix mortar production line machinery

1.Bonding Mortar

Masonry mortar, wall(ceramic) and floor tile adhesive mortar etc

2.Decoration Mortar

Decorative plaster, inner and outer wall putty, colorful decoration mortar etc

3.Protection Mortar

Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildew-proof mortar etc.

3.Technical data:

Model	Automatic Dry mortar Production line
Capacity	20-25 t/h
Mixing system	DWZ Double Shaft Paddle Mixer
Total power	96.5kw
Raw material	Cement, fly ash, additives, sand, etc
After-sale service	Erection & commissioning, operator training
Warranty	12 months after erection
Each System Part Technical Data
Mortar Mixer Model & Quantity	DWZ2000 Double Shaft Paddle Mixer, 1 unit
Discharge capacity	1.56t  per batch
Feeding capacity	1.56t  per batch
Mixing cycle time	150S
Motor power	18.5kw
Air Cylinder	QGB100*300
Total weight	2500kg
Overall dimension  L*W*H	2170*1900*1550 mm
Mixing System Pre-mixing hopper Model & Quantity	2.0 m3 Pre-mixing hopper, 1 unit
Volume	2.0m3
Pneumatic Valve	DN150
Mixing System End Product Hopper Model & Quantity	2.0 m3 End product hopper, 1 unit
Volume	2.0m3
Motor Power	7.5kw
Raw Material Storage System Model & Quantity	100T Detachable Silo, 1 set
Silo Diameter	3.0m
Silo Height	9.0m
Silo Total Height	12.0m
Discharge Height	1.5-3.0m
Pneumatic Valve	DN300
Weight	5.0 tons
Batching & Weighting System Model & Quantity	V=2m3 Batching Weighing Hopper, 1 unit
Volume	2.0m3
Motor power	4kw
Screw Conveyor	LSY165*2800mm
Overall dimension  L*W*H	3.2* 1.26 *1.7m
Conveying System Type & Quantity	LSY219 Screw Conveyor, 2 units
Tube Diameter	219mm
Spiral Diameter	180mm
Carrying Capacity	45t/h
Conveying Length	2-13m
Working Angle	0-45degree
Motor Power	11kw
Conveying System Type & Quantity	TD250 Bucket Elevator, 1 unit
Conveying Capacity	20-25 t/h
Lifting Speed	1.6 m/s
Motor power	15kw
Height(include the embeded part)	11.7m











1.According to your inquiry, We will reply to you in 24 hours.

2.Best After-sales: We will send the technical personnel to the site for installation, commissioning and training work.

3.Warranty period 12 Months, in addition to the force majeure and man-made factors, the damage caused by design, process and manufacturing equipment, the seller is responsible for sending people to offer free repair.

4.We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original, authentic, quality goods.



1)FCL: in nude for standard exporting container

2)LCL: Poly wood case

Wire cables are used for fastening the machine

Cork wood are placed in front or behind the machine to protect it.

Plastic film is covered on the machine as a rain-roof.
