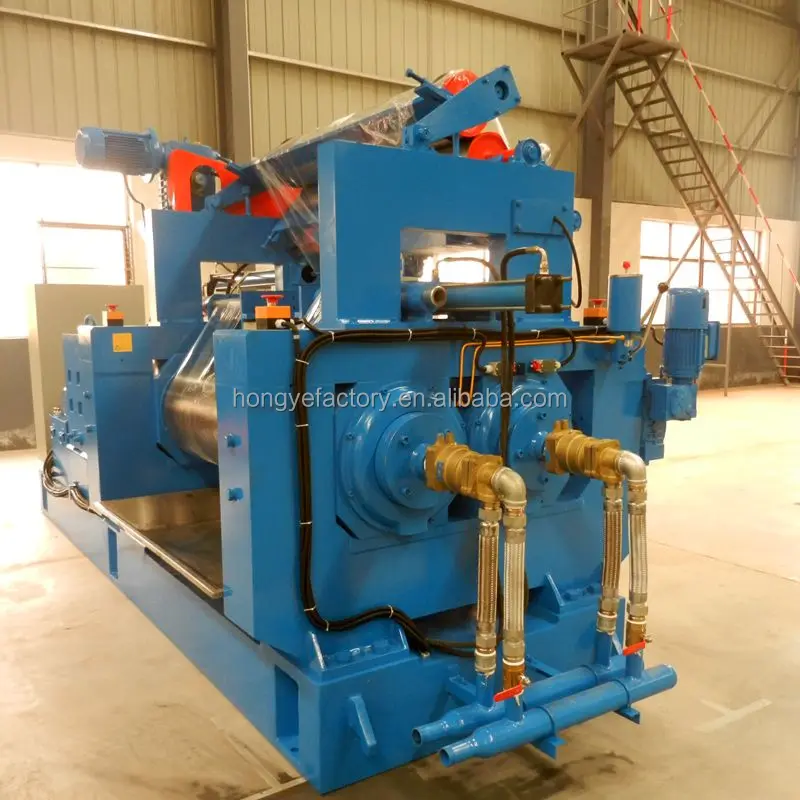

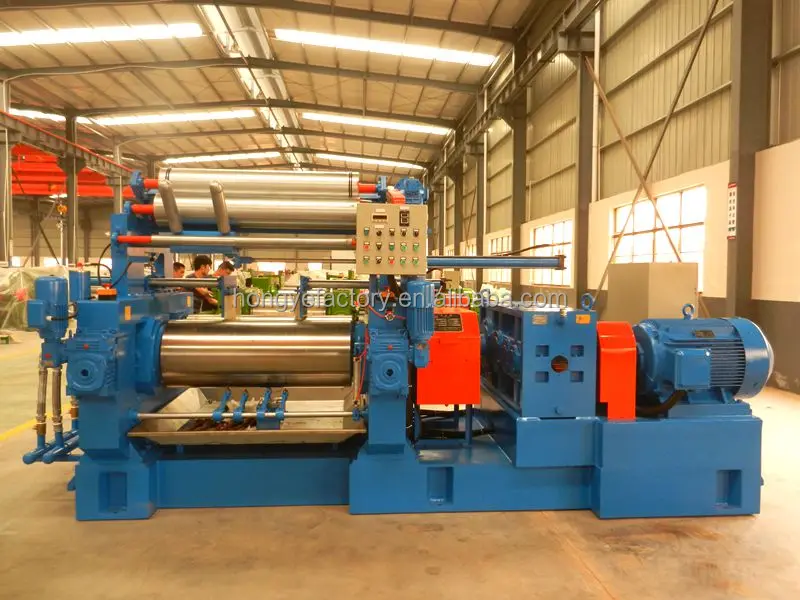

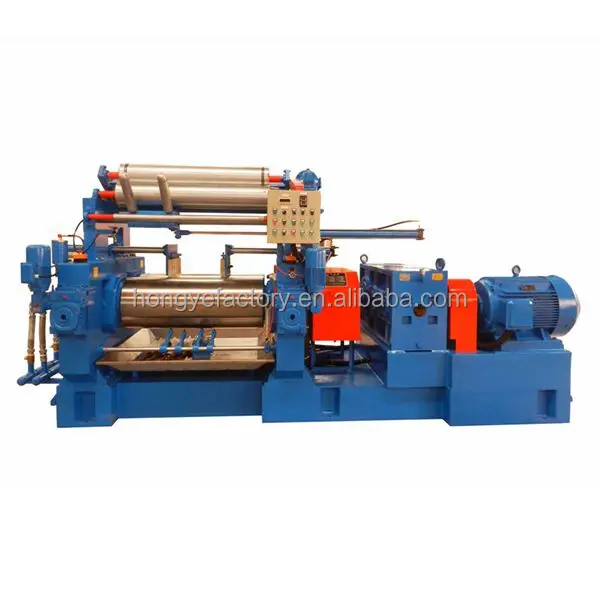

Name: XK-450(18 inch) Two Roll Mixing Mill with automatic Stock Blender
Double Self-aligning rolling bearing.
Hard tooth-surface speed reducer.
Automatic stock blender device.
CE and ISO9001
Main Features:
The roll is made of chilled cast iron, its surface is very hard and anti-wear, the internal cavity of the roll is processed to make the temperature well proportioned on the roll.
The mill adopts self-aligning rolling bearings, which has a large and stable loading capacity and easy to maintain.
The mill adopts hard tooth-surface speed reducer, compact structure with higher transmission efficiency, low noise and long time service.
The mill is equipped with an overload protection device to prevent the major parts from being damaged due to overload.
The mill is also equipped with an emergency brake device, in case of emergency accident, just press the emergency stop button, the machine will stop immediately, it is safe and reliable.
This mill is matched with automatic stock blender device, which can reduce labor intensity and save power.
This mill adopts hydraulic-controlling roll guide and electric roll nip adjustment.
Technial Parameters:
Model
Φ22
Φ18
Φ16
Φ14
Φ12
Φ9
Roller Diameter×Length
550×1530
450×1200
400×1000
360×920
310×920
230×635
Driving Motor
90kw 6P AC
55kw 6P AC
45kw 6P AC
30kw 6P AC
22kw 6P AC
15kw 6P AC
Line Speed of Front Roller
27.65
23.2
20.6
19
14.45
13.5
Rotate Speed of Front Roller
16
16.5
16.5
16.5
17
18.7
Speed Ratio of Front and Rear Roller
01:01.3
01:01.3
01:01.3
01:01.3
01:01.3
01:01.1
Reducer Speed Ratio
47.5
47.1
47
46.8
45
47.6
Weight
17500kg
11000kg
7500kg
5100kg
2700kg
2300kg
Dimension(LxWxH)
5365×1946× 2193(mm)
4558×1665× 2015(mm)
4001×1500× 1870(mm)
3700×1425× 1870(mm)
3337×1130× 1415(mm)
2528×1053× 1235(mm)
Specify:
Turning the material automatically, operating easily, the foaming agent needn't through the high temperature(add the foaming agent when turning material).
Our service:
24 hours support via telephone and email.
Engineers available to service machinery overseas.
