XK-450 EPDM NR SBR rubber open mixing mill with bearing bush
US $3000-$50000
Оборудование для смешивания резины, лабораторные прокатные мельницы, смеситель для смешивания резины
- Category: Rubber Two-Roll Mills >>>
- Supplier: Qingdao Chaoguangyue Industry Co. Ltd.
Share on (60649027295):
Product Overview
Description
Rubber Mixing Machinery, Lab Rolling Mills Mixer for Mixing Rubber
Structure features:
This machine is composed of rolls, bearings, frame, frame cap, transmission device, nip adjuster,
lubrication device, temperature regulator of rollers, emergency stop device and braking device, etc. The transmission is mainly conducted by the main motor, which drives reducer, and then the two coupling make the two rollers run. The speed of rollers is adjustable and can be directly showed on the control panel. Rollers are protected
by a safety shim, and rollers bearings are lubricated with manual-operation/power
driven through a grease pump.
Technical parameter:
Specification&type | Roll diameter ×Length(mm) | Linear speed of front (m/min) | Roll friction ratio | Batch volume (kg) | Motor power (KW) | Max.nip adjusting (mm) | Overall dimension (mm) | Weight (t) |
X(S)K-160 | 160×320 | 8.95 | 1:1.35 | 1-2 | 5.5 | 4.5 | 1120×920×1295 | 1.1 |
X(S)K-200 | 200×500 | 19.50 | 1:1.05 | 8 | 11 | 5 | 2055×900×1165 | 2.5 |
X(S)K-250 | 250×620 | 15.20 | 1:1.10 | 10-15 | 18.5 | 8 | 3220×1500×1290 | 3.8 |
X(S)K-360 | 360×900 | 16.26 | 1:1.25 | 15-20 | 30 | 10 | 3920×1650×1725 | 5.53 |
X(S)K-400 | 400×1000 | 18.65 | 1:1.27 | 25-35 | 40 | 10 | 4380×1710×1880 | 8.14 |
X(S)K-450 | 450×1200 | 23.85 | 1:1.27 | 30-50 | 55 | 8 | 5050×1920×1870 | 13 |
X(S)K-560 | 560×1530 | 27.61 | 1:1.315 | 50-60 | 95 | 12 | 5830×2300×2000 | 22 |
X(S)K-550 | 550×1500 | 27.175 | 1:1.25 | 50-65 | 90(110) | 15 | 6040×2100×1625 | 20 |
X(S)K-610 | 610×1830 | 28.7 | 1:1.25 | 90-120 | 160 | 15 | 6750×3040×1743 | 35 |
XKY-660 | 660×2130 | 32.45 | 1:1.09 | 165 | 185 | 15 | 7450×3660×2080 | 45 |
XKR-660 | 660×2130 | 28.60 | 1:1.24 | 165kg | 250 | 15 | 7465×3660×2080 | 45.6 |
X(S)K-710 | 710×2200 | 31.90 | 1:1.09 | 350kg | 280 | 15 | 7180×3805×3015 | 50 |
X(S)K-760 | 760×2540 | 33.23 | 1:1.09 | 350kg | 315 | 15 | 7180×3805×3015 | 58 |
X(S)K-810 | 810×2540 | 31.90 | 1:1.09 | 350kg | 355 | 15 | 7180×3805×3015 | 68 |

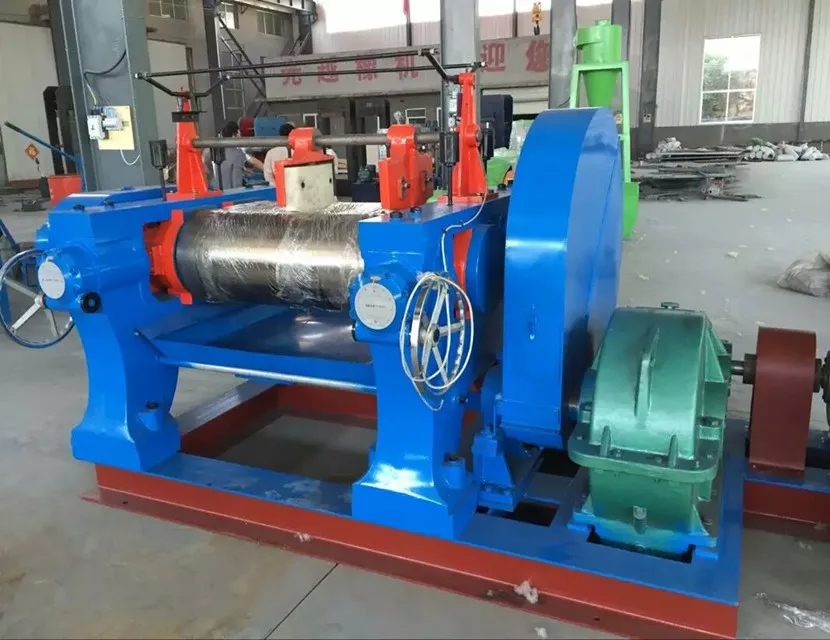

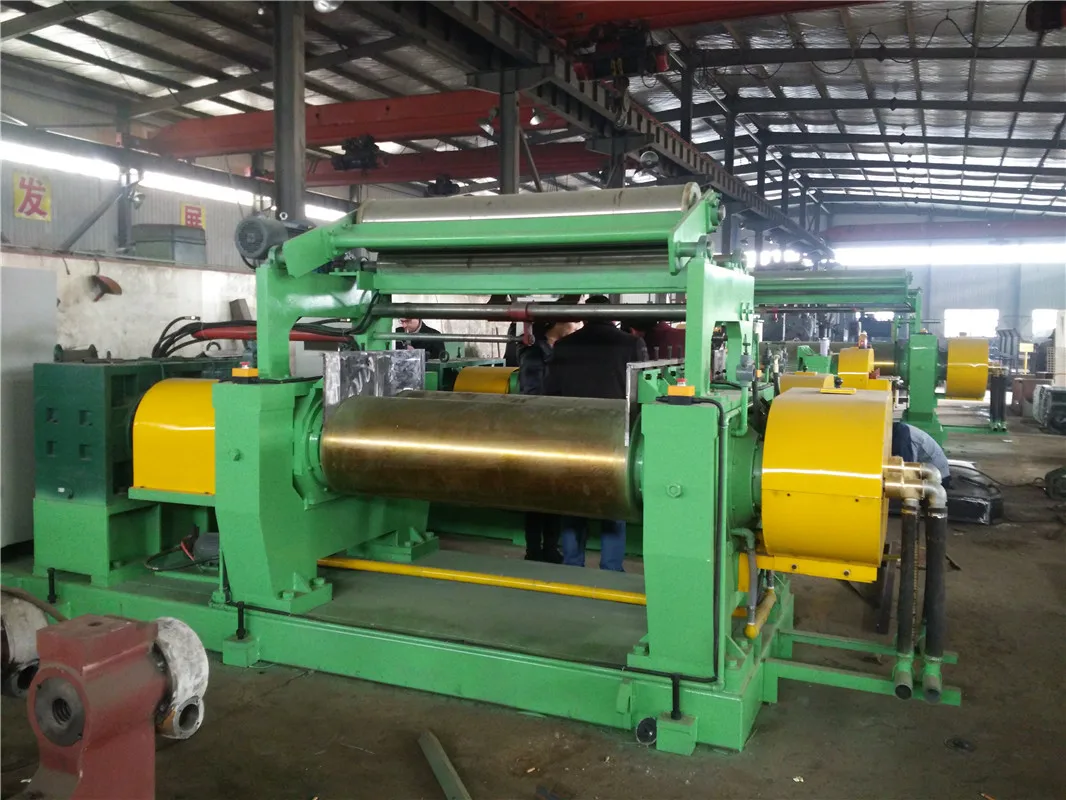

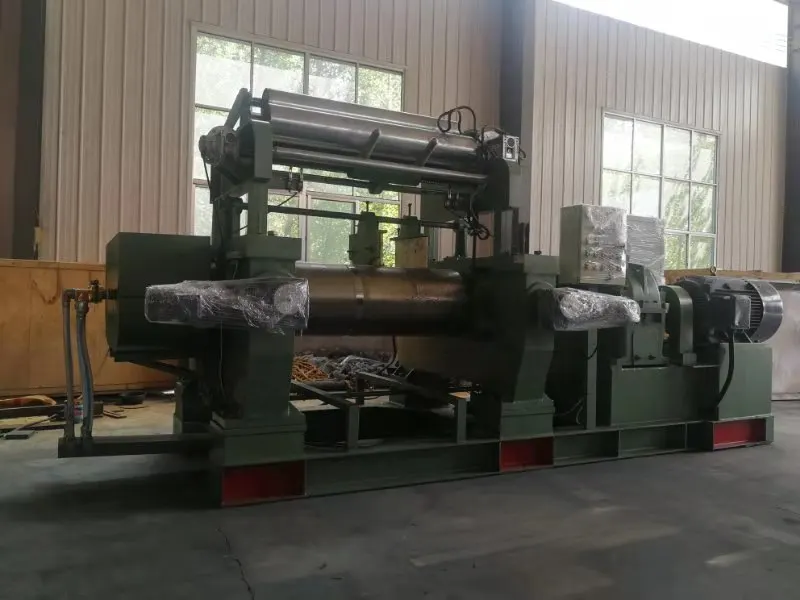

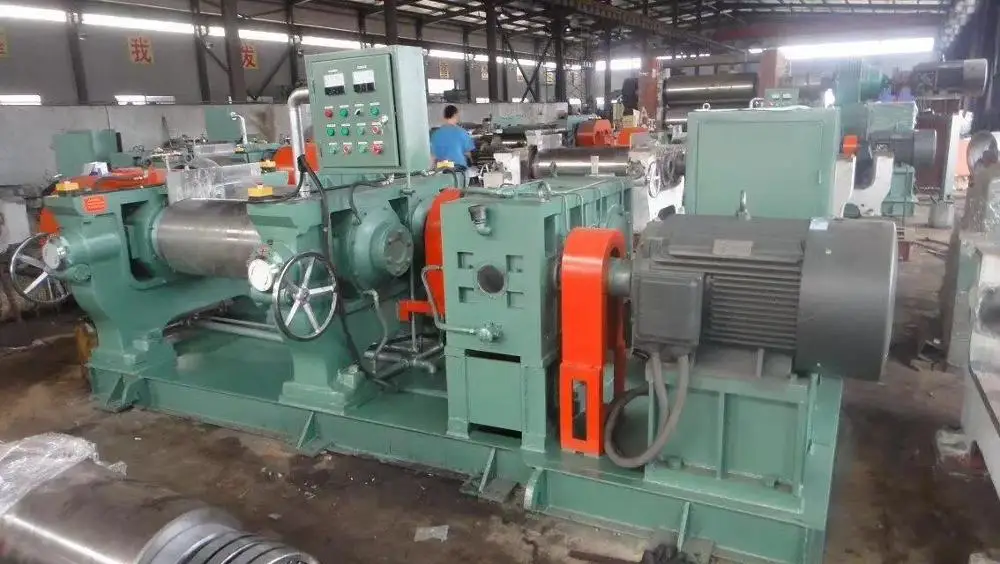

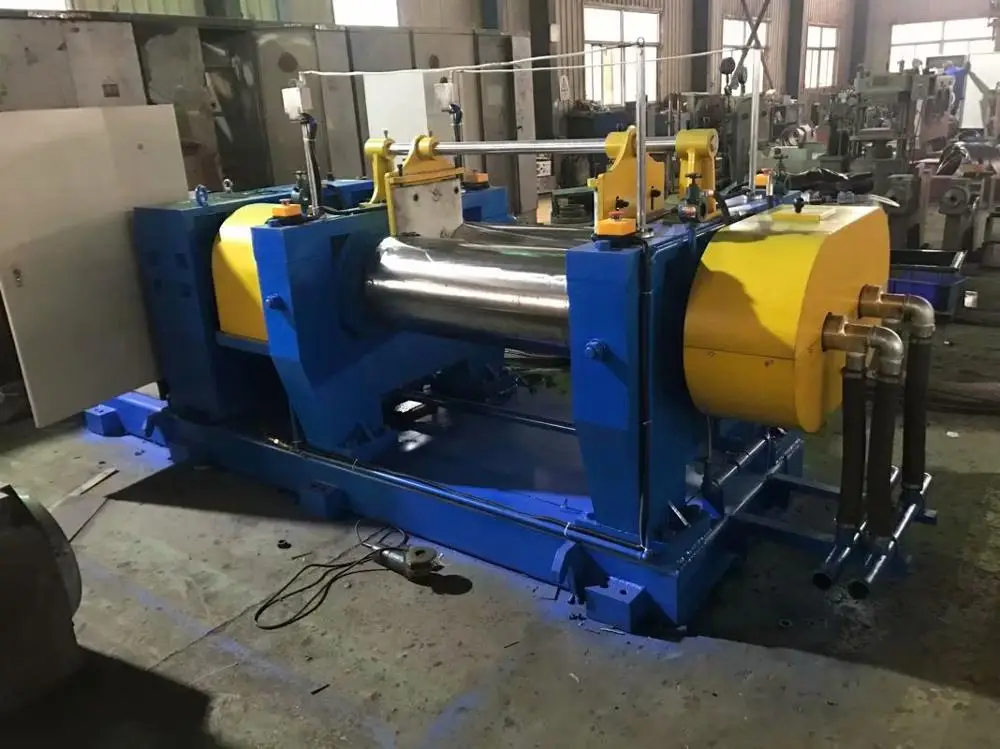

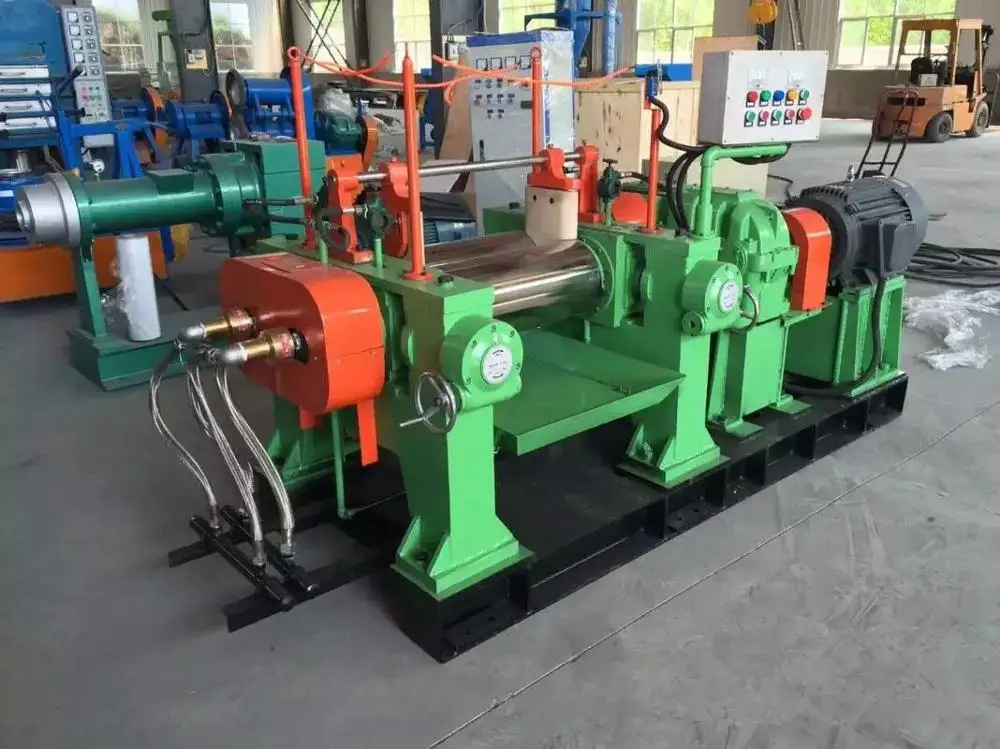

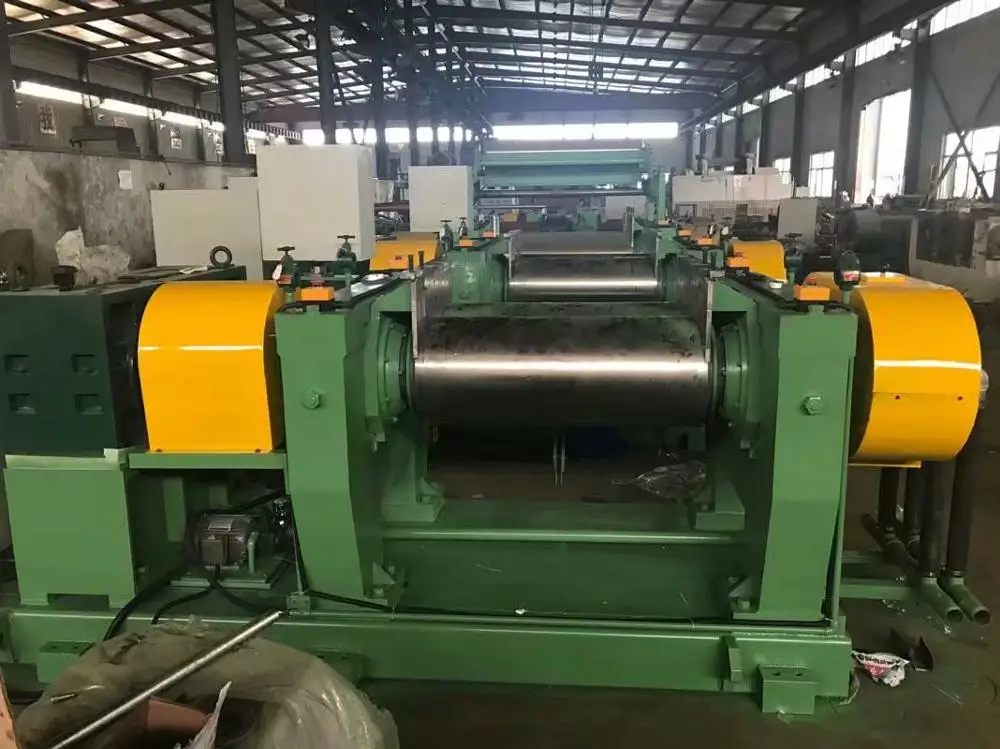

Machine pictures:
