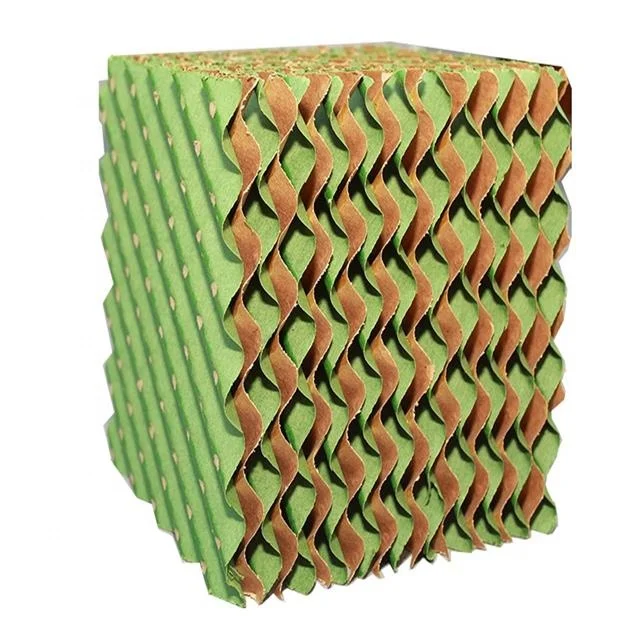

Qingzhou GuoYu 7090 evaporative aspen cooling pad
- Category: Agricultural Machinery & Equipment >>>
- Supplier: Shandong Guoyu Agricultural And Animal Husbandry Technology Co. Ltd.
Share on (60337760083):
Product Overview
Description
Products Description
1.Use the new material and the spatial crossing linking technology,high hydroscopic,high water-resistant,anti-mildew and long service life.
2.The product involves surface active agent,absorb water naturally,fast speed of pervasion,lasting effectiveness.A drop of water can diffuse in 4-5 seconds.Height of water absorption:60-70mm/5minutes,200mm/1.5hours,completely achieve international standard.
3. Large evaporation area,cooling efficiency as high as 80%.
4.Strict production as per standard,width of 600mm cooling pad involves 85 sheets,raw material adopts imported kraft paper(100g/㎡,thickness:0.18-0.20 mm,tension resistance at 70N,absorbability height as 45mm/10min,moisture at 5%-8%,humidity at 18N)

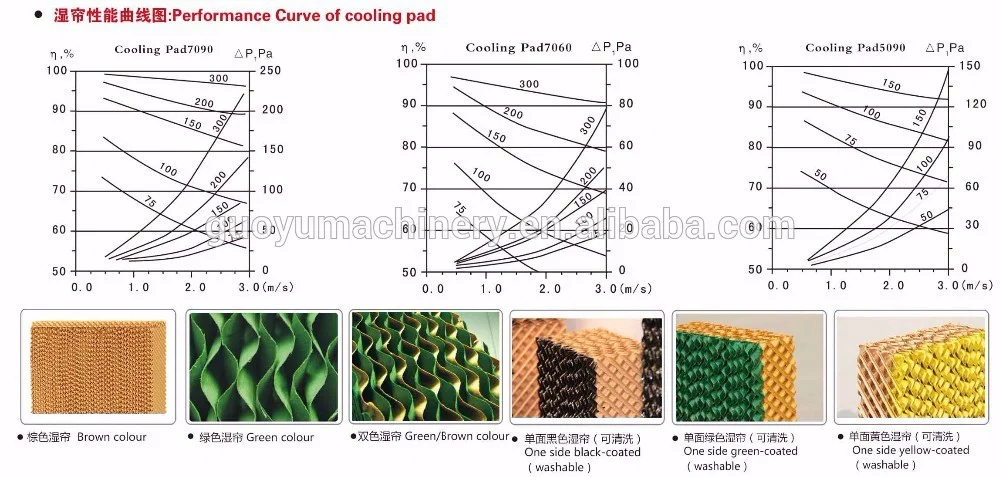

Details
7090 | 5090 | |
H(mm) | 1500/1800/2000 | customized |
W(mm) | 900/600/300 | customized |
T(mm) | 100/150/200 | customized |
h(mm) | 7 | 5 |
α° | 45 | 45 |
β° | 45 | 45 |

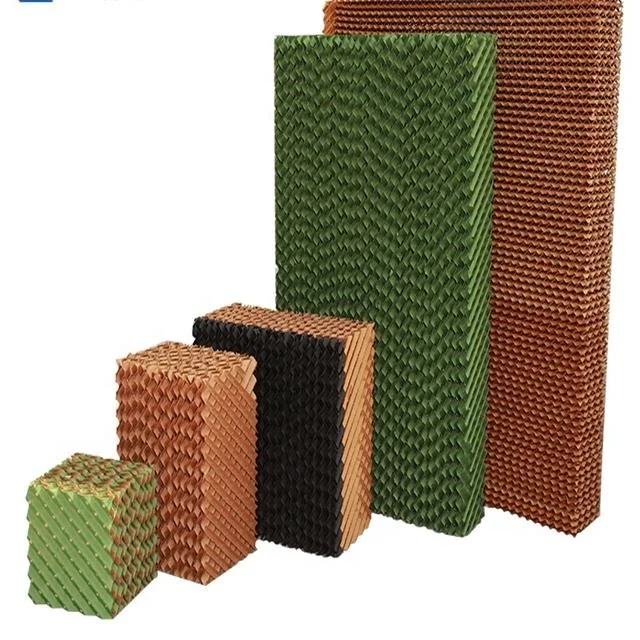

Cooling Pad Color:
◎ BROWN COLOR
◎ GREEN COLOR
◎ GREEN&BROWN COLOR

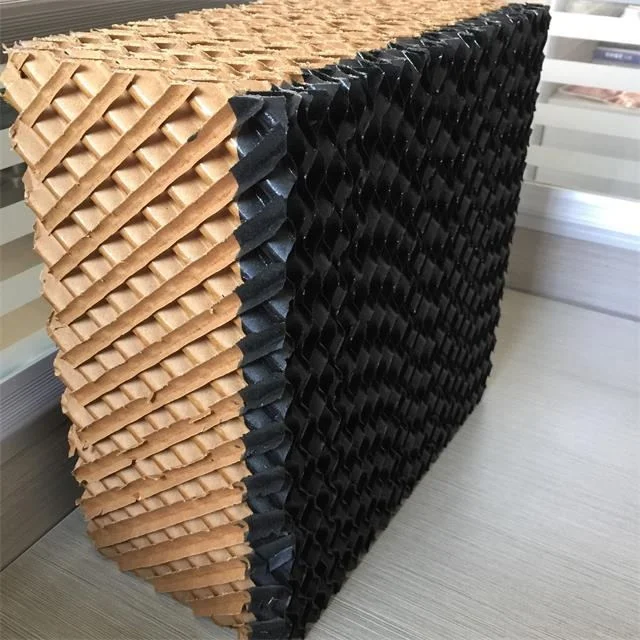

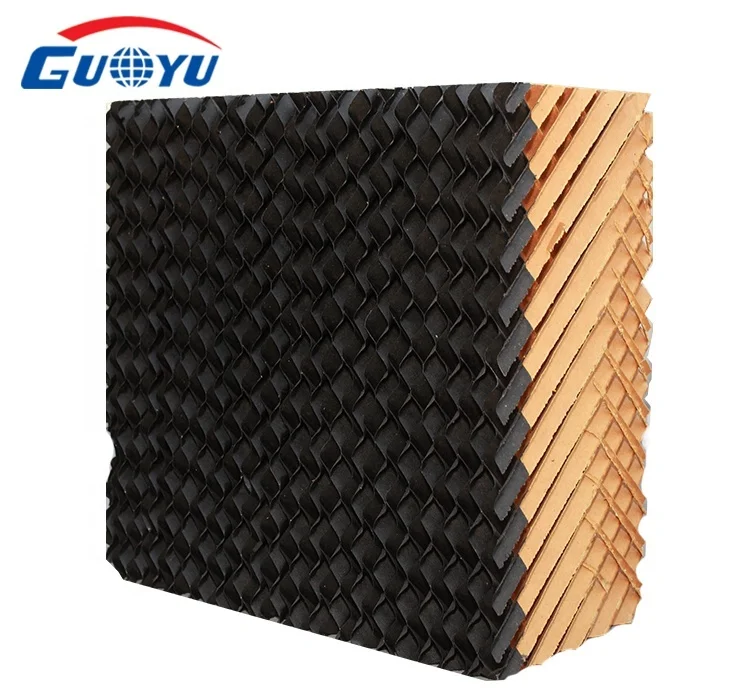

◎ ONE SIDE BLACK-COATED (WASHABLE)
◎ ONE SIDE BLACK-COATED (WASHABLE)
◎ ONE SIDE GREEN-COATED(WASHABLE)
◎ ONE SIDE YELLOW-COATED(WASHABLE)

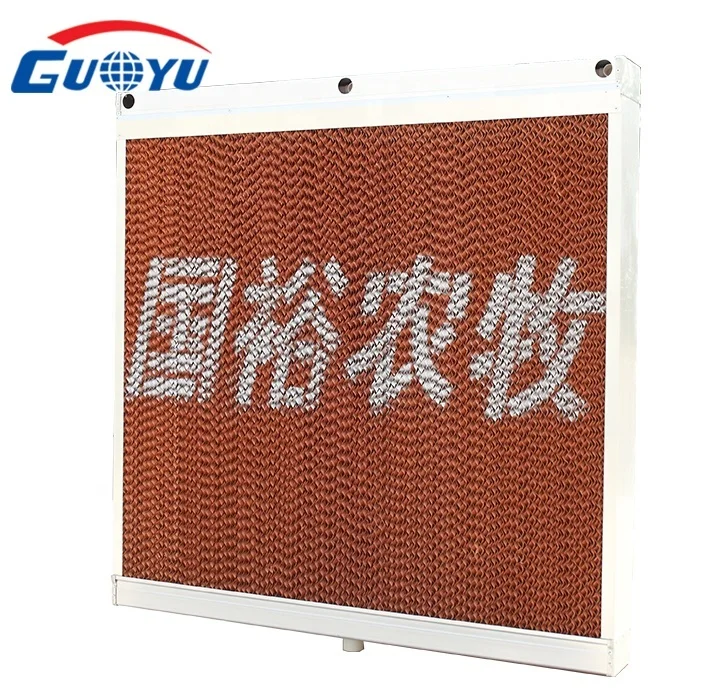

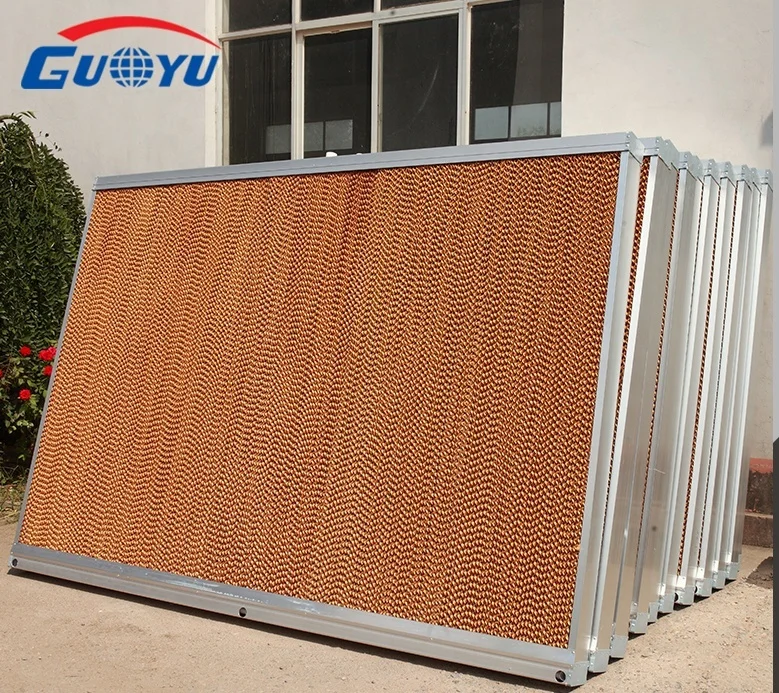

Cooling Pad Frame:
◎ Aluminum alloy frame
◎ Galvanized steel frame
◎ PVC frame
Specification Size:
◎ Thickness 100mm frame
◎ Thickness 150mm frame
Note:Frame could be customized in any size.
Note:Frame could be customized in any size.

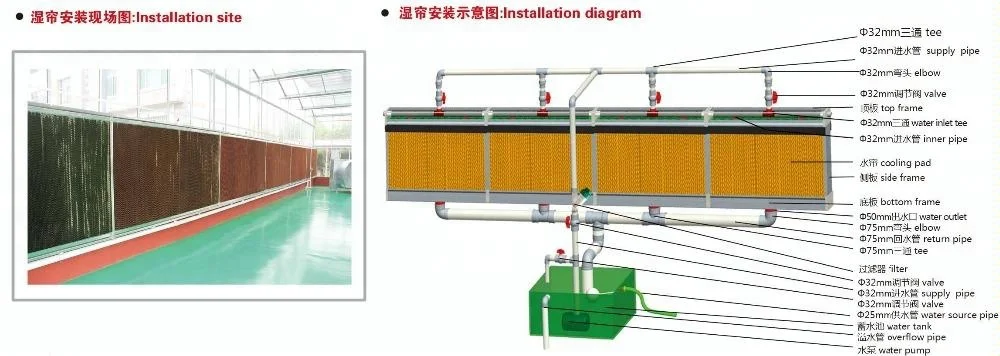

Installation Diagram:

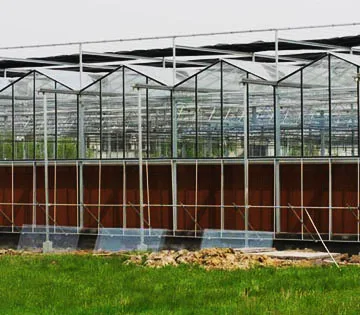

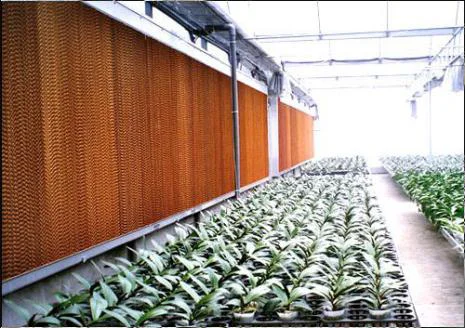

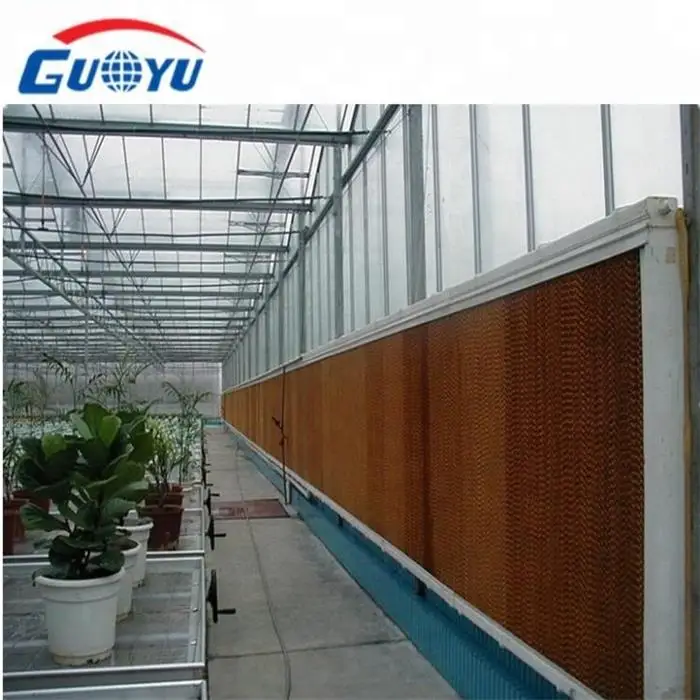

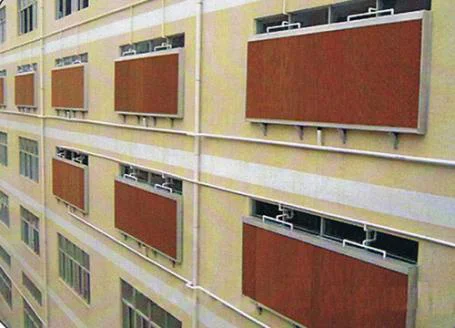

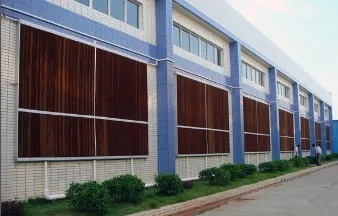

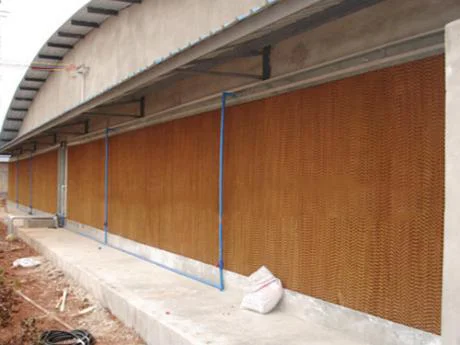

Application
Company Profile
China Shandong Guoyu Agricultural and Animal Husbandry Machinery Co.,Ltd. was founded in 2006, the company is specializes in designing , manufacturing, selling and installation of professional automation animal husbandry equipment. The mainly products are husbandry exhaust fans, evaporative cooling pad, feed storage silo, poultry equipment and husbandry equipment.
We has independent import and export rights and our products have been exported to more than 50 countries covering ASEAN, South America, Middle East, Europe and South Africa.
We has independent import and export rights and our products have been exported to more than 50 countries covering ASEAN, South America, Middle East, Europe and South Africa.
