Product Overview

Description

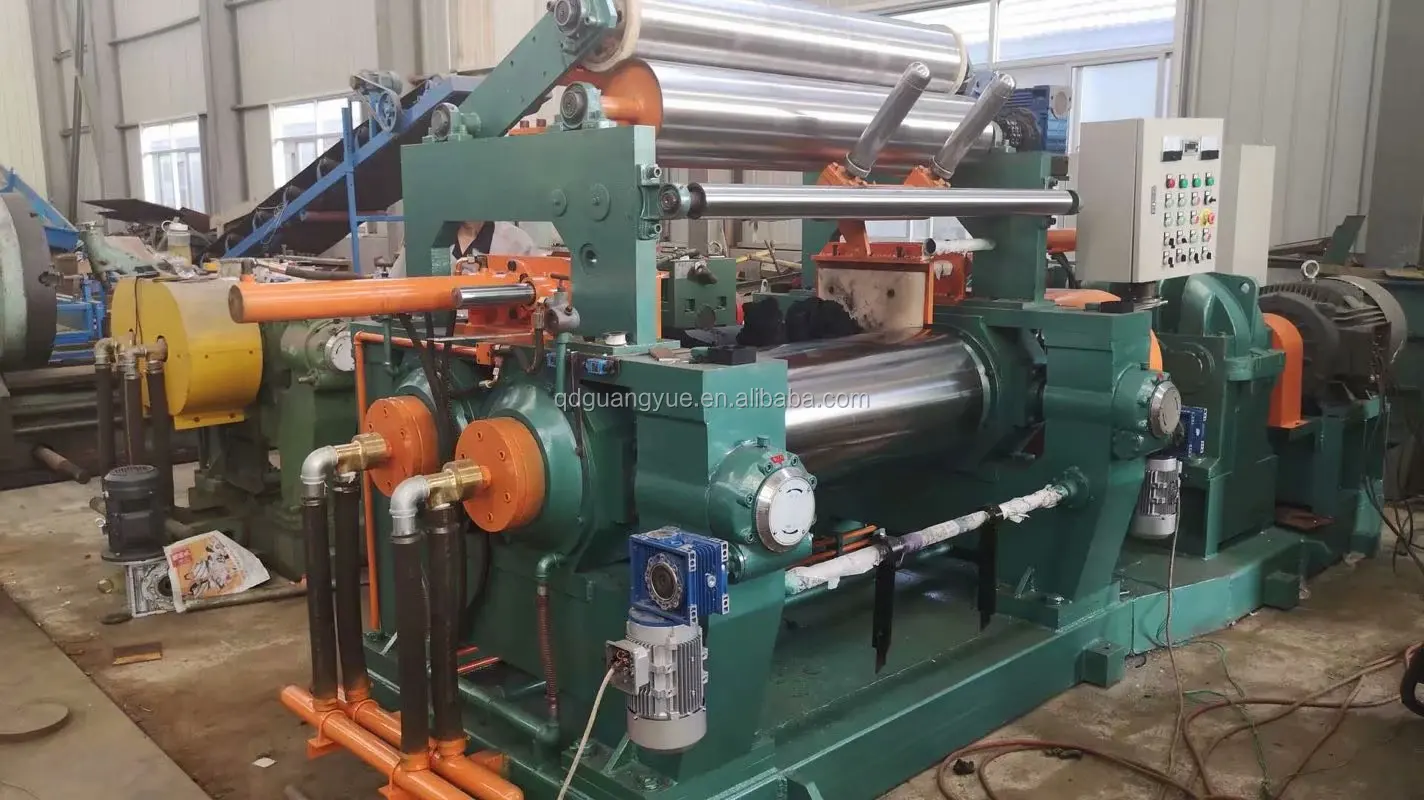

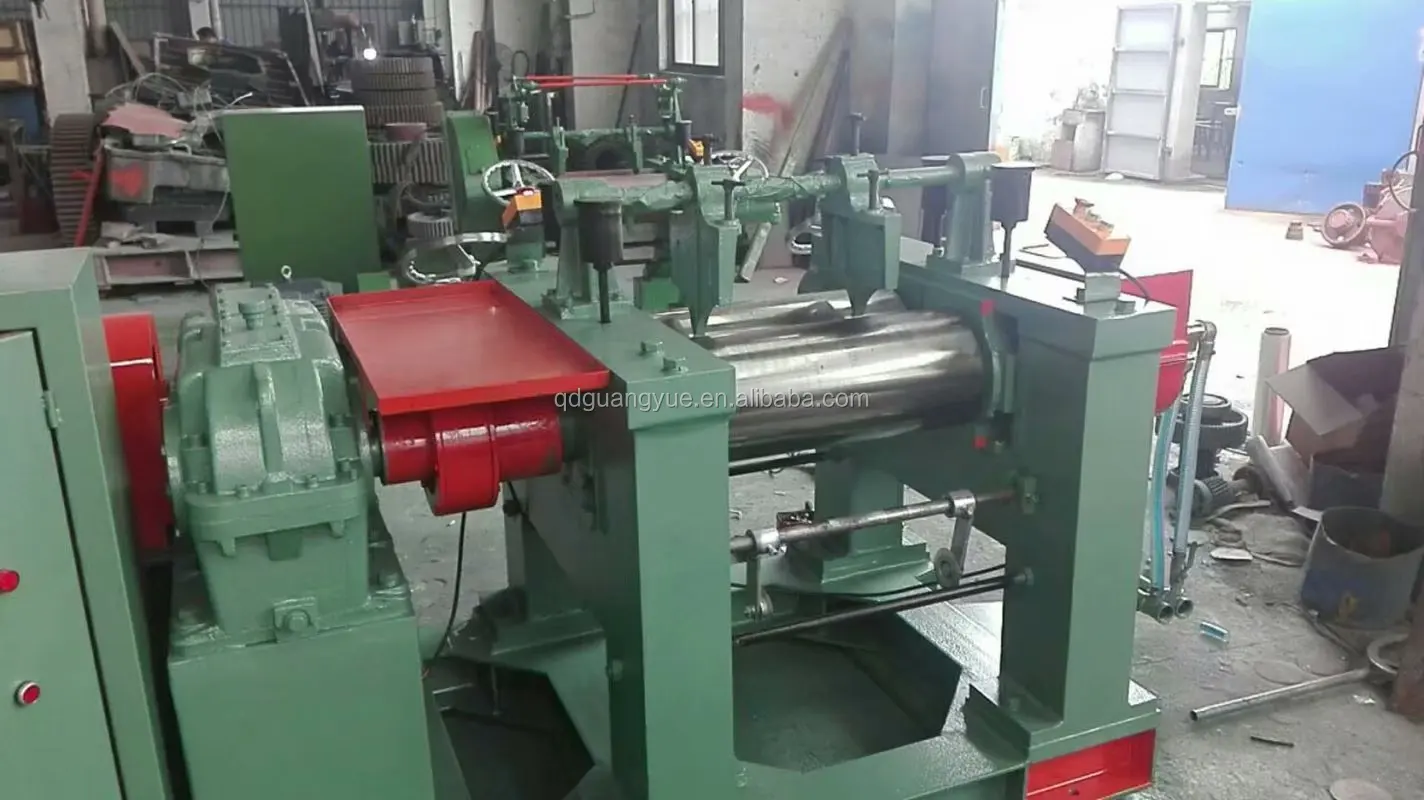

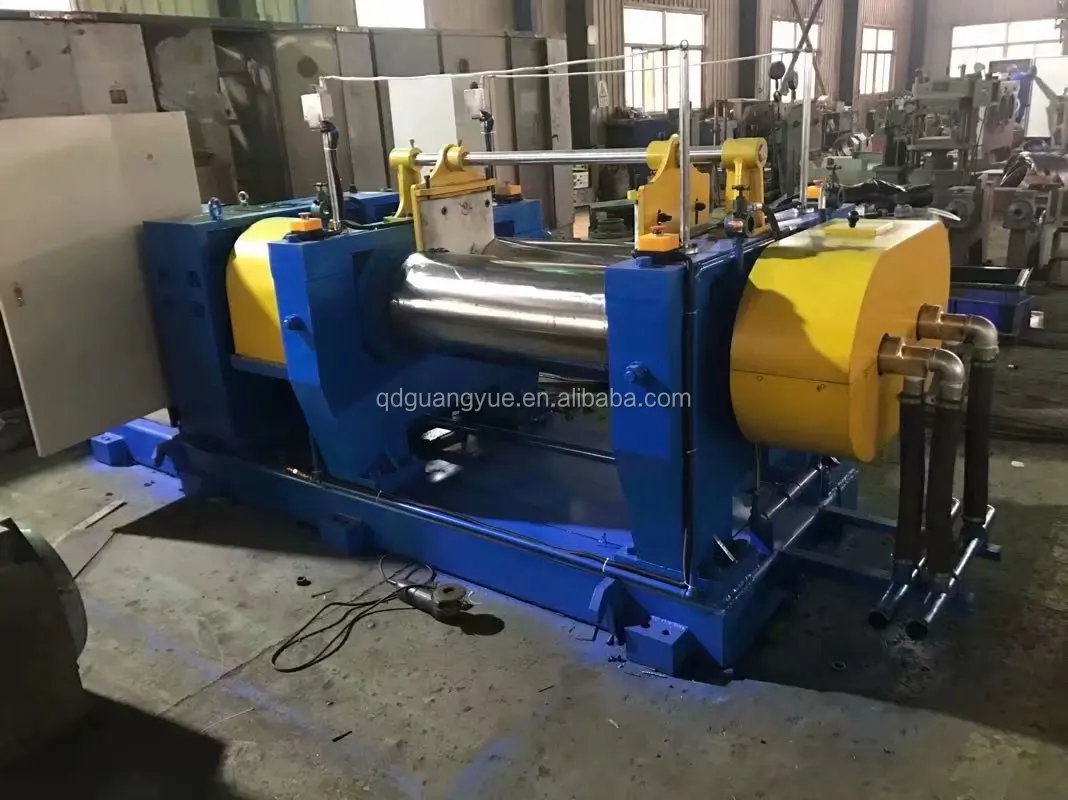

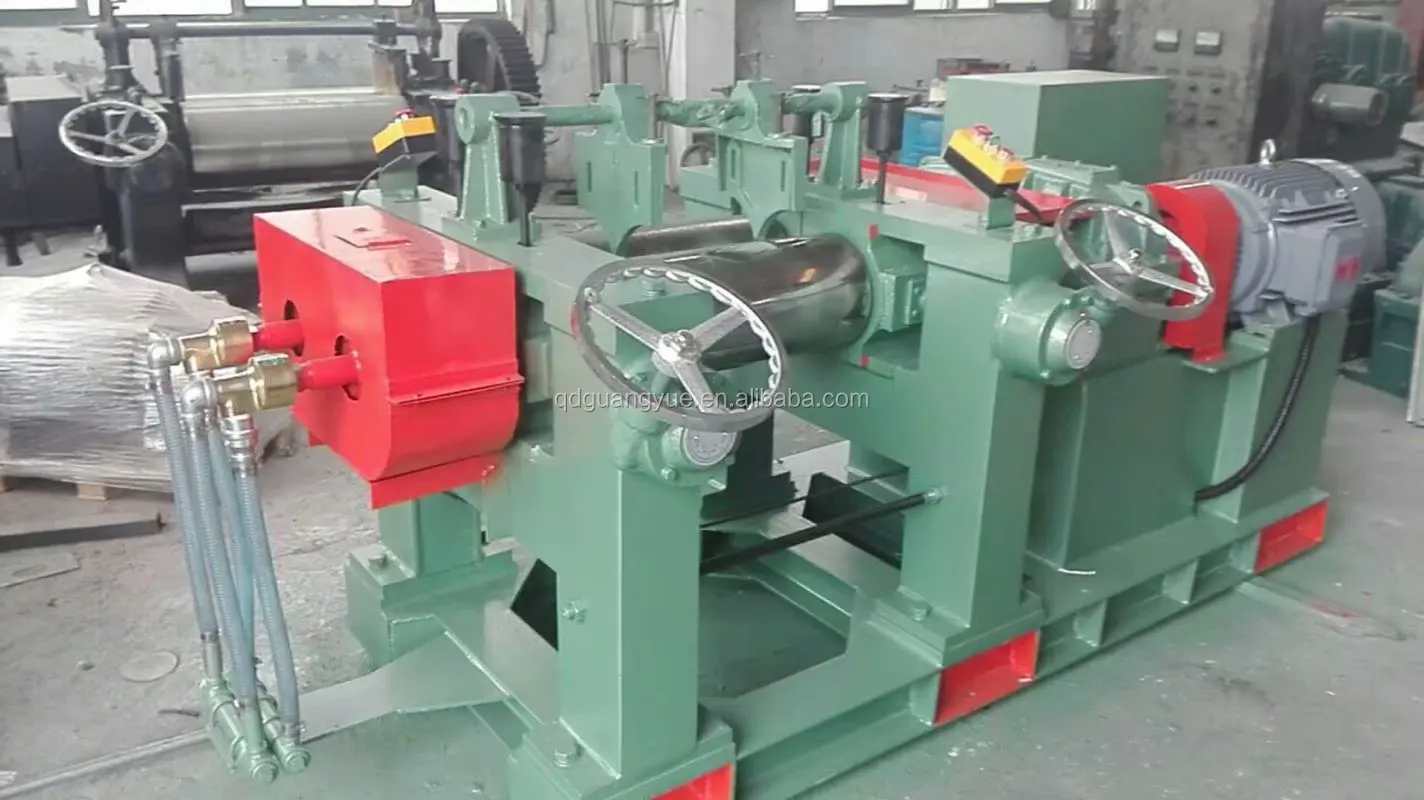

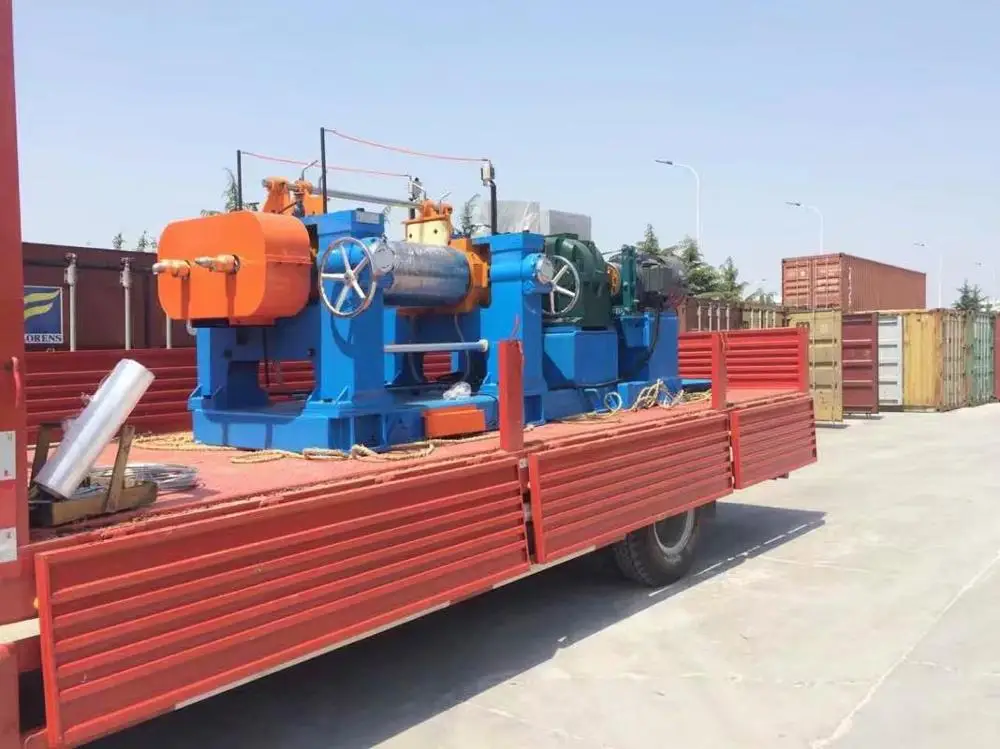

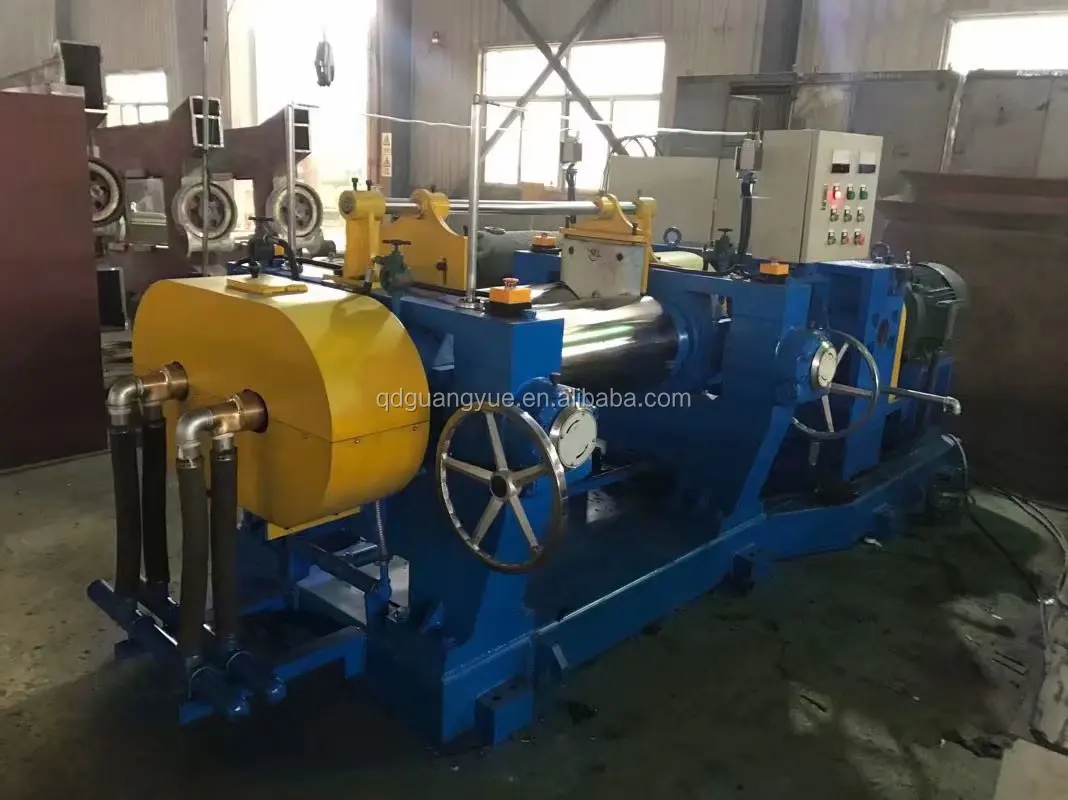

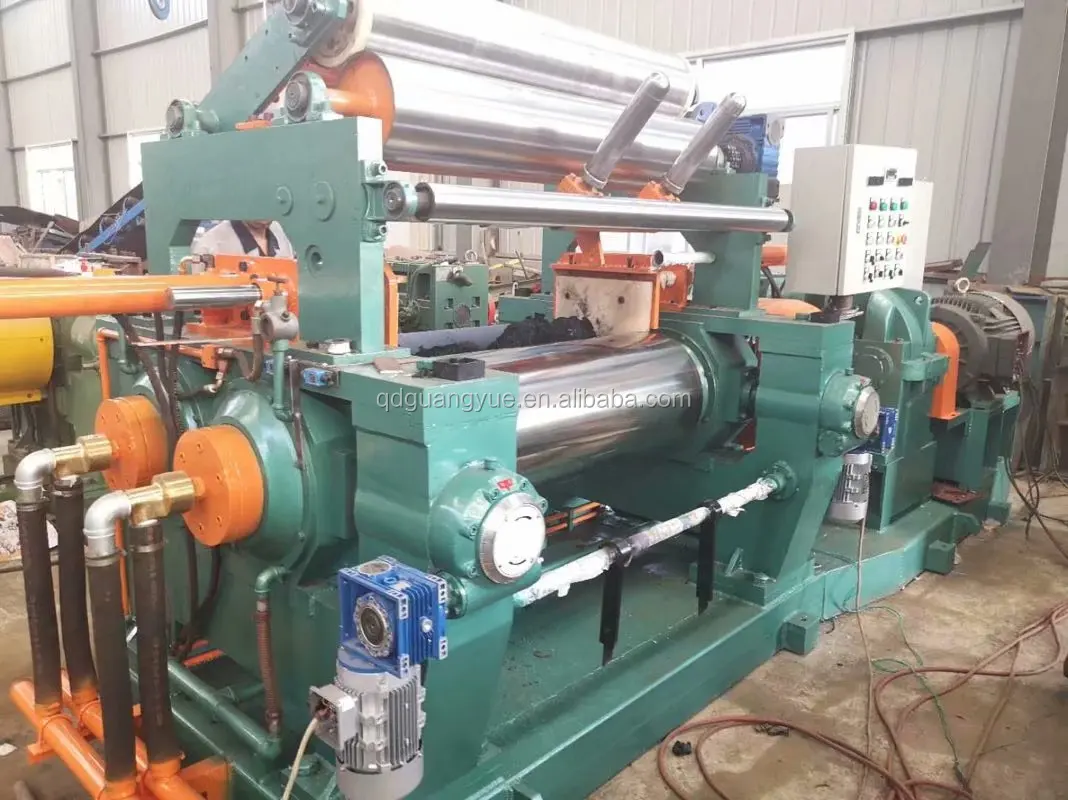

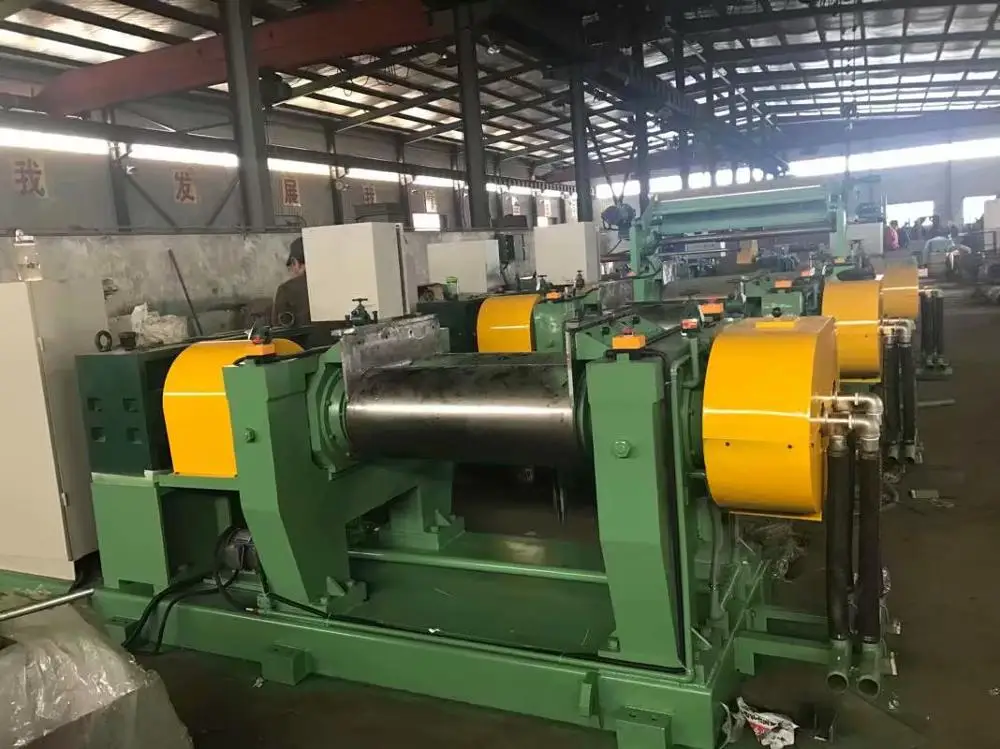

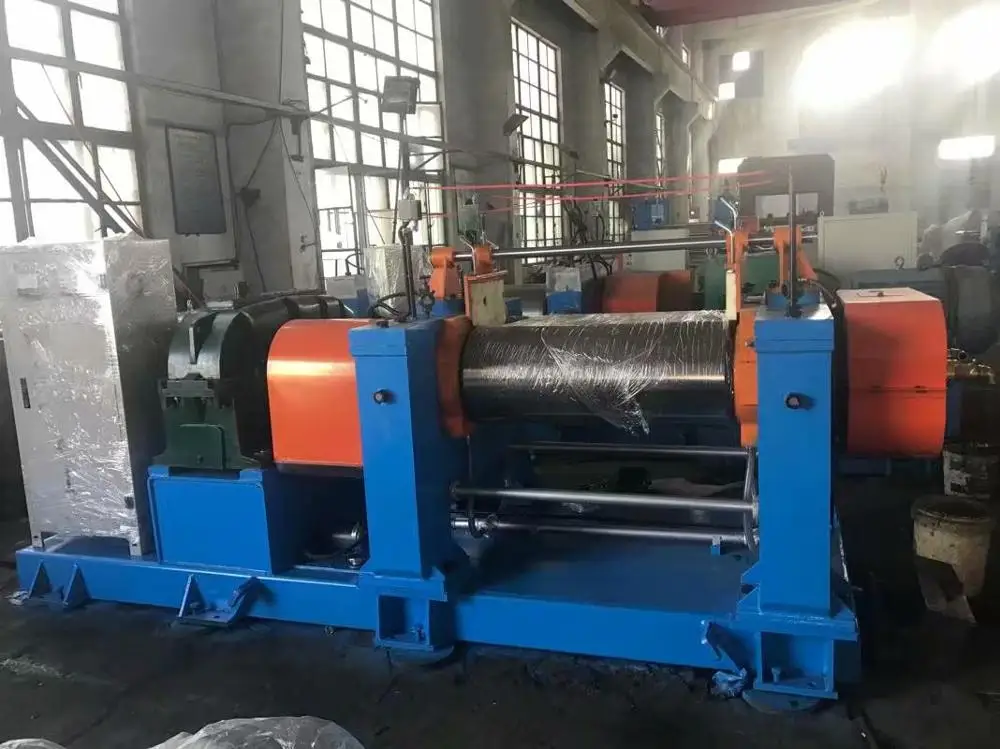

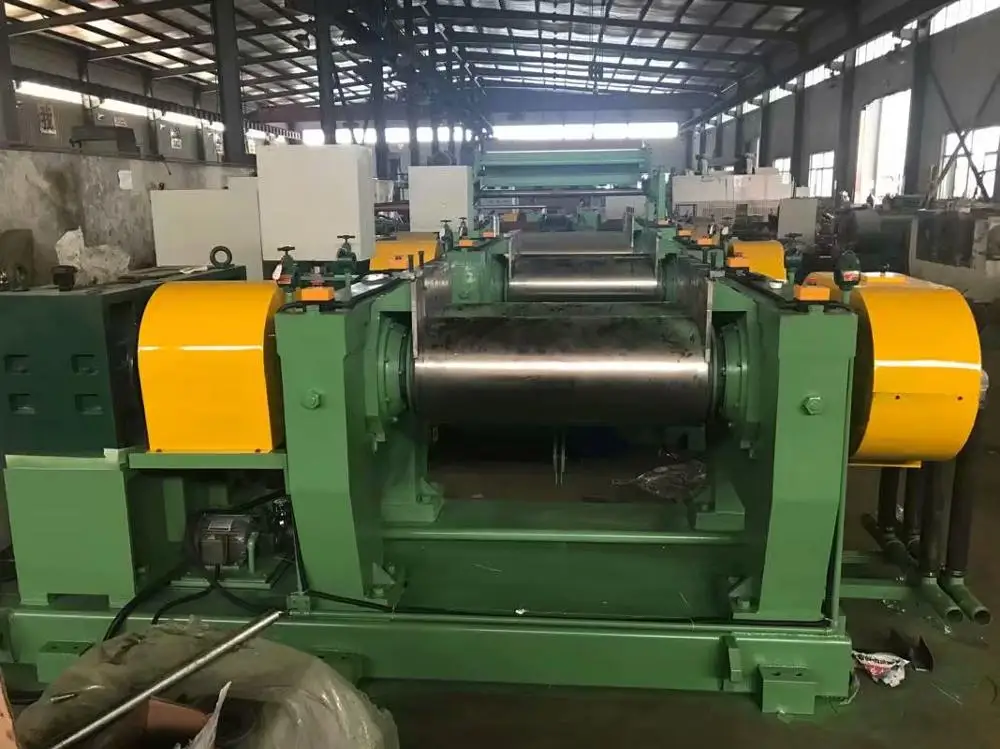

XK400 Reclaimed Rubber Making Open Mixing MIll/Best Price Rubber Open Mixing Mill



Application:

It is used for rubber mixing, warming, sheeting and plastic mixing, etc.



Structure features:

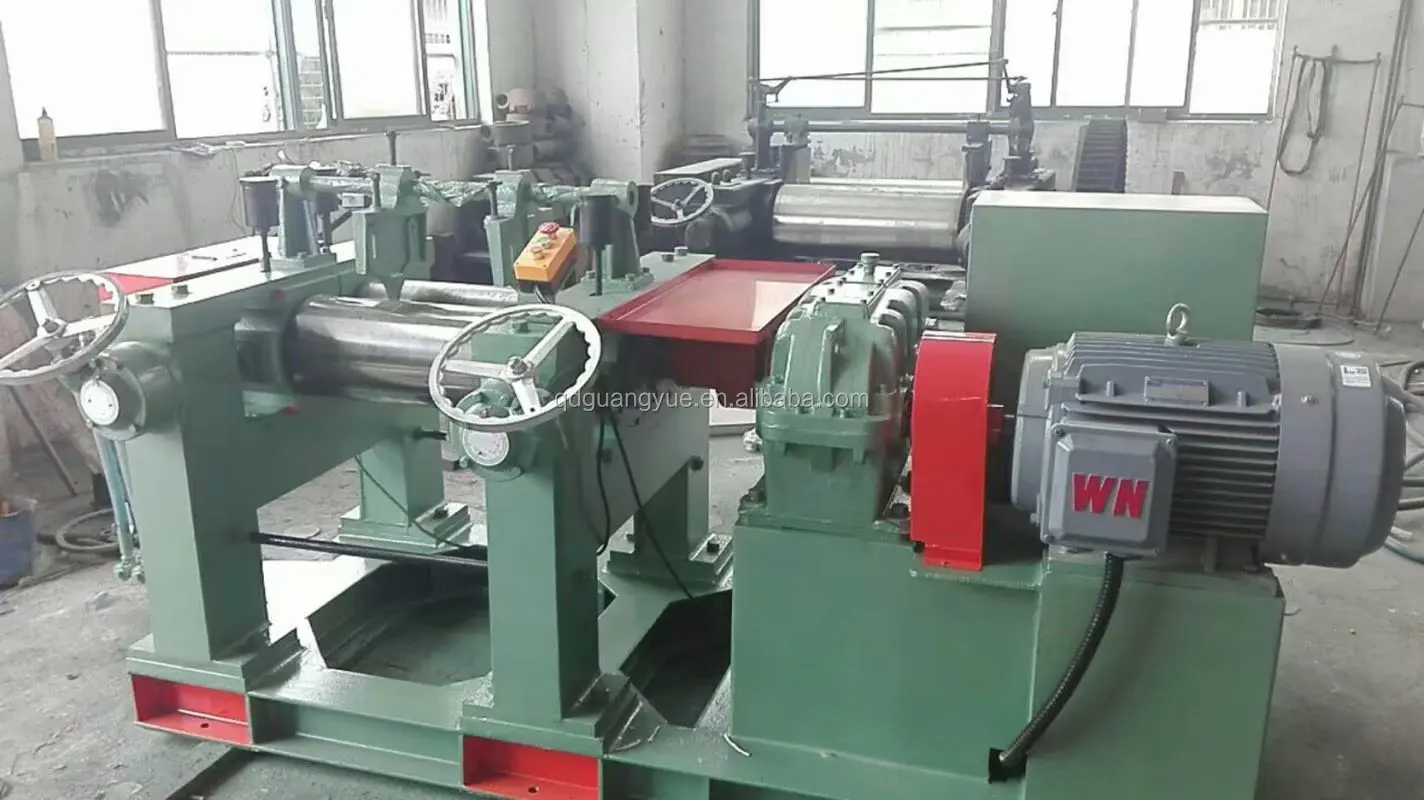

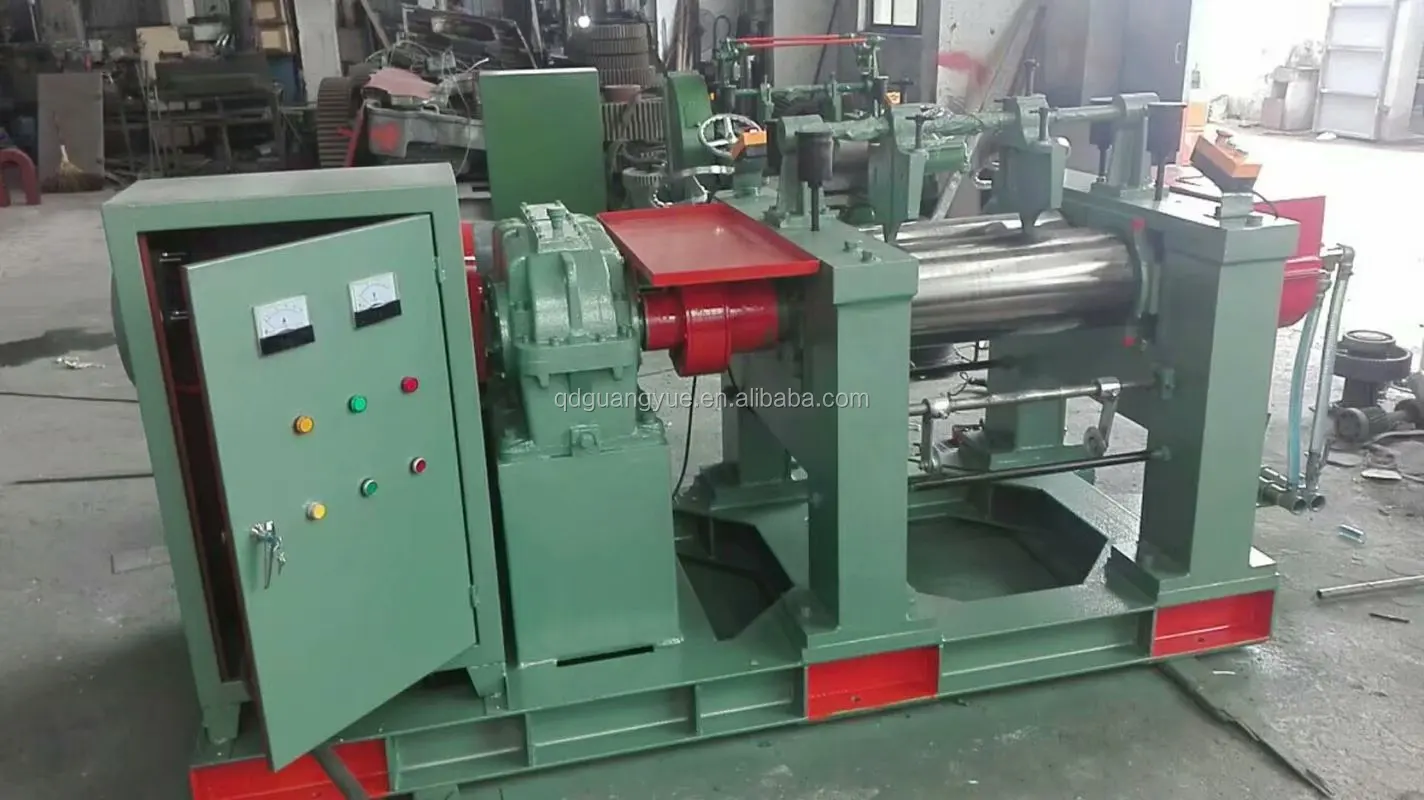

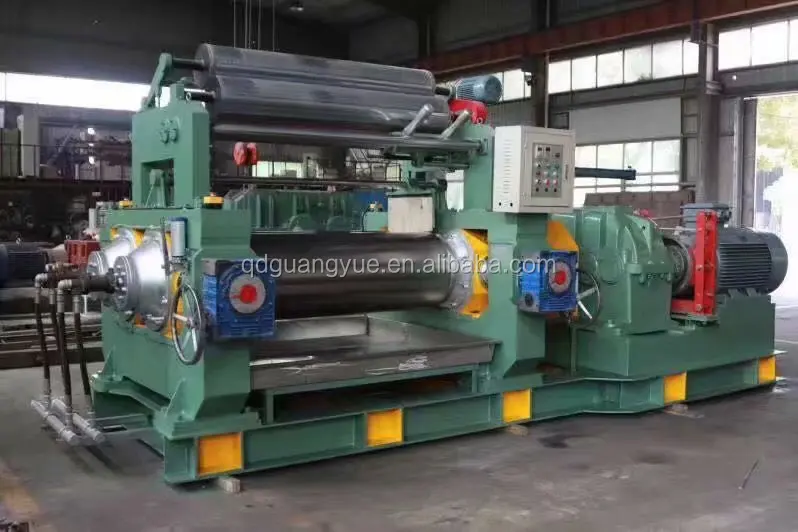

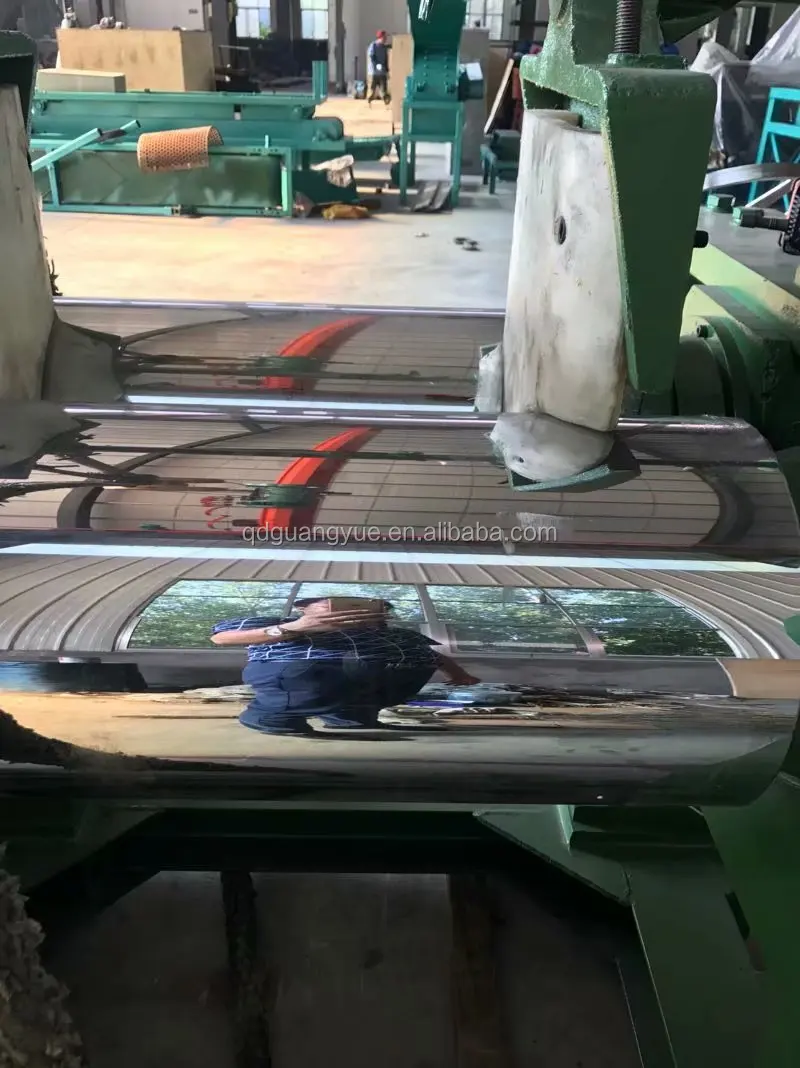

This machine is composed of rolls, bearings, frame, frame cap, transmission device, nip adjuster,

lubrication device, temperature regulator of rollers, emergency stop device and braking device, etc. The transmission is mainly conducted by the main motor, which drives reducer, and then the two coupling make the two rollers run. The speed of rollers is adjustable and can be directly showed on the control panel. Rollers are protected

by a safety shim, and rollers bearings are lubricated with manual-operation/power

driven through a grease pump.



Model		XK-160	XK-250	XK-300	XK-360	XK-400	XK-450	XK-560
Roll diameter(mm)		φ160	φ250	φ300	φ360	φ400	φ450	φ560
Working length of roll(mm)		320	620	750	900	1000	1200	1530
Linear speed of front roll(m/min)		11.24	14.4	15.1	16.25	18.65	24.5	29.09
Speed ratio of front & back roll		1:1.35	1:1.17	1:1.27	1:1.25	1:1.27	1:1.27	1:1.2
Max. roll distance(mm)		4.5	8	8	10	10	15	20
Feeding capacity per time(kg)		1-2	10-15	15-20	20-25	18-35	25-50	50-65
Driving motor power(kw)		7.5	18.5	22	30	37	55	75
Outside dimension(mm)	Length	1080	3400	3580	3780	4250	5200	6120
	Width	796	1500	1550	1850	1850	2380	2282
	Height	1415	1500	1695	1740	1870	1770	2000
