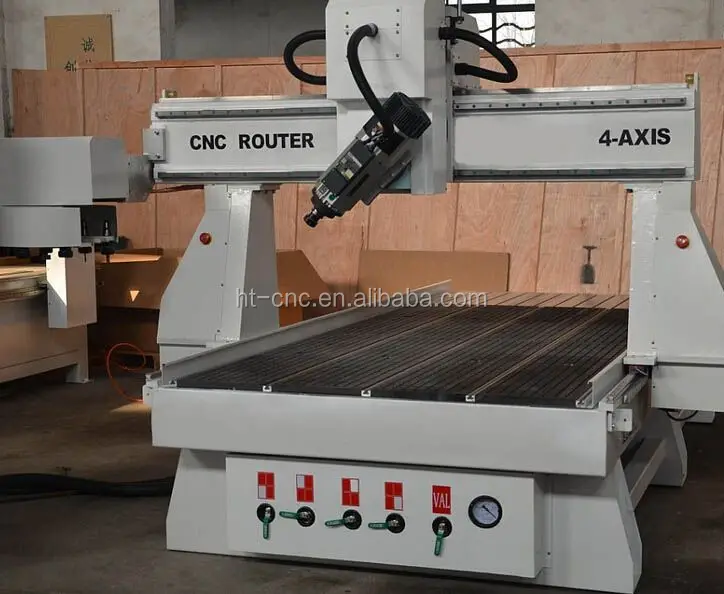

4 axis cnc router 1325 for wood, stone,glass engraving, cutting machine
- Category: >>>
- Supplier: Jinan Hopetool CNC Equipment Co. Ltd.
Share on (60339135830):
Product Overview
Description
4 axis cnc router 1325 for wood, stone,glass engraving, cutting machine
Product Description
Main parts
Machine Introduction
This machine is specially for 4D engraving, the spindle(A axis) can rotate +/- 90 degree, can make multi-kinds of surface which we can design with Software.
With Syntec EZ-4ME control system, Yaskawa servo motors, HSD air cooling spindle, Delta inverter ,Becker vacuum pum all components are from global leaders.
With this machine, you can make different surface carving, arc-surface milling, bend surface machining for 4D jobs, like special shaped arts, bended doors or cabinets.
With hard steel structure, it can work on MDF, Acrylic, wood, and some soft metal, cutting and engraving on Rosewood for furniture, indoor decoration.
Perfomance Parameters
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x(300-700mm)*±180° |
2 | Table Size | 1300×3000mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.01mm |
5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
6 | Frame | Big Steel Tube Structure |
7 | X, Y Structure | Helical rack gear , HIWIN Linear guide |
8 | Z Structure | Imported Ball Screw , HIWIN Linear guide |
9 | Max. Power Consumption | (Without Spindle) 4.2Kw |
10 | Max. Rapid Travel Rate | 40000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | HSD spindle 4.5kw( Italy ATC spindle for option) |
13 | Spindle Speed | 0-18000RPM |
14 | Drive Motors | Japan 850 W YASKAWA servo motor |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language | G Code |
17 | Operating System | SYNTEC Control System (model: EZ4M) |
18 | Computer Interface | USB |
19 | Flash Memory | 512M |
20 | Collet | ER25 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | UG , Power mill |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
25 | Packing Size | 4.1*2.3*2.6m |
26 | N.W. | 2500KG |
27 | G.W. | 2800KG |
28 | Optional Parts | Dust Collector/ Dust Hoods for three Axis |
Vacuum Pump | ||
Rotary System | ||
Mist-cooling System | ||
SIEMENS/DELTA/ Panasonic Servo Motors | ||
Colombo Spindle | ||
X:2.5m, Y:4m, Z:1.2m |
Company Information
Factory
Our Services
Training and Use
1. We will supply with the machine operation manual in English version for installing and operation.
2.Customer can come to our factory training .
Warranty and After service
1. Our warranty is 12 months counting from the date when the Machine arrives at the port of destination.
2. We will supply after service 24 hours,customer can contact us any time.
3.When some problems can’t be solved by customers, our engineer can go to door to help.
Why choose HOPETOOL product?
1. HOPETOOL company is specialized in manufacturing and selling n CNC Router and laser machine for many years . We have lots of experience.
2.Our worker have experience,they can produce machines professional and skilled,so make the machine with high quality and can work well.
3.All the parts of our machines are famous brand in China or in international,so it make sure our machine have high quality and long lifetime.
4. Our company has all kinds of machines in store, so we can make sure deliver quickly.
5. Our company has international technical service team and provides 24 hours online services and technical supports for customers.
