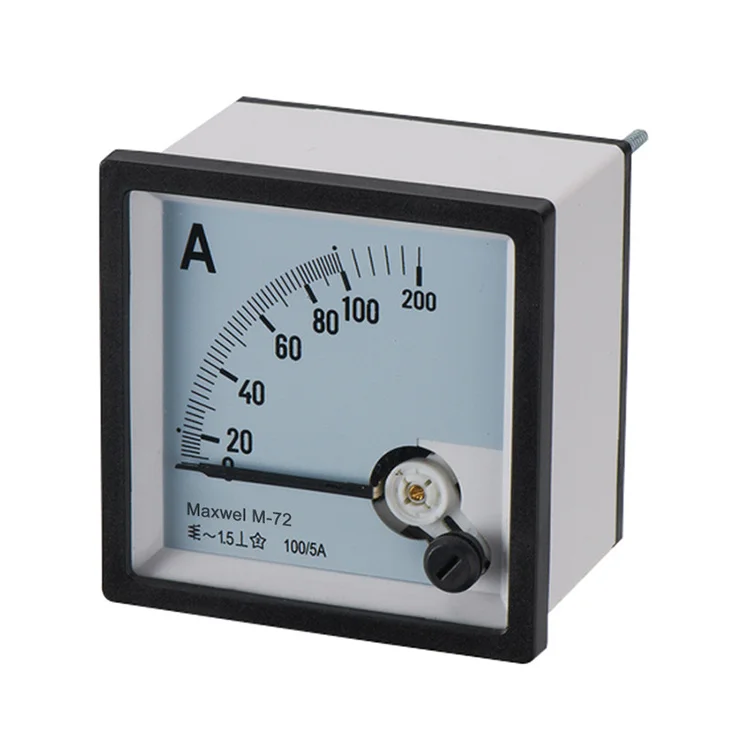

1.5 class rectangular panel meter ac ammeter current meter 72x72

Product Overview

Description

1.5 class rectangular panel meter ac ammeter current meter 72x72



Specification:

Model: DE-T96, DE-T72, DE-T48, DE-C96, DE-C72, DE-C48
Accuracy: Class 1.5
Specs: 0.1A,0.5A,1A,1.5A,3A,5A,7.5A,10A,20A,25A,30A,50A,75, 100A(use Ext. CT 5A)
Note: For 60/75/100A direct meter, the class in 2.5.
Advantage: The scale can be easily changed without opening the front frame so that the class will not be influenced.



Model	Unit	A	B	C	D	E	F

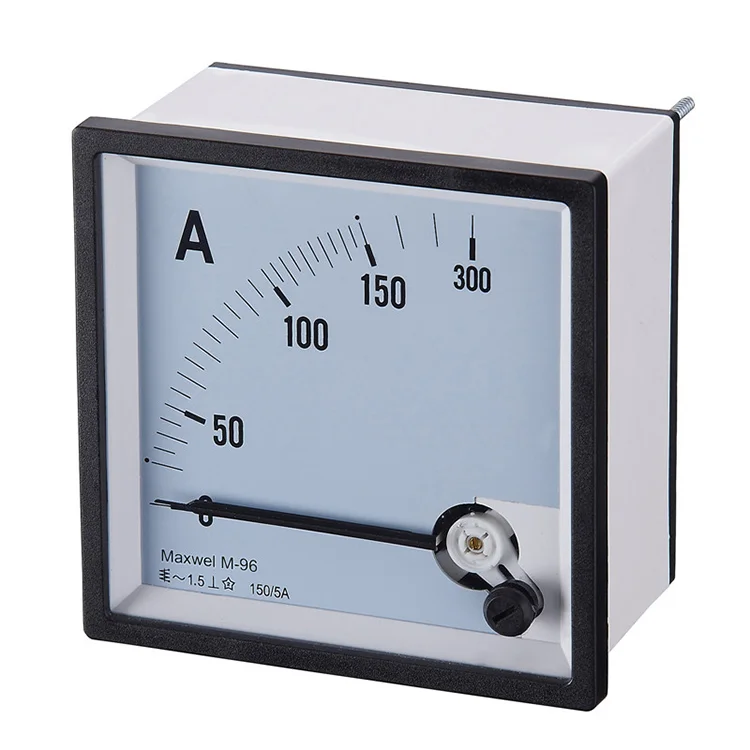

DE-96	mm	96	92	90	5.5	65	43
DE-72	mm	72	68	66	5.5	65	43

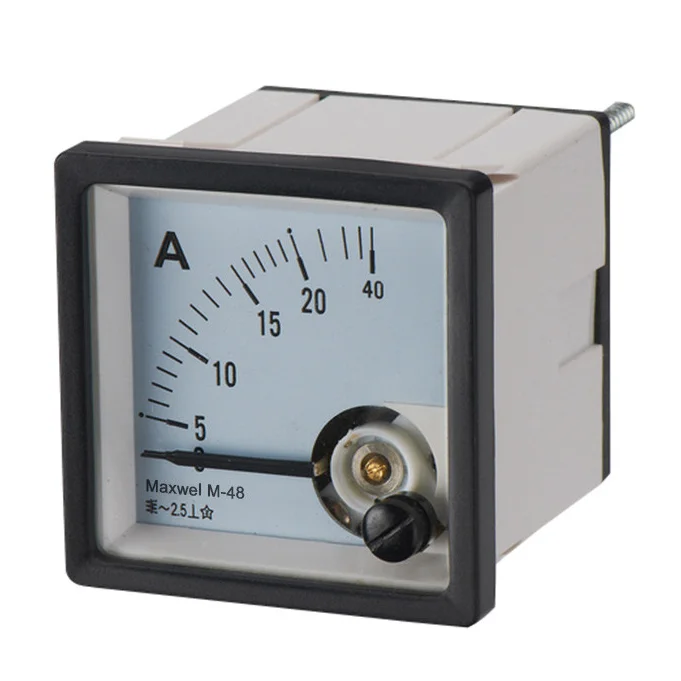

DE-48	mm	48	44	42	5.5	65	43
