Лидер продаж, охладитель древесных гранул серии Yulong SKLN на биомассе
- Category: Cooling Towers >>>
- Supplier: Shandong Yulong Machine Co. Ltd.
Share on (60350170694):
Product Overview
Description
Model | Calorific T/h | Power(kw) | Cooled Time | Fan power(kw) | Cooled Temp (℃) |
SKLN1.2 | 0.8-1.2 | 1.1+1.5+5.5+0.25 | Not less than6- 10 minutes | 5.5 | Room temperature + 3-5℃ |
SKLN1.5 | 1-2 | 1.1+0.18+5.5 | 300 | 5.5 | 1.9 |
SKLN2.5 | 2-3 | 2.2+0.18+11 | 600 | 11 | 4.15 |
SKLN-4 | 4-6 | 2.2+22+0.37+0.37 | 900 | 22 | 4.85 |
SKLN-6 | 7-10 | 3+37+0.55+0.55 | 1200 | 37 | 6.5 |
SKLN-8 | 10-15 | 3+55+0.55+0.55 | 1500 | 55 | 7.1 |

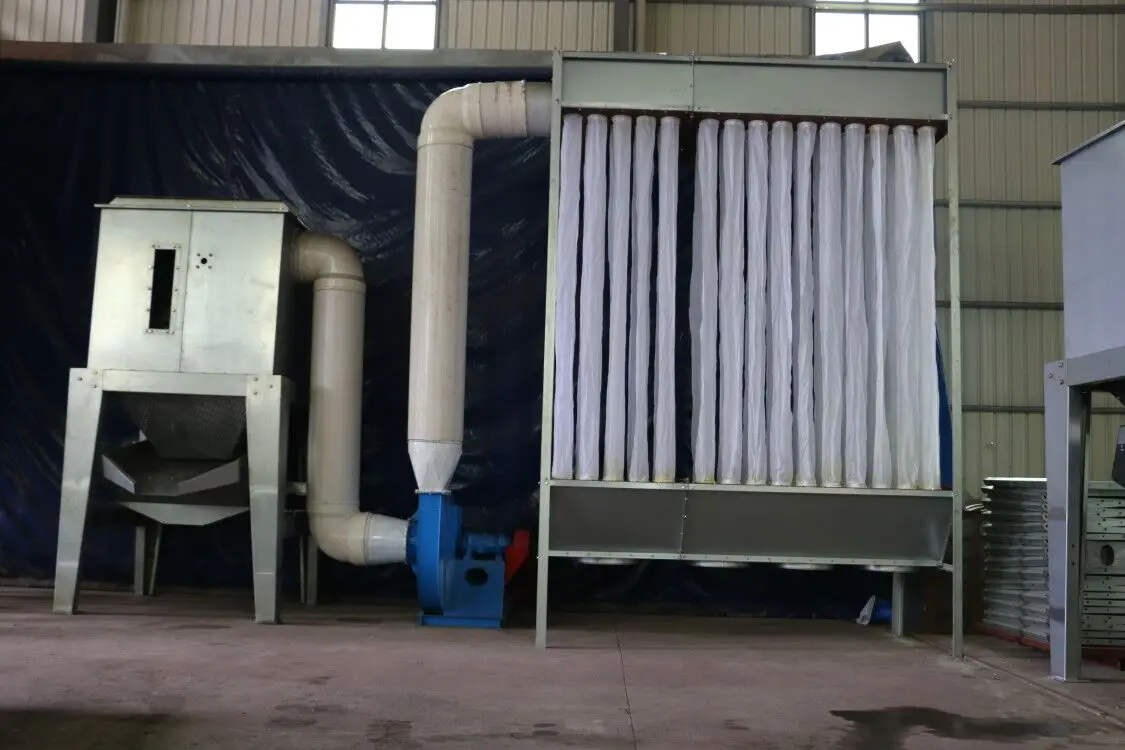

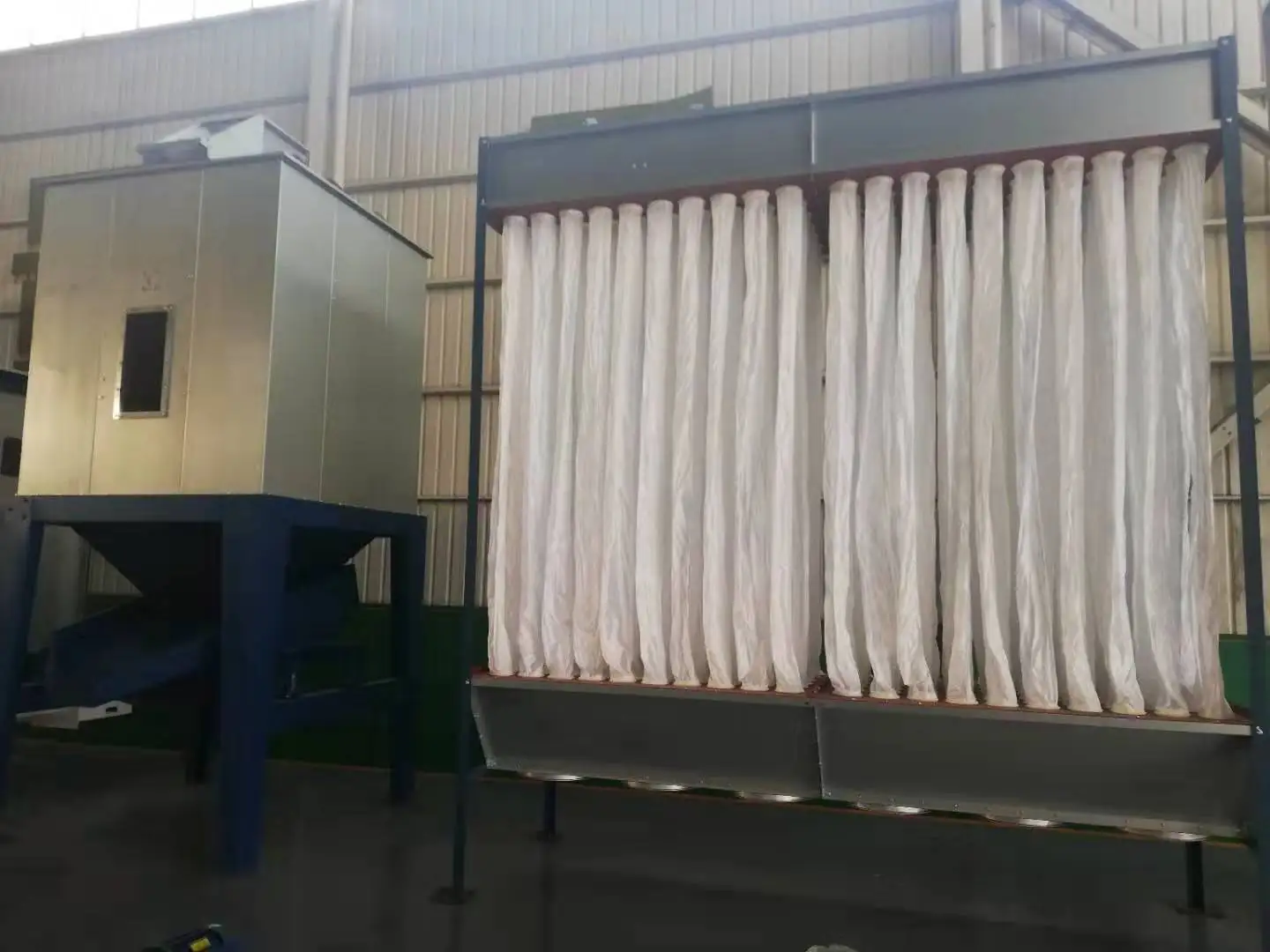

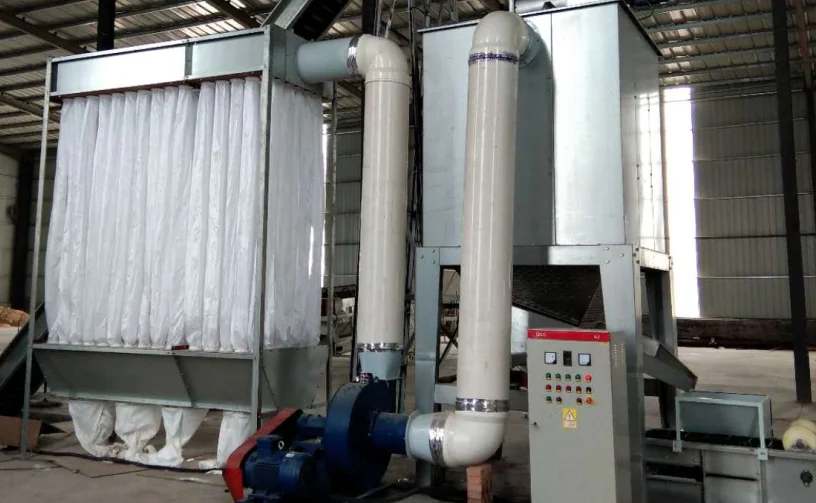

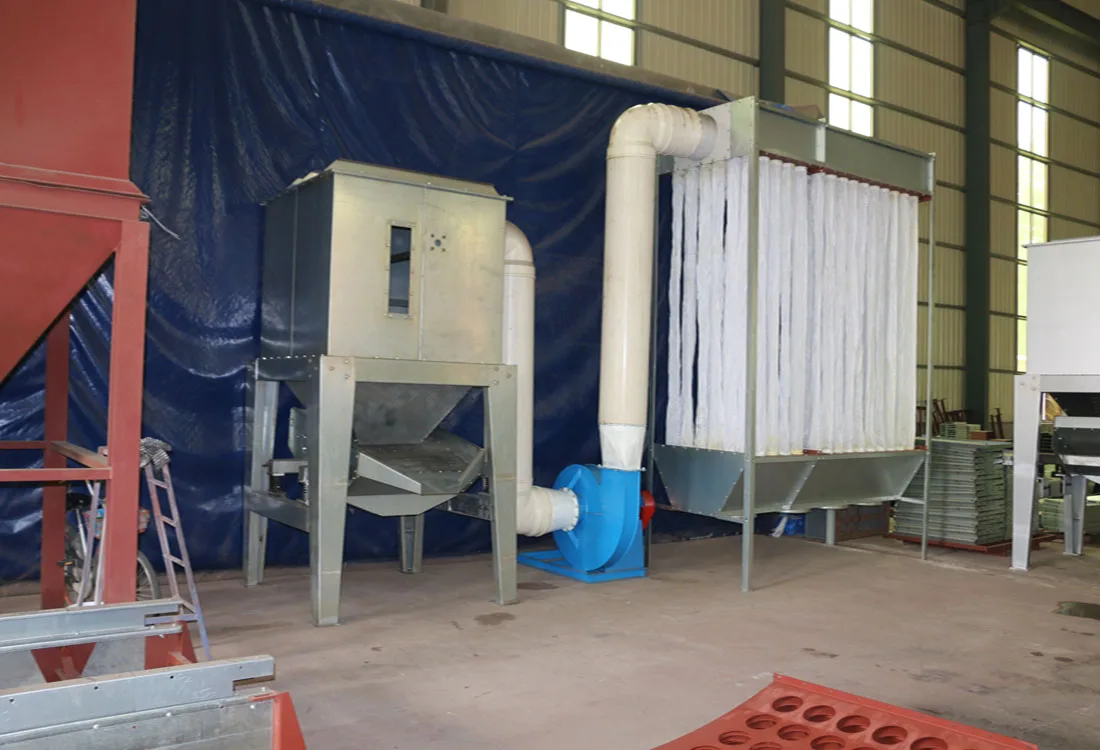

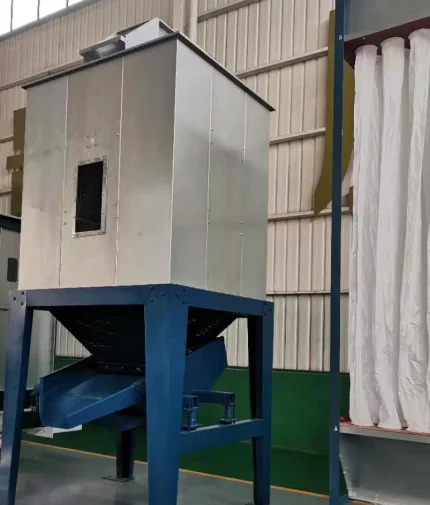

▶Our company uses SKLN series counter-flow cooler Let's take a look at the main components: the
upper housing, middle bin, cooling sieve, vibrating screen, the frame, the observation window, bag dust collector, fan blower and other parts components.。 The cooler is mainly used to cool high-temperature pellets after pelleting; To reduce the temperature and humidity of the pellets, so as easy to transport and storage.
upper housing, middle bin, cooling sieve, vibrating screen, the frame, the observation window, bag dust collector, fan blower and other parts components.。 The cooler is mainly used to cool high-temperature pellets after pelleting; To reduce the temperature and humidity of the pellets, so as easy to transport and storage.
▶ After the pellets come out of the pellet
machine, the temperature can be close to 70 degrees. The high-temperature pellets are very easy to break and produce water vapor, but the temperature of cooled pellets is close to the atmospheric temperature and can be directly packaged, so it is essential part in large pellets production lines, that to convenient the pellet into next section (packaging section).
machine, the temperature can be close to 70 degrees. The high-temperature pellets are very easy to break and produce water vapor, but the temperature of cooled pellets is close to the atmospheric temperature and can be directly packaged, so it is essential part in large pellets production lines, that to convenient the pellet into next section (packaging section).
Compared with the old cooler, the new cooler use thick galvanized sheet materials,has high density,not easy to deform,corrode and has long service life.
▶ 1. The cooler adopts modular structure installation, it’s convenient for transportation and customer site assembly.
2. And it’s adopt the unique vibration mechanism to discharge pellets, stable operation and smooth discharging.
▶ 1. The cooler adopts modular structure installation, it’s convenient for transportation and customer site assembly.
2. And it’s adopt the unique vibration mechanism to discharge pellets, stable operation and smooth discharging.
3. The cooler set up the material level device, real-time monitoring of the material position in the bin, with high degree of
automation.
automation.
Company introduction
Committed to be coming a leader in the biomass energy industry,creating maximum value for customers
Company Profile
Shandong YULONG Machine Co.,Ltd. is a integrated enterprise with product development, design,manufacturing, training,and trade.YULONG was founded in August 1998.
32 patents on its own R&D products
EU CE,SGS certification and son on
YULONG has modern R&D facilities and infor-mation equipment to facilitate business com-munication with customers around the world, and create good information conditions for the company's product exportation.
Exhibition
Indonesia Exhibition
Bulgaria Exhibition
Malaysia Exhibition
Guangzhou Exhibition
Changchun Exhibition
Beijing Exhibition
Spain Exhibition
Guangzhou Exhibition
Poland Exhibition
Customer Vist
FAQ
Q: General questions to design the production line for you?
A: 1. What is your raw materials? (to confirm mould pressure ratio of machines )
2. What is the moisture content of your raw material?
3. How many output capacity do you want per hour / month/ year?
Note: If the moisture is high, you need a dryer, becuase the suitable moisture content to enter pellet machine is 13-15%. And
please provide us above detailed information, then we would design the most suitable production line with reasonble offers.
2. Q: How long is your guarantee?
A: 12 months warranty but except quick waering parts.
3. Q: Will you send engineers to install the machines?
A: Of course. Our company has professional installation engineers team and specialized after-sale service team. When the machines
arrive your factory, we will send our installation engineers to your factory Our engineers will Guide you to install the machines
and training your workers how to operate the machines and maintain the machine.
4. Q: Voltage requirement ?
A: Our machines can use 380V, 220V, 240V, 415V, 480V, and 50Hz, 60Hz.
