5 axsis brush making machine
US $1.00
Аппарат для посадки кистей
- Category: Brush Making Machines >>>
- Supplier: Jiangmen Meixin Comb Brush Machinery Co. Ltd.
Share on (60350179365):
Product Overview
Description
Company Information
Our factory is specialized in producing 2 to 5 axis single(double) colour brush machine,CNC tufting machine,CNC tufting and drilling machine,CNC drilling and tufting combination machine,filament trimming machine,filament cutting machine.Our products mainly are widely used in all kinds of brushes,for example:broom(plastic and wood)cleaning brush,electric toothbrush,travel toothbrush,cosmetic brush,nail polish brsh,industry roller brush,strip brush,round disc brush,dish washing brush,comb,massage brush,wooden brush,barbecue brush and so on.
Product Description
Machine paremeter
| 1 | machine size | 2045*1520*2040mm(L*W*H) |
| 2 | axis | 5 axis |
| 3 | Power | about 8KW |
| 4 | Power voltage | 380VAC/220VAC |
| 5 | wire | round wire(stape nail) |
| 6 | hole diameter | 4-6mm, |
| 7 | max outside filament length | 200mm |
| 8 | Journey of A axis | 750mm |
| 9 | Journey of Y axis | 250mm |
| 10 | Angle of Z axis | 360° |
| 11 | roller diameter | 70-220mm |
| 12 | Tufting speed | 5 holes/sed |
| 13 | Weight | about 900kg |
| 14 | Packing | wooden box |
| 15 | Function | Drilling and Tufting |
| 16 | Production | about 2000pcs/10 hours |
Machine Features and characteristics:
- Can tuft or fill kinds of plastic filament brushes and brooms(Shape:flat,cursed,cylindrical,ached and so on)
- installed with one tufting motor head,high speeding processing,high volume,cost effective.
- Wide-range in applicance:household,industrial,school,factory,street floor cleaning and sweeping and scrubbing
- brush or broom handles:plastic or wooden or PVC board block
- Drilling and tufting two function machine or only tufting machine or only drilling machine
Only tufting machine,the brushes handle have to be moulded with holes firstly.- Brush broom raw material:PP,PET,PVA,PA,Abrasive filament,pig hair,horse hair,bristle
- filling nail:flat or round nail(wire)
- Low or middle or high production all machines can be customized for you.
- allow to save as 2000 procedure and easy for the creation of new models
- System course:All kinds of brush broom we can make the program for you.
- PLC and touch Panel Control System of Man-Machine,Chinese and english display,simple to understand
- Gripper(fixture):one gripper for one kind of brush or broom,if make other kinds of brush broom,it need to change gripper
What we have to know from you?Pls tell me the below info 1.brush middle hole size 2.max outside filament lenght3.filament diameterMotors conbination:
Italy brake motor
driving Motor: servo motor(Panasonic)
driving screw:TBI ball screw
Lubrication:TBI straight line guide rail
Japan bearing( IKO,BB15 and BB20)
Schneider low voltage electrical appliances
Stepless speed:Frequency converter using Delta inverter
PLC(ADTECH CNC Control System) Fiber box container:two or three colours

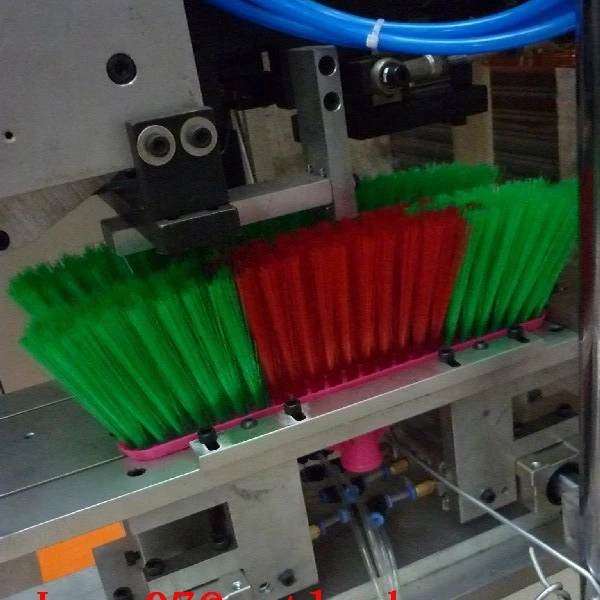

Production process:

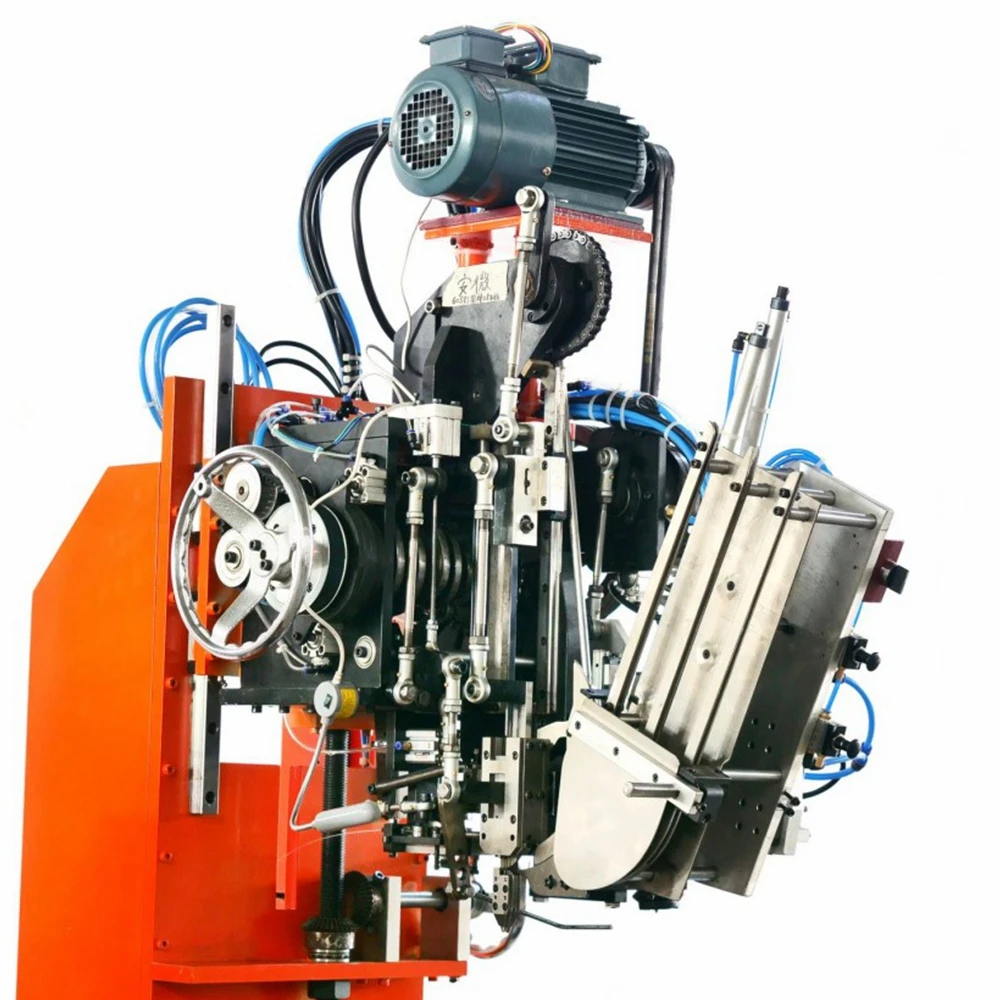

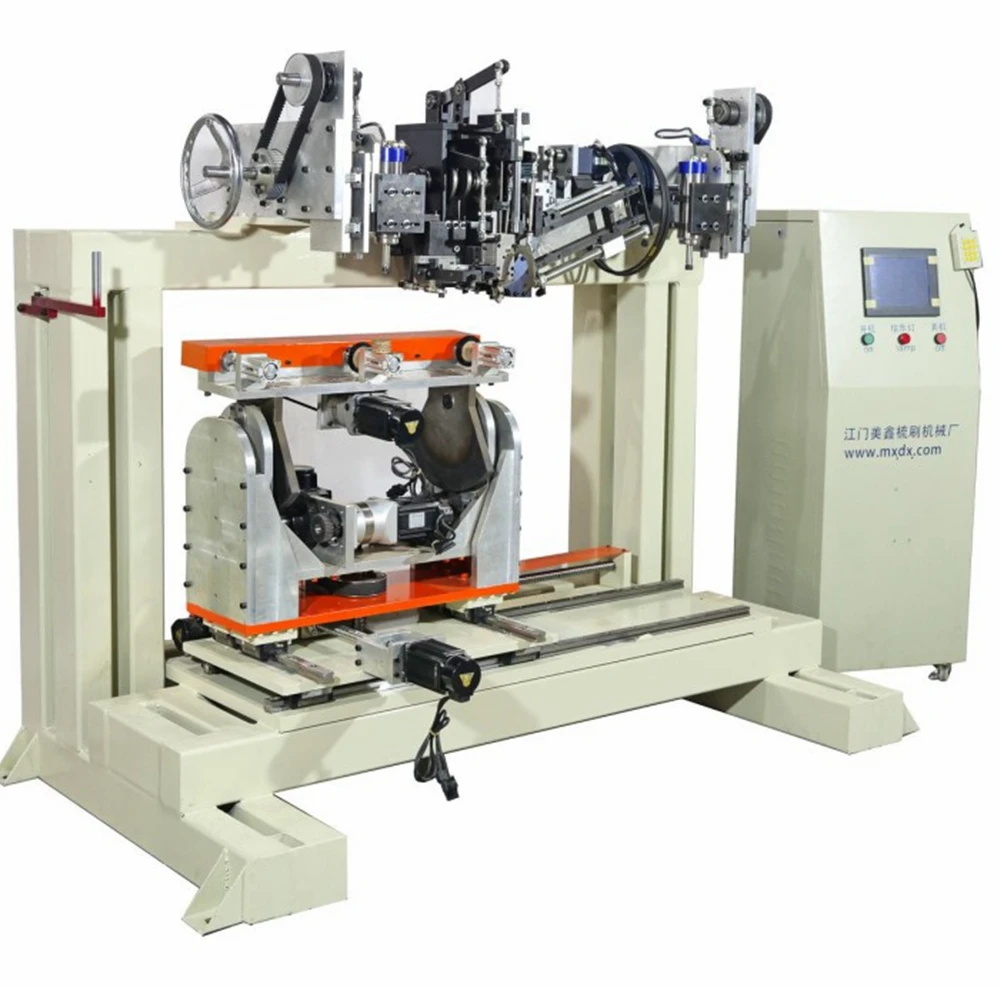

5 axis broom 2 heads drilling and head tufting machine
Wearing parts and spare parts are standardized designs
Installing and testing:

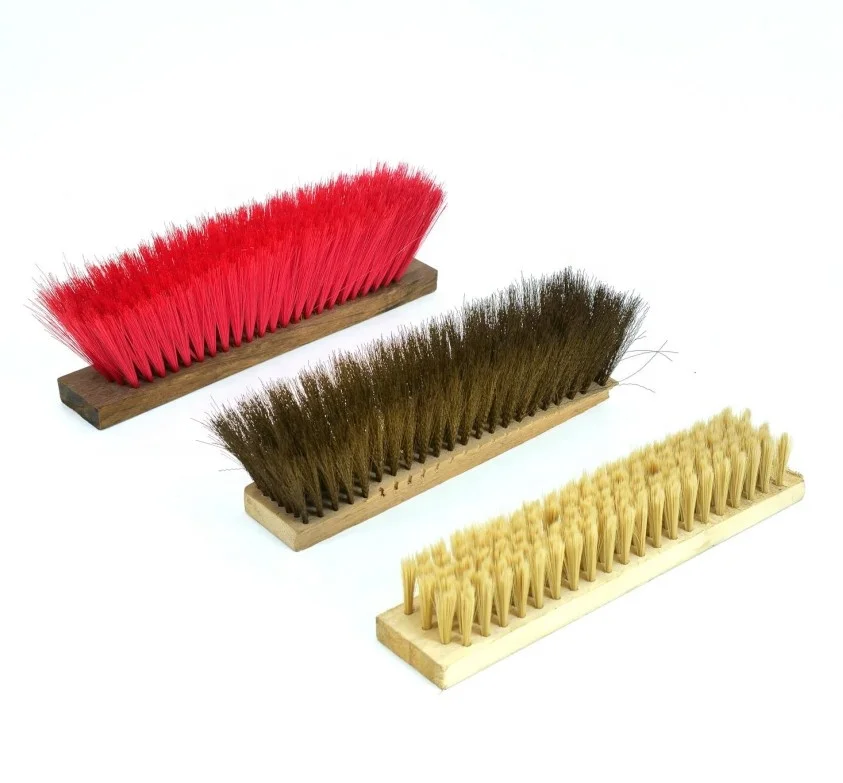

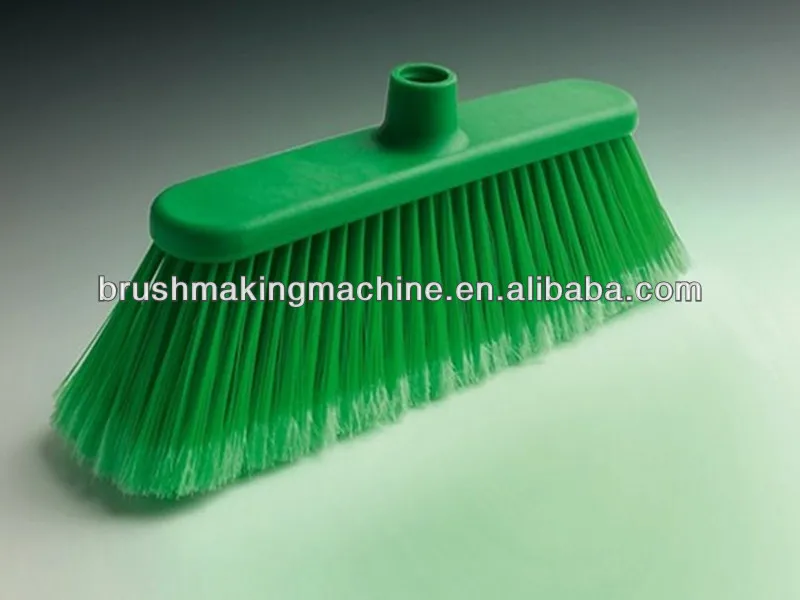

Our brush making machines:

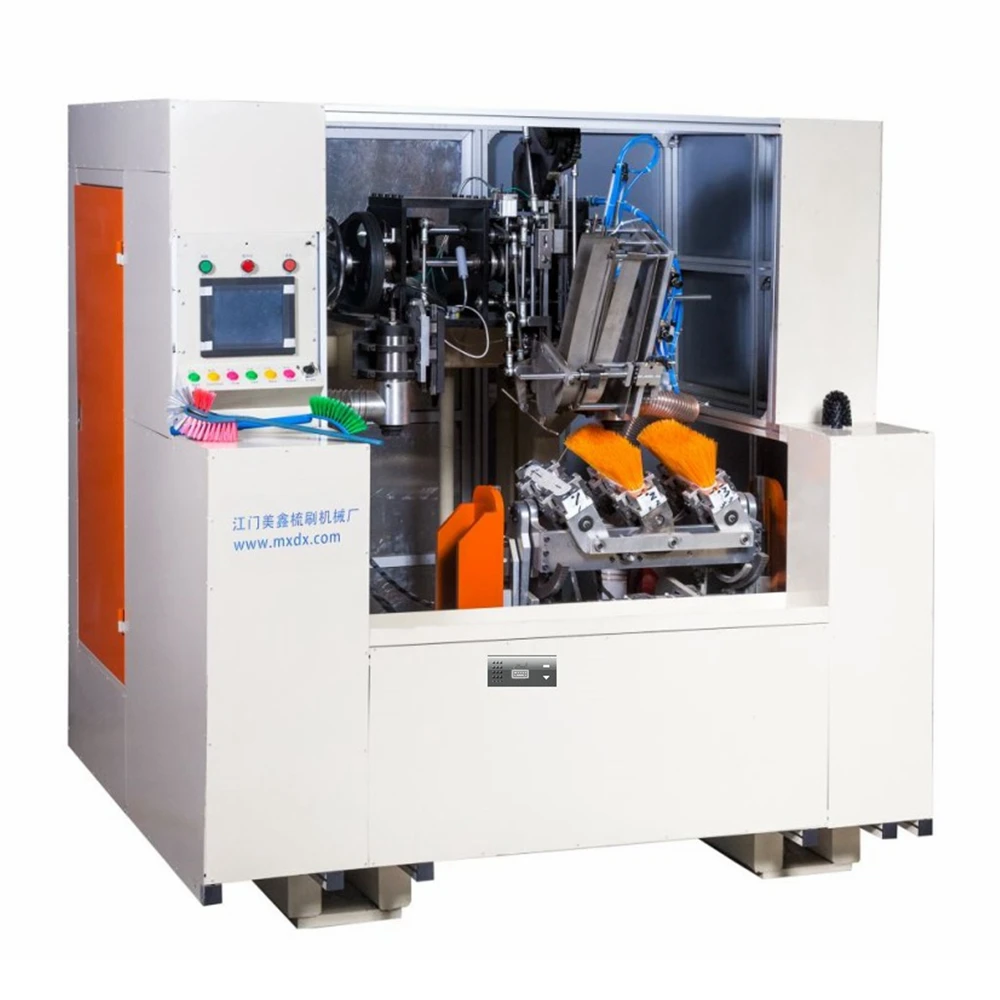

We can make Many kinds of brushes series making machine :
Packaging & Shipping
Certificate Patent and CE
Our Services
In the warranty period(one year),we will send you one set of wear parts(for example:matching tufting needles,hair mouth,hair pulling blade,cutting wire knife)
If machine is broken,engineers is available to service overseas(but buyer has to our engineer round trip ticket fee,living and eating fee and pay our engineer daily salary)
After warranty year,the easy broke parts will be fixed for wholelife.f the wear parts are broken,we can send new for you,but you paid the wearing parts fee and shipping fee.
FAQ
1.What No.you are you in this field?
We are top in this field,our boss already in this field over 20 years.he is also engineer.
He knows domestic market very well.our machine is not only popular in domestic ,but also hot sell in foreign countries.
We already sold out many machines since we start the trading business,the production increases very fast.
2.How about your price?
We always quote reasonable price.
3.How about your service?
We will follow every our custome,when need our help,we will solve asap for you.
4,.how about our technology.
We can make kinds of brushes (flat,curved,cylindrical shape),usually is 2-5 axis,we also can design ad per your demand.
Looking forward to our coopertation in the early time!
