1.Light,good strength,cauterization resistance and water resistance 2.Matching magnesium fire-proof board,gypsum board and many other wall and ceiling board 3.Moisure-proof ,shock-resistant,high-effcient and environmentally-friendly 4.Easy and fast for installation,time-saving 5. Prompt delivery, high quality ,competitive price and complete sets of styles 6.We can supply you the products based on your specific requirement

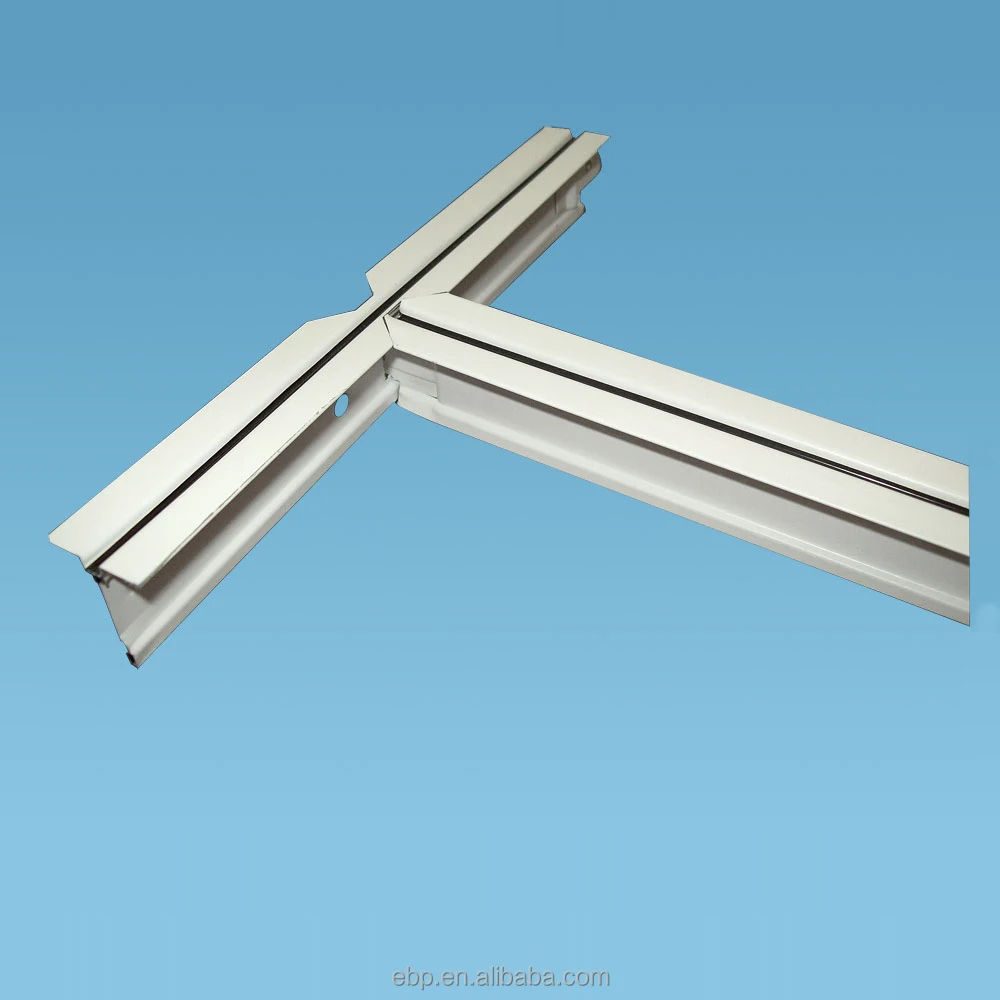

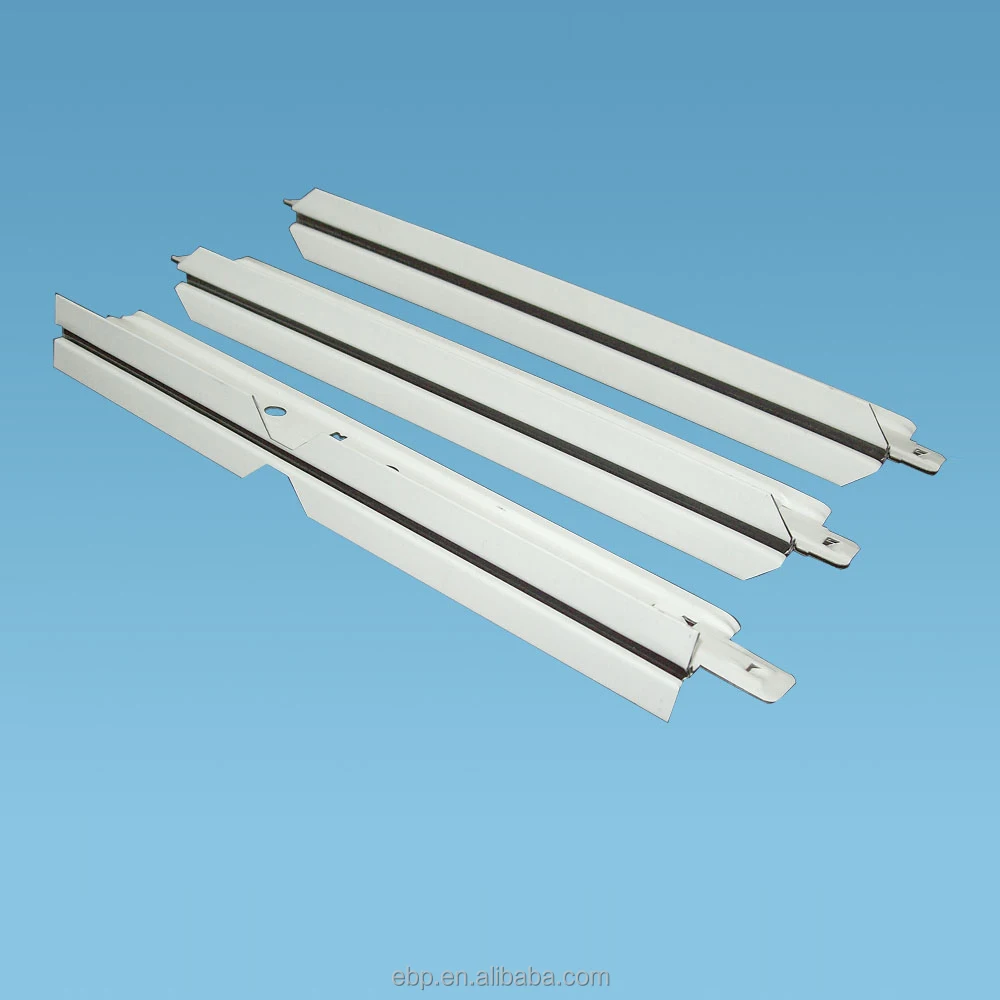

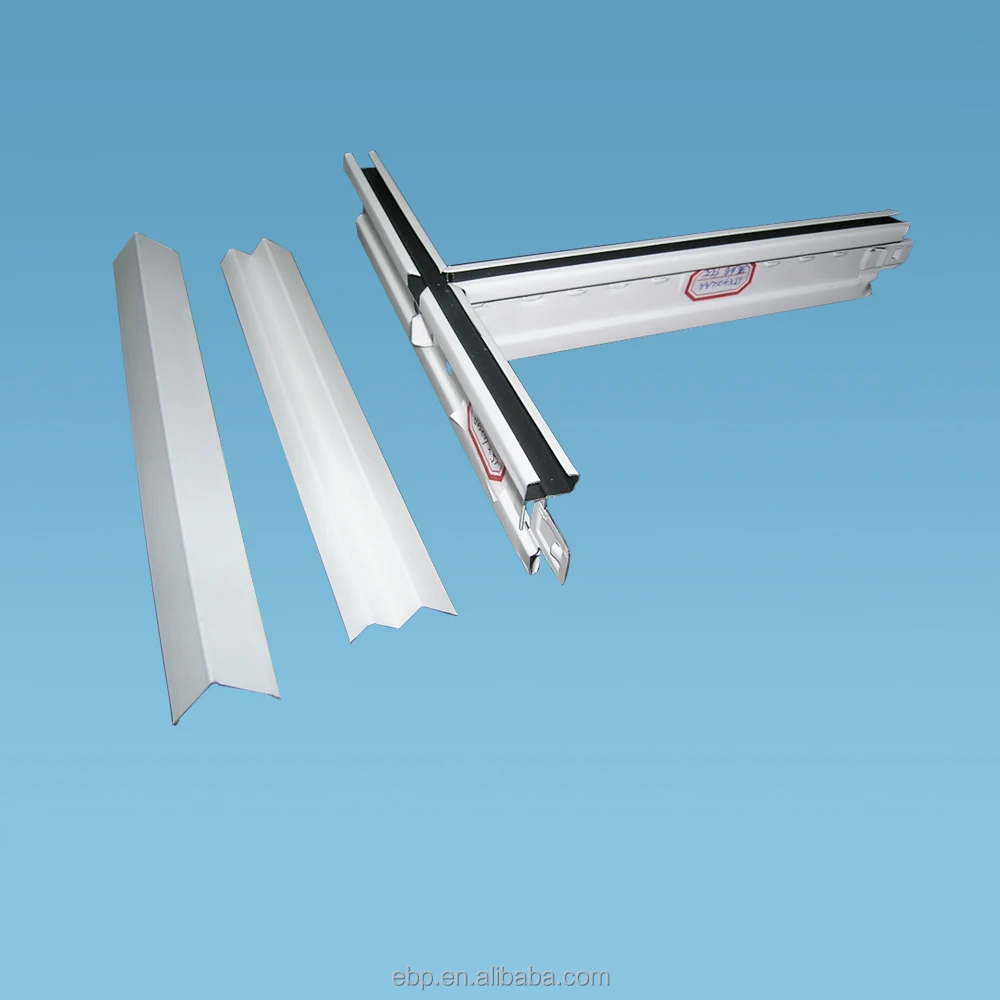

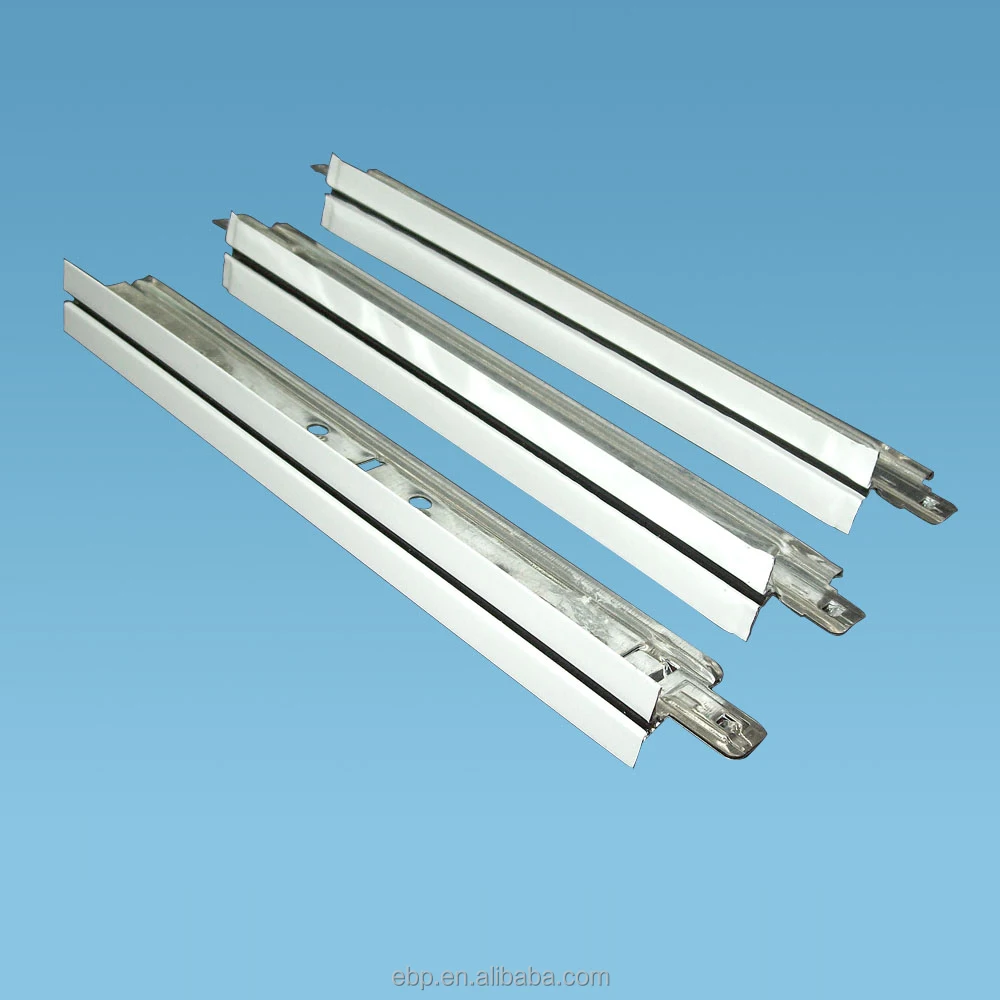

Standard size for ceiling tee grid
- Raw materials : ZINC coating from 80 to 275 gram per square meter , also can use the stainless steel mirror or aluminum mirror , prepaited.
- Thickness : Form 0.25mm to 0.40mm .
- Dimension :
Length : Main Tee up to 3.75 M ,Cross Tee up to 1.22 M ,
Width : From 14mm to 24mm and Hight from 24mm to 38mm .
We can produce any size to meet and install your ceiling .
-Colour : The surface is white , but also can be stainless steel mirror and aluminum mirror
Item
Description
Width (mm)
Hight (mm)
Thickness (mm)
Length
1
U23 MAIN TEE
23
32
0.25~0.40mm
up to 3.75 M
29
24
U23 CROSS TEE
23
32
0.25~0.40mm
up to 1.22 M
29
24
2
U17 MAIN TEE
17
32
0.25~0.40mm
up to 3.75 M
29
24
U17 CROSS TEE
17
32
0.25~0.40mm
up to 1.22 M
29
24
3
U15 MAIN TEE
17
32
0.25~0.40mm
up to 3.75 M
29
24
U15 CROSS TEE
17
32
0.25~0.40mm
up to 1.22 M
29
24
Application
What is application of ceiling tee grid
1,Supermarket, market places 2,Hotels, restaurants,shop stores 3,Airport, railway station, subway station, bus station 4,Office building, hospital, school and other public area 5,Home decoration material

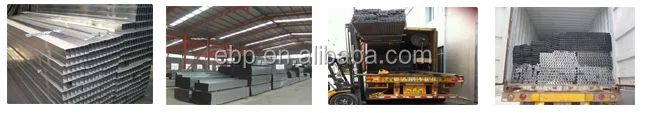

Packaging & Shipping
Packaging & Shipping for ceiling grid
Certificates
Our Certifications
company information

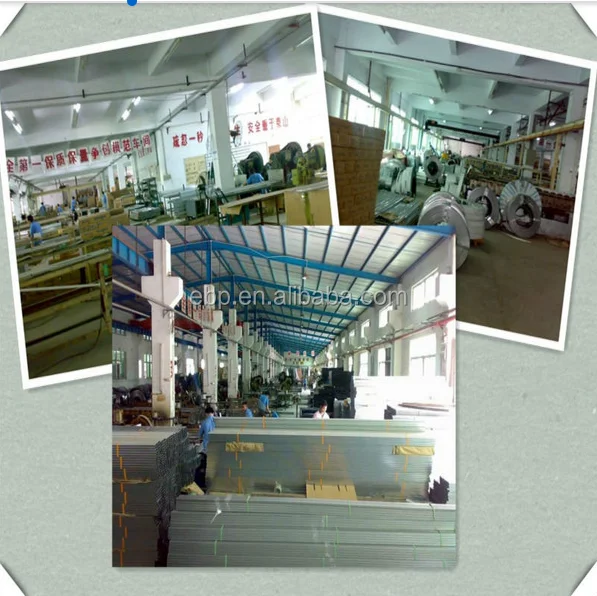

Company View Shenzhen Excel Building Product Co., Ltd is a professional manufacturer in making building materials and products since 1993, our products include metal stud & track partition system, main channel & furring channel, gypsum board suspension system, T grid system, wall angle, etc.
FAQ
Why choose us ?
1).Q:What is your delivery time?
Standard size products in stock with immediately delivery,others according to your order quantity.
2).Q:What is your MOQ?
No MOQ limit, from 1 pieces to 100 containers all available upon your demand.
3).Q: I am interested in the products but I do not have experience.
Tell us your budget and target market and we will give you professional advice of exact kinds and quality.
4).Q: Can I get some samples?
Yes. Samples can be provided for free but you should take charge for the freight fee and we will pay it back to you when you place first order
Our Services
How to contact US? we can customize according to your requirements . If you have the related requirements ,Hope you to further contact with us
