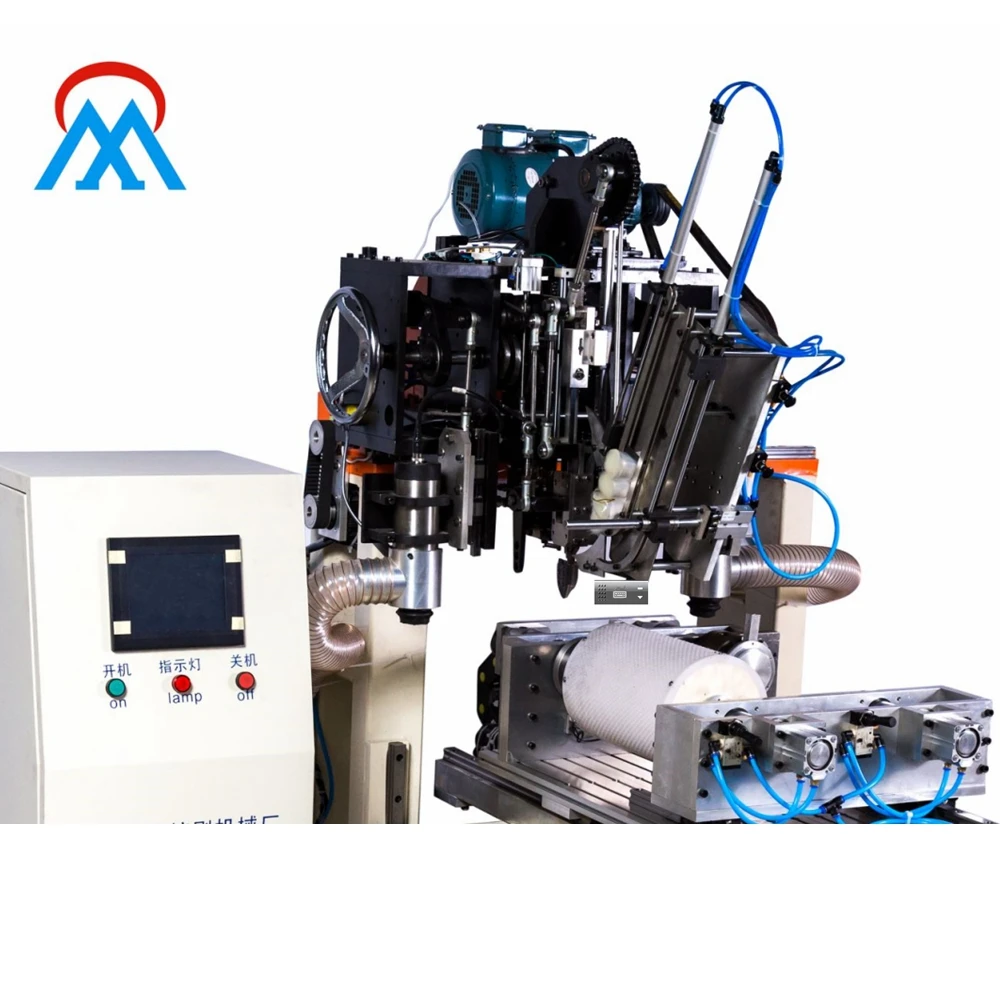

Our factory is specialized in producing 2 to 5 axis single(double) colour brush machine,CNC tufting machine,CNC tufting and drilling machine,CNC drilling and tufting combination machine,filament trimming machine,filament cutting machine.Our products mainly are widely used in all kinds of brushes,for example:broom(plastic and wood)cleaning brush,electric toothbrush,travel toothbrush,cosmetic brush,nail polish brsh,industry roller brush,strip brush,round disc brush,dish washing brush,comb,massage brush,wooden brush,barbecue brush and so on.
Product Description
Machine paremeter
1
machine size
2045*1520*2040mm(L*W*H)
2
axis
3 axis
3
Power
about 8KW
4
Power voltage
380VAC/220VAC
5
wire
round wire(stape nail)
6
hole diameter
3.5-4.2mm,
7
max outside filament length
20-50mm
8
Journey of A axis
750mm
9
Journey of Y axis
250mm
10
Angle of Z axis
360°
11
roller diameter
70-220mm
12
Tufting speed
3 holes/sed
13
Weight
about 900kg
14
Packing
wooden box
15
Function
Drilling and Tufting
16
Production
about 2000pcs/10 hours
Wearing parts and spare parts are standardized designs
