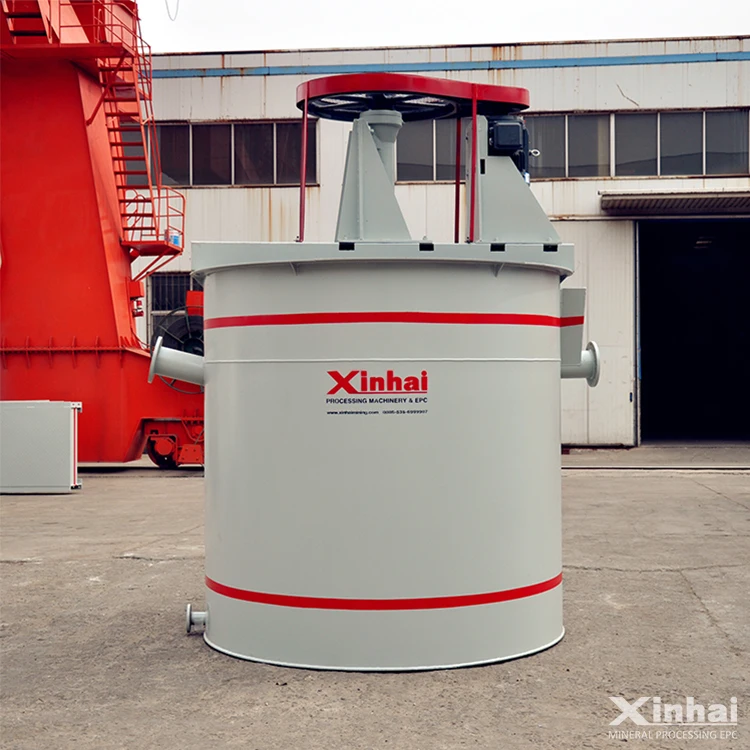

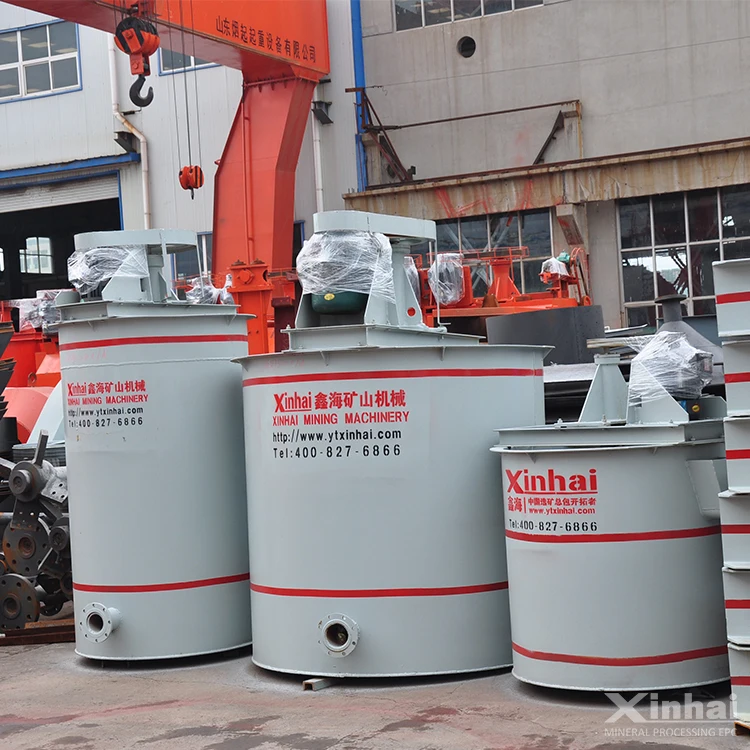

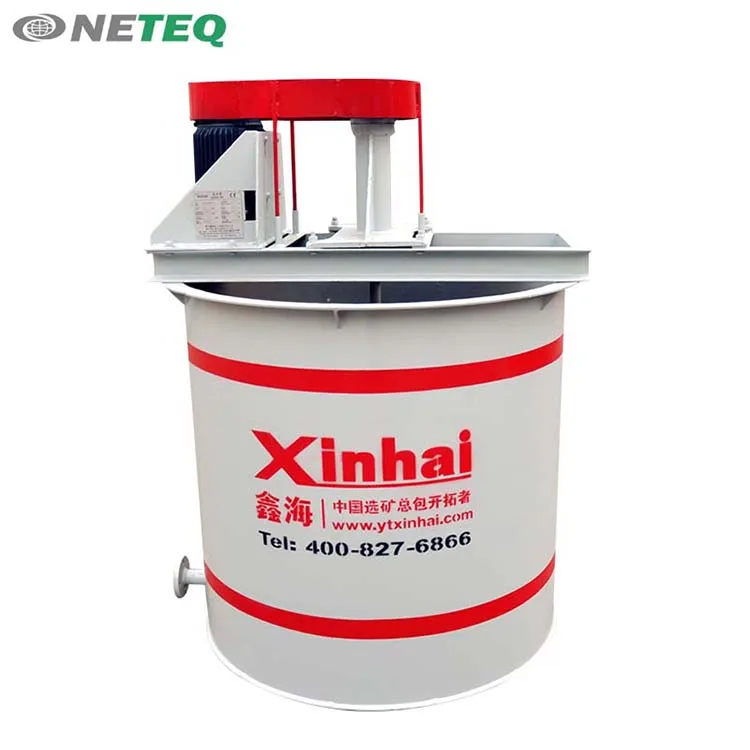

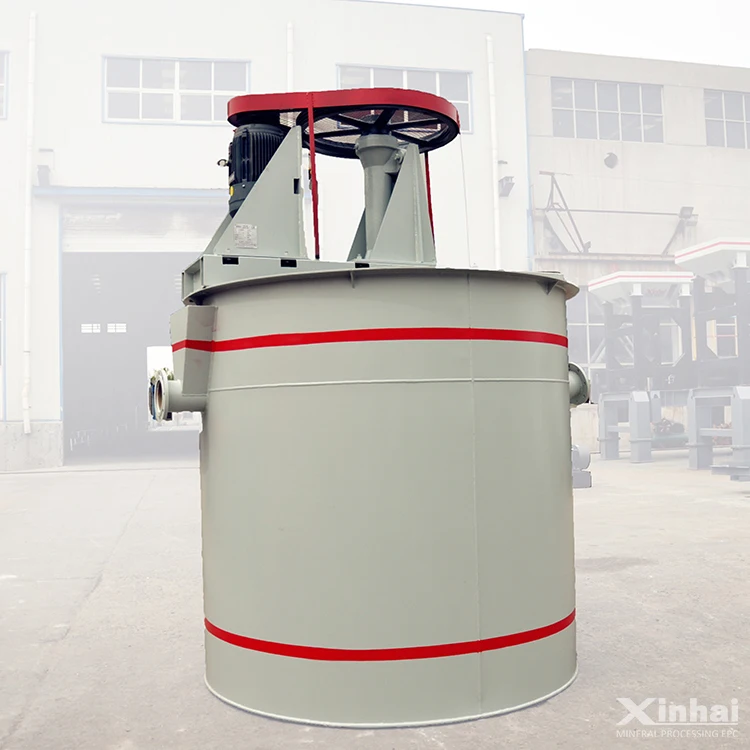

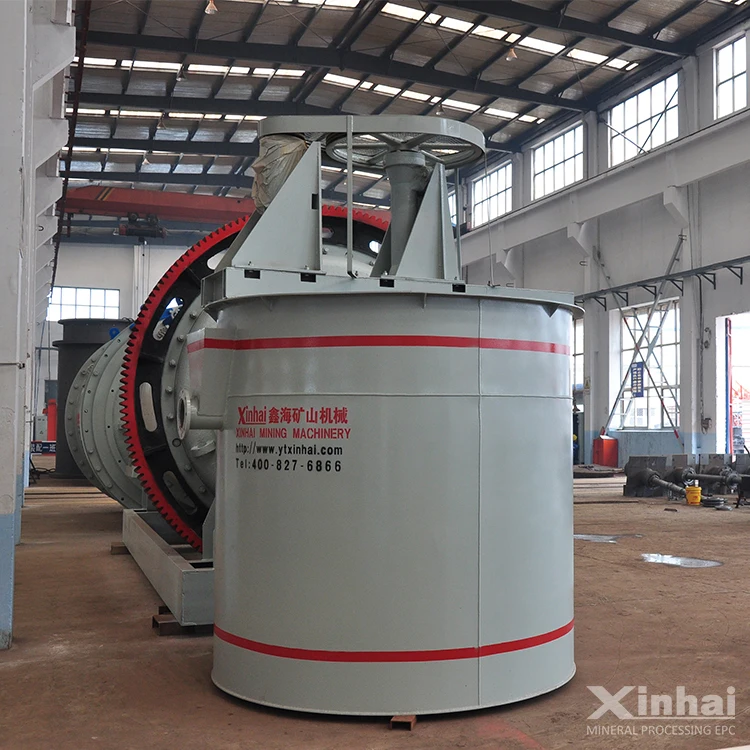

Leaching Agitation Tank , Mineral Mixing Tank With Agitator For Sale
Product Introduction
Mixing Tank With Agitator —Product Introduction
Leaching agitaion tank is a leaching equipment for cyanide leaching by referring the USA technical design
Advantages
Mixing Tank With Agitator —Advantages
Leaching agitation tank for gold extraction with double impeller, uniform mixing, low energy consumption; the impeller coated by rubber, long service life; multi points to give gas, uniform inflation
Leaching Agitation Tank ,Mineral Mixing Tank With Agitator For Sale : Entering leaching tank via hollow shaft, air is agitated and dispersed by rotation of impellers. The two new type impellers with large diameter, low speed and low power consumption, which can reduce the wear of carbon The moderate stirring intensity, pulp concentration and fineness distributes consistently can improve the adsorption rate and import rate.
Working Principle
Mixing Tank With Agitator —working principle
With dual impellers rotating and agitating, ore pulps move downward and then diffuse along damping plate. Air is fed in tank from the lower end of shaft, and blended with ore pulps to form uniform suspending mixed liquid. In the gold cyaniding process, leaching agitation tank is applied to leach and carbon-absorb ore pulps whose fineness is -200 meshes and whose density is less than 45%. Under similar circumstance, it is also applied to agitation and leaching in metallurgy, chemical and light industry.
Technical Parameters
Mixing Tank With Agitator —Technical Parameters
Model
Tank Specification (D × H) (mm)
Effective Volume (m3)
Impeller Rotation Speed (r.p.m)
Impeller Diameter (mm)
Motor Power (kw)
Model of Planetary Cycloid Reducer
Tank Weight (kg)
Total Weight (kg)
SJ2.0×2.5
2000×2500
6
52
909
2.2
XLD2.2-4-29
1609
2144
SJ2.5×2.5
2500×2500
9.82
43
935
4
XLD4-5-35
2159
2729
SJ2.5×3.15
2500×3150
13.14
52
935
2.2
XLD2.2-4-29
2398
3095
SJ3.0×3.0
3000×3000
18
40.85
1130
4
XLD4-5-35
3480
4583
SJ3×3.15
3000×3150
18.93
43
1130
4
XLD4-5-35
3480
4160.6
SJ3×3.5
3000×3500
21
43
1130
4
XLD4-5-35
3211
4334.6
SJ3.15×3.55
3150×3550
24
43
1260
4
XLD4-5-35
3433.5
4322.8
SJ3.5×3.5
3500×3500
30
52
1310
5.5
XLD5.5-5-29
3480
5025
SJ3.5×4
3500×4000
32.7
52
1310
5.5
XLD5.5-5-29
4230
5429
SJ3.55×4.0
3550×4000
33.6
43
1310
4
XLD4-5-35
4260
5025
SJ3.7×4.2
3700×4200
38.4
42
1310
4
XLD4-5-43
5266
6153
SJ4.0×4.5
4000×4500
48
35
1750
7.5
XLD7.5-7-43
6397
7569
SJ4.0×6
4000×6000
70
33
1750
11
GRF137-Y11-4P-44.65-M4
7681
9200
SJ4.5×5.0
4500×5000
71.57
35
1750
7.5
XLD7.5-7-43
8614
10864
SJ5.0×5.6
5000×5600
98
31
2046
11
XLD11-8-47
8740
14291
SJ5.5×6.0
5500×6000
112
31
2100
11
XLD11-8-47
14267
18745
SJ6.5×7.0
6500×7000
195
21
2400
22
GRF147-Y22-4P-70.87
17890
25978
SJ7.0×7.5
7000×7500
245.4
21
2400
22
XLD22-10-47
20505
29030
SJ7.5×8.0
7500×8000
268.6
23
2900
22
BLD7-43-22L
22552
32796
SJ8.0×8.5
8000×8500
319
18.5
3300
30
TPS315-3F
30559.5
42467.3
SJ8.5×9.0
8500×9000
395
18.5
3300
30
TPS315-3F
34130
46623
