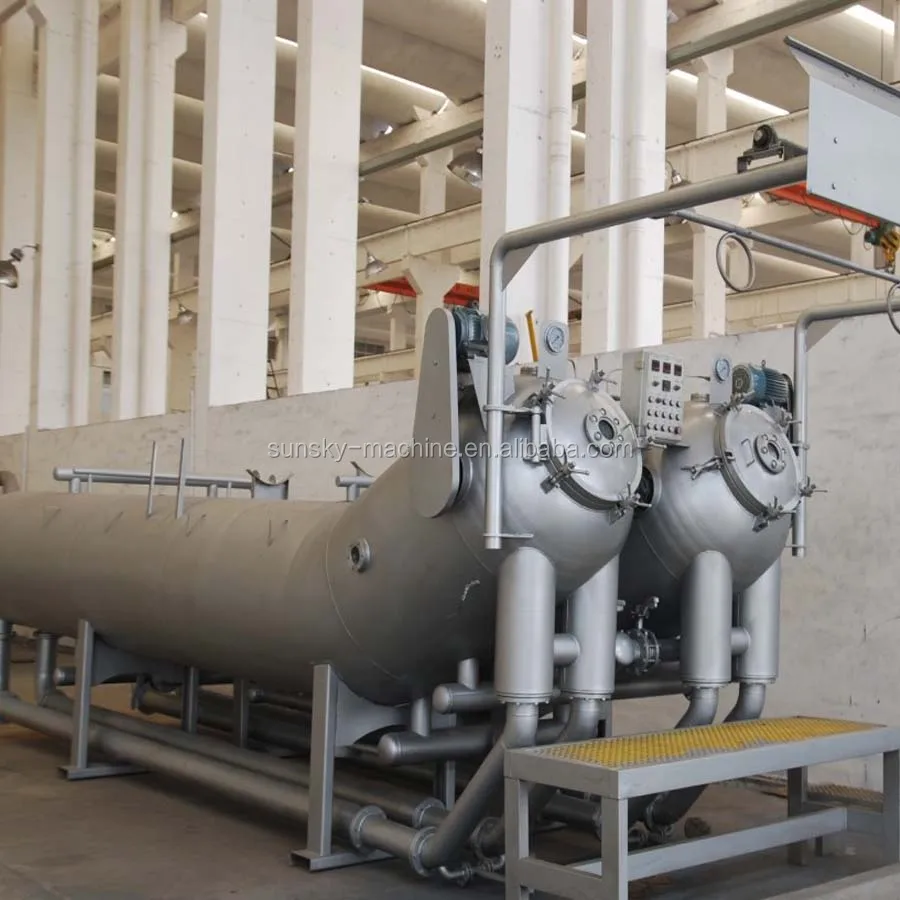

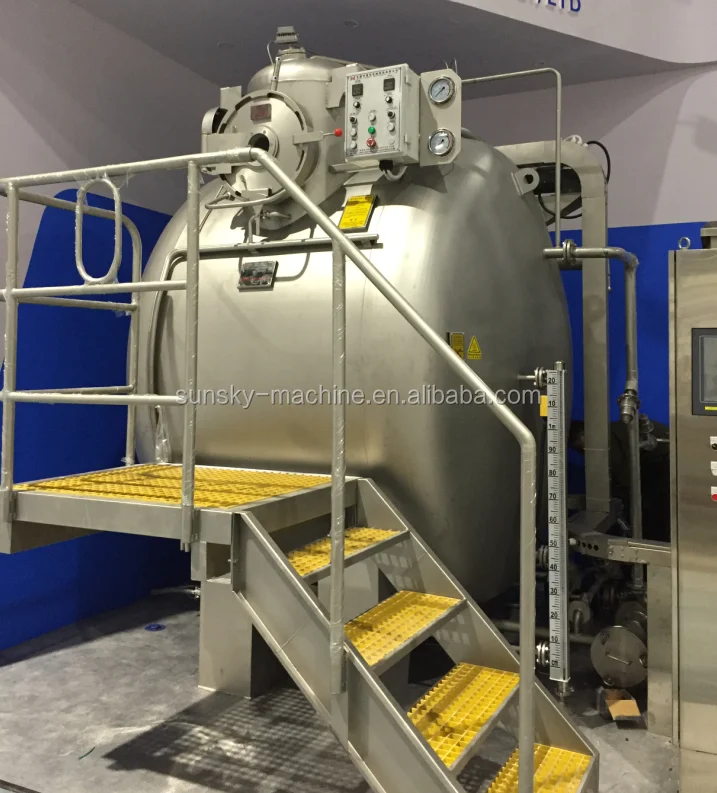

Low Liquor Ratio (1:3.5~5)ht jet dyeing machine
Low Liquor Ratio (1:3.5~5)ht jet dyeing machine
Low Liquor Ratio (1:3.5~5)ht jet dyeing machine
Low Liquor Ratio (1:3.5~5)ht jet dyeing machine
Low Liquor Ratio (1:3.5~5)ht jet dyeing machine
Low Liquor Ratio (1:3.5~5)ht jet dyeing machine
Low Liquor Ratio (1:3.5~5)ht jet dyeing machine

Low Liquor Ratio (1:3.5~5)ht jet dyeing machine

Share on (60356025836):


Price:

Quantity:


Product Overview

Description


Product Description

Applicable to various fabrics:Cotton,Modal,Viscose,Tencel,Rayon,Wool,Acrylic,Lyocell,Nylon,Polyester blended and lycra blended.With a specially-designed nozzle structure, it enables the fabrics in loose and expanded conditions during the dyeing process. It has an excellent performance in dyeing tight and heavy fabrics and can eliminate the crease mark problem, which is usually seen in other dyeing machines.

Technical Data
  1.  Low Liquor Ratio; 1:3.5~4.5 at full load
  2. Operating Speed: 450M per minute
  3. Maximum working temperature: 140'C
  4. Maximum working pressure: 0.36Mpa
  5. Temperature increase rate: 5'C per minute on average from 25 to 100'C, 2'C per minute on average from 100 – 130'C (Pressure of dry saturated vapor: 0.7Mpa)
  6. Temperature deduction rate: 3'C per minute on average from 130 to 100'C, 2'C per minute on average from 100 to 85'C (Cooling water pressure: 0.3Mpa, 25'C).



ModelNrs of TubesLoad (KG)Length(mm)Width(mm)Height(mm)MainPumpRunning Power(KW)
Power(KW)
OH-300-113003500540034005.513
OH-300-226004800540034007.519
OH-300-339005900540034001526
OH-300-44120071005400340018.534
OH-300-6618009500540034003047
OH-300-88240012500540034004556
Flow chart comparasi

QQ20150930085628

Eco-friendly

Min running liquor ratio (does not include water in the material) is as low as 1:1.5. The water consumption of the whole dyeing process for cotton fabric (per KG) by using reactive dyes is analyzed as follows.

  • Light Color: 27.2kgs
  • Medium Color: 37.5kgs
  • Dark color: 47.4kgs

Good and stable repeatability

Leading dyeing control system, in combination with dually balancing flow feeding system as well as constant pressure and flow rate nozzle control enhance fabrics dyeing to achieve a good dye uniformity and high repeatability.



Ergonomics Vat Design

The height of machine and operation platform is lowered and size of the operation platform is resized much smaller than usual, which makes operation much more convenient. The bottom of the dye vat is specially designed so as to reduce water storage and liquor ratio effectively



With unique main vat circulation system, the temperature difference of entire dye vat from top and bottom and evenness of feeding is controlled at optimum conditions.Rotating spray is adopted for main vat cleaning and the whole vat is within the range of cleaning, ensuring more complete cleaning.



Company Information

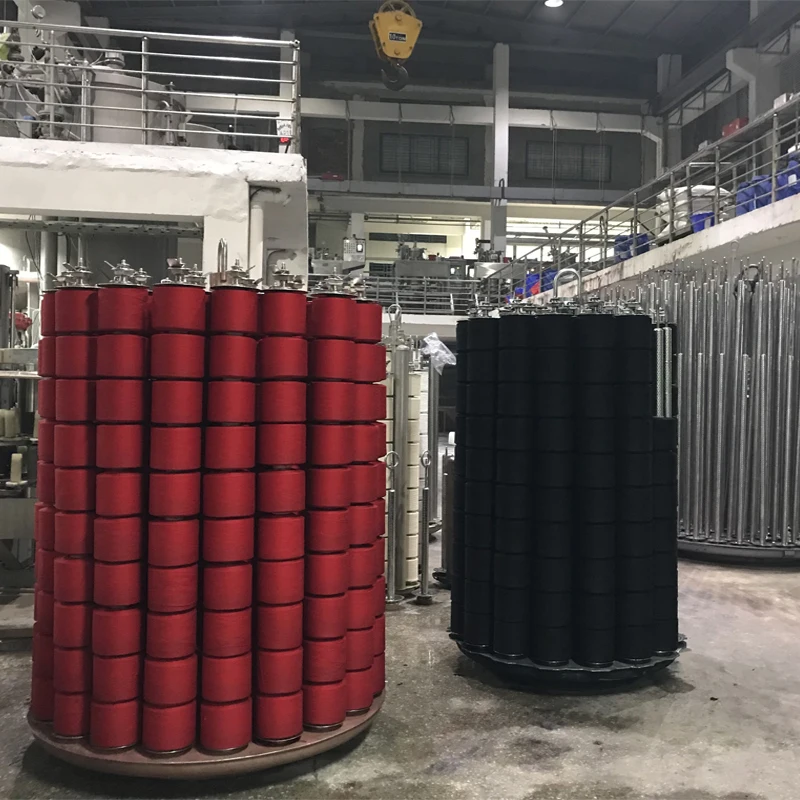

Sunsky is an experienced machinery manufacturer since 2004,it's located in Wuxi,JiangSu Province,China(50mins by train from Shanghai).We're focusing on dyeing and finishing machines for various textiles.After a decade of innovations and development, Sunsky becomes an expert in the field of textile dyeing machines, including normal temperature dyeing machine, high temperature dyeing machine, pre-treatment and after-treatment machines. We make designs according our customer's requirement, continuously improve our techniques, optimize designs and also take the issue of environment into consideration. Sunsky dyeing machine has been well received by domestic and foreign customers.On the basis of 10years professional manufacturing experience,we have successfully developed a new generation of liquor ratio 1:3.5~4.5, energy saving type OH/UH,and 1:2.8~3.5 yarn dyeing machine...

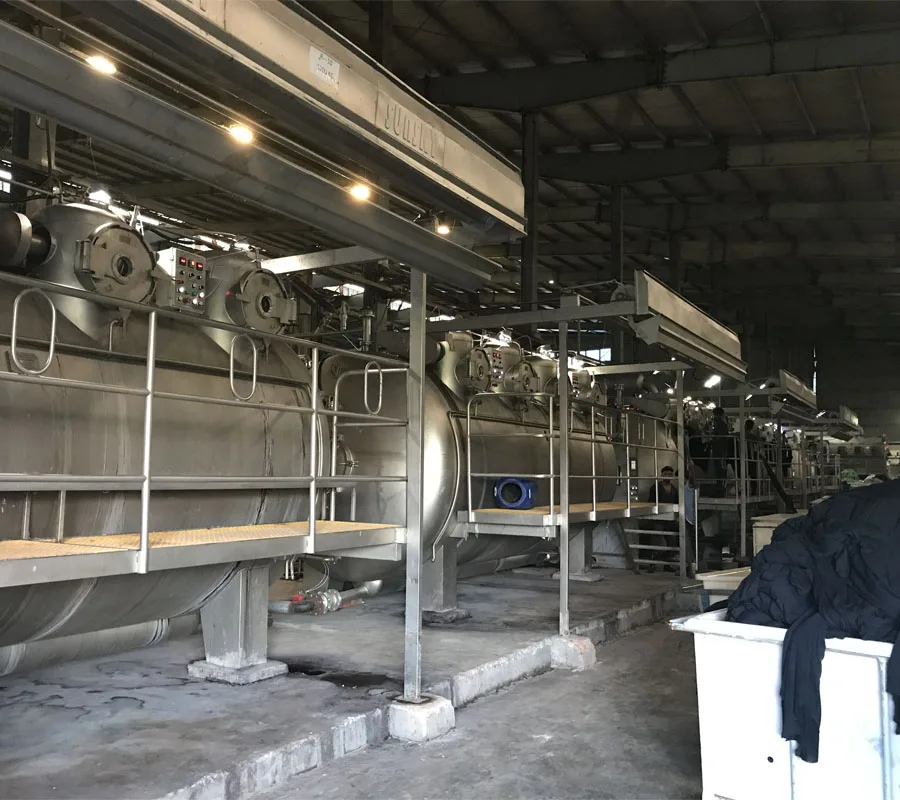

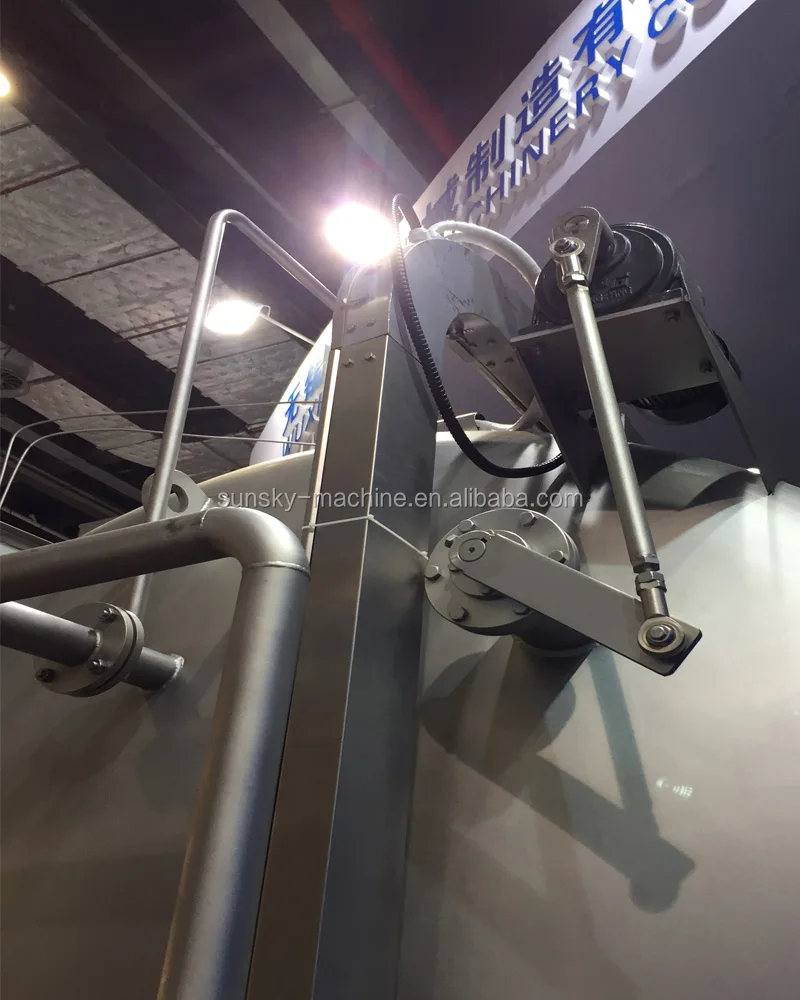

Detailed Images
-1

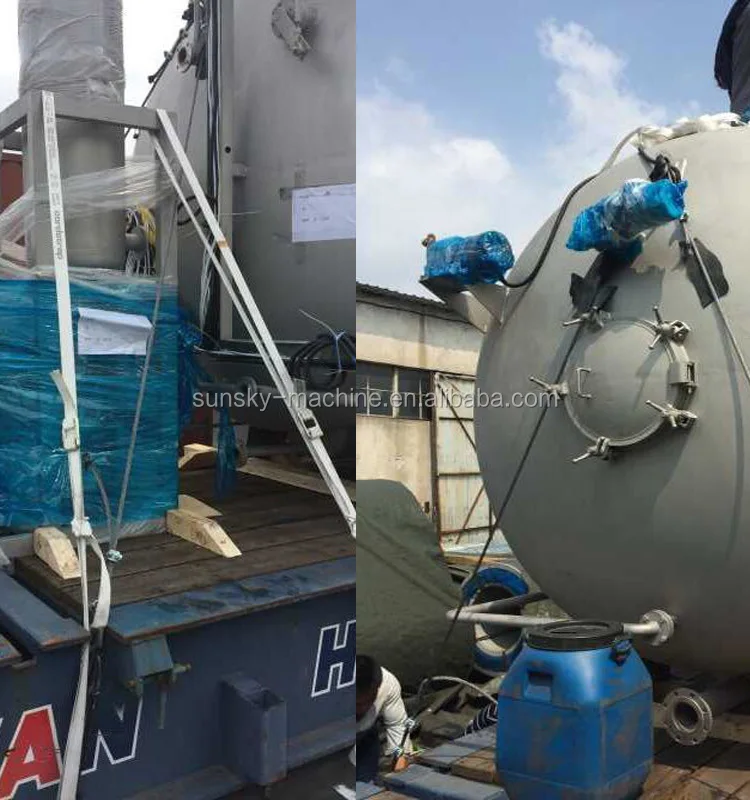

Packaging & Shipping

QQ20150930093940.jpg -1

Electrical Control Panel

-1

Our Services
  • Your any inquiries will be replied within 12 hours.
  • We offer you professional service in fluent English.
  • Quality: we have QC on each process in production.
  • We will give the right schedule and quality machine.
  • Without man-made faults,the warranty is 18months,and spare parts can be replaced within 3months since the delivery of dyeing machine.
  • Engineers available to service machinery overseas,commissioning and technical support,etc.
  • To contact us by email : dyeing(a)sunsky-machine.com Wechat:cpa588
