hot sale water/foam howo fire truck/ 10000 liter aerial tower fire truck

Product Overview

Description

hot sale water/foam howo fire truck/ 10000 liter aerial tower fire truck



ChengLi Special Automobile Co.,tld , which is a big and famous special function vehicles manufacturer in China, we produce many kinds of special function trucks, also include Fire trucks, water tyep fire truck, water and foam type fire trucks, powder fire truck, high altitude spraying fire trucks.

With different brand, China brand,  Dongfeng, Foton, JAC,  also include Japanese brand of Hino, and so on.
Currently We produce fire trucks type as following.

1.  Water tank fire engine truck form 3000~18000 liters.
2. Foam tank fire fighting truck from 3000~18000 liters
3. Powder tank fire rescue tank truck from 3000~18000 liters.
4. Water, foam ,powder  together type, Customized.

• hot sale water/foam howo fire truck/ 10000 liter aerial tower fire truck, introduction in detail
• aerial tower fire truck,10000 liter aerial tower fire truck,aerial tower fire truck 10000 liter



Item		Unit		Description
Model				Howo brand Fire Truck
Dimension		mm		8780*2500*3460
Tank Dimension		m3		Water		Foam			Powder
				6		2			250 kg
		Material		Carbon Steel		Stainless			Stainless
Curb Weight		kg		11350
G.V.W		kg		16000
Wheel Base		mm		4600
F/R track base		mm		2022 / 1830
F/R Axled-Load		Kg		7000 / 13000
		Suspension		Steel Spring
Approach/Departure angle		.		16 / 10
Tire		Model		12.00-20 /  6+1 Units
Traction system		Type		4*2 or 4*4
Max speed		Km/h		90
Engine model		Model		WD615.92
		Emission/Ps		9726 cc ,   196 Kw
		Horse Power		266
		Power		1100 N.m-1100~1600r/min
		Type		Diesel, 6 cylinder, Turbocharge , water cooling.
		manufactuere		WeiChai Engine brand
Gear box		Type		10F&2R, Manual
Electric system		V		24
Cab		Person		3
		Type		Reversable, Manual
		Steering		Powering , LHD or RHD
		Installing		Mp3, Radio
		Air Conditioner		Hot Wind / Cold Wind
Fire Cannon Specification on the top fo fire truck
Fire Cannon model		PS 50, water		Working Range			Water >65 m
		Foam type, Optional Item
		PP 24, Multi		Working Range			Foam >60 m
Working angle		- 30 ~ 80		Operation			Mannual
working pressure		1~1.2 Mpa
Flowing Speed		50 L / s

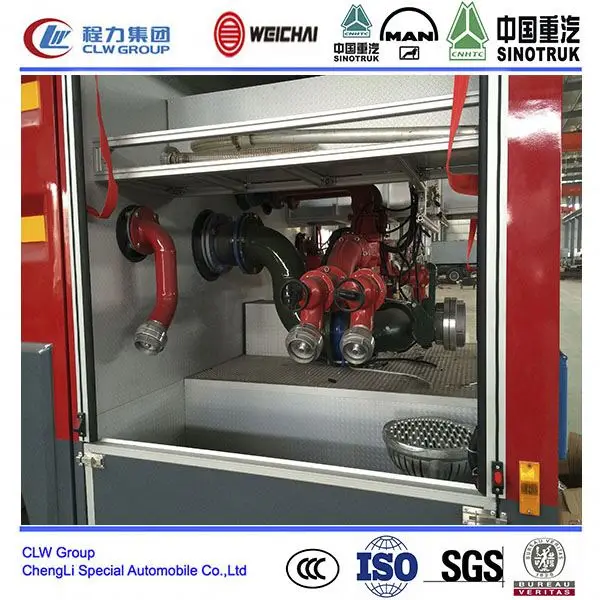

Fire Pump Specification
Fire Pump model		CB 10 / 60
Flowing Speed		60L/s		Pressure			<1.0 Mpa
Flowing Speed		42L/s		Pressure			1<P<1.36 Mpa
Water input Port		DN 125mm x 1		Water suction pipe			8 m, one Unit
Liquid Output Port		DN 80mm x 2 , with ball valve control
Liquid Output Port		DN 65mm x 2, with ball valve control
Outside water input port
Liqid input Port		DN 65 x 2 Unit, at two side of fire truck
Foam tank specifiation
Volume is customized, pipe and valve are all stainless steel material
Installing
Long beem alarm light, light detector x2~12 V 60W, 5 Unit Window type warehous, Rear climp ladder

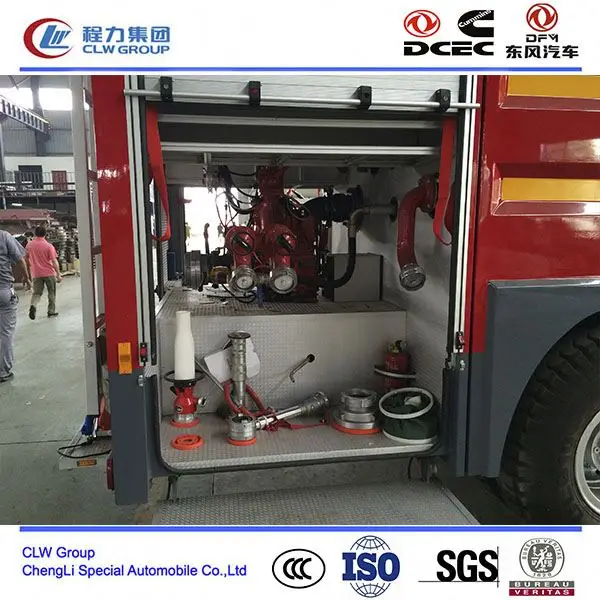

Spare List
Fire Pipe		DN 65 x 8		Fire Pipe			DN 80 x4
Fire Pipe Length		30 m
Fire pipe protector		4		Fire Pipe storage			1
Fire Pipe Hocker		4		Fire extinguisher			1
Fire bucket		1		Fir axe			1
Fire Crowbars		1		Iron collars			1
Liquid port Connector		5 Unit, Y type, U type, X Type
Fire spanner		2 Unit,  Above ground fire hydrant, undergound hydrant.
Spanner		2 Unit, for sunction pipe
Fire cannon		3 Unit, two for water, one for foam
Option Item		Fire cloth, addtion foldable stainless steel ladder, safety cabline.

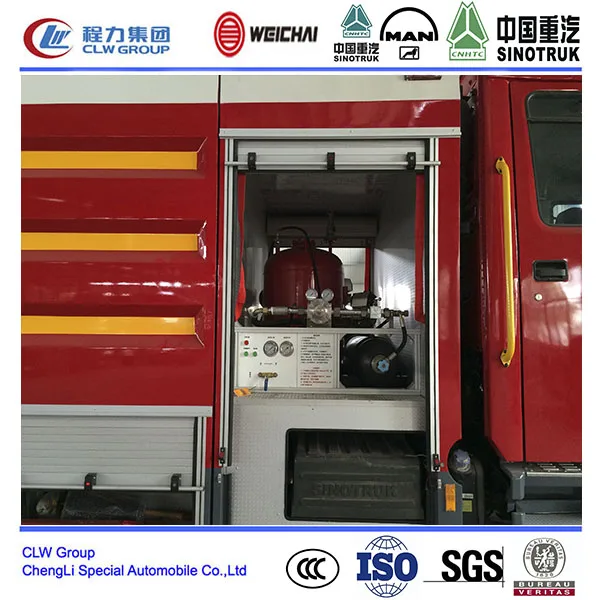

Powder Function Specification
Powder Tank Volume		m3		0.25
		Material		Carbon Steel
Nitrogen Tank Volume		liter		70
		Pressure		< 15 Mpa
Pipe		m		30
				with hose reel

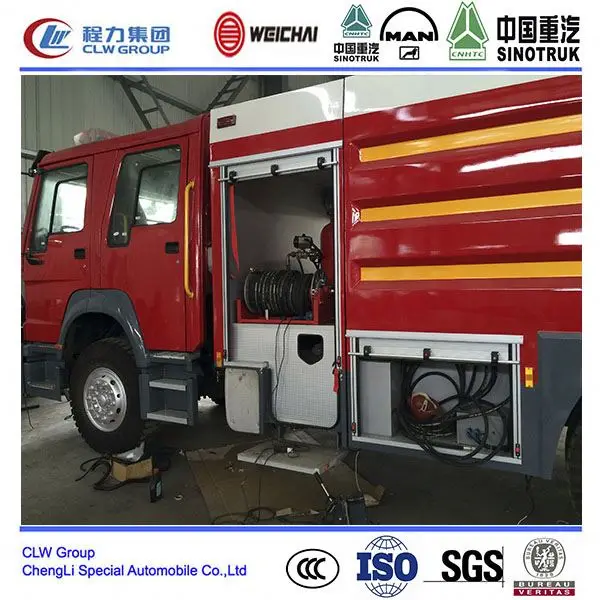

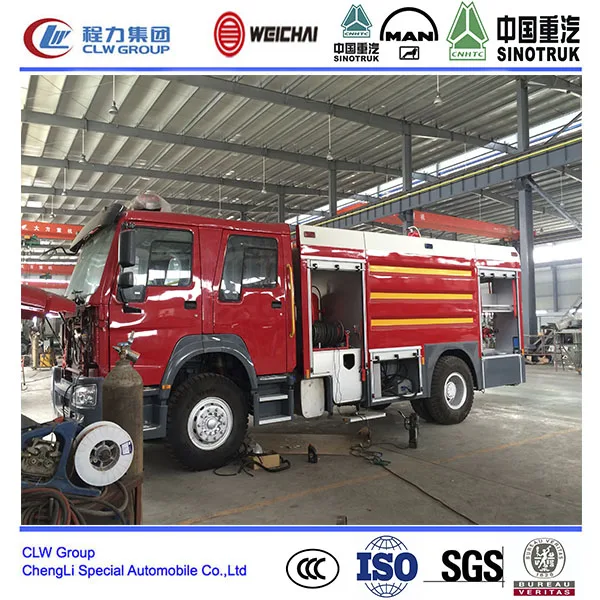

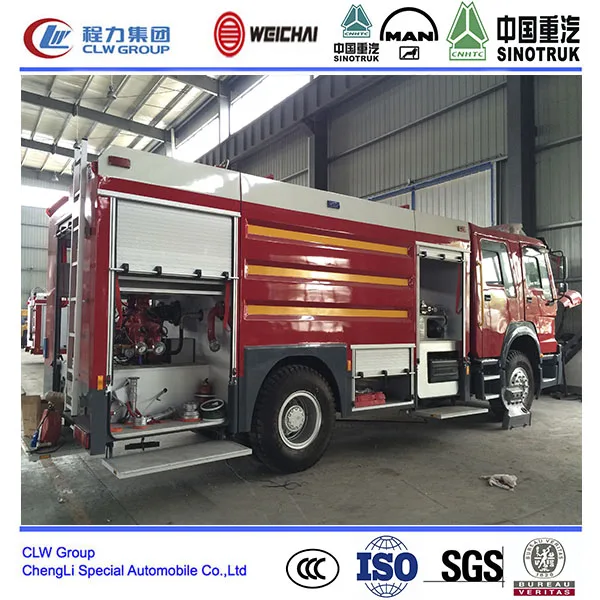

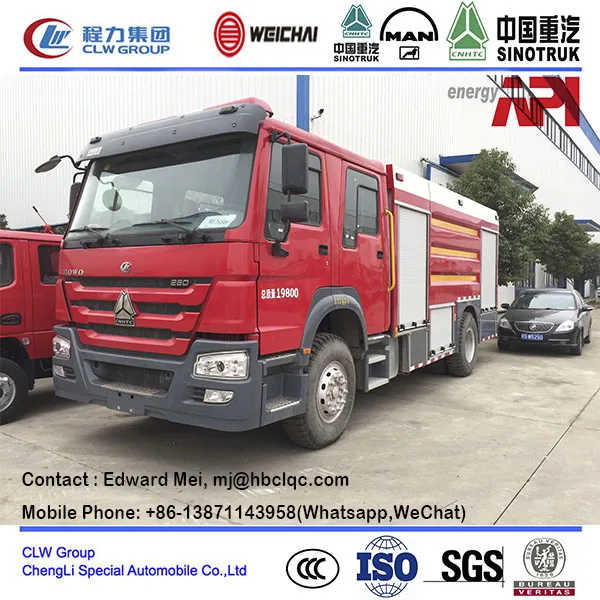

• More photos showing , hot sale water/foam howo fire truck/ 10000 liter aerial tower fire truck
