Top Class Alfalfa Pellet Production Line
US $98000
Business opportunities new energy 0.8 3.5T/H Sawdut Biomass Wood Pelets Machine From china
- Category: Wood Pellet Mill >>>
- Supplier: Henan Richi Machinery Co. Ltd.
Share on (60357891787):
Product Overview
Description
Business opportunities new energy 1-40T/H Sawdut Biomass Wood Pelets Machine From china
Successful case:0.8T/H wood pelets production line 0.8-3.5T/H Sawdut Biomass Wood Pelets Machine0.8-3.5T/H Sawdut Biomass Wood Pelets Machine0.8-3.5T/H Sawdut Biomass Wood Pelets Machine | |
|---|---|
For details, please click! | Choose Your Capacity |
| 1-2 ton / hour | |
| 3-5 ton / hour | |
| 5-10 ton / hour | |
| 10-40 ton / hour |
Product Description
| 1-2 t/h wood pelets production line drawing map | |
|---|---|
| Main Equipment | Main Specification |
1) Wood Chipper: BXG 215 (accoring the size of raw material) 2) Wood Crusher: JL-500 (according the size of raw material) 3) wood dryer machine:0.6*6m 4) wood pellet machine: MZLH 250,320,350,420,520 5) Colling machine: SKLN14*14 6) Vibrating Screen 8)electrical control system | Main Auxiliary equipment:
screw conveyor, belt conveyor, stove, cyclone, bucket elevator ,bin, air lock, fan, pine, ect |
For further detail information about the 1-2 t/h wood pellet plant, please leave a message to us at the bottom to tell your detail requirement. we will send all the detail as soon as possible.
For targeted help, please tell us: 1) What are your main raw material? moisture? 2) what about the capacity you want to get? (how many ton per hour or day or year?) 3) are you the final user or you will sell the machine to others?
For other capacity, 1T/H, 1-1.5T/H, 2T/H, 2-3T/H, 3-4T/H,4-10T/H,10-20T/H, Pls Click detail information. | |

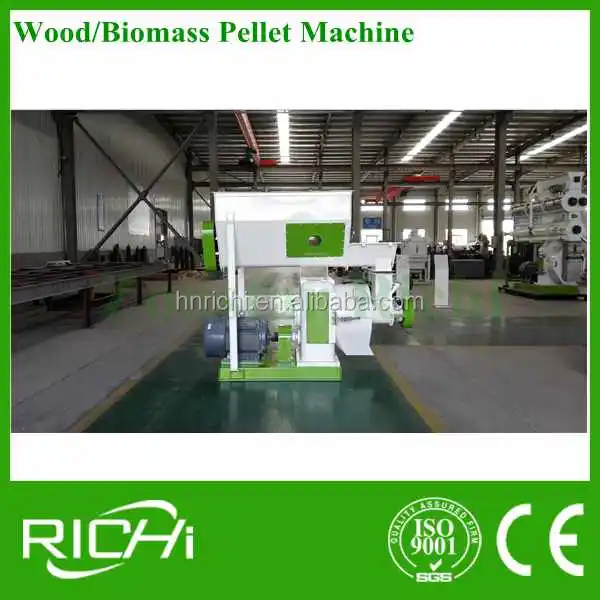

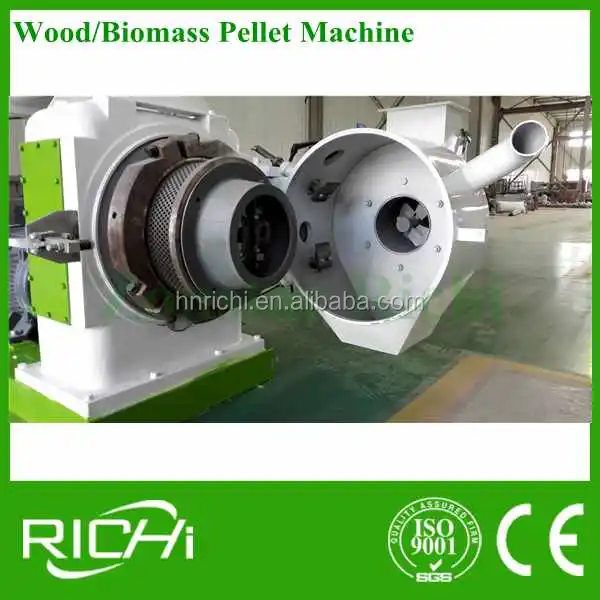

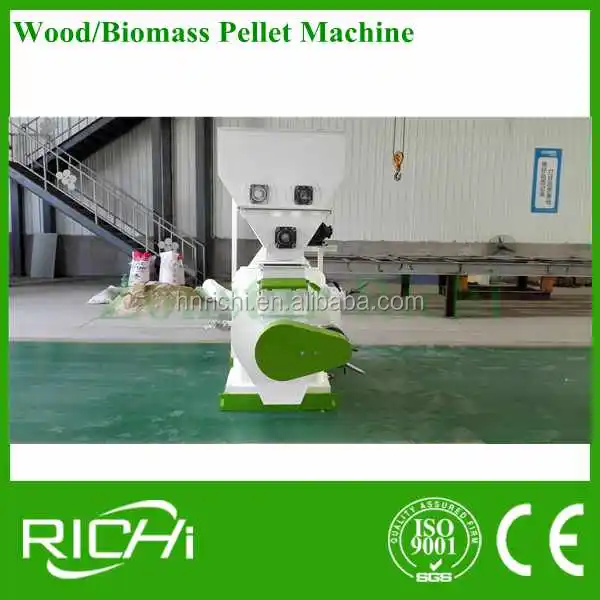

Wood pelets machine | |
|---|---|
 | Model: 320, 350,420,520 Remarks: 1) the Model number means the diameter of the ring die of the feed pellet machine 2) the diameter of the final product pellet is Φ6-10 mm. |
Model: 420 Capacity : 1-2 t/h Power : 90 Kw Weight : 3000kg Dimension : 2420*2200*2400 mm | |
Model: 320 Capacity : 0.3-0.5 t/h Power : 37 Kw Weight : 2500 Dimension : 2200*1000*1500 mm | |
Model: 350 Capacity : 0.5-0.8 t/h Power : 55 Kw Weight (kg):3500 Kg Dimension : 2500*1100*1600 mm | |
♦ For bigger model of wood pellet machine, please click here. ♦ For wood pellet making machine production line, please click here. | |

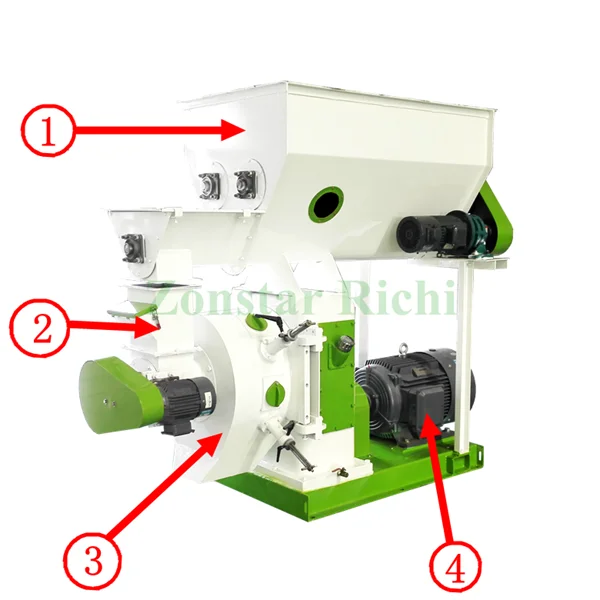

| The function of each part of wood pelets machine | |
|---|---|
1) Feeder: feeding raw material into the pellet making chamber. the feeder is made of stainless steel.
2) Forced feeding unit: since the raw material is fluffy, and the bulking value is higher, we equip the force feeding device.

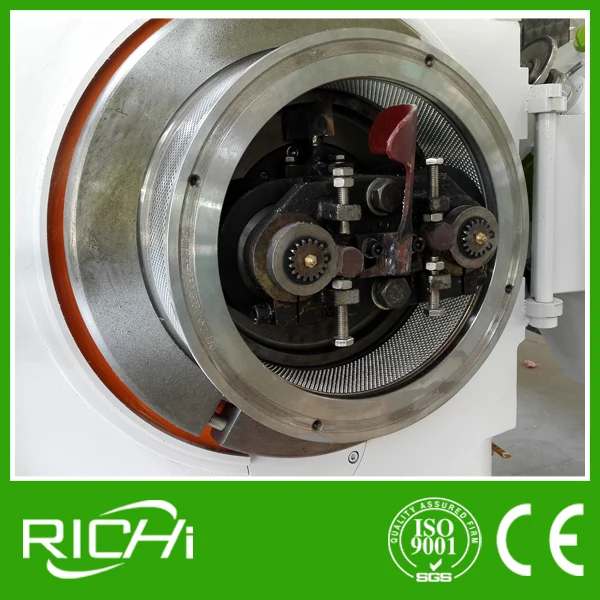

3) Pellet making unit: ring die and press roller inside work together to make the biomass wood raw material into wood pellet.
4) Main motor: driving the pellet making system.
We adopt the super quality Siemens brand motor in our machine. |  |
| Pelleting process working principle | |
|---|---|
 |  |
♦ The main motor drive the ring die mould rotated. the press roller that were placed inside of the roller does not revolution, but will rotate because the friction of the ring die mould and wood powder raw material. ♦ The wood sawdust powder raw material was spread evenly into the space between the ring die and roller, and was press into the mould hole, formed column shape pellet, the pellet will rotate along with the rotating ring die mould and will be cutted when the length of the column pellet reach to a certain value. | |
Raw materials
♦ The raw material could be branches, wood chipper, coconut sheel, nut sheel, rice or wheet straw, bean stem, wood sawdust, etc.
♦ If we use the raw material hay, forage grass, alfalfa, alfalfa, moringa oleifera, etc. we will get the final product silage fodder.
Final products wood pellet
♦ We could produce wood pellet with different diameter by using different size of ring die mould. the range could be ø 6mm-10mm.
♦ The length of the wood pellet could be adjusted. there is a regulating device on the wood pellet machine.
FAQ
Your may Ask:
1) How did you define your wood pellet machine model as 250 / 320 / 350 /420 / 508, etc. ?
The model is defined based on the diameter of the ring die mould.
For example, mould 250 means that the diameter of the ring die is 250 mm.
2) what kind of raw material that the ring die mould is made of?
There are two kinds of ring die mould in the market. one is made of carbon steel, the other is made of stainless steel. the former is cheaper than the latter.
We adopt stainless steel ring die and press roller sheel in our machine.
3) what about the size of the final wood pellet product?
the size is adjustable accroding to your requirement.
the diameter range of the wood pellet is ø6-10 mm by using different ring die mould.
the length of the wood pellet could be adjusted on the machine.
5) What is the suitable moisture (water content) of the raw material that easy to make pellet?
the ideal moisture range is from 15% to 18% .
6) What brand of motors you used in the machine?
We use Siemens brand motor in our machine. please rest assured about the quality.
7) what about the power, capacity, size and weight of the wood pellet machine?
Please refer to the above technical parameter table to get the detail.
If you want the details of bigger size of wood pellet making machine, please click here.
8) will you dispatch engineer to install the wood pellet machine (production line)?
Yes. we will dispatch engineer to do the service just based on the requirement of customers.
9) where is your factory located? how could I get there?
Our factory is located in Zhengzhou, Henan, China. It's 30 km far from the airport. we will pick you up at the airport.
10) what is your wood pellet machine price?
Please leave us a message at the bottom, and tell your detail requirement, will will reply you at first time.
Definitely, we could offer you the best machine with best price.
Related Products
| Related Machine | |
|---|---|
 |  |
♦ Wood chipper machine cut and chip the wood raw material into chipps. ♦ There are two main type of wood chipper machine, one is drum wood chipper machine (same as the above picture); the other is disk wood chipper machine. ♦ See more detail of our wood chipper machine, Please Click.
| ♦ The function of wood crusher machine is to crush and grind the smaller size of wood chips into wood sawdust powder. the next process is pellet making. ♦ we have one kind of wood crusher machine that integrated the function of wood chipper and wood crusher. this model is suitable for smaller original size of the raw material. ♦ See more detail of our wood crusher machine, Please Click.
|
Sincerely Welcome to our factory !
♦ We, Henan Richi Machinery Co., Ltd. was established in 1995, Has served Europe, North America, Africa, Middle East, Asia for ten years. Our products have been sold to many countries all over the world.
♦ The head office was located in Zhengzhou, Henan Province.
♦ As a professional wood pellet making machine and complete plant project solution supplier, Henan Richi can always meet different customers' requirement.
♦ We understand how important the quality is, and we also understand the importance of timely shipping.
♦ We know how to survive and develop, because we always focus on the long-term development.

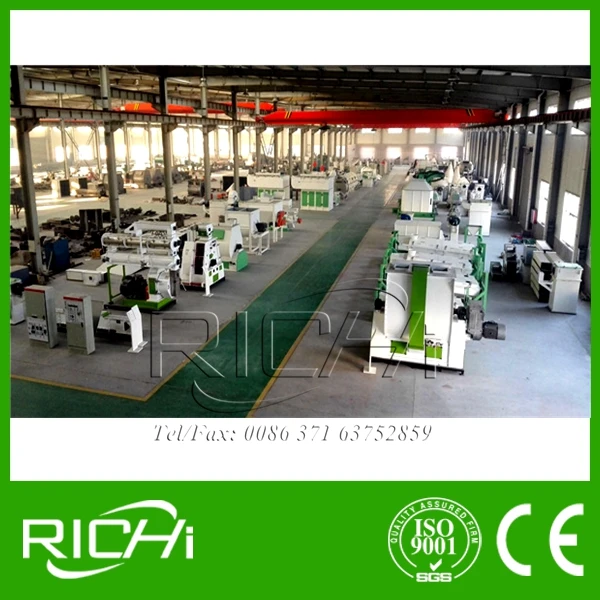

Good quality comes from precision CNC processing machines
Packing & Delivery
To make sure the small wood pellet making machine delivery to you at the best condition, we adopt the considerate way to protect the equipment very well. We consider our products just as our children.
