coriolis mass flow meter
- Category: Flow Meters >>>
- Supplier: Dalian,Metern,Measurement,And,Control,System,Co.,Ltd.
Share on:
Product Overview
Description
Fuel oil Coriolis mass flowmeter density meter
Product Description
Product advantage
1. Unchallengeable MTCMF performance on liquid mass flow, volume flow, and density measurement
2. Unique design delivers unparalleled measurement sensitivity and stability
3. Guarantees consistent, reliable performance over the widest flow range
4. Designed to minimize process, mounting, and environmental effect
5. Factory supply ensure competive price and fast delivery
6. U type dimension is the same as Micro Motion ELITE Series
7. MODBUS and HART Protocol is availabel for your choice.
Technical parameters
| Model | Meter Size (mm) | Flow Range (kg/hr) |
| MTCMF-003 | 3 | 0~180 |
| MTCMF-006 | 6 | 0~720 |
| MTCMF-008 | 8 | 0~1200 |
| MTCMF-010 | 10 | 0~2100 |
| MTCMF-015 | 15 | 0~4500 |
| MTCMF-020 | 20 | 0~7200 |
| MTCMF-025 | 25 | 0~12000 |
| MTCMF-032 | 32 | 0~21000 |
| MTCMF-040 | 40 | 0~36000 |
| MTCMF-050 | 50 | 0~60000 |
| MTCMF-080 | 80 | 0~180000 |
| MTCMF-100 | 100 | 0~280000 |
| MTCMF-150 | 150 | 0~600000 |
| Accuracy | ±0.2%, ±0.1% optional |
| Repeatability | ±0.1~0.25% |
| Fluid temperature | Standard:-50~+200℃ -200~+350℃ can be customized |
| Ambient temperature | -20~+60℃ |
| Fluid pressure | Standard: 0~40bar 0~350bar can be customized |
| Meauring tube material | SS316L |
| Housing material | SS304 |
| Ex-proof | Exd(ia)IICT6Gb |
| Process connection | Flange/Thread/Tri-clamp/DIN11851 |
| Display | LCD digital display |
| Measuring variable | Mass flow, volume flow, temperature, density |
| Power supply | 18~36VDC; 85~265VAC |
| Output signal | Pulse/4-20mA/Frequency |
| Communication | Modbus/HART |

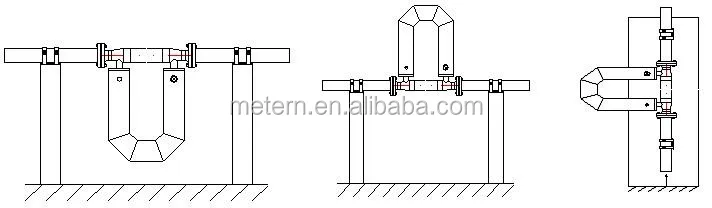

Installation
Packaging & Shipping
Company Information
Be founded in 1998.
Registered capital: USD 10 million
Building area: 30000m2
Established R&D of Coriolis mass flow meter since 2005
Started production and sales of Coriolis mass flow meter since 2008
Products are exported to Italy, Spain, Belgium, Brazil, Colombia, Malaysia, ect.
Other Products
MTCMF Coriolis mass flow meter
