CNC Plasma and Flame Cutting Machine Cutting Metal Equipment For Sale







Brief introduction

The gantry CNC plasma and flame cutting machine is specially designed for metal plate and pipe cutting,it is characterized of high automation and efficiency,easy operation and long service time. This CNC plasma and flame cutting machine is gantry structure with double-driven system, working size can be customized upon requirement.It can be used for cutting carbon steel, stainless steel and non-ferrous metal in any 2 d graphics and 3d pictures,this is widely used in metal cutting fields.You buy this machine equal to buy one plate cutting , one tube cutting machine , it can reduce the cost and reduce the space .





Optional model :(it demand customer's cutting thickness)

A:plasma tube and plate cutting machine

B:flame tube and plate cutting machine

C:plasma and flame plate tube cutting machine

 (this machine used for big size metal sheet , more than 1500*3000mm , if the cutting size less than 1500*3000mm , it can use table plasma cutting machine )







Advantage of the equipment :



 1- Machine shelf is 8mm thick steel plate welded thicker than the other manufacturers to improve the structural strength of the machine, and enhance life.

2-The front beam bezel 20mm , after a one time large gantry milling machine milling together , increase the surface finish .Rail groove is also disposable after a large milling machine milling together , increasing the beam rail straightness and parallelism , to ensurance the positioning accuracy .(the machine frame all made by ourself , we have milling machine in our factory , have quality guarantee )

3-Adopt hollow beam design :it is our factory special design , can increase the structural strength , remove the hard power , heat and prevent the rack deformation .











4-Longitudinal Transmission: bilateral rack and pinion drive, no gap, soft fit

Pros: You can prevent excessive wear gear rack, and increased life expectancy

5.Lifting Body: The changeling wheel concentric rotation tight structure, not easy to damage .

6. Transmission sublance

Main Torch driven by a traction rope sublance drive, using rope drive, flexible, not easy to break.









Technical parameters



Plate and tube plasma and flame cutting machine parameter
Model	3000mm	4000mm	5000mm	6000mm	7000mm	8000mm
X axis effective working size	2300mm	3300mm	4300mm	5300mm	6300mm	7300mm
Y axis effective working size	It is depands on customer’s demand
Pipe diametr	50-600mm
Drive mode	Bilateral stepper / servo drives
Cutting thickness	Flame cutting thickness :6-200mm
	Plasma cutting thickness :depand on the plasma source
Torch	Plasma torch /flame torch /plasma and flame torch
Moving speed	0-6000mm/min
Cutting speed	0-2000mm/min
Voltage	220v/50HZ ,380V/50HZ









Application

This machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other non-ferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as ,steel structure ,shipyard , metal working, excavator ,shipbuilding ect industry







Sample Show

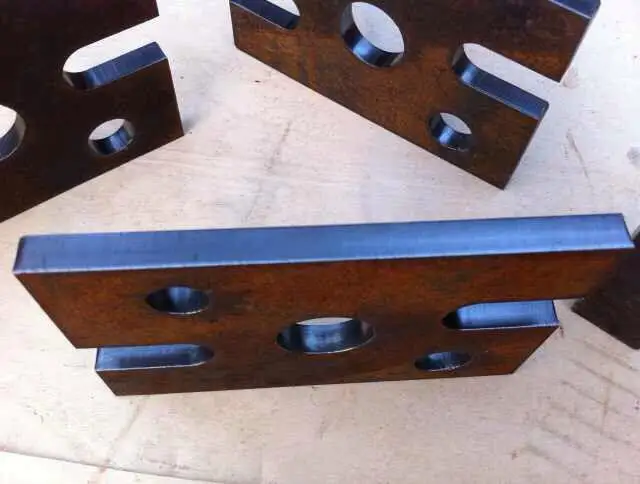

 plate sample show

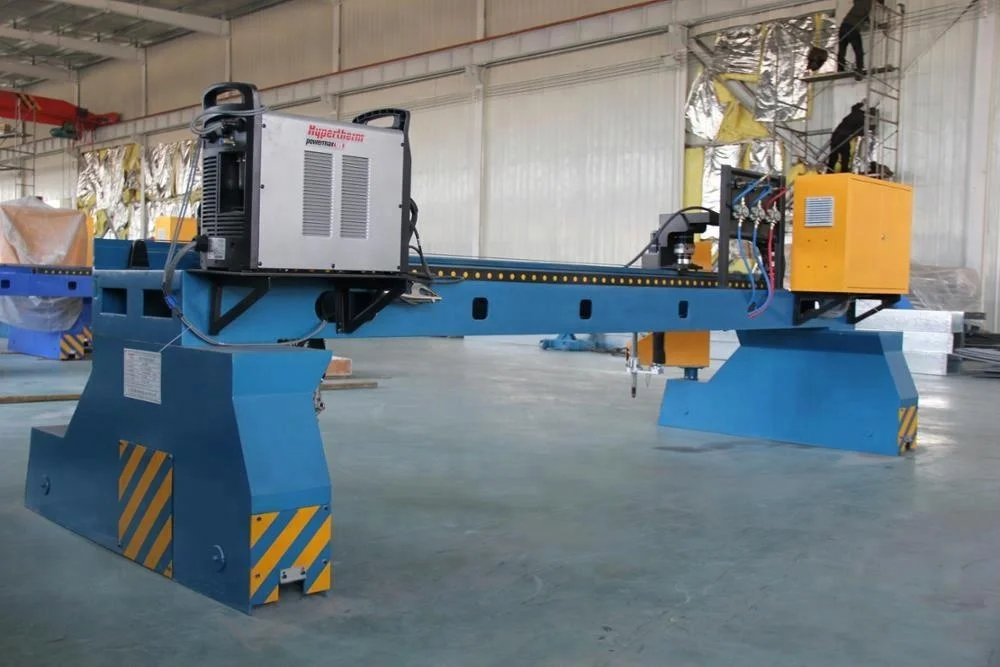

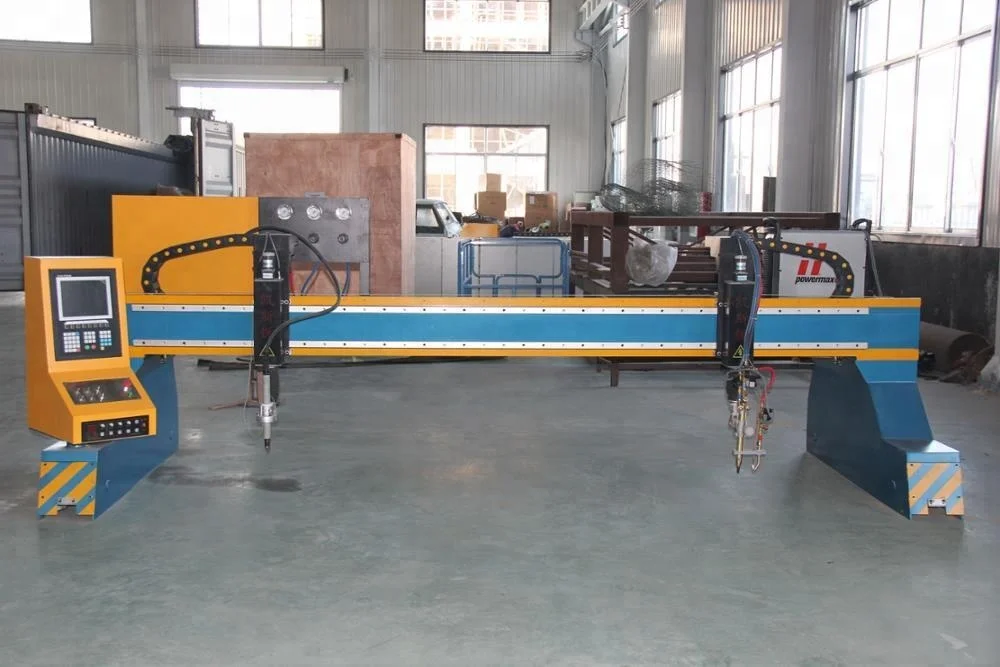

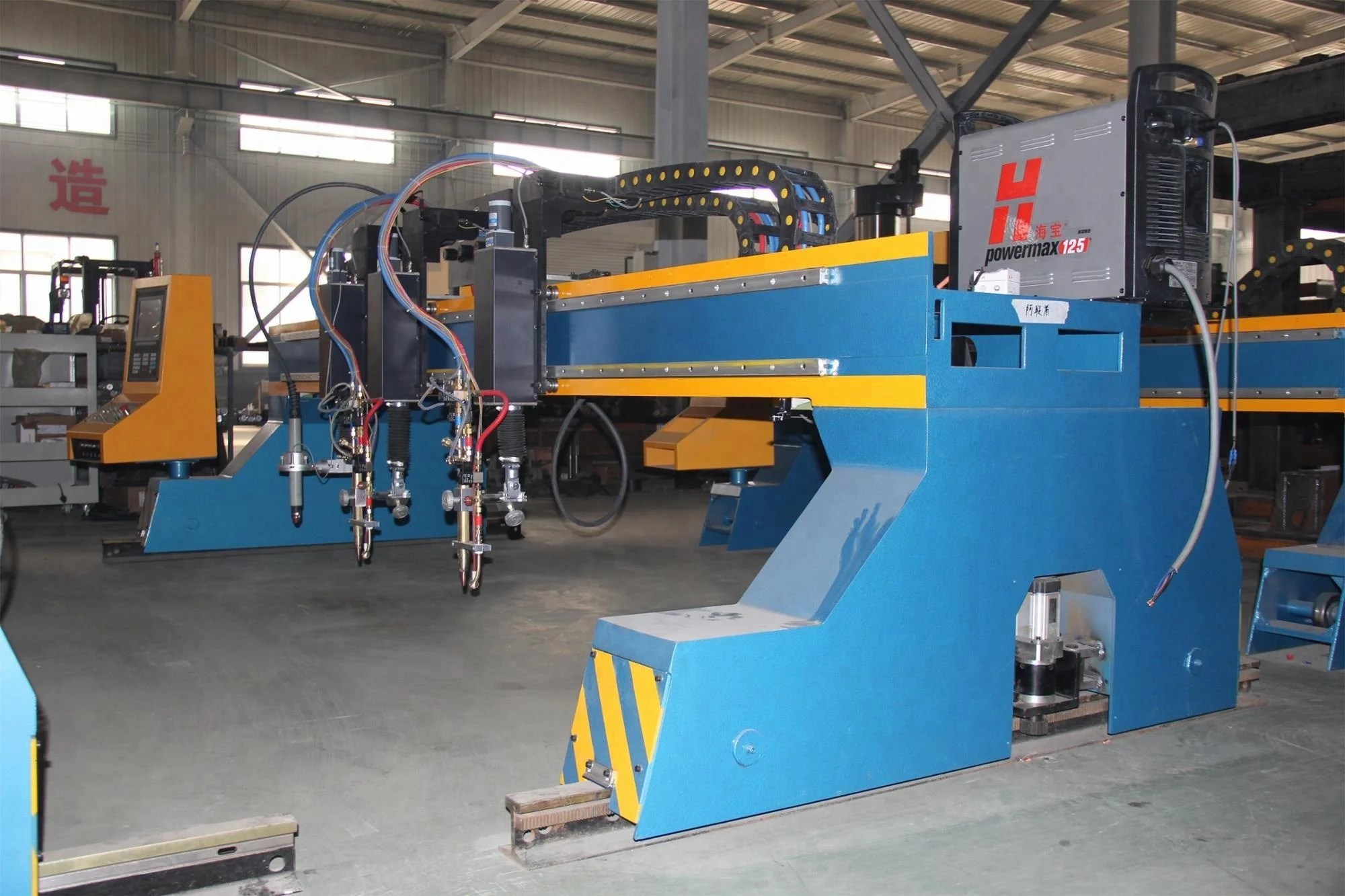

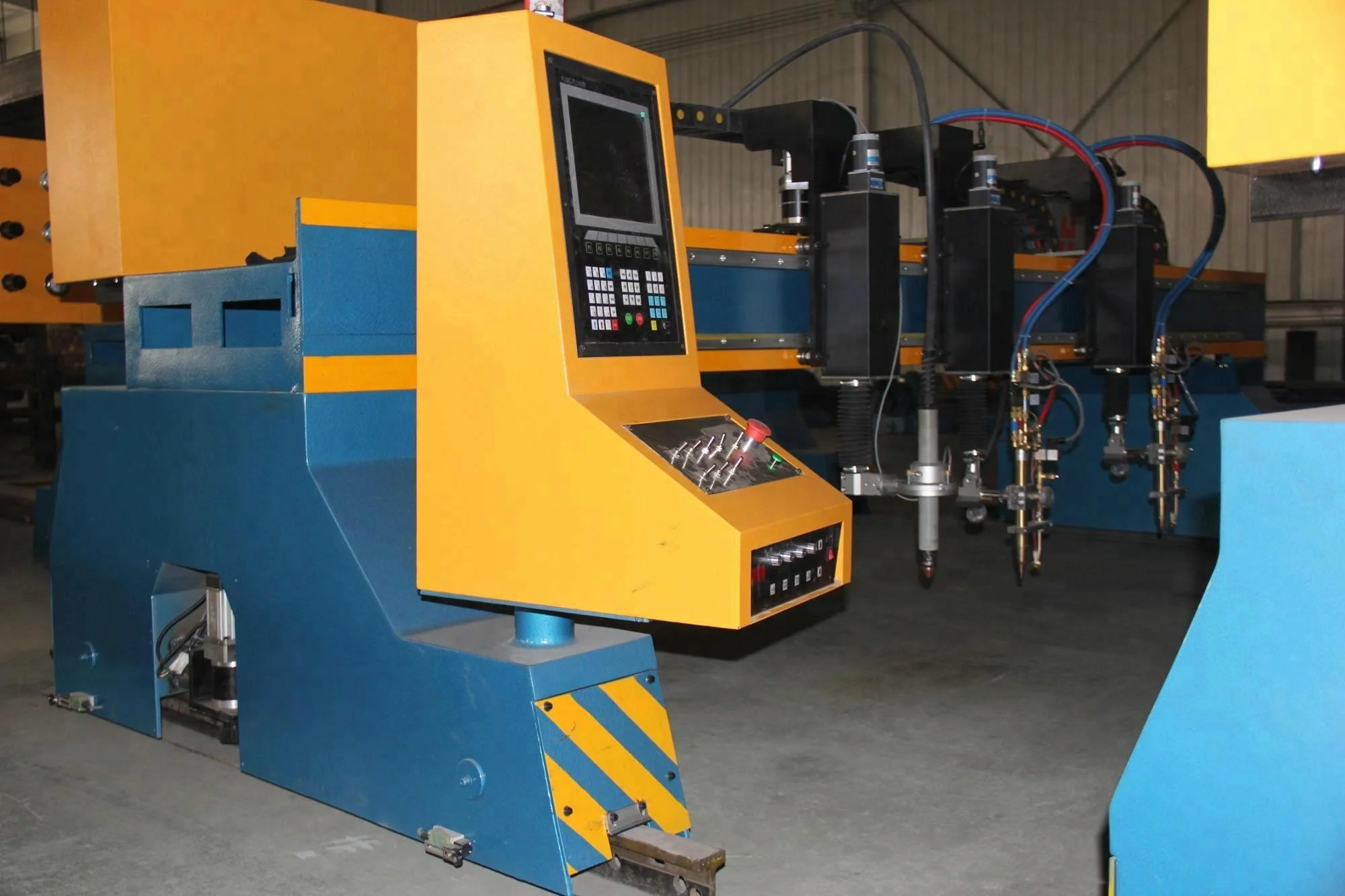

Machine in factory for different customers:
