2022 wood processor firewood processor
US $9000-$10000

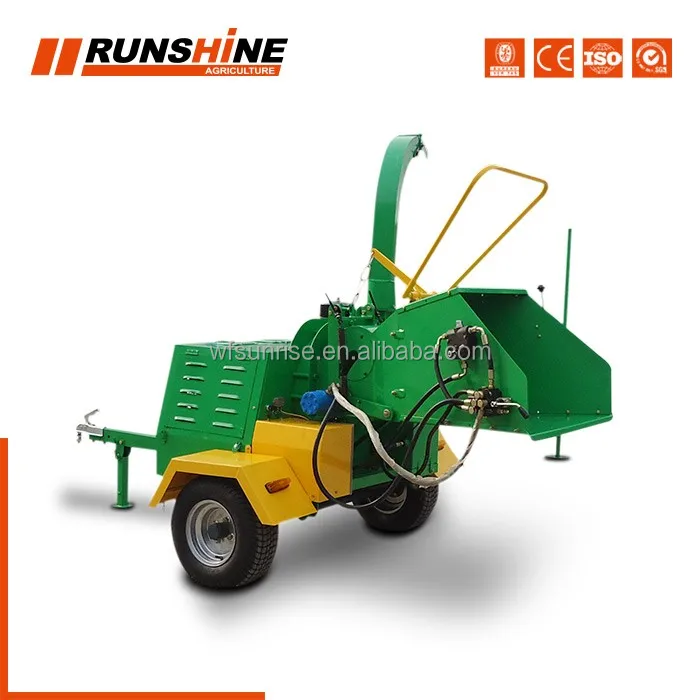

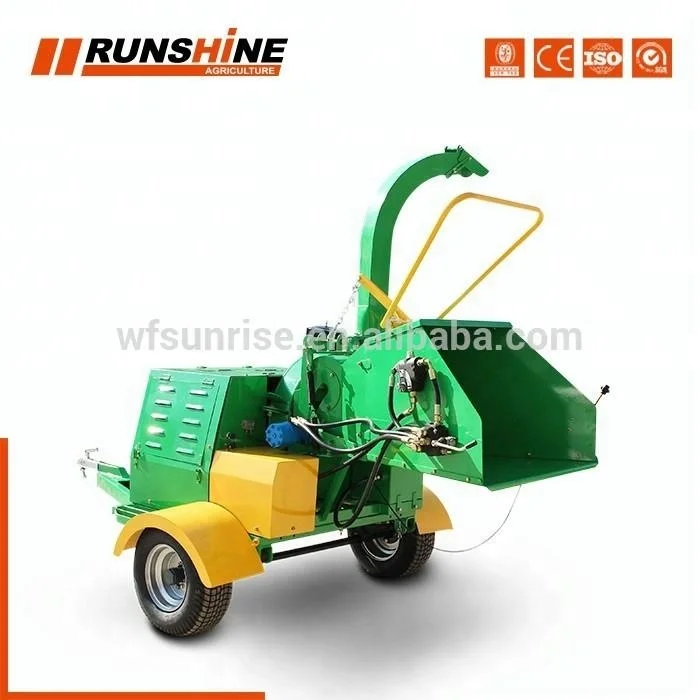

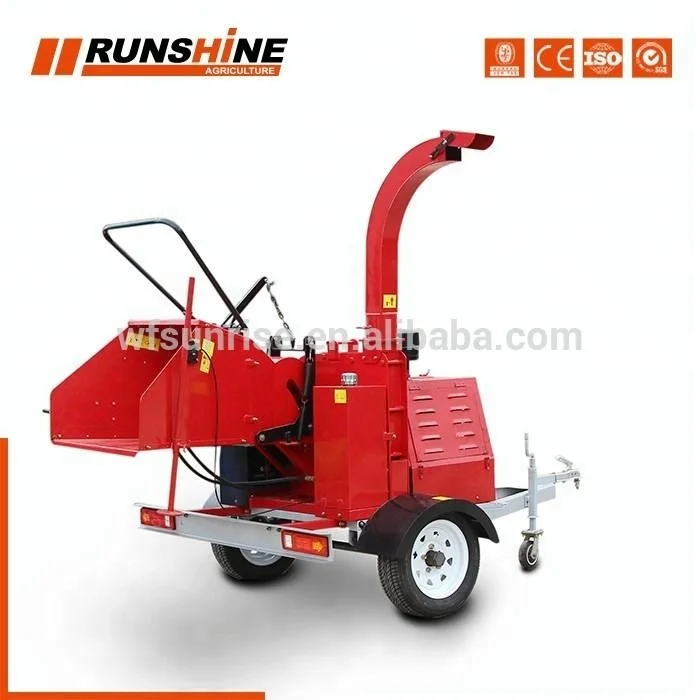

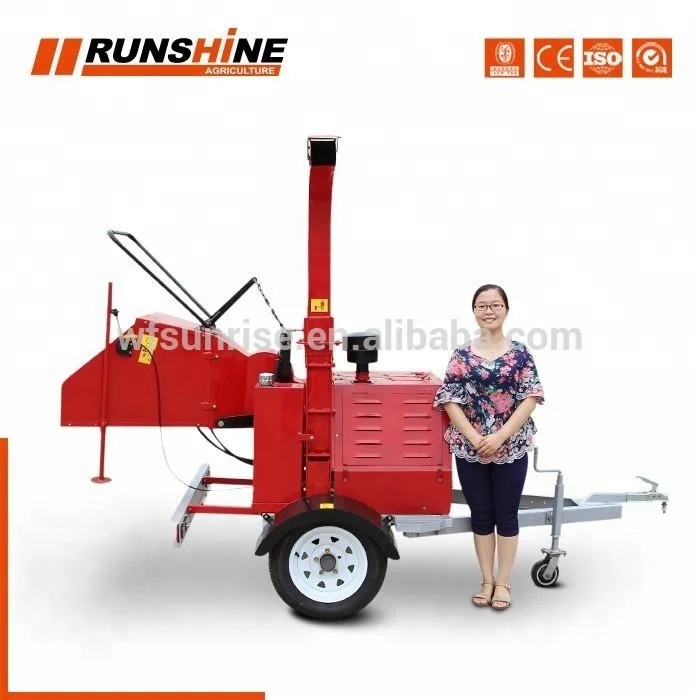

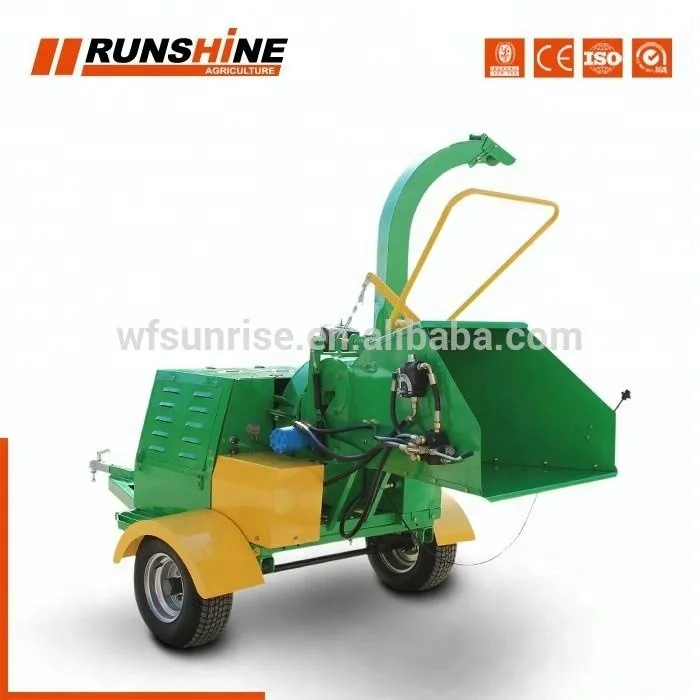

CE approved forestry machinery 22hp wood chipping machine
- Category: Forestry Machinery >>>
- Supplier: Weifang Runshine Machinery Co. Ltd.
Share on (60360096009):
Product Overview
Description
DWC-22 Specification
| Wood Chips |
| Initially, wood chipping was mainly used for the efficient removal of branches and green waste in areas such as parks and woodland, but as wood chip came to be regarded as an important natural resource, wood chipping has taken on a new, ecomomic dimension. Wood chip is valuable if the quality is consistent and meets designated requirements. DWC wood chippers ensure these requirements are met. Our entire product range is designed to deliver high quality wood chip and on many of our machines the knives can be adjusted to produce different sizes, depending on what the wood chip wii be used for. Large quantities of wood chip are already being used as a fuel supply for energy and heating, and for industrial purposes such as MDF board and paper production. In addition, wood chip is extensively used as ground cover or as surfacing material for paths as an environment-friendly weed killer, which reduces or eliminates the need for chemical sprays. |
| Features |
| 1). CE approved (Reference No.: OSE-11-0804/01) |
| 2). 18/22HP professional diesel engine and 40HP Changchai/Laidong diesel engine |
| 3). Max. wood chipping diameter: 200mm |
| 4). High speed tire Max. speed 140km/h, can be towed on public road |
| 5). The wood chips are highly suitable for making wood pellets and heating purposes. |
| 6). Round flywheel hourse, easy to change blades, the blades can use 24 months continuous. |
| Specifications | |||
| Model | DWC-18 | DWC-22 | DWC-18/22 updated model with big frame, jockey wheel, turning lights |
| Engine | 18hp professional/Changchai diesel engine | 22hp professional/Changchai diesel engine | 18 or 22hp professional/Changhcai diesel engine |
| Chipper capacity | max. 180mm | max. 180mm | max. 180mm |
| Feed method | Mechanical/Hydraulic | Mechanical/Hydraulic | mechanical/hydraulic |
| Rotor disc diameter | 640mm | 640mm | 640mm |
| Rotor disc weight | 85kg | 85kg | 85kg |
| Knives number | 1 stationary, 2 rotor knives | 1 stationary, 2 rotor knives | 1 stationary, 2 rotary knives |
| Hopper discharge dimension | 1200x1400x1100mm | 1200x1400x1100mm | 1200x1400x1100mm |
| Feed hopper inner opening | 200x220mm | 200x220mm | 200x220mm |
| Discharge hood height | 1800mm | 1800mm | 1800mm |
| Rated RPM | 1080 | 1080 | 1080 |
| Weight | 600kg | 600kg | 630kg |
| Efficiency | 9-11 cbm/hour | 10-12 cbm/hour | 10-12cbm |
| Tire | 20.5x8-10 | 20.5x8-10 | 165/70R 13 |
| Chips size | 5-40mm adjustable | 5-40mm adjustable | 5-40mm adjustable |
| Discharge hood rotates | 360 degrees | 360 degrees | 360 degrees |
| color | Any color available | Any color available | Any color available |
| Optional parts for DWC series wood chippers |
| big frame, jockey wheel, turning lights |
| double hydraulic feeding system |
| high speed tires(max. 140km/h) |
Usage for wood chips:

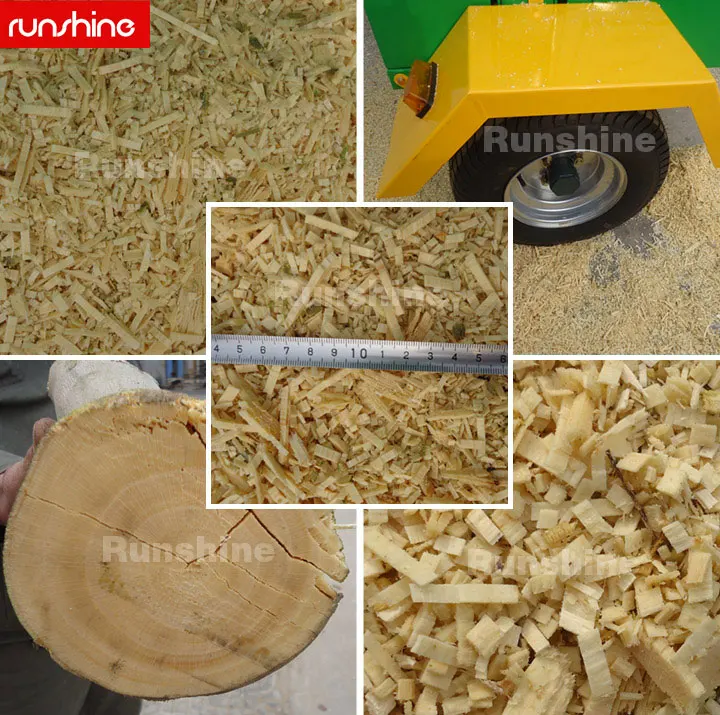

wood chips effect:

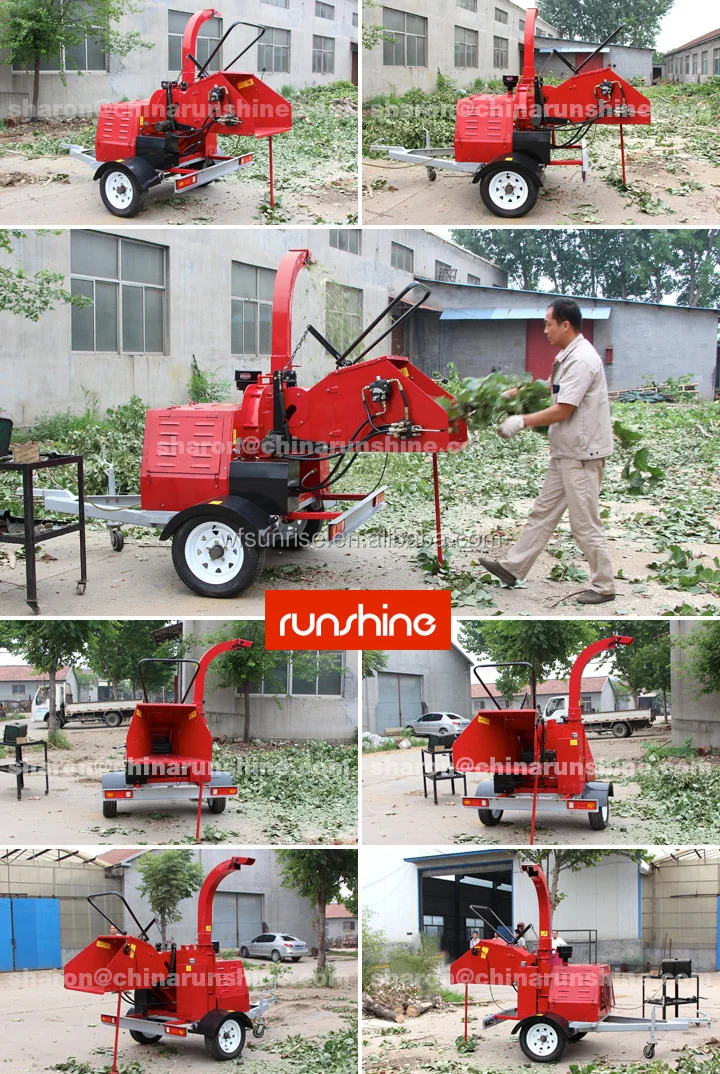

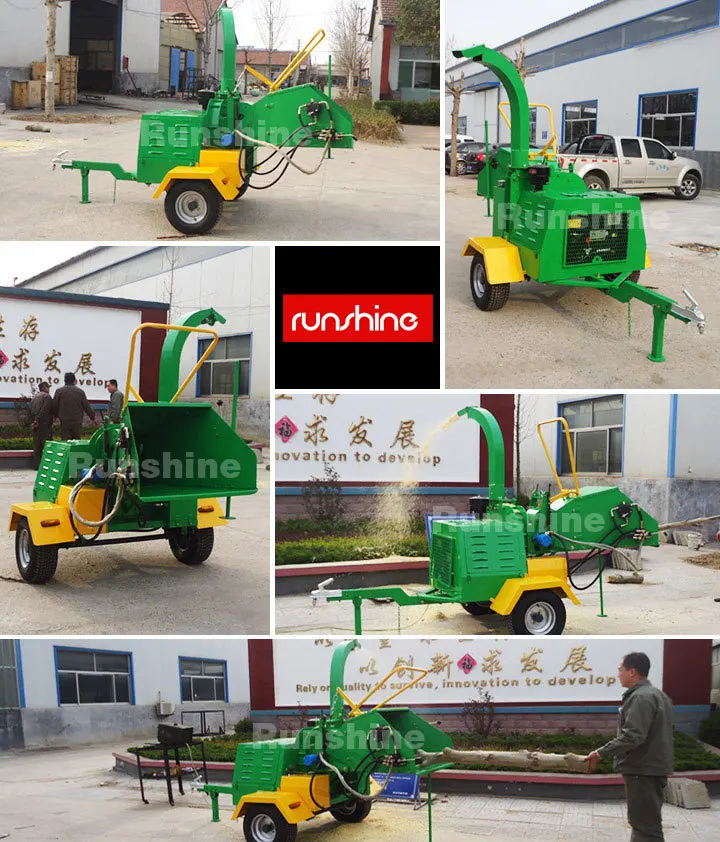

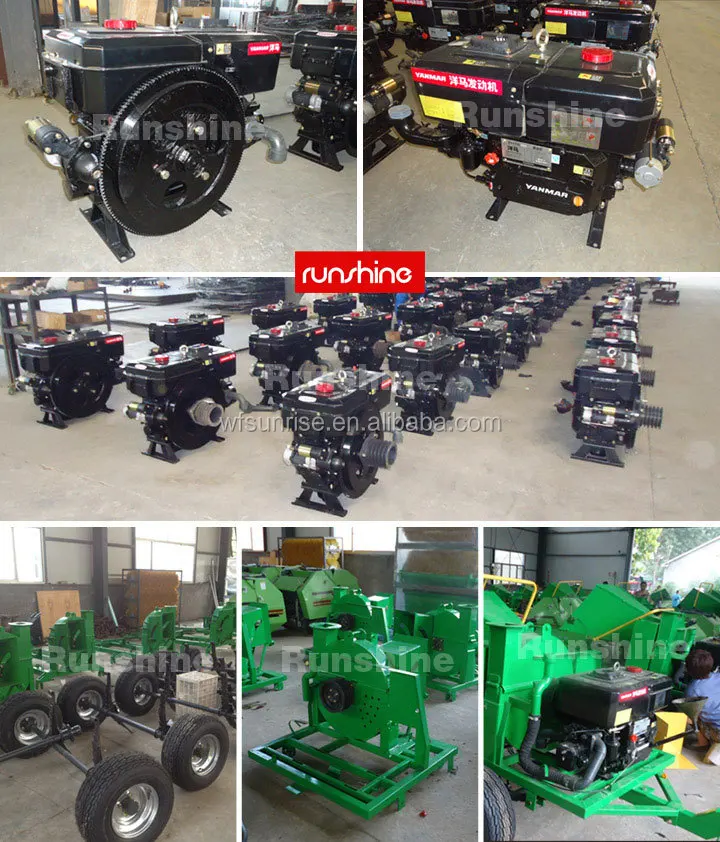

DWC-22 workshop

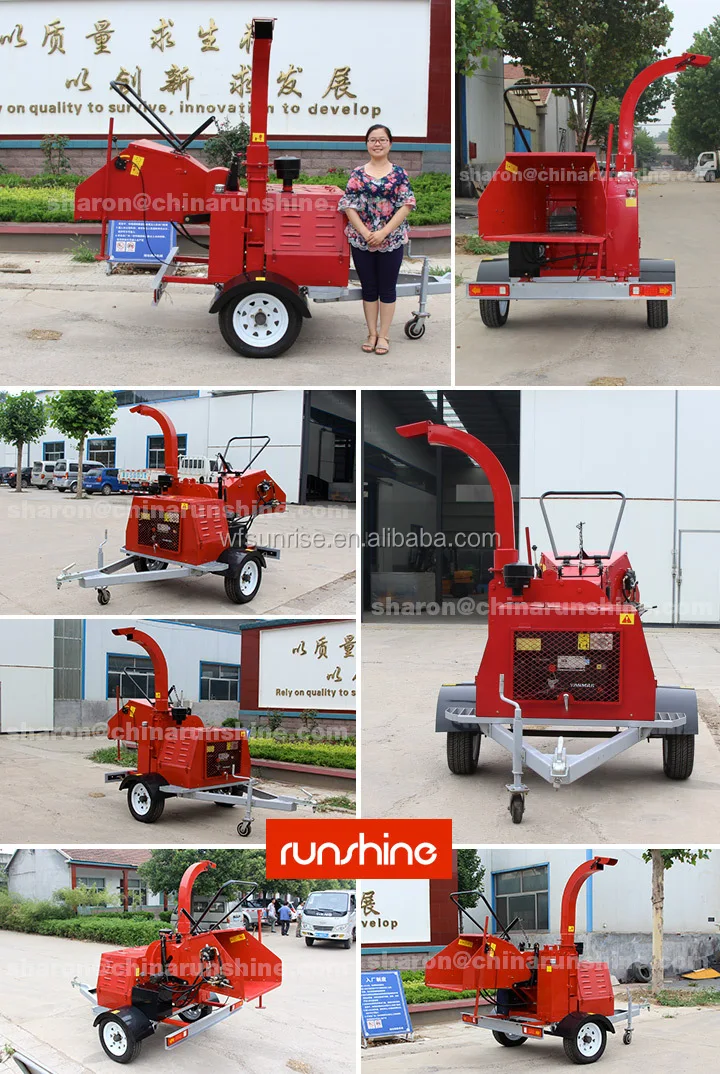

newest wood chipper

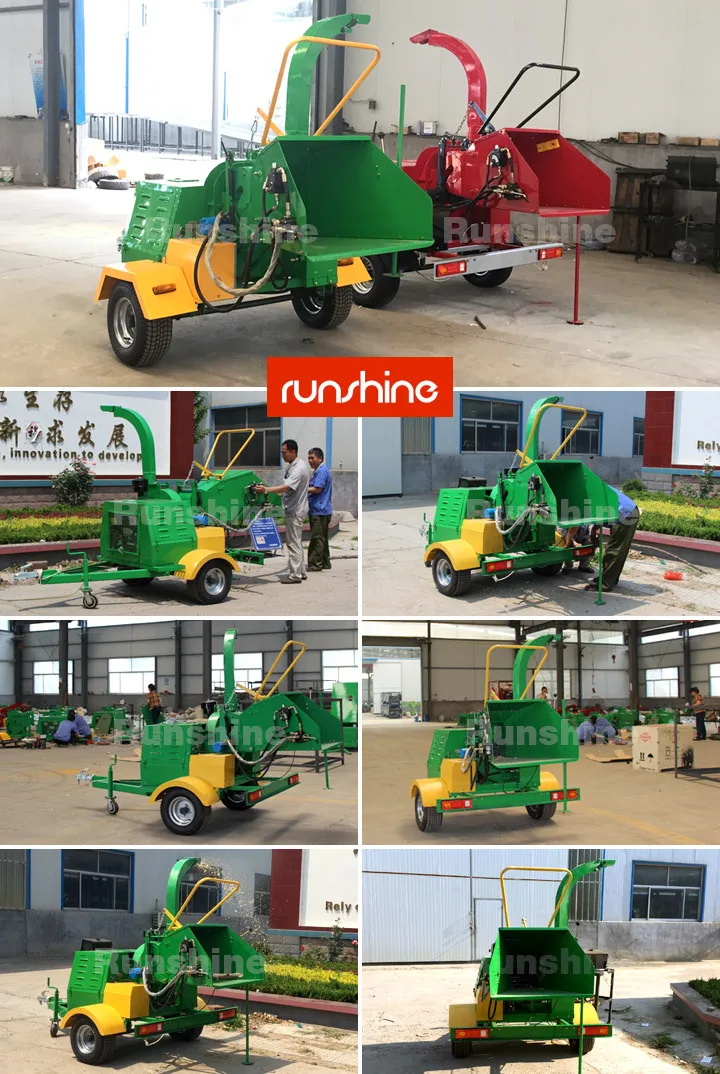

Chipper overview
all videos
Hay equipment
Square baler: //youtu.be/jlo-vp-7LZc |
| Round Baler 1: //youtu.be/a5dkI_Yac7s |
| Round Baler 2: //youtu.be/SIMQDTwWtgg |
| Round baler 3: //youtu.be/K-dKVQ_h-dw |
| Round baler 4: //youtu.be/6uOPZB9qYKw |
| Big Round baler: https://youtu.be/K11BolLDgAU |
| Disc mower 1: //youtu.be/dFBbbOYQq8g |
| Disc mower 2: //youtu.be/ioudGoijLzc |
| Hay rake: //youtu.be/pjrmDkeq3Jk |
| Hay wrapper 1: //youtu.be/_3X7PTyDDps |
| Hay wrapper 2: //youtu.be/GEOh8GEPFnY |
Wood chippers
Wood chipper installation video: //youtu.be/VAZUCZLd_j0 |
| Wood chipper series: //youtu.be/n9gIHYZjfG8 |
| 22hp wood chipper: https://youtu.be/z9ZUOAYMTJc |
Newest wood chipper: https://youtu.be/xC0Y7dvPVtM |
Newest PTO wood chipper: https://youtu.be/edmTjCeGKGE |
How to use a wood chipper: //youtu.be/kXASwtwMTrU |
PTO wood chipper: //youtu.be/8jw_JNq3YWs |
FAQ
| FAQ |
| 1. How to order? |
| After you decide to purchase, we will send you proforma invoice with our bank information, bring this PI to the bank, and ask to make T/T for the deposit. For single set, your machine can be ready within 26 days after we getting the deposit, we will send to the port and deliver to you by sea. -In case for more handling charges, you can transfer 100% of the payment, we can arrange the products and shipping under your allowance. |
| 2. Related products? |
| 18HP, 22HP, 40HP and PTO type |
| 3. Can i order 1 set for sample? |
| Yes, Sample acceptable, You can test the quality of sample. |
| 4. How do we visit you and your factory? |
First of all, welcome you or any appointed agent to visit and inspect our factory. You can fly to Shanghai airport, then come from Shanghai railway station to Weifang city. (3 hours) You can fly to Qingdao airport, then come from Qingdao railway station to Weifang city. (45 minutes) We can pick up you at Qingdao airport or Weifang railway station. Please kindly let us know your schedule in details, so we can arrange everything for you. |
5. Why you choose us? |
As manufacturer, our products have excellent quality and competitive price. Good after-sale services and 24 months warranty are visible. Strictly testing and checking before shipping. 26 years experience in manufacturing and 9 years exporting experience. Doing OEM for many famous brand. |
| Contact (Ms.) Sharon |
| Sales Director: (Ms.) Sharon Geng |
| Address: Gudi Industry Park, Hanting District, Weifang City, Shandong Province, China |
| Video on Youtube |
| Wood Chipper 1: //youtu.be/n9gIHYZjfG8 |
| Wood Chiper 2: //youtu.be/eq0jm6sLh4w |
