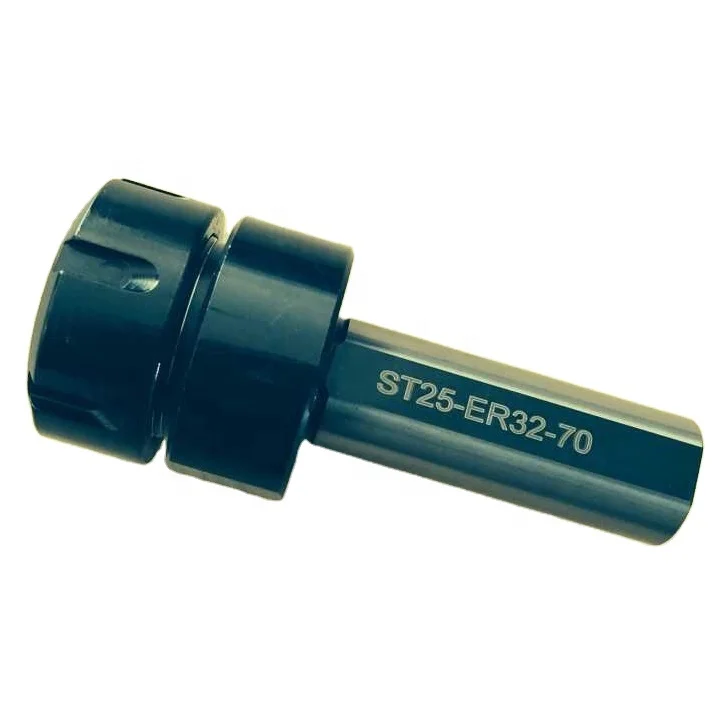

straight shank side lock collet chuck

Product Overview

Description

straight shank side lock collet chuck

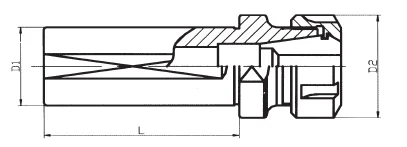

The specifications is given below:





model no.	D1	L	D2
C20-ER16-50	20	50	28
C20-ER16-80		80
C20-ER20-50	20	50	34
C20-ER20-100		100
C20-ER25-50		50	42
C20-ER25-80		80
C20-ER25-100		100
C20-ER32-80		80	50
C20-ER32-100		100
C25-ER16-80	25	80	28
C25-ER16-100		100
C25-ER20-80		80	34
C25-ER20-100		100
C25-ER25-80		80	42
C25-ER25-100		100
C25-ER32-80		80	50
C25-ER32-100		100
C32-ER25-80	32	80	42
C32-ER25-100		100
C32-ER32-80		80	50
C32-ER32-100		100
C32-ER40-80		80	63
C32-ER40-100		100
C40-ER32-100	40	100	50
C40-ER40-100		100	63







packaging way:Inner packing is by plastic box.The outer packing is by cartons.Pallet is available upon the customer's request.





Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.



Shipment way: We can send the goods by sea,air or couirer(DHL,TNT,Fedex etc) according to the customer's requirement.



Our Services and reputation: we have been the supplier at Alibaba for 15(fifteen) years.

 We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
