5 axsis brush making machine
US $1.00
manual semi automatic broom machine
- Category: Brush Making Machines >>>
- Supplier: Jiangmen Meixin Comb Brush Machinery Co. Ltd.
Share on (60366268796):
Product Overview
Description
Company Information
Our factory is specialized in producing 2 to 5 axis single(double) colour brush machine,CNC tufting machine,CNC tufting and drilling machine,CNC drilling and tufting combination machine,filament trimming machine,filament cutting machine.Our products mainly are widely used in all kinds of brushes,for example:broom(plastic and wood)cleaning brush,electric toothbrush,travel toothbrush,cosmetic brush,nail polish brsh,industry roller brush,strip brush,round disc brush,dish washing brush,comb,massage brush,wooden brush,barbecue brush and so on.
Product Description
Machine paremeter
| Item | Model | MXtt01 |
1 | axis | 2 axis |
| 2 | Journey of Y axis | 300mm |
| Journey of X axis | 300mm | |
| 3 | Hole diameter | 3.5-5mm |
| 4 | fiber box | double or three colour |
| 5 | Application | to trim toilet brush |
| 6 | The length of filament | 30-120mm |
| 7 | Maximum Tufting Speed | 6-7 pc/ sed |
| 8 | head motor | Italy brake motor |
| 9 | Orbit | TBI original linear guide |
| 10 | main power input | 380VAC/220VAC |
| 11 | MAIN SPEED CONTROL | Frequency control |
| 12 | drive motor | sevo motor |
| 13 | wire | flat wire |
| 14 | net weight | about 800kg |
- Machine spare parts:
- Italy brake motor
- driving Motor: servo motor(Panasonic)
- driving screw:TBI ball screw
- Lubrication:TBI straight line guide rail
- Japan bearing( IKO,BB15 and BB20)
- Schneider low voltage electrical appliances
- Stepless speed:Frequency converter using Delta inverter
- PLC(ADTECH CNC Control System) Fiber box container:two or three colours

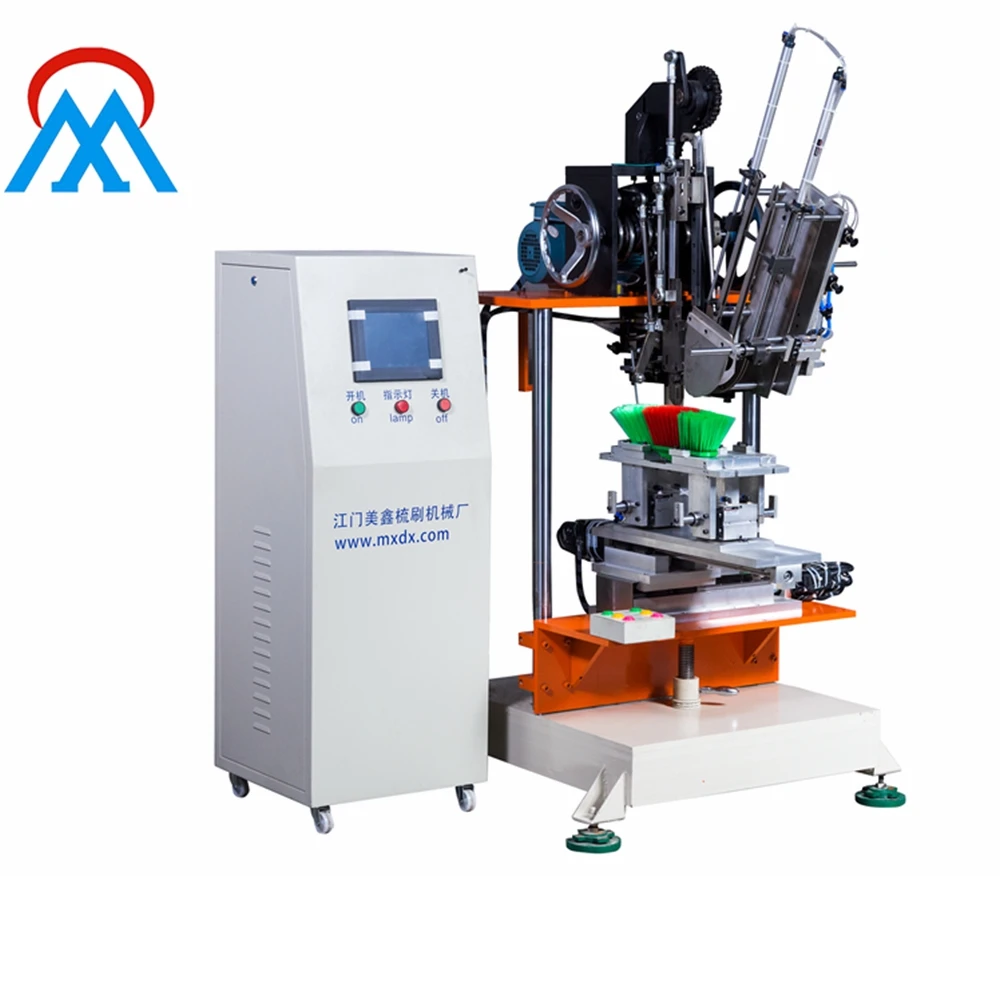

broom brush tufting machine
Technical characteristics:
1.installed with one tufting motor head,high speeding processing,high volume,cost effective.
2.this machine can produce many different kinds of brushes or brooms which have different filling angles,by changing specifice platform
3.hole diameter:3mm to 8mm
4.filling by:round nails or flat nails
5.types of platform can be chosen,vertical angle of brushes
6.PLC and touch Panel Control System of Man-Machine,Chinese and english display,simple to understand
7.allow to save as 2000 procedure and easy for the creation of new models
8.Wearing parts and spare parts are standardized designs to reduce hair mechanic technology dependence.
9. our machine can produce either one colour or two colours or three colours brush,and also drill or tuft separately
Wearing parts and spare parts are standardized designs
Installing and testing:
Packaging & Shipping
Certificate Patent and CE
Our Services
In the warranty period(one year),we will send you one set of wear parts(for example:matching tufting needles,hair mouth,hair pulling blade,cutting wire knife)
If machine is broken,engineers is available to service overseas(but buyer has to our engineer round trip ticket fee,living and eating fee and pay our engineer daily salary)
After warranty year,if the wear parts are broken,we can send new for you,but you paid the wear parts fee and shipping fee.
Looking forward to our coopertation in the early time!
