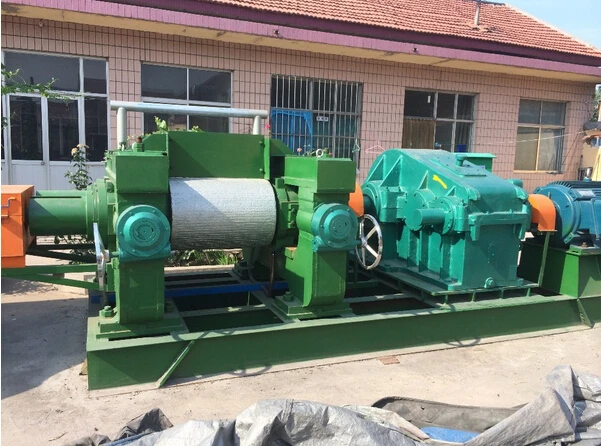

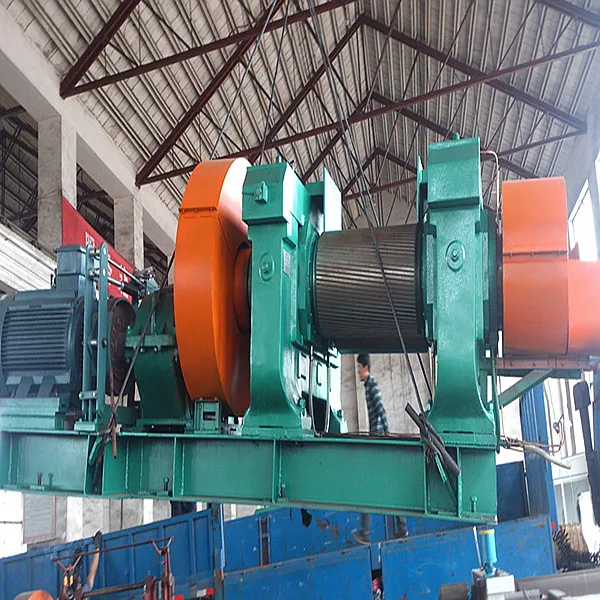

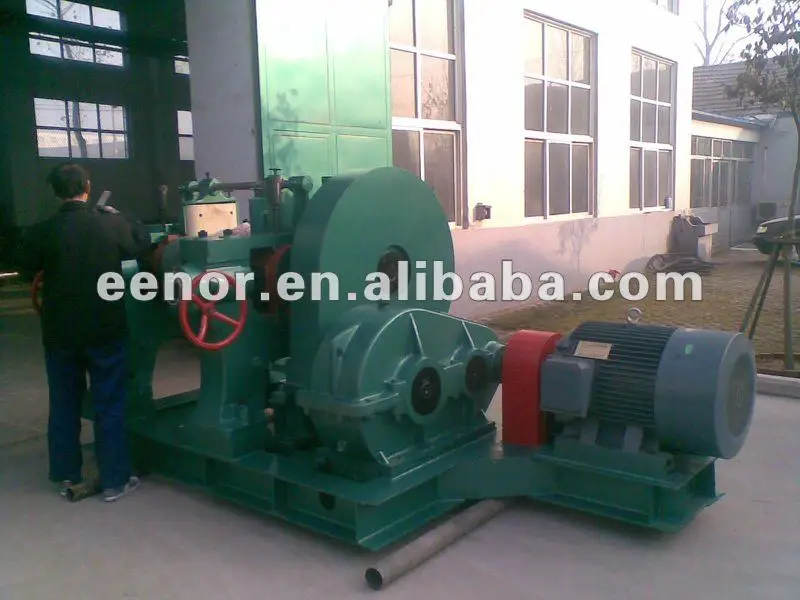

XKP 560 rubber cracker milll/rubber granule crusher

Product Overview

Description

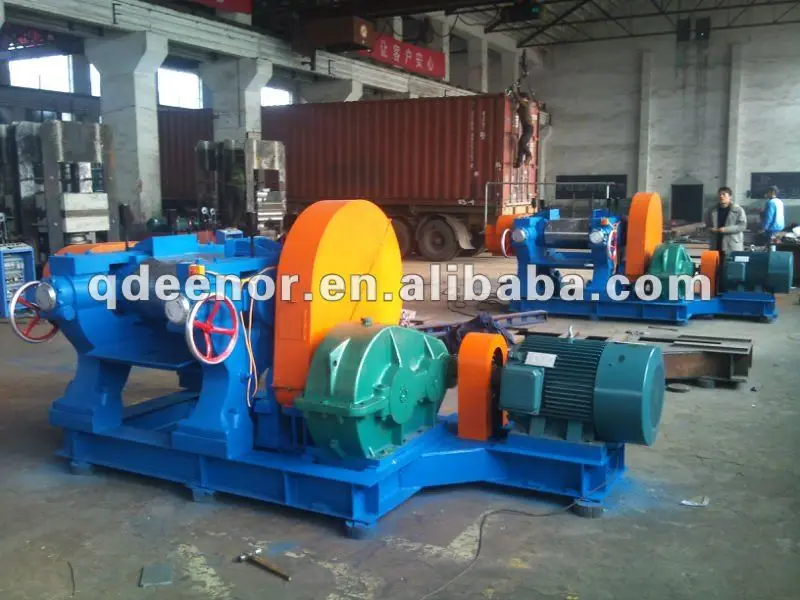

XKP-560 rubber cracker milll/rubber granule crusher



company introduction:



Our factory has nearly 30 years experience in manufacturing rubber machine.



 We have a set of standardized production line,which contains wire peeling machine,rubber cutter, grinding mill,shredder,screen conveyor,rubber crusher,shaker,banburying mixer,open mill,spiral elevator,kneader,rubber filter and extruder,vulcanizer,refiner,calendering machine.



Chracteristics:



1.Transmission with quality.



2.The rolls are made of chilled cast iron with wear-resistance hard surface.

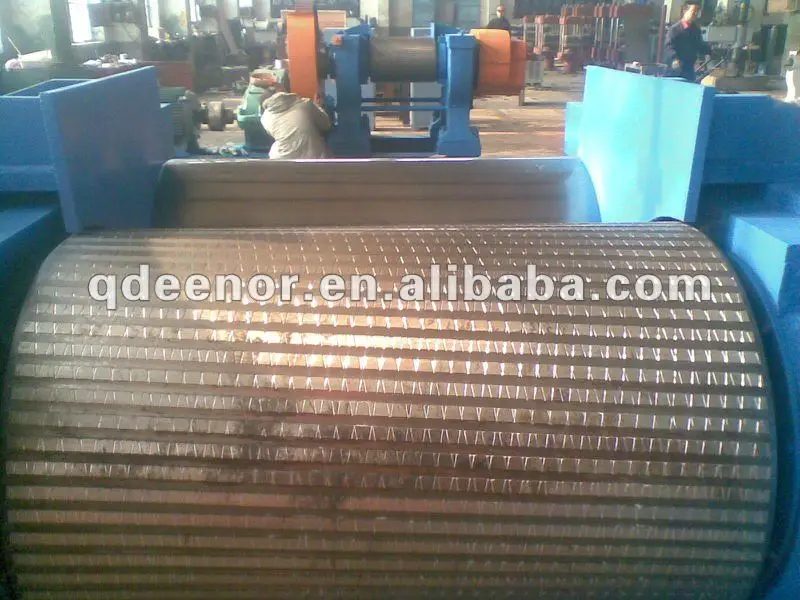

3.The rollers are grooved.

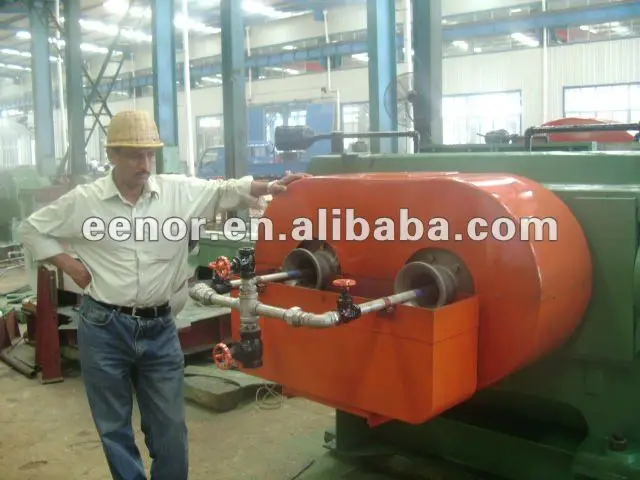

4.The bored rolls can be cooled through inputting the steam  and colling water.



5.The two rollers rotate with different speed ,so that rubber material can be processed



6.The Excellent crushing structure is open gear transmissions



7.The product has ISO9001 CE standard and SGS certification .



 Technicial parameter:



Type	XKP-400	XKP-450	XKP-560
Front roll diameter (mm)	400	450	560
Rear roll diameter (mm)	400(groove roller)	450(groove roller)	510(groove roller)
Working length of rolls (mm)	600	650	800
Front roll surface speed (m/min)	17.32	23.2	25.56
Friction ratio	1:1.38	1:1.38	1:1.30
Max.nip (mm)	8	8	15
Production capacity(kg/h)	200-300	600-800	-1500
Motor power (kw)	45	55	75
Overall dimension (mm)	3950*1800*1780	4770*1846*1835	5064*2284*1978
Weight (kg)	7000	12000	19000

Item	XKP-800
Diameter of front roll(mm)	560(GROOVE)
Diameter of back roll(mm)	510(GROOVE)
Working length(mm)	800
Linear speed of front rollm/min)	25.56
Ratio	1:1.38
MAX gap(mm)	15
Motor power(kw)	132
Dimension (l*w*h)(mm)	6270*2290*1980
Weight (kg)	22000



customers visit:

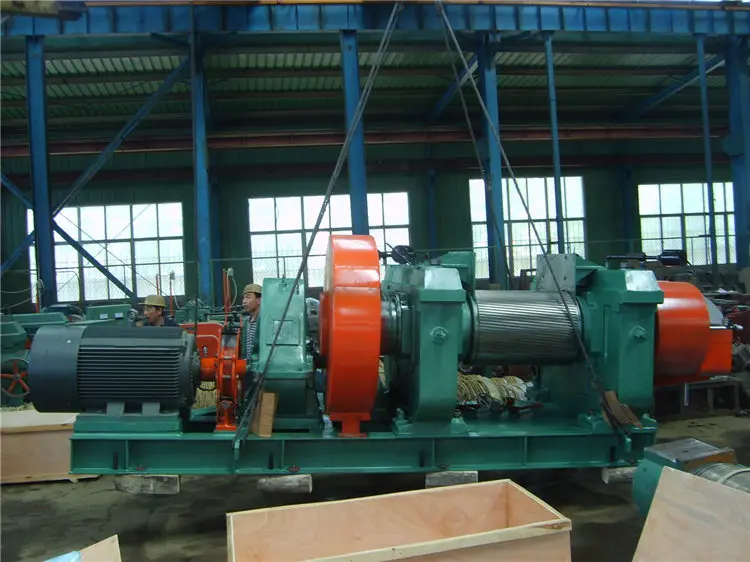

workshop show:

FAQ:



1.Q:Are you a factory or trading company?



   A:We are factory.



2.Q:Where is your factory?How can i visit ?



   A:Our factory located in qingdao city.You can fly to qingdao liuting airport,then we can pick you up to our facotry to visit.Warm welcome visit us.



3.Q:How does your factory control the quality of machines and after sales service?



   A:Our machines passed CE,BV,ISO,SGS certification,pls confirm the quality.All our machines have 1 year guarantee, will provide lifetime maintenance.
