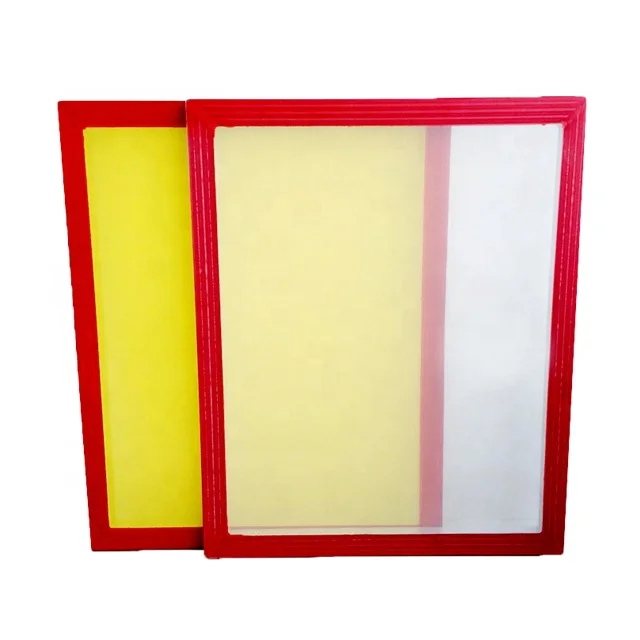

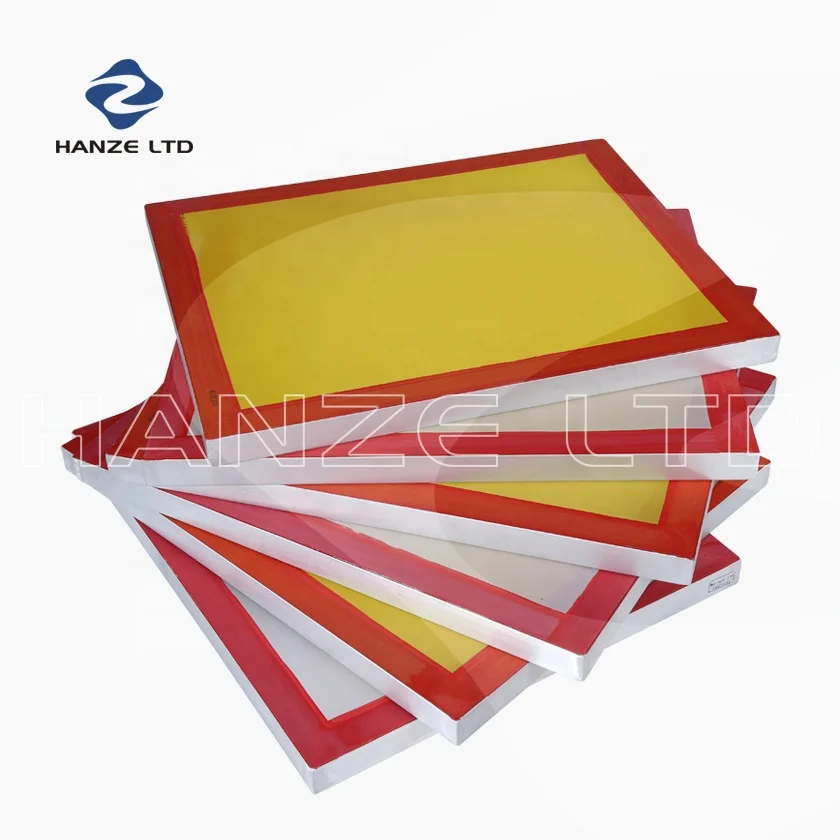

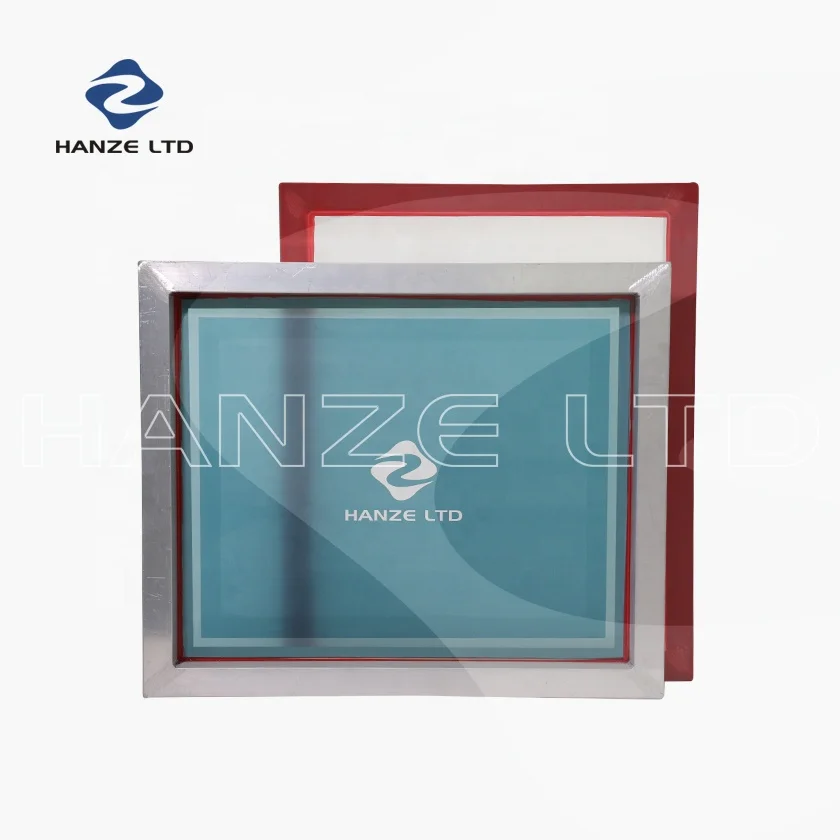

aluminum windows silk screen frame for silk screen printing
- Category: Aluminum Profiles >>>
- Supplier: Hebei Hanze International Trade Co. Ltd.
Share on (60369185810):
Product Overview
Description
Products Description
According to the years of working experience&customers’ requirements, Hanze Ltd created various AL-frames which are characteristic and can meet the markets needs.
More than forty types of cross profiles with high strength and high precision can be chosen by customers from different trades.
The frames are widly used for M&R,TAS,MHM,ROQ,ASPE,and LUCKY manual&automatic textile screen printing machine and other printing machine.
The frames are widly used for M&R,TAS,MHM,ROQ,ASPE,and LUCKY manual&automatic textile screen printing machine and other printing machine.

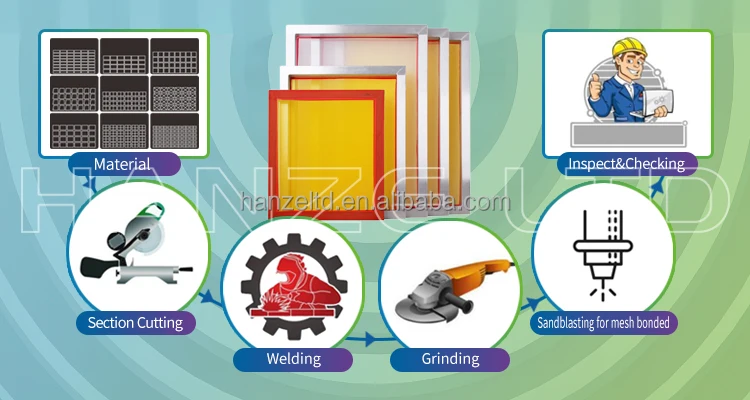

Production Process

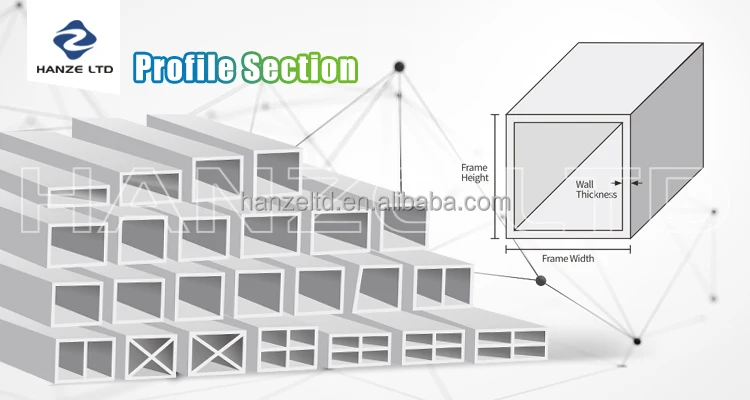

Aluminum frames are cut from 6063T5 alloy in a variety of extrusion profile.Each profile offers unique characteristics to
accommodate different machine specification as we as overall strength requirements for high tension frames and extra large frame.Some of the extrusions can be "pre-shaped" to handle higher tension.
accommodate different machine specification as we as overall strength requirements for high tension frames and extra large frame.Some of the extrusions can be "pre-shaped" to handle higher tension.
Specification
Outside Diameter/Inch | Profile/Inch | Max Image Size |
10" X 14" | 1" X 1" | 5" X 8" |
12.5" X 17.5" | 1" X 1" | 7" X 12" |
14.5" X 17.5" | 1" X 1" | 9" X 12" |
12" X 24" | 1-3/8" X 1-3/8" | 6" X 15" |
18" X 20" | 1-3/8" X 1-3/8" | 11" X 12" |
20" X 24" | 1-3/8" X 1-3/8" | 13" X 16" |
14" X 30" | 1-1/2" X 1-1/2" | 8" X 22" |
18" X 36" | 1-1/2" X 1-1/2" | 11" X 28" |
23" X 31" | 1-1/2" X 1-1/2" | 16“ X 24" |
25" X 36" | 1-1/2" X 1-1/2" | 18" X 28" |
30" X 43" | 1-1/2" X 1-1/2" | 23" X 35" |
36" X 48" | 1-1/2" X 2" | 28" X 38" |
42" X 54" | 1-1/2" X 2" | 34" X 44" |

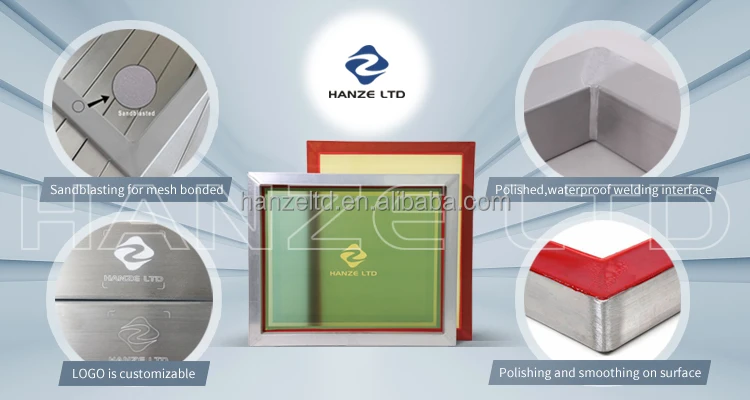

Feature
Lightweight for ease of handling,
Coners welded & welden watertight,
Ground smooth, Sandblasting on mesh bonded for excellent adhesion,
Free of deformation, Durable in use and low cost.

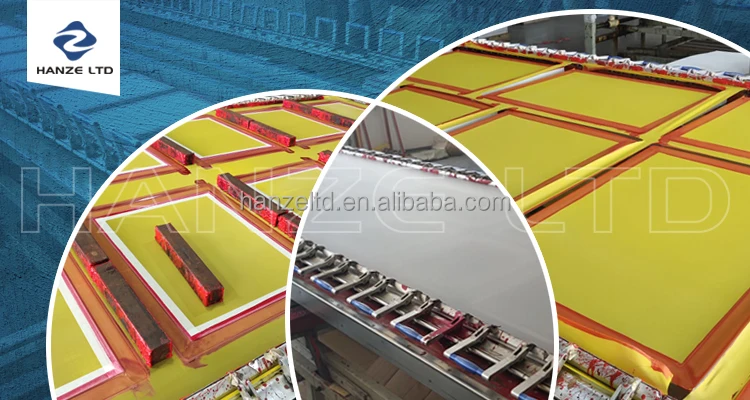

Stretching Service
The automatic stretching machine provide the stable&balance tension
Advantages of high tension screens:
Delivers accurate registration
Improves sharpness
Reduces ink consumption
Improves ink coverage
Increases stencil life
Increases production
Reduces wastage & rejection
Delivers accurate registration
Improves sharpness
Reduces ink consumption
Improves ink coverage
Increases stencil life
Increases production
Reduces wastage & rejection

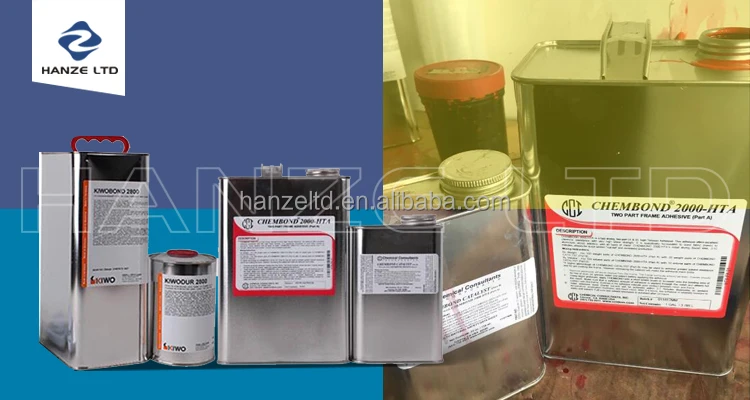

Highest chemical resistance glue:
CHEMBOND® 2000-H.T.A. TWO PART FRAME ADHESIVE KIT made in USA
KIWO glue made in Germany.
CHEMBOND® 2000-H.T.A. TWO PART FRAME ADHESIVE KIT made in USA
KIWO glue made in Germany.

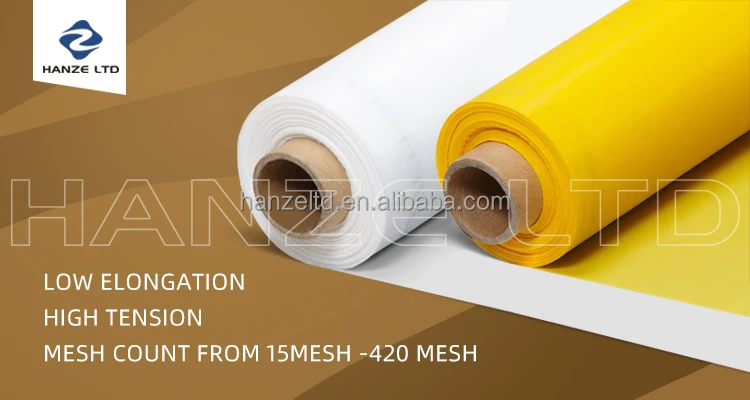

High Quality Polyester Screen Mesh
Stretched with top quality monofilament polyester mesh(low elongation and high tension,mesh count available from
15mesh--420mesh(made in China):
25-40 mesh for glitter inks,60-90 mesh for shimmers inks and thick white under base,
110 mesh mostly popular for light colors such as white,
160 mesh is best for darker colors such as black.Holds more details than 110 mesh but less ink will pass through. 200-230 mesh,ink may need to be reduced.Holds high details,
230-305 mesh are mostly used for super fine details,half tones and CMYK process prints.
15mesh--420mesh(made in China):
25-40 mesh for glitter inks,60-90 mesh for shimmers inks and thick white under base,
110 mesh mostly popular for light colors such as white,
160 mesh is best for darker colors such as black.Holds more details than 110 mesh but less ink will pass through. 200-230 mesh,ink may need to be reduced.Holds high details,
230-305 mesh are mostly used for super fine details,half tones and CMYK process prints.

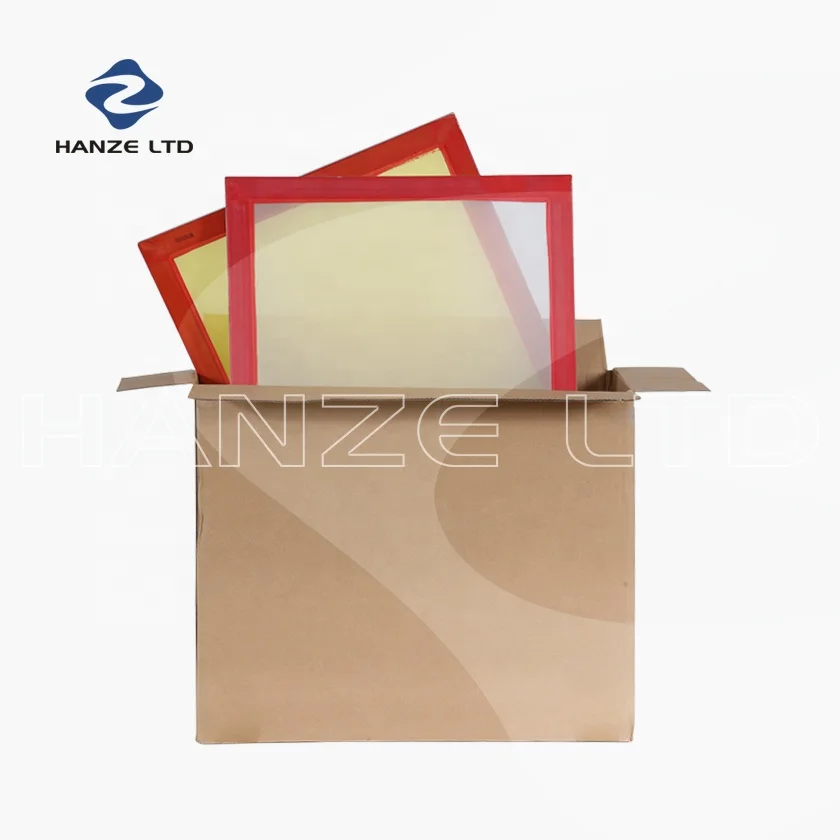

Packing and Delivery
