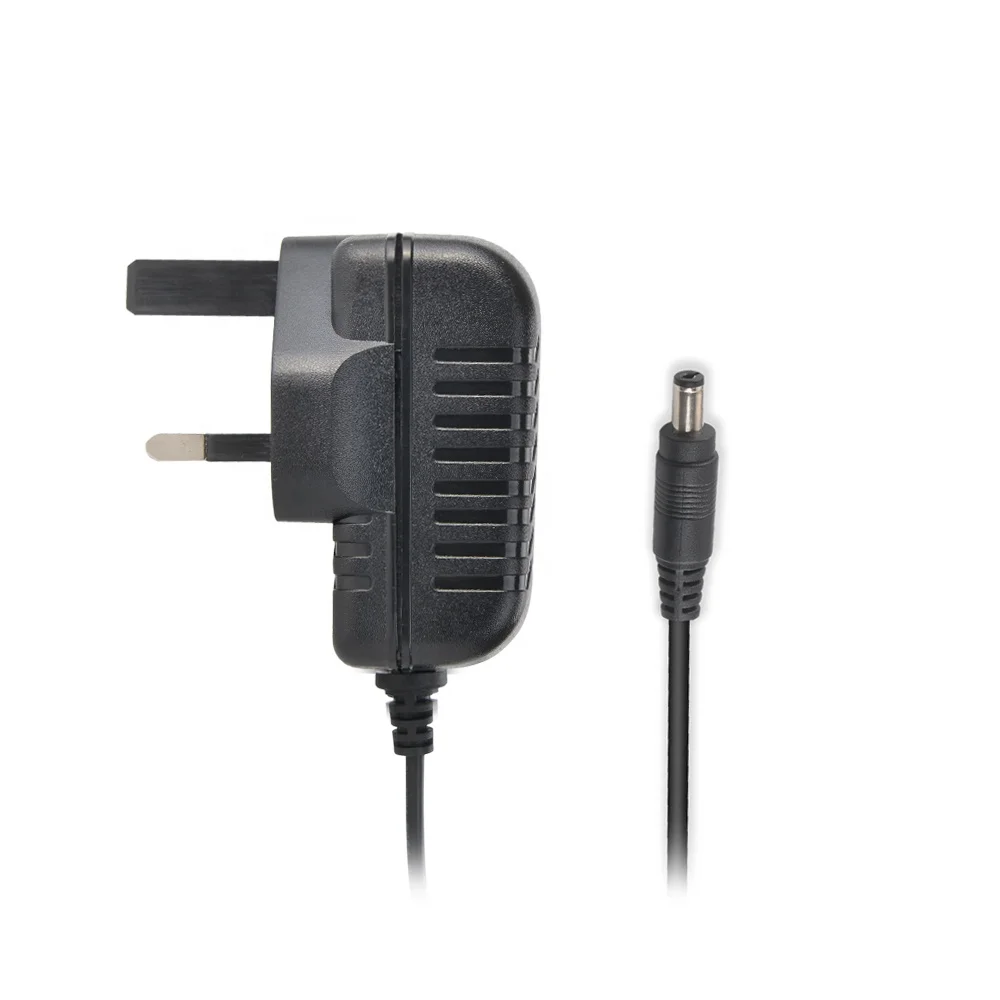

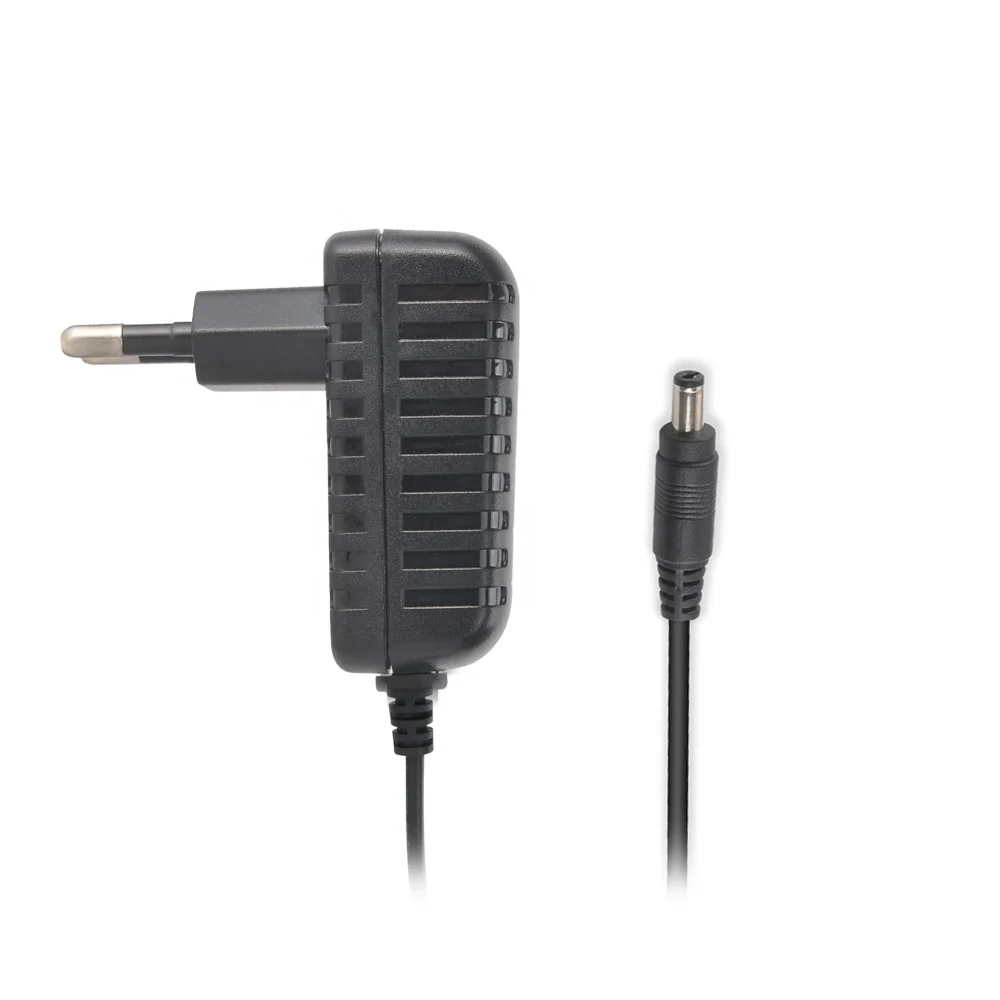

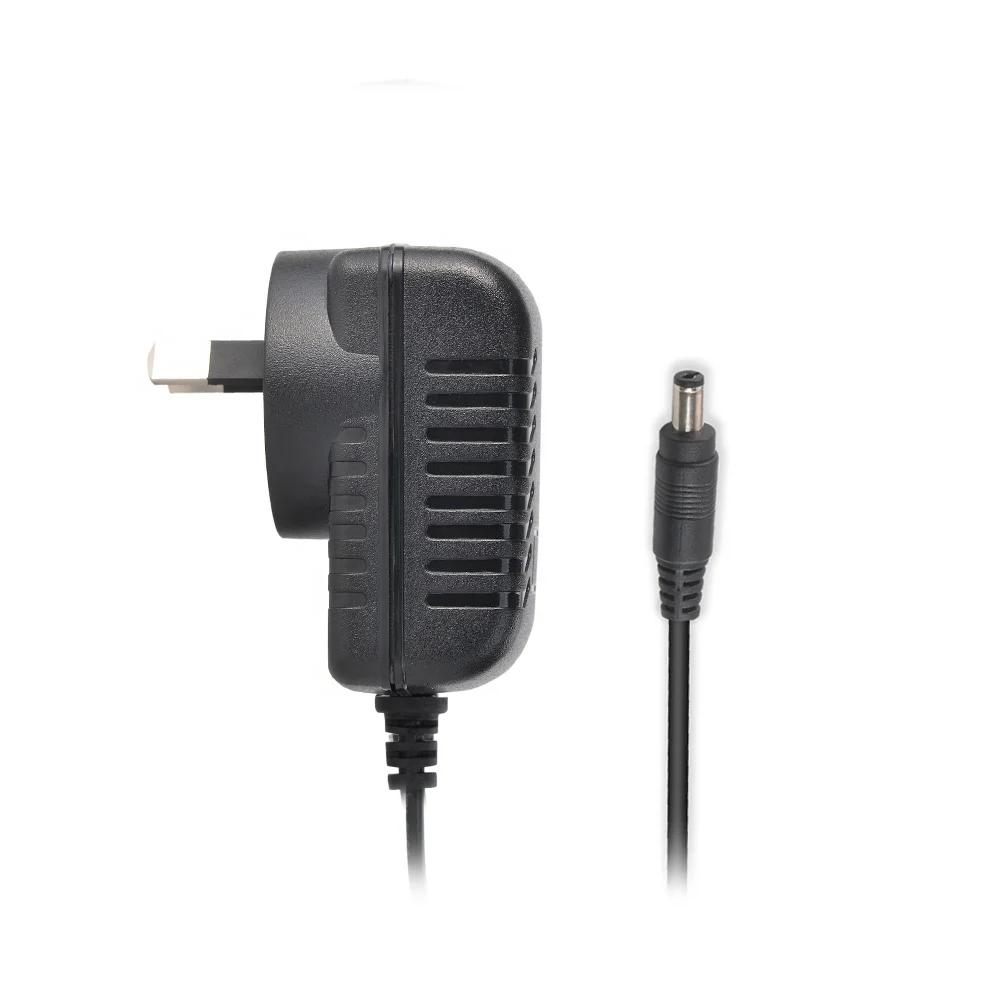

input 100v 230v to 5v 60ma 80ma 150ma 300ma 500ma 550ma 600ma 750ma 800ma 1000ma ac dc power supply adapter
- Category: Power Adapters >>>
- Supplier: Shenzhen Yinghui Yuan Electronics Co. Ltd.
Share on (60370559666):
Product Overview
Description
input 100v 230v to 5v 60ma 80ma 150ma 300ma 500ma 550ma 600ma 750ma 800ma 1000ma ac dc power supply adapter
Detailed Images
| Specifications | ||
| Input Voltage Range | VAC | 100-240Vac 50/60Hz |
| Input Current(Max) | A | 0.5A(100VAC Input) |
| Power Factor | - | Meets EN61000-3-2 |
| Temperature Coefficient | ℃ | ±0.05%/℃ |
| Voltage Accuracy | % | ±2% |
| Adjustment Range | - | None |
| Min. Load | A | None |
| Total Regulation | - | ±5% |
| Ripple & Noise | mV | 120mV |
| Short Circuit Protection | % | Continuous - hiccup mode |
| Over Voltage Protection | ℃ | 110-150% of nominal (Cycle input power to reset) |
| Efficiency at Average Load | - | 88% min |
| Operation Temperature | - | 0 to +60℃, derating linearly to 50% load above 40℃ |
| Storage Temperature | - | -10 to +85℃ |
| Humidity (non condensing) | - | 10-90% RH |
| Cooling | - | Convection |
| Withstand Voltage | - | Input to Ground 1.5kVAC, Input to Output 3kVAC (Output is connected to Ground) |
| Vibration (non condensing) | - | 23.52m/s2 (10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour) |
| Shock | - | < 196.1 m/s2 (20G) |
| Safety Agency Certifications | - | UL60950-1, EN609501-1, IEC60950-1, CE Mark |
| DOE Regulation | - | VI |
| Off-Load Power Consumption | mW | <210mV |
| Conducted & Radiated EMI | - | EN55023-B, FCC Class B |
| Immunity | - | EN55024 |
| Weight | G | 110g |
| Size(WxLxH) | mm | 68x40x48mm |
| Cable Length and Thickness | mm | 1200mm |

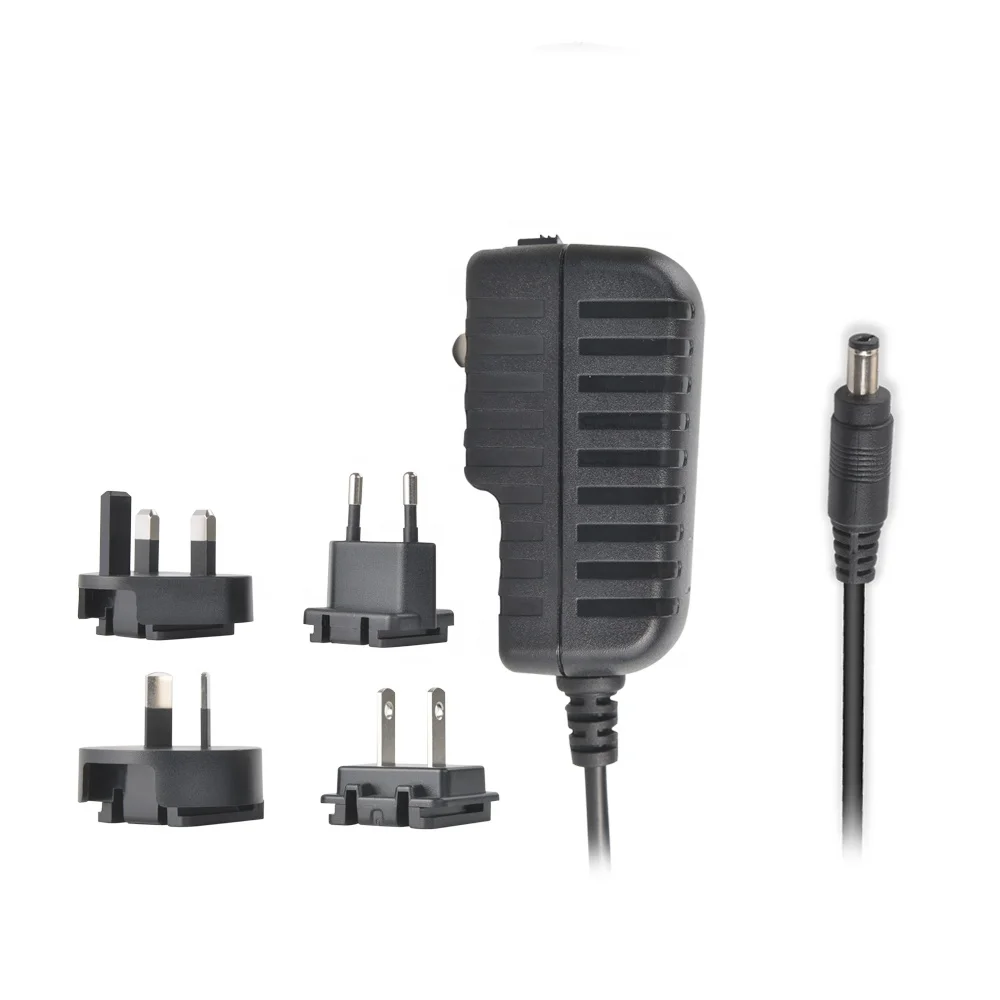

| AC Input Connector | - | EU/US/AU/UK/KR/JP/CN AC Plug (Accept more request) |
| Output Connector | mm | 5.5x2.1mm (Accept more request) |
| MTBF 100%, 25℃ | Hours | 50,000 hours |
| Warranty | Years | 3 years |
| POWER | MODEL | INPUT | OUTPUT | AC | |
| Voltage | Current | Plug-in | |||
| 5W Series | YHY-05001000 | 100-240VAC | 5V | 1.0A | AU EU UK US KR JP Interchangeable |
| YHY-06001000 | 6V | 1.0A | |||
| YHY-09000600 | 9V | 0.6A | |||
| YHY-12000500 | 12V | 0.5A | |||
| YHY-15000400 | 15V | 0.4A | |||
| YHY-24000250 | 24V | 0.25A |
| 12W Series | YHY-05002500 | 100-240VAC | 5V | 2.5A | AU EU UK US KR JP Interchangeable |
| YHY-06002000 | 6V | 2.0A | |||
| YHY-09001300 | 9V | 1.3A | |||
| YHY-12001000 | 12V | 1.0A | |||
| YHY-24000500 | 24V | 0.5A | |||
| YHY-30000400 | 30V | 0.4A |
Company Information
Shenzhen Yinghui Yuan Electronics Co.,Ltd is a leading manufacturer of power supplies in China
-Since 2007
-Real Service From Real PeopleTM
-Global certifications,ISO 9001 Quality management
-More Than 2000 clients from all over the world
Our products are widely used by led lighting,3D Printer,Laptop,loudspeaker box,digital products,house-hold appliances,security products,etc
