used tire cutting machine for tire recycling

Product Overview

Description

Used tire cutting machine for sale

with CE SG.S



Application:
These machines  is designed to cut large tires. Range is from 550mm to 1500mm tires. It has

easy operation and high capacity.



Technical parameter:

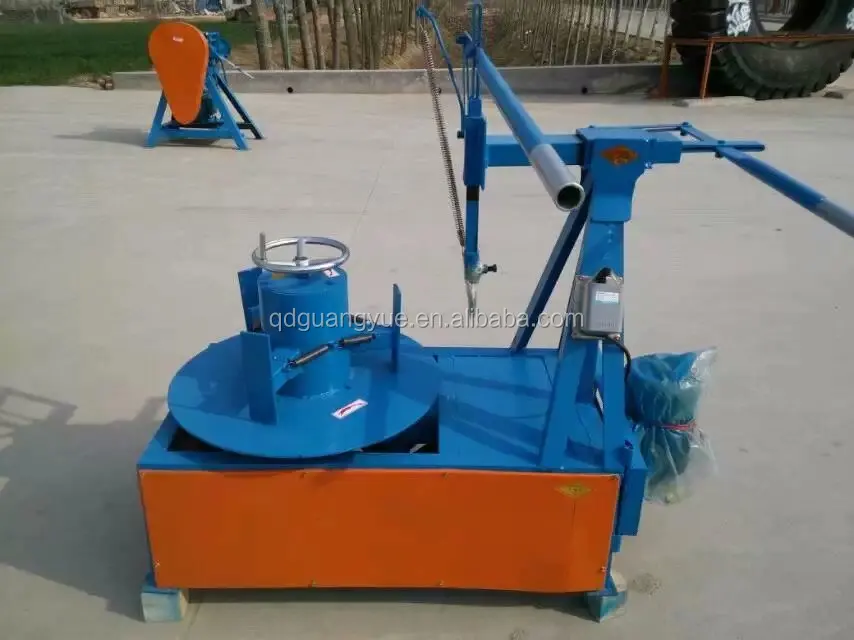

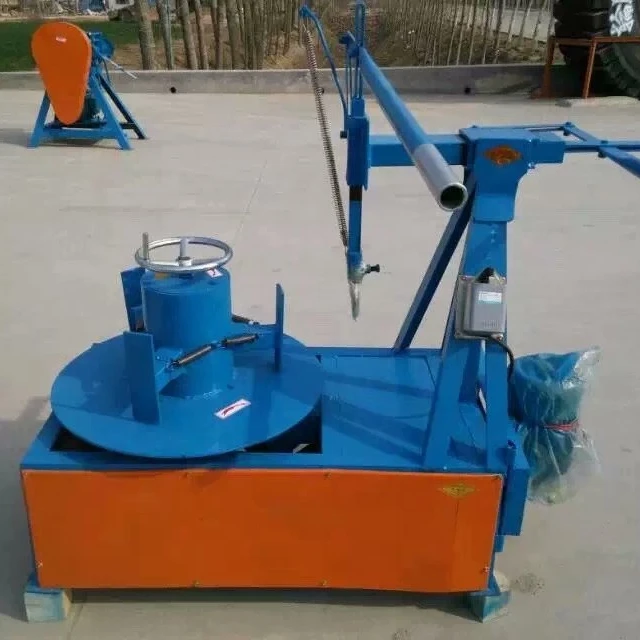

Ring cutter:

Application: Be utilized in separation among the tire crown, tire side-wall and bead of waste tire, which is the first process of reclaiming waste tire.

Characteristic: It is made using excellent hard alloy steel as it blade, high hard and wearable.



model	motor (kw)	processing range(mm)	weight (kg)	dimension (mm)	production
QKF850	2.2	750-1200	300	1300*900*1480	80-100 tires/h

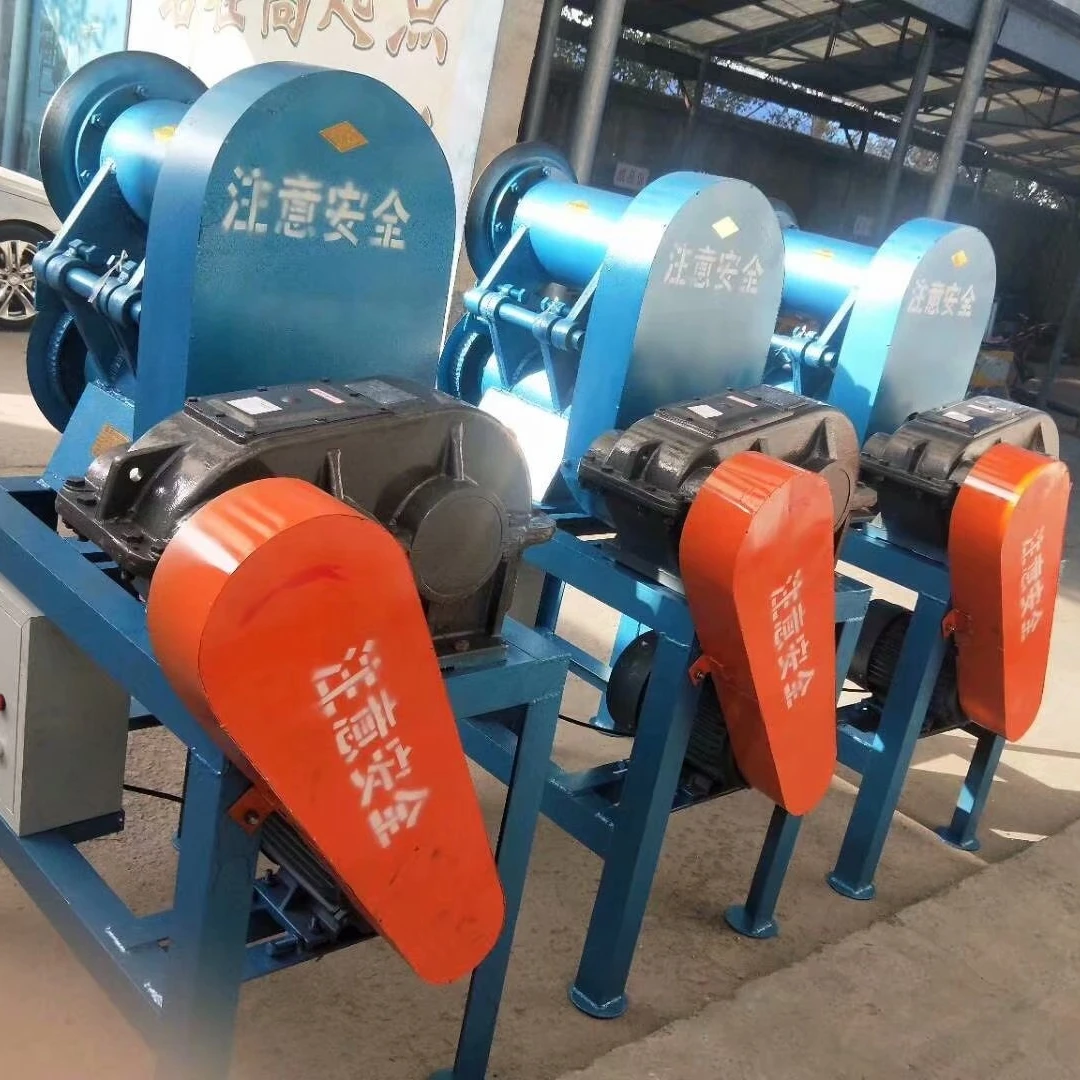

Strips cutter:

Application: It is utilized in cutting the crown and sidewall of waste tire into a certain sized of long rubber strip.

Characteristic: Disc knife is made using a special metal heat treatment, high hard and

wearable, is durable.



model	motor (kw)	processing range (mm)	weight (kg)	dimension (mm)	production
QT380	4	750-1200	900	1300*750*1580	100-120tyres/hour







Rim cutter:

Application: It is used in iconjunction with Strip Cutter, is utilized in cutting long rubber strip into rubber lump of 20-40mm.

Characteristic:It is made using excellent hard alloy steel as it blade, high hard and wearable.



model	motor(kw)	processing range(mm)	weight(kg)	dimension(mm)	production
QK200	7.5	750-1200	450	800*810*1070	1500kg/hour

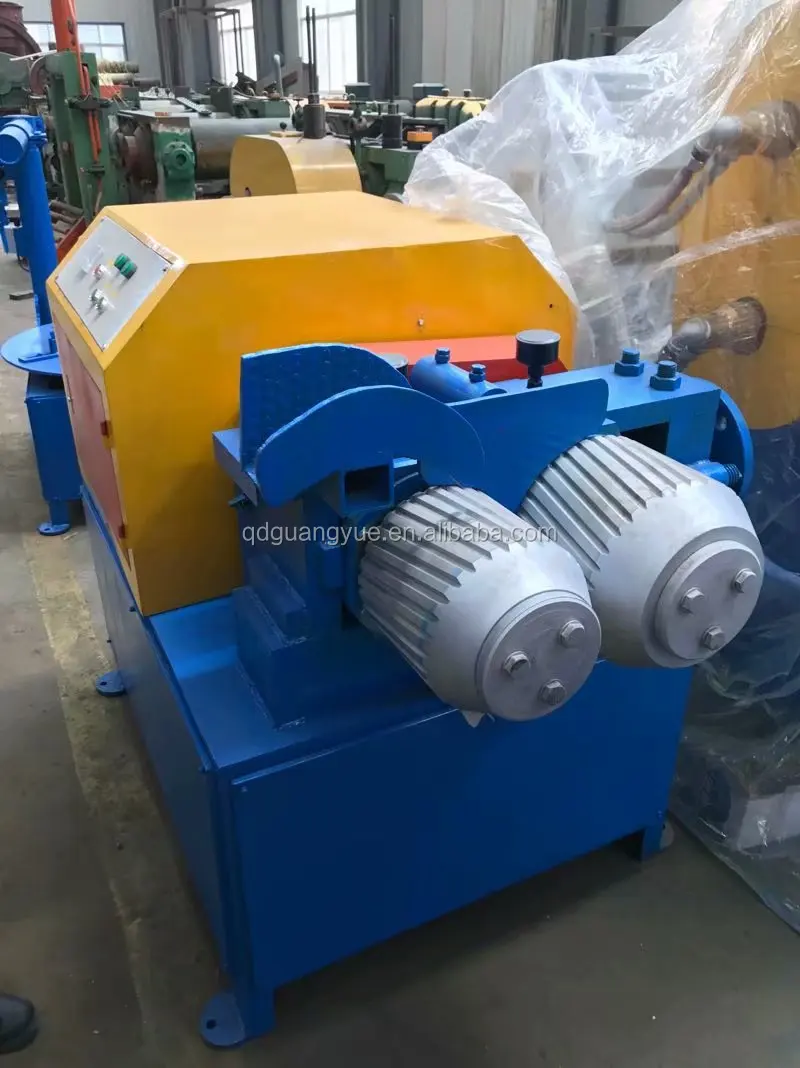

Steel wire Separator:

Application: Be utilized to separate rubber and steel wire of bead in order to get whole steel wire.

Characteristic:It is easy operation, easy to be installed and maintained high effeiciency and clean etc.



model	motor(kw)	Processing range	Weight(kg)	Dimension(mm)	production
GF240	15	bead tire	1800	1520*1180*122	100-120 tires/hour

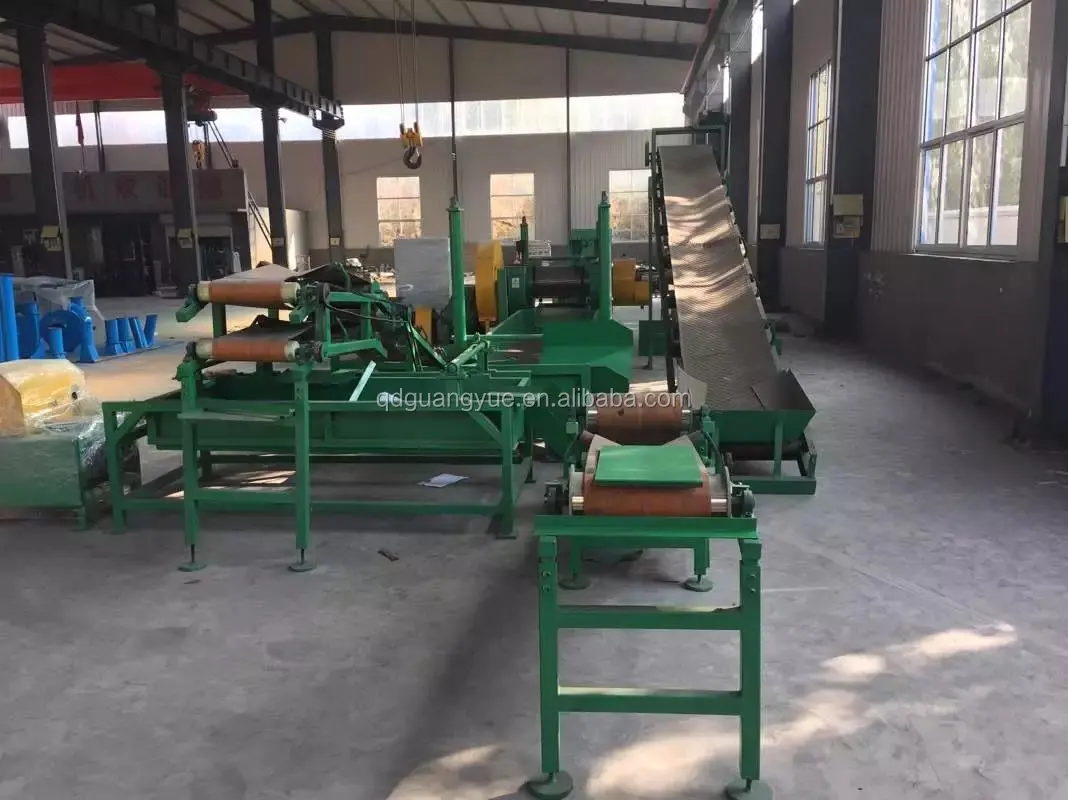

The whole waste tyre recycle line:







Markets:

Mainly sold to Europe, America, South America, Southeast Asia,India and many other countries.





After-sales Service:

 1. over seas service, two technician provides debug and training FOR 7-14 DAYS, charge 80 USD per day for one man .and you are responsible for round tickets, visa. Living, eating and so on.,one technician train worker how to produce rubber powder; another one rain worker how to make rubber tile.



2. during warranty, if quality problem appears (not include man made problem), we can replace it by free.



3. we will reply during 24 hours once problem appears, we can solve through guide picture or video; if problem can not solved through these solutions , we can send engineer to your factory.



4.two year guarantee for whole machine,24 hours technical support by email or call calling or door-to-door service.

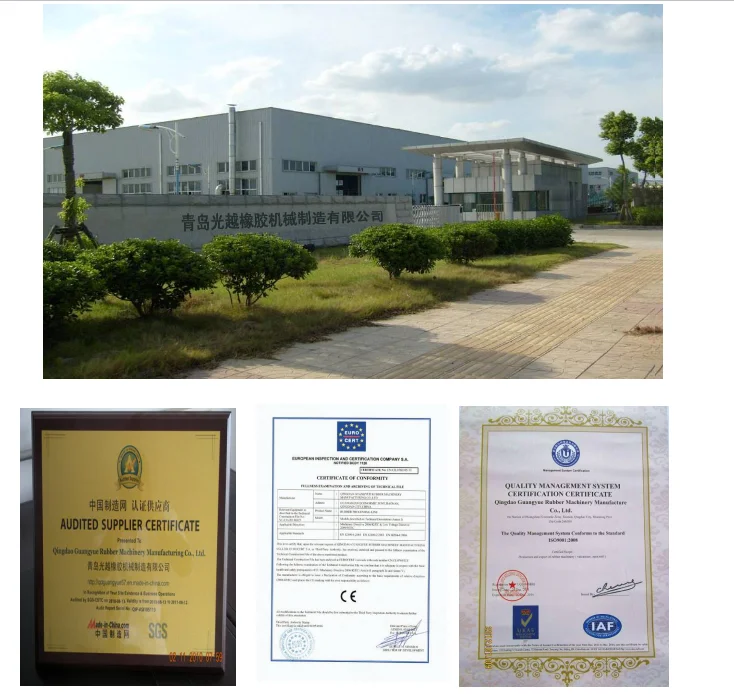

Factory and certificates:

1.Qingdao Guangyue Rubber Machinery Co.,Ltd established in 1971,we are specinizing in producing rubber machines,like rubber vulcanizing press,open mixing mill,rubber kneader,rubber extruder,rubber calender etc,we had a great feed back from south America,north Europe,Middle East,Aisa and so on.



2.We can produce different size according to your pharameter requirement. and we allow proper

 discount according to the quantity you order.



3.We confident that you will find our product with high quality and reasonable price. If you have

 any question, contact me.



4.Qingdao Guangyue Rubber Machinery Mnanufacturing Co.,Ltd make high quality rubber

 machine,from materials to producing, we use the good quality material, complete management

 system,also excellent aftersale service, we had a great feed back from south America,north

 Europe,Middle East,Aisa and so on we hope to be one reliable factory for you!

                                       welcome to visit our manufacturer!













RFQ:



1. Are you manufacturer?



   Yes, we are  CE SG.S ISO  approved rubber products manufacturer in China.



2. Can you design new product for us?



    Yes,we have a professional development team that make new products according to your requirements.



3. How long is your guarantee?
   Two  year (Calculated from the equipment arrives at the customer’s side.).



4. How to contact us?

 You can click 'send' now.



If you want to know more information about our products welcome to contact us in any time, and welcome to our factory!
