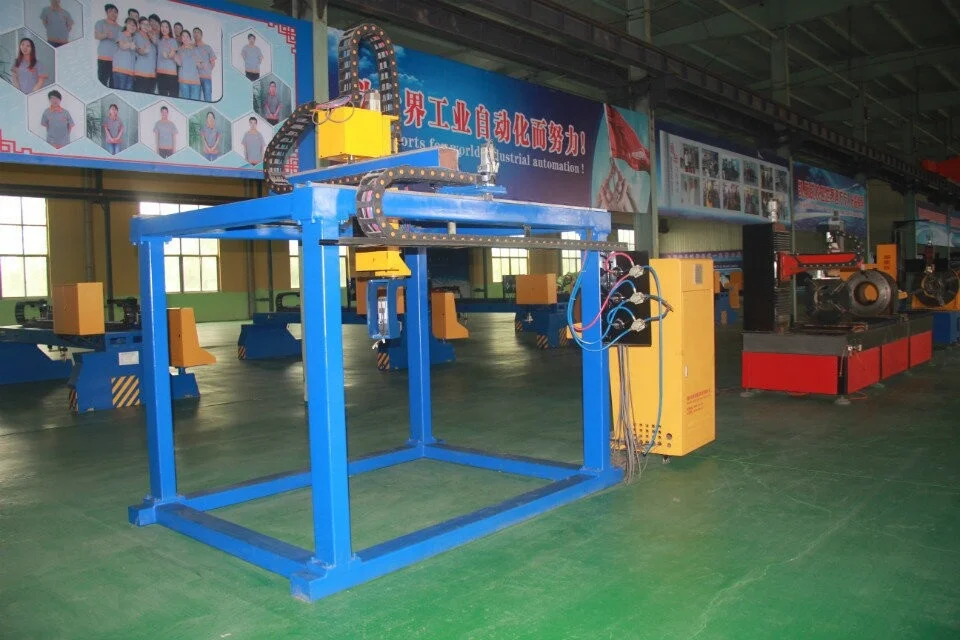

H beam pipe profile processing cutting drilling notching machine for steel structure
- Category: Notching Machine >>>
- Supplier: Shandong Kasry Intelligent Equipment Co. Ltd.
Share on (60375285480):
Product Overview
Description
Product Description
H beam pipe profile processing cutting drilling notching machine for steel structure
H beam cutting machine is a special CNC cutting machine for H-beam I-beam steel. It can cut various carbon steel, stainless steel and other materials of beams. Widely used in building, steel structure and other industries.
Features
1,Adopt welded platform, improving the overall bearing the weight by heavy roller, humane design human-computer exchange more convenient and reasonable, stable operation and increased life expectancy.
2.Canadian professional special-shaped pipe&profiles cutting system, the AutoCAD platform application development based on the two time, convenient and fast modeling, arbitrary graphics overlapping stick out a mile, can directly generate standard G code. The 3D simulation, operation, nodal expansion, super long pipe fittings such as spin off, optimization, EGES DXF SAT and STL software compatibility of ultra large.
2.Canadian professional special-shaped pipe&profiles cutting system, the AutoCAD platform application development based on the two time, convenient and fast modeling, arbitrary graphics overlapping stick out a mile, can directly generate standard G code. The 3D simulation, operation, nodal expansion, super long pipe fittings such as spin off, optimization, EGES DXF SAT and STL software compatibility of ultra large.

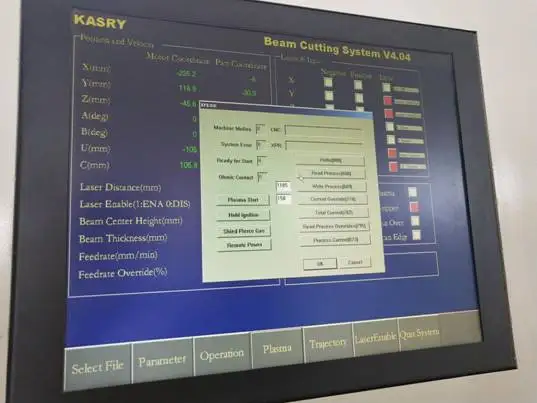

Industrial computer programming can be directly on the machine. Using input cutting parameter selection menu type, such as outer
diameter, wall thickness, bevel Angle, deviation, compensation data, and so on. At the same time a seamless connection can be made by other professional software.
diameter, wall thickness, bevel Angle, deviation, compensation data, and so on. At the same time a seamless connection can be made by other professional software.
t can compatible AUTOCAD software which can drawing on the industry computer in mahcine
then only need enter diameter, beve angle, length,thickness
then only need enter diameter, beve angle, length,thickness

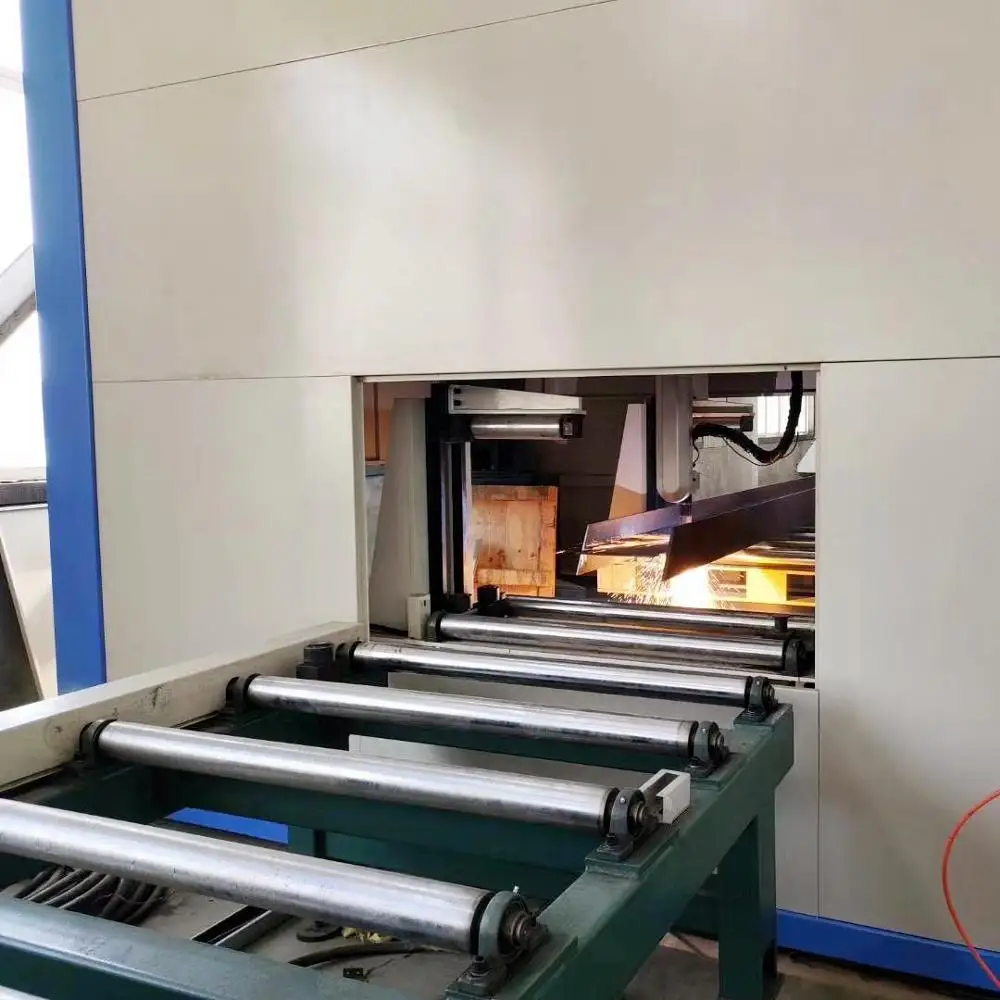

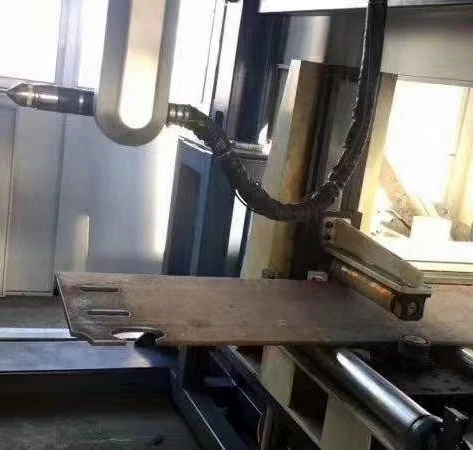

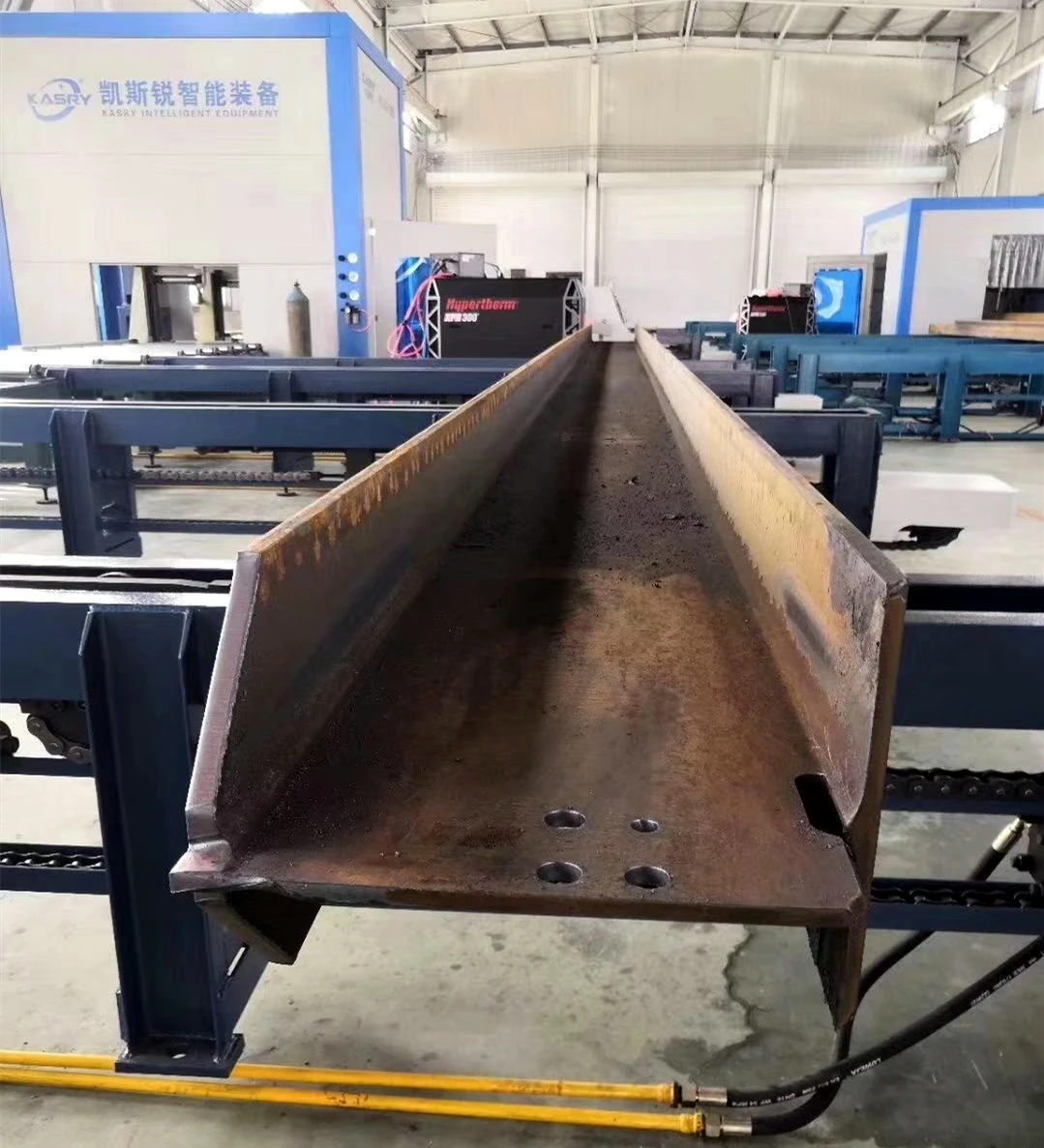

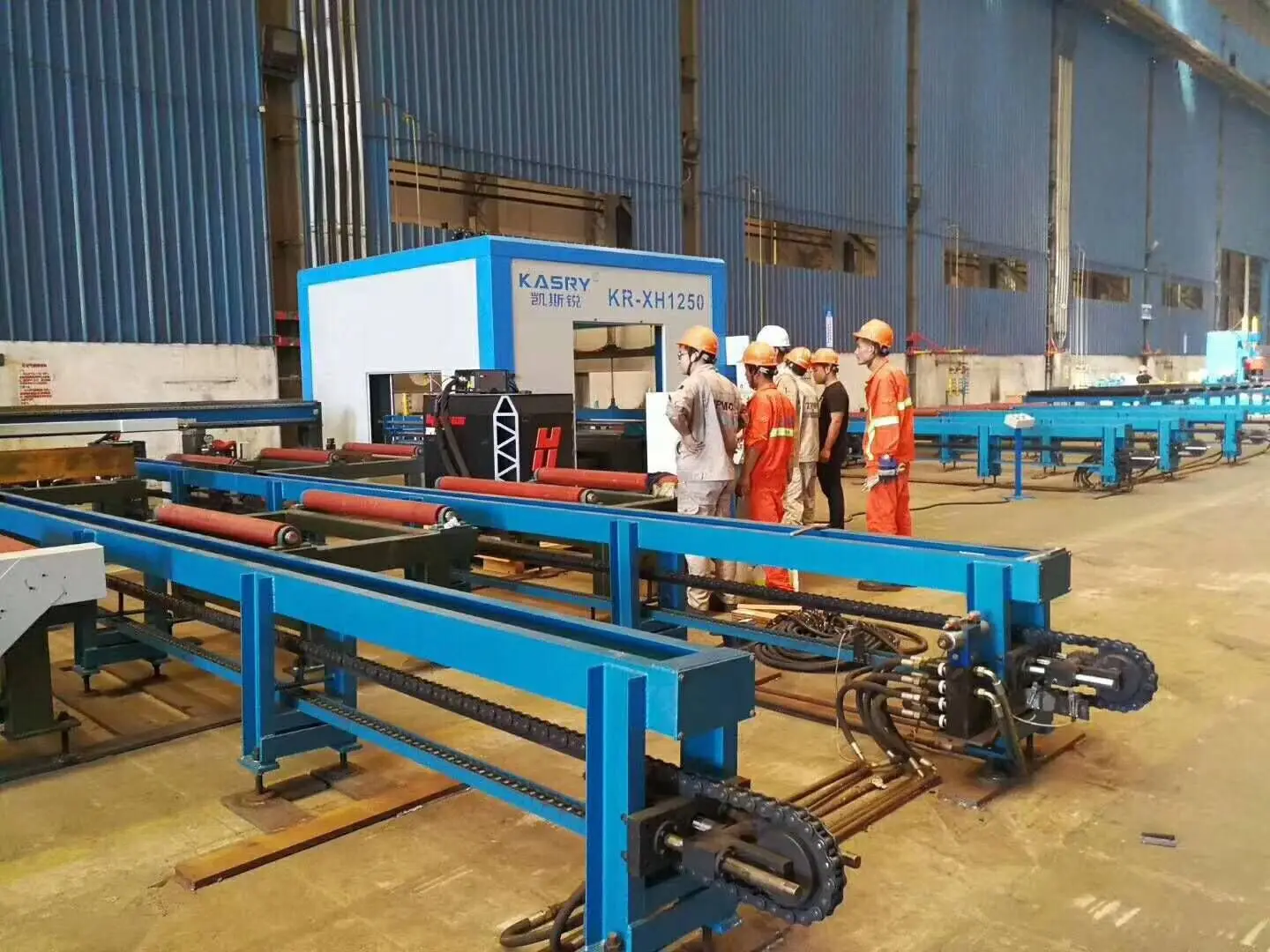

Detailed Images
Size Information
Technical parameter

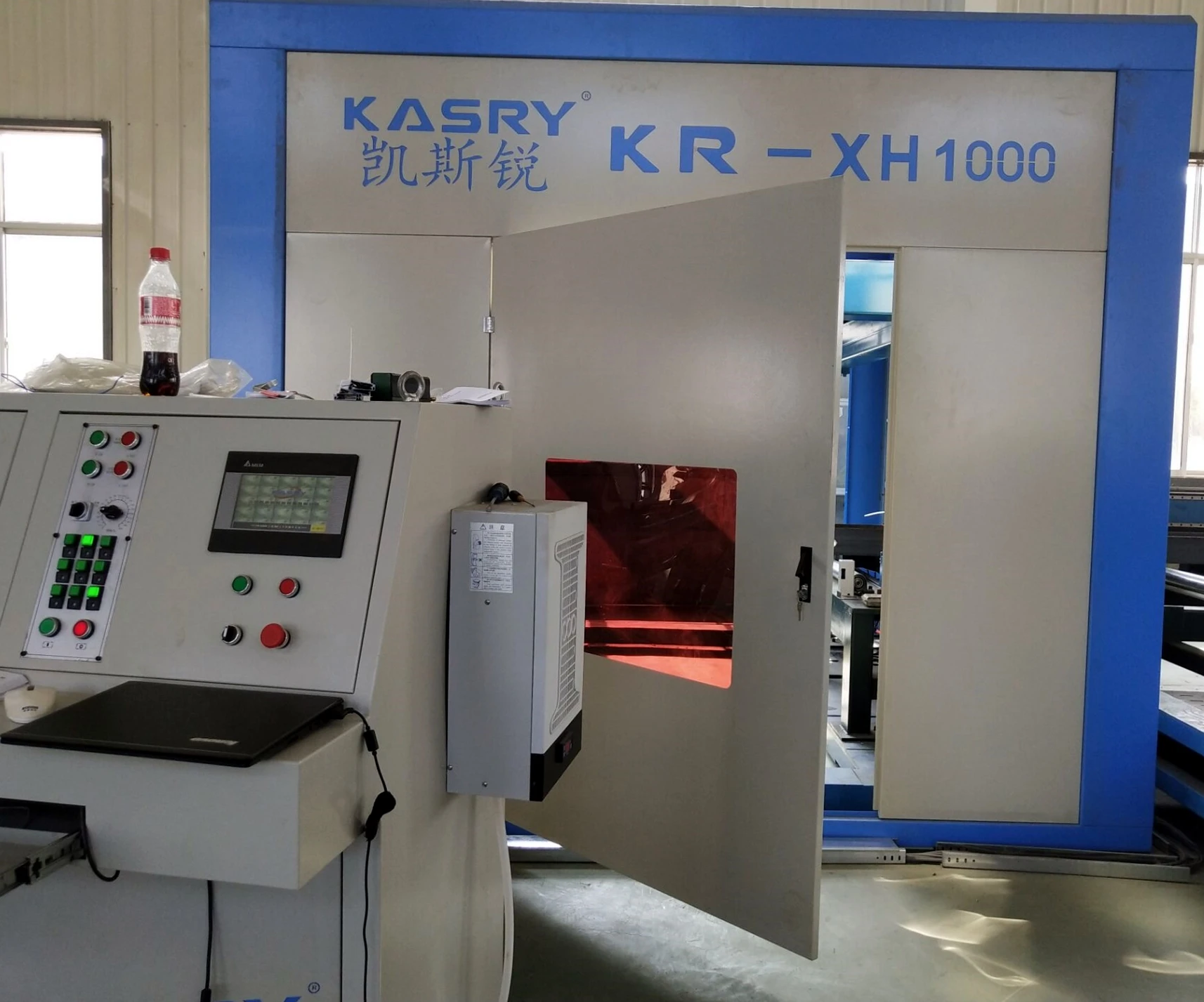

Mode | H beam CNC cutting machine(KR-XH) |
Cutting range | According to customer needs matching |
Drive length | According to customer needs matching |
Drive method | Servo motor |
Cutting thickness | Flame cutting:6—60mm Plasma cutting :depend on plasma source |
Cutting mode | Flame/plasma |
Movement speed | 20—8000mm/min |
“X”-axis | Standard model effective processing range[8000], can be made according to customer requirements |
“Y”-axis | Chuck rotation |
“Z”-axis | Lifting the effective stroke[400-600mm] |
“A”-axis | Groove cutting left and right the deflection angle 45° |
“B”-axis | Groove cutting front and back swing angle 45° |
“U”-axis | Torch moving the cutting front and back[500-1000mm] |
Cutting accuracy | ±1.5mm |
Repeatability X,Y,Z | ±0.02 |
Input power | AC380V/50HZ three-phases |
The scope of application | Suitable for: profile(50-1200mm)processing, such as: steel structure, heat transfer equipment, oil pipelines with various tube processing industry etc. |
Related Products
Packing&Shipping
After Sales Service
1. We will offer some of the parts for free in the first year. The buyer needs to pay for the shipping cost for the parts. The user needs to send us pictures of the broken one, then we will send out the part they need. The whole machine we offer 1 year guarantee time free, without consumable parts replacement and man-made fault.
2. We will offer our service through email and phones if the buyer needs any help on technical problems.
4. My company English software can do all kinds of pattern recognition, software upgrading and updating free.
2. We will offer our service through email and phones if the buyer needs any help on technical problems.
4. My company English software can do all kinds of pattern recognition, software upgrading and updating free.

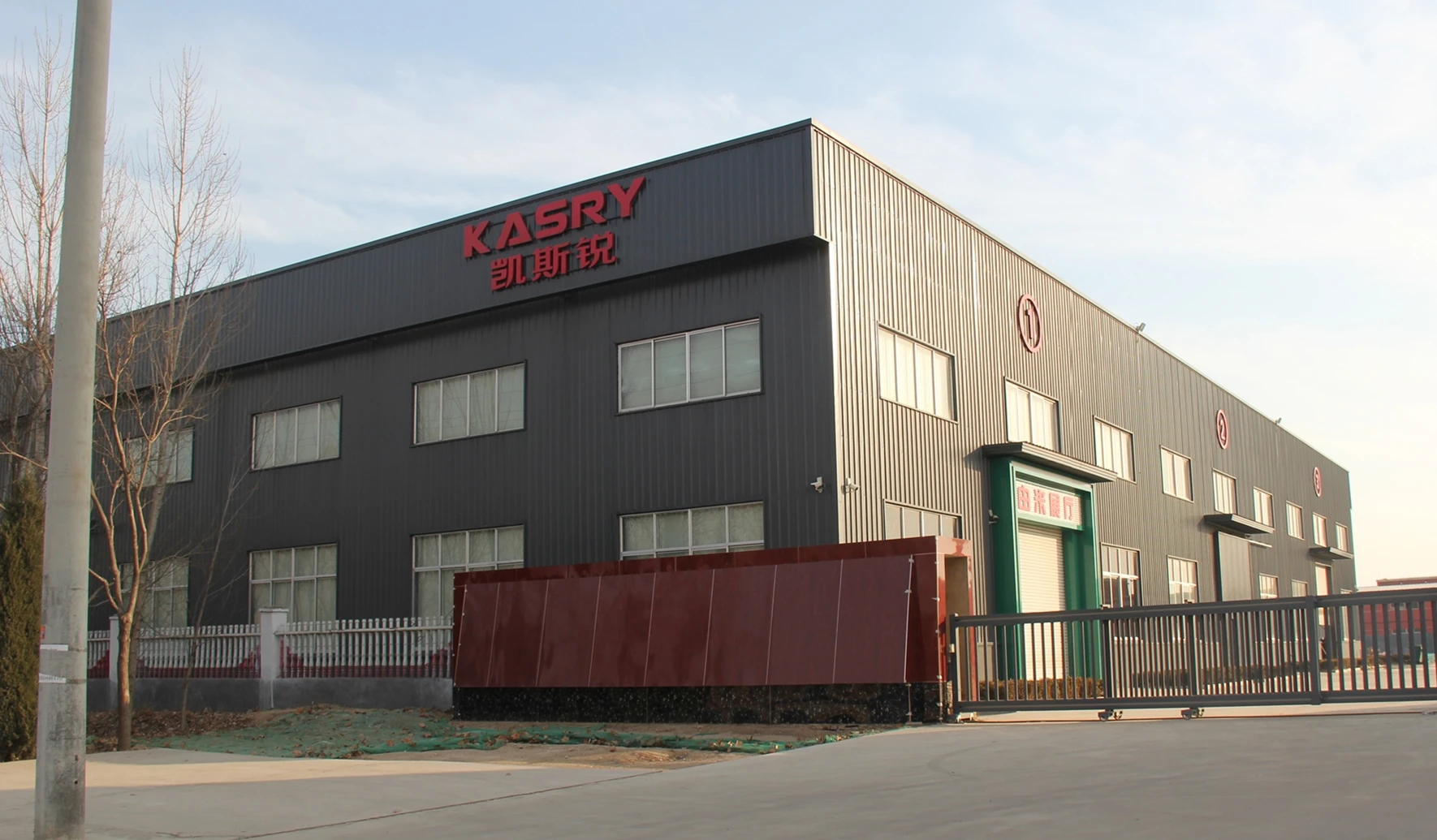

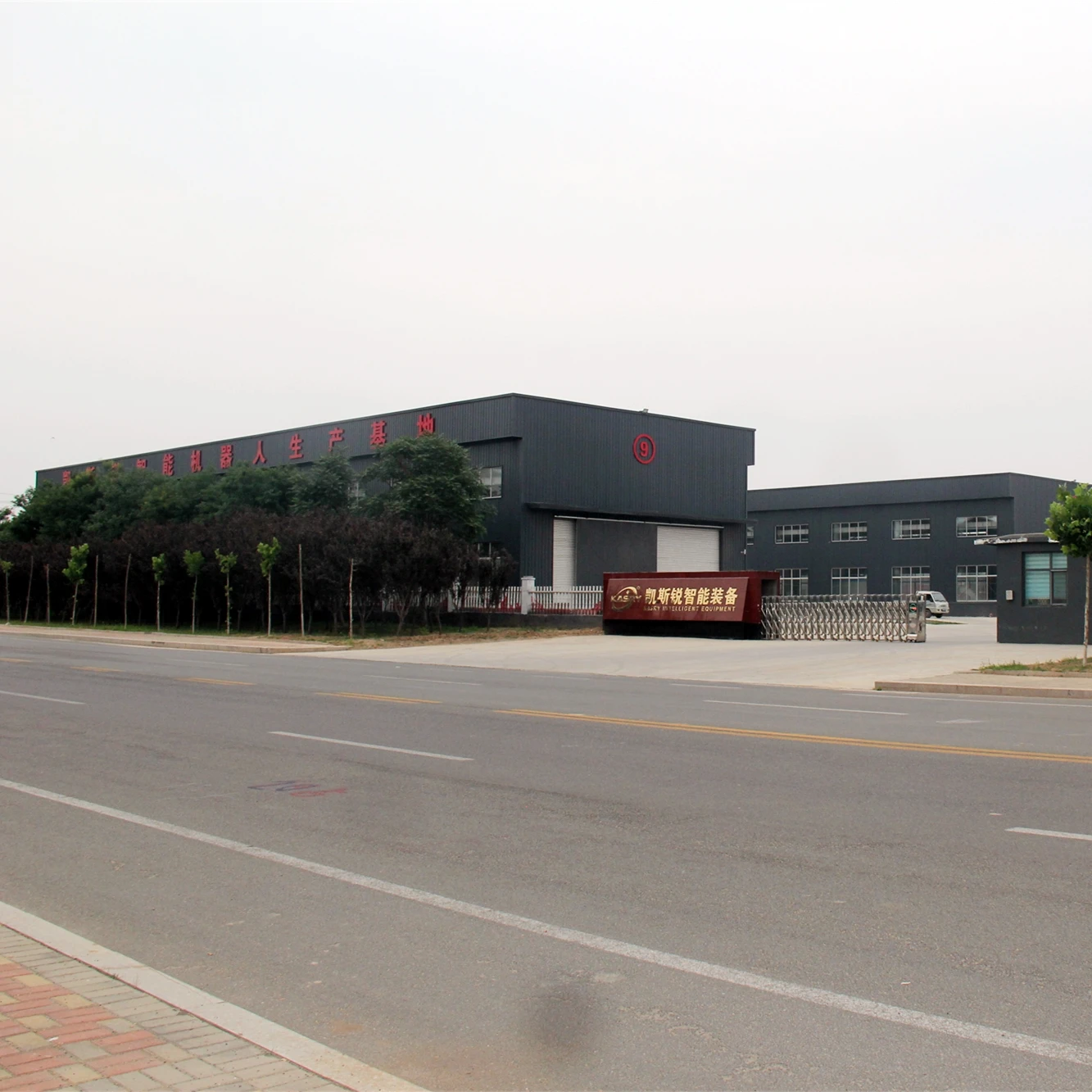

Company Introduction
KASRY - piping total solution provider, professional manufacture quality pipe cutting machines, cnc cutting machines, square tube profile cutting machines, H beam cutting robot with oxy-fuel plasma cutting, mainly for industrial steel structure construction , oil&gas pipeline engineering, marine engineering,offshore buildings,process plants,petrochemical industry,power plant. we insisting on creative and quality in pipe cutting. Guarantee our user fast service
FAQ
Q1. Could you give me a brief company introduction.
A: Company is engaged in the plasma cutting production and welding products for many years. With advanced production equipment, strong technical force, complete quality management system,focus on Gantry type plasma cutting machine, the product "KASRY" is deeply general consumers' trust. The key components of " KASRY" is adopted imported by the top brand, passing CCC, CE, GS, ROHS certification requirements, high reliability.
Q2. Is it OK to design the package by myself?
A: Yes. You can design the artworks by yourself.
Q3: What kind of payment term support?
A: T/T, L/C,Western Union, etc.
Q4: Where is your factory? Can we make a visit?
A: Our factory located in Jinan, Shandong. Our nearest air port is Jinan TNA .
You also can take high-speed rail to Jinan West Railway Station.
Warmly welcome to visit our factory. You'll know our factory clear and better for our cooperation.
A: Company is engaged in the plasma cutting production and welding products for many years. With advanced production equipment, strong technical force, complete quality management system,focus on Gantry type plasma cutting machine, the product "KASRY" is deeply general consumers' trust. The key components of " KASRY" is adopted imported by the top brand, passing CCC, CE, GS, ROHS certification requirements, high reliability.
Q2. Is it OK to design the package by myself?
A: Yes. You can design the artworks by yourself.
Q3: What kind of payment term support?
A: T/T, L/C,Western Union, etc.
Q4: Where is your factory? Can we make a visit?
A: Our factory located in Jinan, Shandong. Our nearest air port is Jinan TNA .
You also can take high-speed rail to Jinan West Railway Station.
Warmly welcome to visit our factory. You'll know our factory clear and better for our cooperation.
