Prevent Oil Leakage Screw Type Spindle Mini Scissor Lift Table

Product Overview

Description

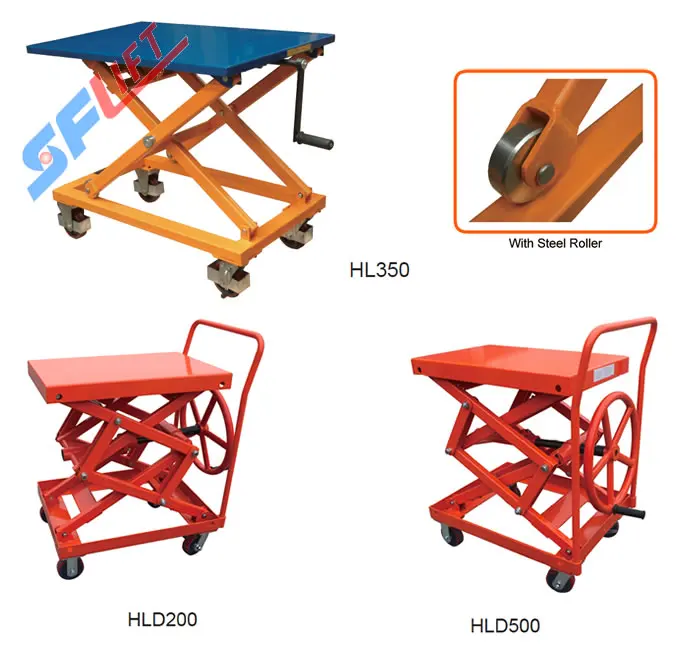

Spindle Lift Table HL350 / HLD200 / HLD500



• Heavy duty design
• New design to meet EC Norm
• No hydraulic pump, but equipped new spindle system which increase safety, no risk of oil leakage, free

  maintenance



Model	Capacity	Table Size	Table Height	Wheel Dia.	Overall Size	Net Weight
	(kg)	L×W (mm)	H(Min./Max.) (mm)	(mm)	B×C (mm)	(kg)
HL350	350	950×600	450/1060	125mm	1140×600	71
HLD200	200	600x400	530/880	100mm	830x500	90
HLD500	500	800x500	700/1150	100mm	1030x600	114
