Высококачественный алюминиевый профиль для штор из стекла с использованием идеальной технологии

Product Overview

Description

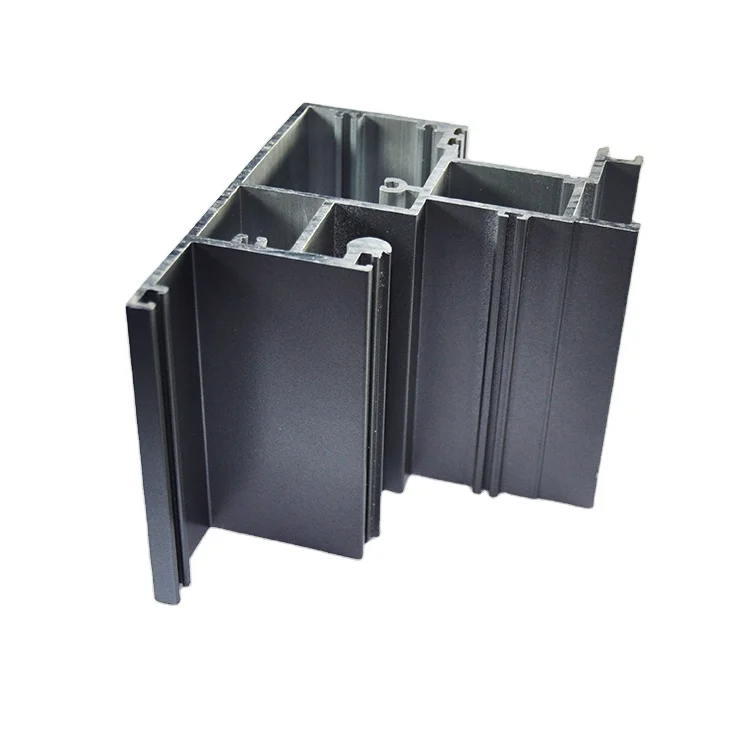

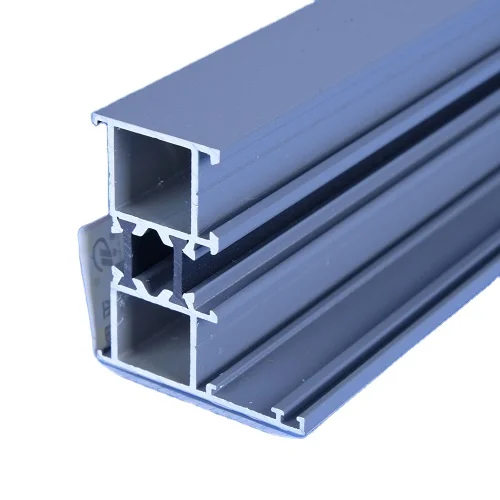

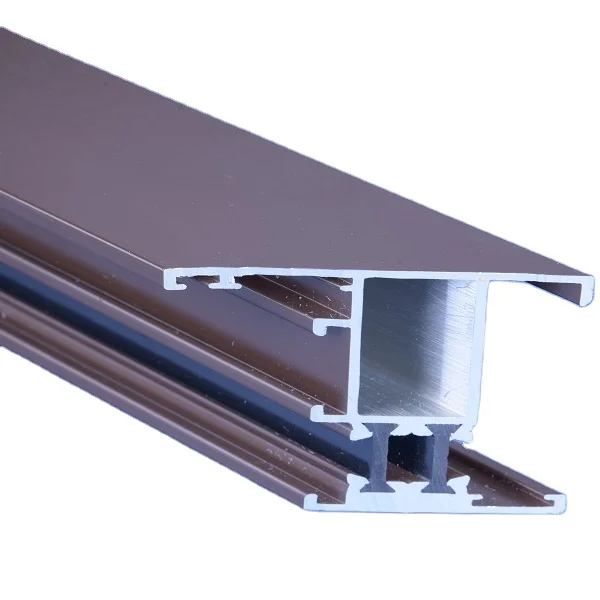

High quality glass compound building aluminum curtain wall profile using perfect technology

  1  Lead time guarantee.15 year quality guarantee

  2  Famous Project Case,ICC,Permasteelisa Project(90112)

  3  Various design for different needs

  4  Surface:PVDF,2 coat,3 coat,4 coat are available. Anodize thickness:max.25um

  5  Powder and paint:AKZO,Surpass,PPG,Nippon

  6  Strict quality test:color and gloss variations,coating thickness,chemical resistance to

      Methyl Ethyl Ketone,Cross-Cut tape adhesion

  7  Aluminium curtain wall is good in steal,light in weight and high in strength

  8  Aluminium curtain wall is not easy to stain,but easy to clean and maintain

    Customized surface finishes are welcome

  1)  High corrosion resistance, high weather resistance and good wear resistance

  2)  Excellent material for smooth and subtle edges, elegant appearance

  3)  Thickness: above 0.8mm

  4)  Usage: millions of different use

  5)  Alloy and temper: 6061,6063, 6060,6005 or other alloys, temper can be T4/T5/T6 etc



Chemical Composition Of Aluminium Profile

Alloy	Si	Mg	Fe	Cu	Mn	Zn	Cr	Ti	Impurity		Ai
									Unit	Total
6063	0.2-0.6	0.45-0.9	<0.35	<0.1	<0.1	<0.1	<0.1	<0.1	<0.05	<0.15	Surplus
6061	0.4-0.8	0.8-1.2	<0.7	<0.15-0.4	<0.15	<0.25	0.04- 0.35	<0.15	<0.05	<0.15	Surplus
6060	0-0.6	0.35-0.6	0.1-0.3	≤0.1	≤0.1	≤0.15	≤0.05	<0.1	<0.05	<0.15	Surplus
6005	0.6-0.9	0.4-0.6	0.35	0.1	0.1	0.1	0.1	0.1	0.05	<0.15	Surplus



Surface Treatment

Class	Min-average film thickness	Min-Part film thickness
AA10	10	8
AA15	15	12
AA20	20	16
AA25	25	20

(The anodized of goods is generally supplied in grade AA10 or is controlled according to client's request.)



Electrophoresis surface treatment

Class	Anodizing		Paint film	Composite film
	Min-average film thickness(um)	Min-Part film thickness(um)	Min-Part film thickness(um)	Min-Part film thickness(um)
A	≥10	≥8	≥12	≥21
B	≥10	≥8	≥7	≥6

(Electrophoretic coating profiles is generally supplied by Class B,but also supply other levels according to customer requirements profiles.)
