Bottling Aluminum foil induction sealing machine foil sealing machine production line
- Category: Capping Machines >>>
- Supplier: Guilin Seal Technology Co. Ltd.
Share on (603788675):
Product Overview
Description

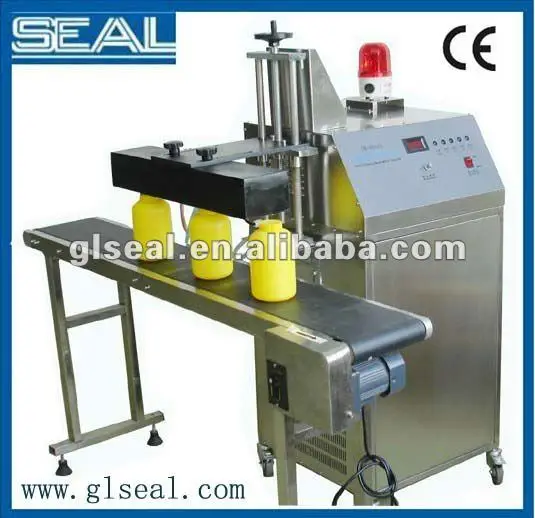

Bottling Aluminum foil induction cap sealing machine foil sealing machine production line SR-6000A
I,Application:
1)Product: for pesticide, tablet & capsule, foods, cosmetic, lubricant &oil packaging and so on.

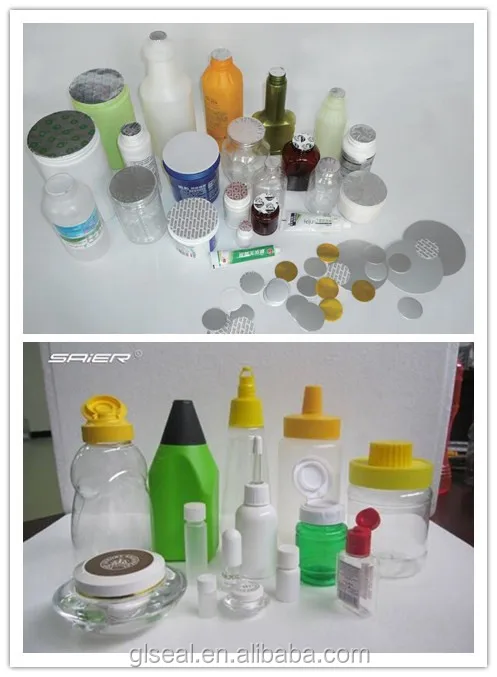

2)Bottle& jar& container: PE(HDPE,LDPE), PET, PP, PVC, PS and glasses bottle
II,Features:
1,with the unique tunnel design, this kind induction sensor can increase the sealing speed.
Even the flip cap bottle & cuspate cap bottle can be sealing perfectly.

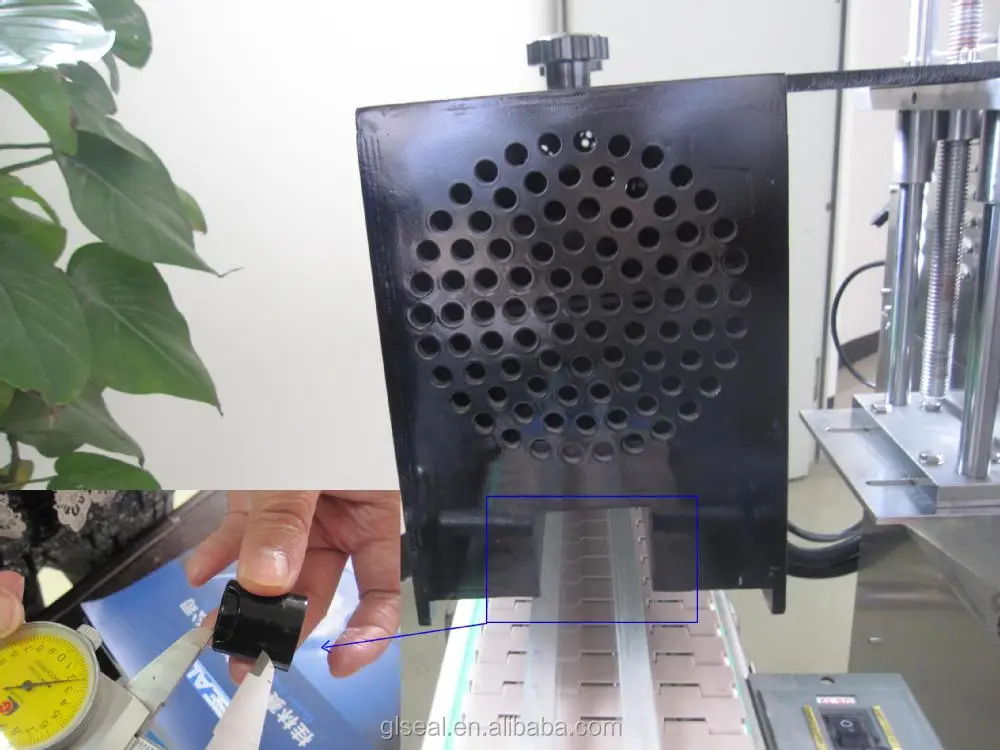

3,Height of induction sensor is adjustable and flexible for a range of bottle height.
4,Sealing Fast and efficient. The induction heating foil seals tightly without being affected by moisture, grease or powder contamination on sealing area.
5,Full modular component design, can be against moisture, erosion, dust and magnetism,
minimizes maintenance requirements and increase the Service life.
7,With stainless steel body, meet the GMP demand.

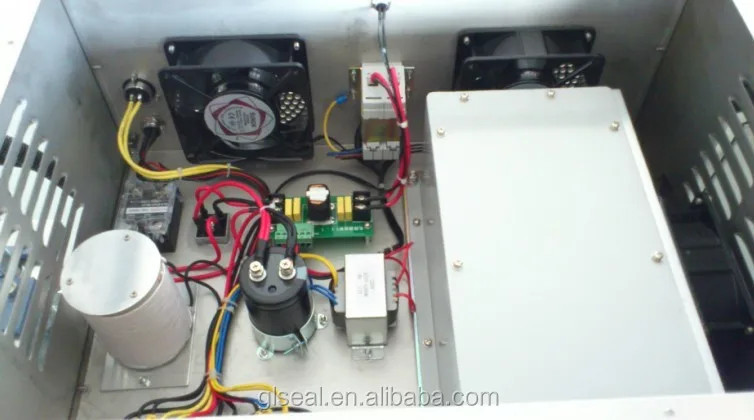

8,The induction generator has adopt the latest imported transistor and CPU module control
9,All functions are marked on the panel clearly . operation is very convenience
10,The sensor head with bold copper pipe, ordinary tap water can be used in this machine. moreover, the Built-in water circulation systems can reduce costs
11,With 4 wheels under the machine body, it is very easy to move and use to flow packing liner.
Host with integration design, it can be easy install easily.
NOTE: the conveyor and rejector are optional part.
III,Technology data:
model | SR-6000A |
bottle neck diameter | 50-120mm, 20-60mm,20-120mm,10mm, long distance cap or design |
0-490mm | |
0-30m/min | |
sealing speed | 0-300 bots/min |
max power | 4000W |
electricity power | 220V,50/60HZ |
620mm*115mm*128mm | |
machine size(L*W*H) | 500mm*500mm*1290mm |
machine net weight | 70kg |
packaged size | 1380mm*610mm*650mm, 840mm*450mm*310mm |
package weight | About 115KG |
How it works
The closure is supplied to the bottler with foil liner already inserted. Although there are various liners to choose from, a typical induction liner is multi-layered. The top layer is a paper pulp that is generally spot-glued to the cap. The next layer is wax that is used to bond a layer of aluminum foil to the pulp. The bottom layer is a polymer film laminated to the foil.
After the cap or closure is applied, the container passes under an induction coil, which emits an oscillating electromagnetic field. As the container passes under the induction coil (sealing head) the conductive aluminum foil liner begins to heat. The heat melts the wax, which is absorbed into the pulp backing and releases the foil from the cap. The polymer film also heats and flows onto the lip of the container.
When cooled, the polymer creates a bond with the container resulting in a hermetically sealed product. Neither the container nor its contents are affected, and this all happens in a matter of seconds.
Our Services
Easy to fix machine within 15 minutes for everybody Users worry-free
Advanced modular design and grouping electrical system avoid machine error and against moisture,erosion,dust and magnetism.
Main parts use well-known brand,ensuring excellent quality.
Every set of machines need 48 hours continuous working in our factory,
ensuring efficiency and stability.
Leading technology,guaranteed performance and the industry’s best support make SEAL the smart choice for induction sealing equipment.
Company Information
Guilin Seal Technology Co.,Ltd. is a professional manufacturer engaged in the research, development, production, sale and service of induction sealing machine,induction seal ,high speed bag filling and packing machine and cap lining machine .
our people have more than 15 years experience in this area. Our machine had get the CE and Patent certificater, meet GMP standard , had been exported more than 20 countries.
Our machines are widely used in Pharmaceutical & Nutraceutical, Pesticides, Food & Dairy, Health & Beauty, Chemical and other manufacture industries.
As a result,you purchase a machine from us that will endure many years of consistent production.
