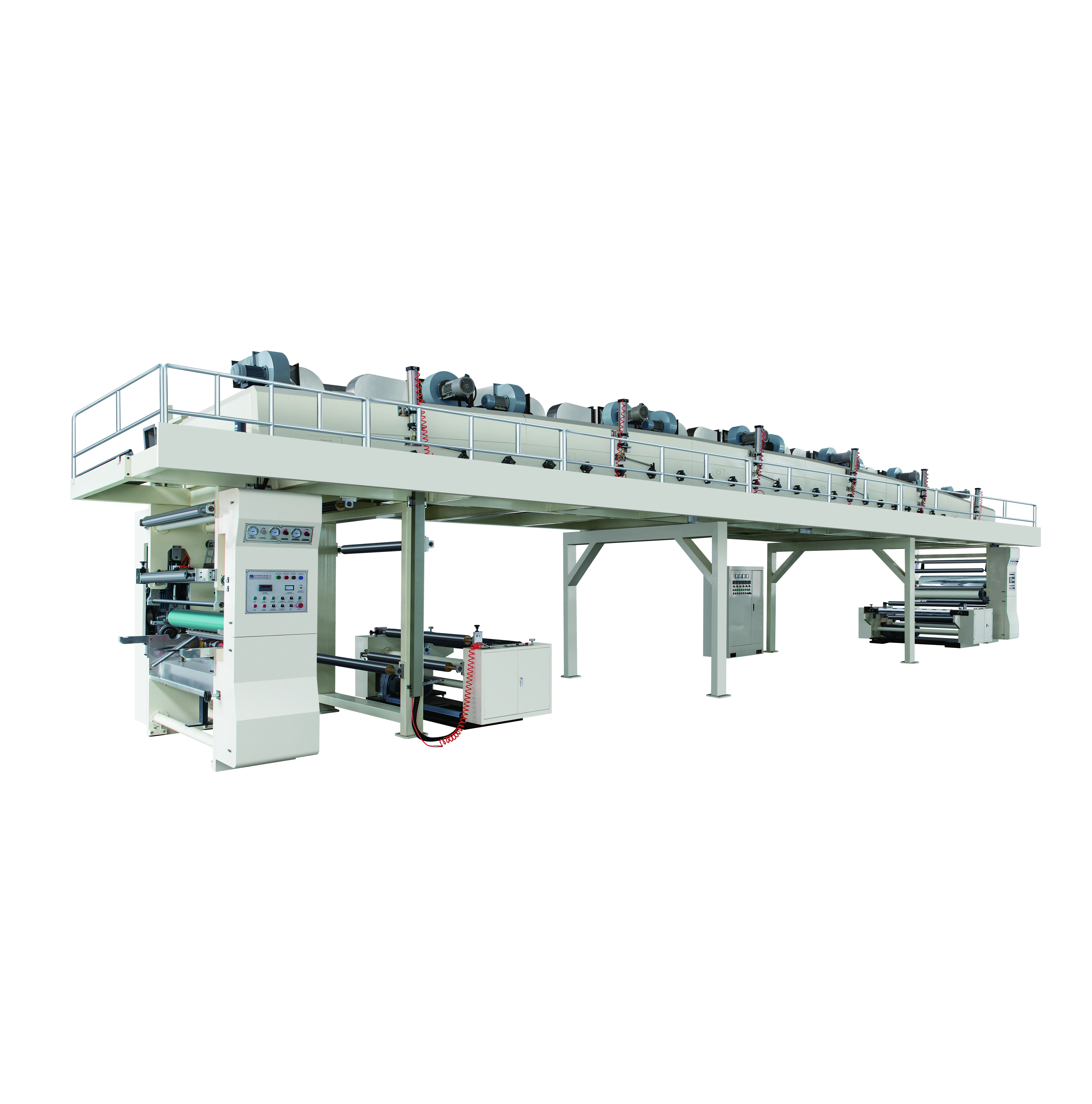

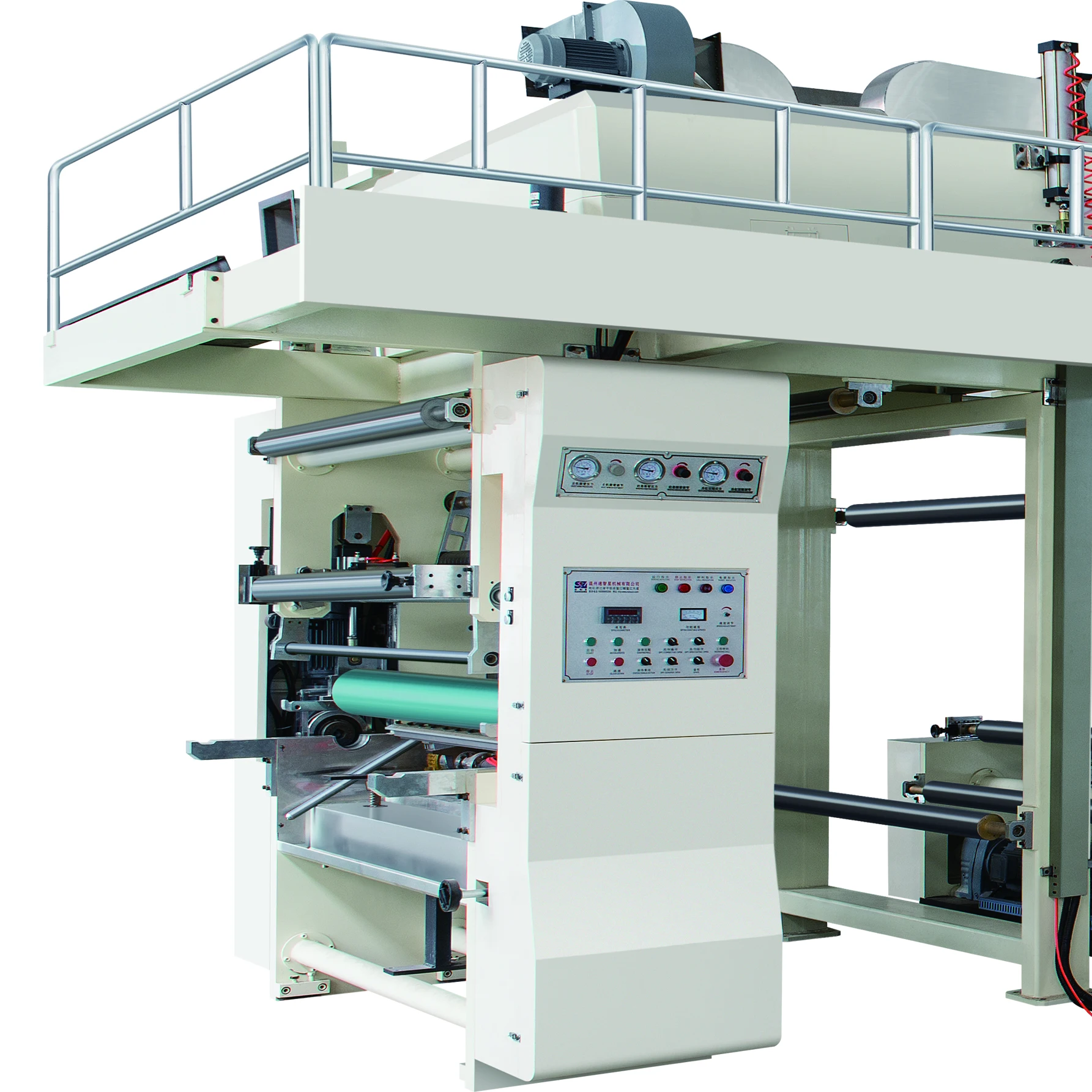

Hight Speed Solvent adhesive tape coating machine

This equipment has the functions of coating laminating and silicon coating, high tension control accuracy, uniform coating, no scratches on the film, flatness of the retractable roll end surface, etc. It is the production of adhesive tape, self-adhesive, silicone paper, film, etc. Products; The whole machine adopts electrical central control, PLC microcomputer-human machine interface display, frequency conversion speed regulation, hot air circulation spray drying and other technologies.

SPECIFICATIONS FOR THF-1100MM COATINGM MACHINE
Unwinding unit	Max.unwinding width	1000 mm
	Max.unwinding diameter	1000 mm
	Web-guide	Equipped with air-sensitive and execute institution, guide rail and pulley with fine-adjustment for whole machine rack.
Coating unit	Coating mode	Comma coating,rotogravure coating etc.
	Coating speed	0~150 m/min
	Coating adhesive	Solvent,silicone,water base ahesive etc.
	Coating materials	BOPP.PET,PP,PVC,paper,woven etc.
	Coating weight	30~60GSM(silicone:0.3~0.8GSM)
Rewinding unit	Rewinding mode	Single,double turret rewinding etc.
	Max.rewinding width	1000 mm
	Max.rewinding diameter	1000 mm

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Suitable for many kinds of solvent adhesive tape coating and laminating

4) Running in a high automatization and intellectualization,no pollution

Certifications

Detailed Images

Machine Parts

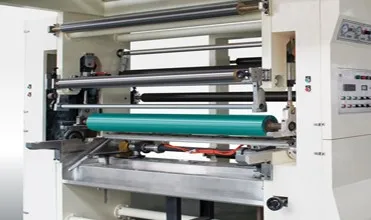

Name:Comma coating die

Coating roller size:φ300*1100mm

Comma scraper roller size: φ160*1100mm

The coating roller and comma scraper roller are made of 45# steel with hard chrome plated on surface,fine grinded,error±0.002mm

Main Features

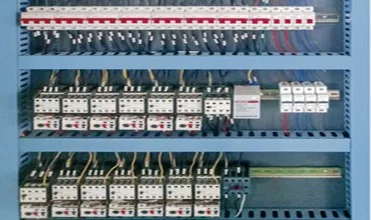

Name: Electric control cabinet elements
Brand: Yosukawa,simens,weilun
Original: Germany ,Japan,Weilun.

Machine Parts

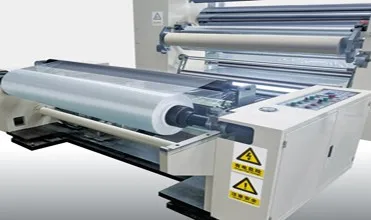

Name:Rewinding unit
Tension control: tension control: automatic control system of closed –loop taper tension(including 2pieces of vector converter motor,jump-roller,and low-friction cylinder etc.)

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	18000(L)*3300(W)*4800mm
Weight	18T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	18000(L)*3300(W)*4800mm
Weight	18 T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
