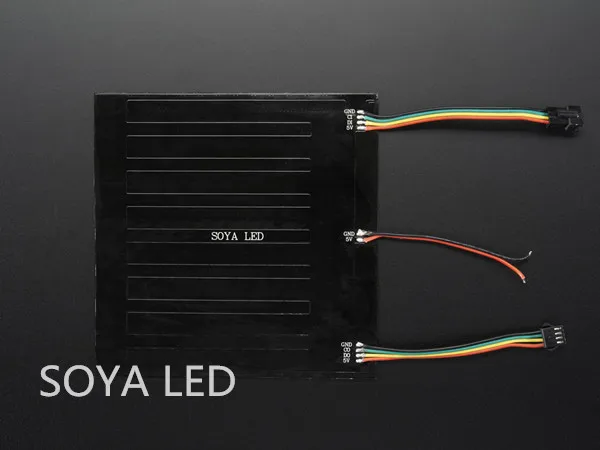

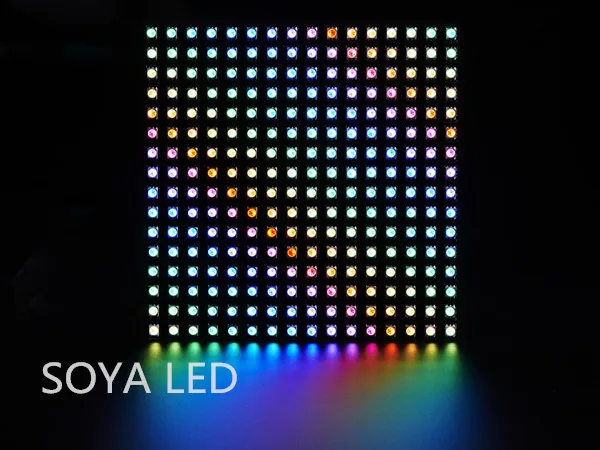

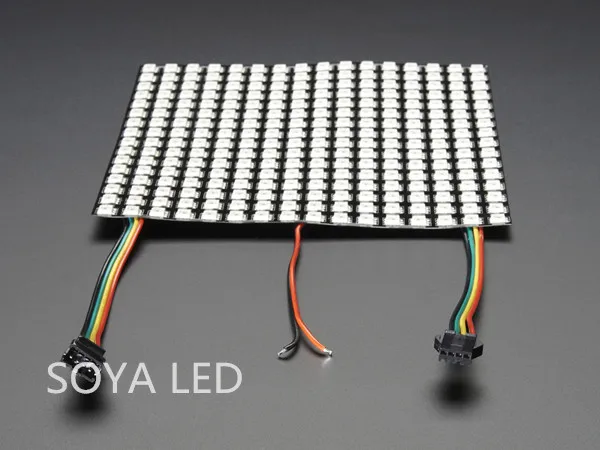

Outdoor led display P10 APA102 led pixel rgb led matrix 16x16
Product Description
Overview for Outdoor led display P10 APA102 led pixel rgb led matrix 16x16
1. These bendable 16*16 APA102c digital led matrixs are an easy way to cadd complex lighting effects to a dispaly project. Each APA102C led has an integrated driver that allows you to control the color and brightness of each LED independently.
2. The combined LED/drive IC on these led digital matrix is the extremely compact APA102c in a 5050-size LED pacakge, which enables higher LED densities.
3. In contrast to the WS2812B led matrix, APA102c RGB led digital matrix uses a standard SPI signal (with separate DAT and CLK signals) and has no specific timing requirements, making the APA102c led martixs are much easier to control.
4. Arranged in an 16x16 APA102c led matrix, each pixel is individually addressable
5. APA102C LED matrixs uses a much higher PWM frequency for controlling each colro channel --20 KHz PWM rate , comared to 400 Hz on the WS2812B. As a result, the APA102c led matrix transmission signal speed much faster than the ws2812b led matrixs.
In addition, the APA102c LED matrixs proides a 5-bit (32 level) color- brightness adjustment.
Product features
Product name
Outdoor led display P10 APA102 led pixel rgb led matrix 16x16
LED qty
256 pcs individually addressable APA102C LEDs
Emitting color
24-bit color control (8-bit PWM per channel); 16.8 million colors per pixel
5-bit (32 level) brightness adjustment
Signal protocl
Two-wire SPI signal digital control interface ( DAT, CLK)
LED chip
Integrated APA102C
Current
8A on bright white
Voltage
5VDC
Dimension
160*160*mm size, 2.5mm thickness
Pixel pithc
10mm
IP
Bendable, IP20, only for indoor use
Board color
Black for now
Sample code
Example code available for Arduino, AVR,mbed,etc
Controller
Support Arduino, T1000s, DMX512, Raspberry pi, Glediator ,etc
Comparison
Compare for 8*8, 16*16 and 8*32 APA102c LED digital matrix display
