Гибкая rgb цифровая светодио дный матричный 8X8 / 8X32 / 16X16

Product Overview

Description

2.These are the same integrated LEDs that are used in our addressable APA102c strips. Rather than ws2812b led matrix, this matrix use apa102 leds, which use 2-wire protocl ( DAT, CLK) that is less timing-specific and has high-frequency (800 KHZ) PWM for smoother color blending.

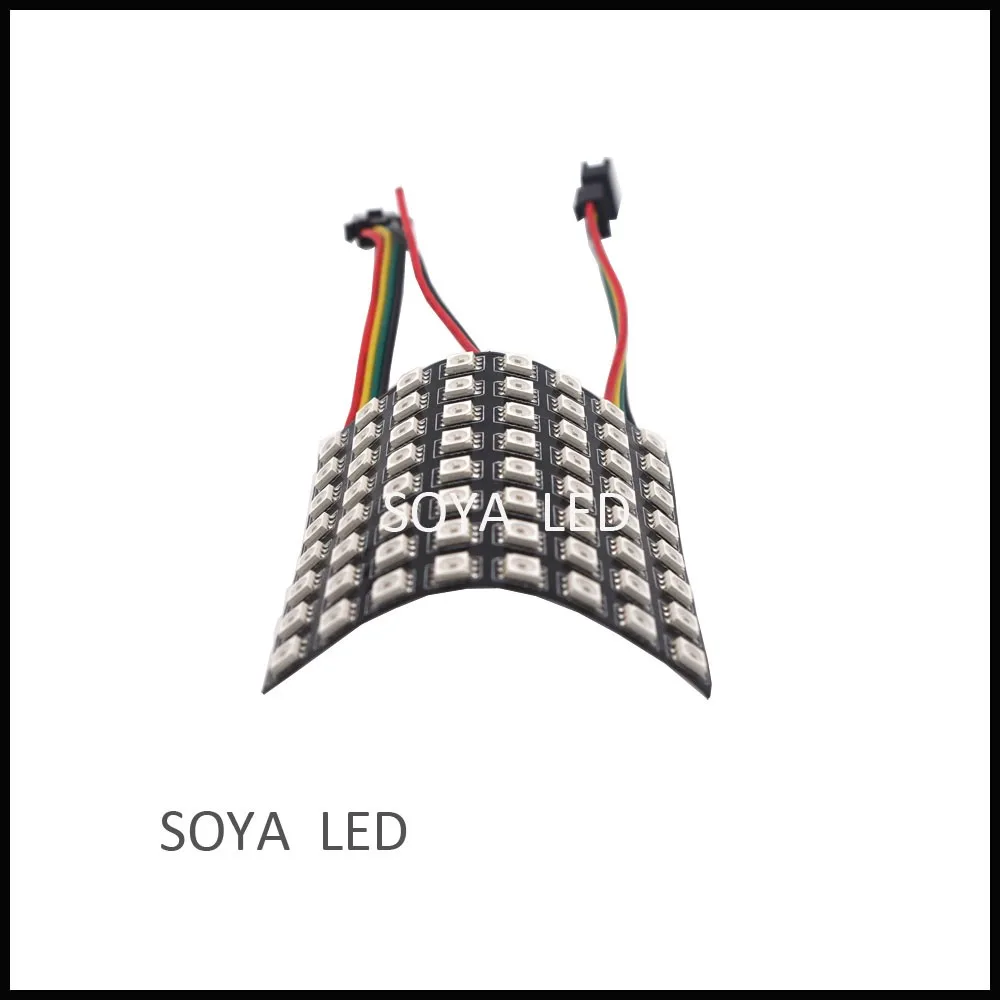

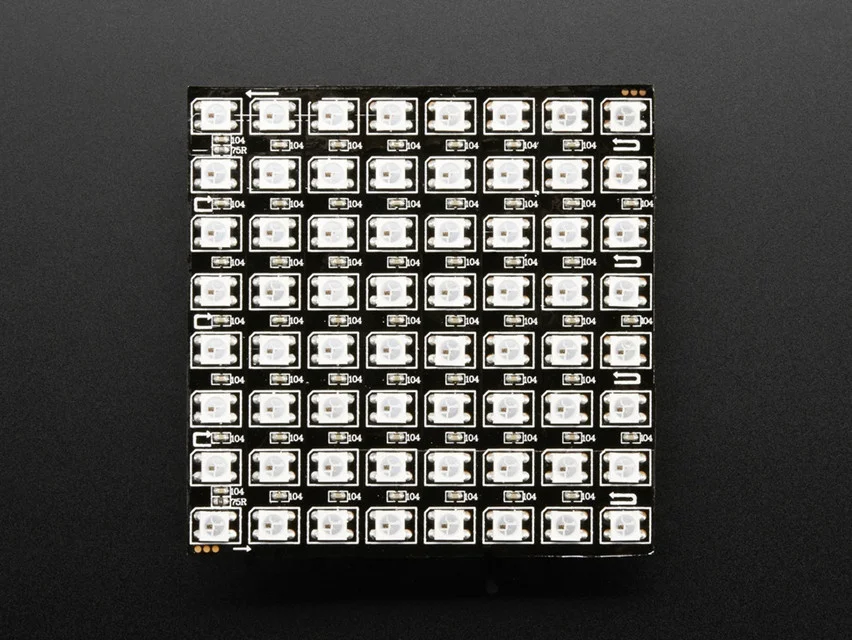

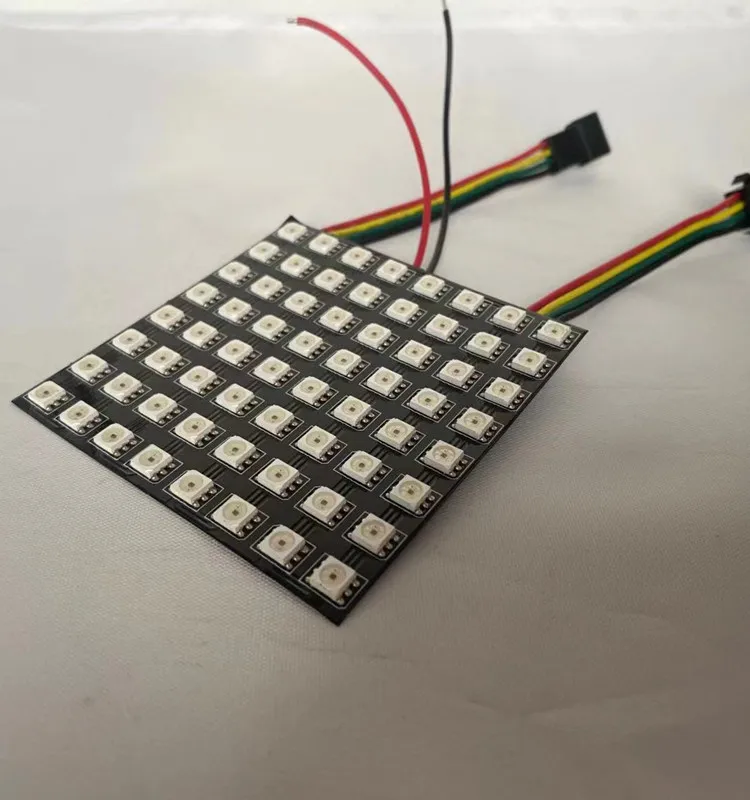

3. This 8X8 flexible RGB digital APA102 matrix panel has 8 pixels in each of its 8 lines, 64 LEDs in total. This is a continuous strip of LEDs making it easy to programme for displays and is flexible so can be wrapped around objects and works with a 5V power supply.



4.Don't forget, with 64LEDs, you could use over 5A of current if you turn on all the LEDs on to white (which we really do not recommend because we don't think the flex PCB can handle that much current).



5.Please note: 8X8 flexible RGB digital APA102 matrix panel are not designed for repeated flexing! While we think this product may work in wearables or other situations where the martix is bent around. This is for advanced users only, who already know how to use ws2812b and are comfortable with the hifh current requirements and protecting the matrix from damage.





Item No.	Flexible RGB LED dot matrix 8x8 apa102/apa102c
LED quantity	8x8=64pcs APA102c LEDs
IC type	APA102C(made in China,not Taiwan)
Wattage	16 watts

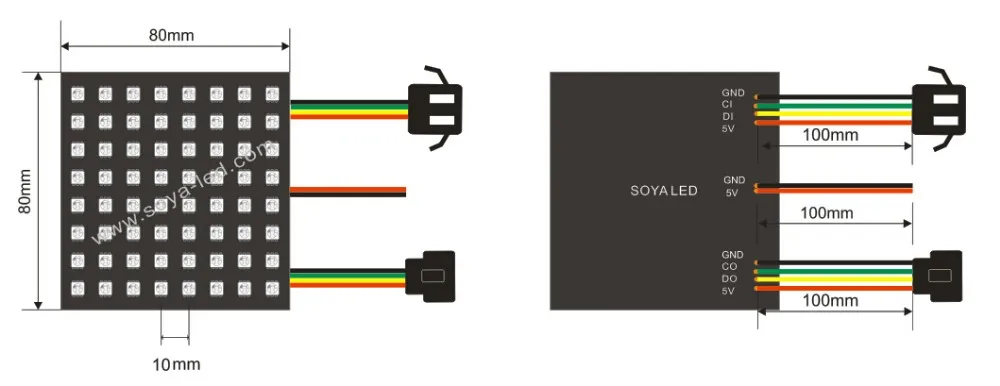

Pixel pitch	10mm
PCB size	80*80mm
Length of cable	100mm
Working volatage	DC5V
PCB color	Black pcb only
Light color	Multi-color,  digital RGB,Every LED individual Control

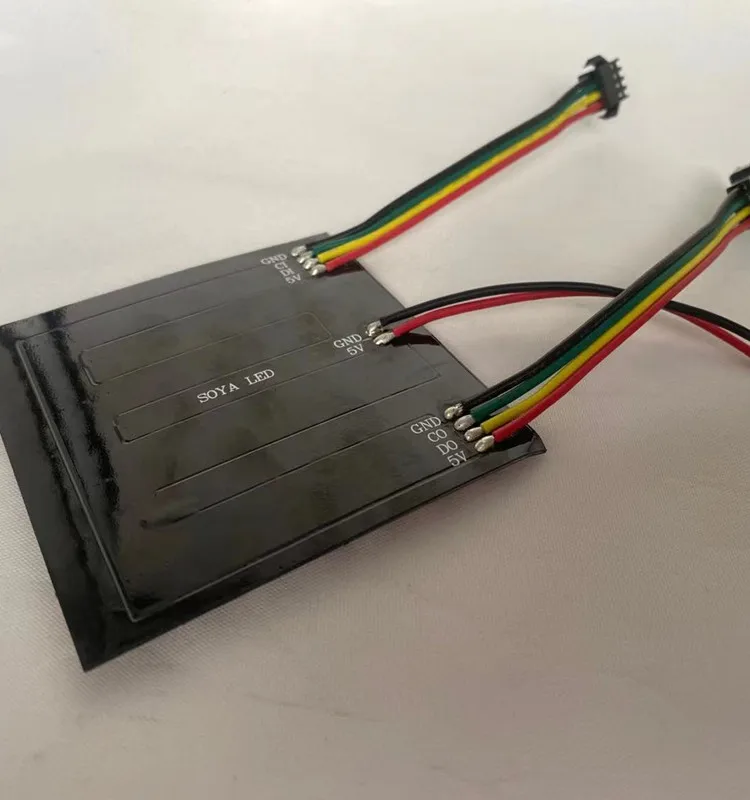

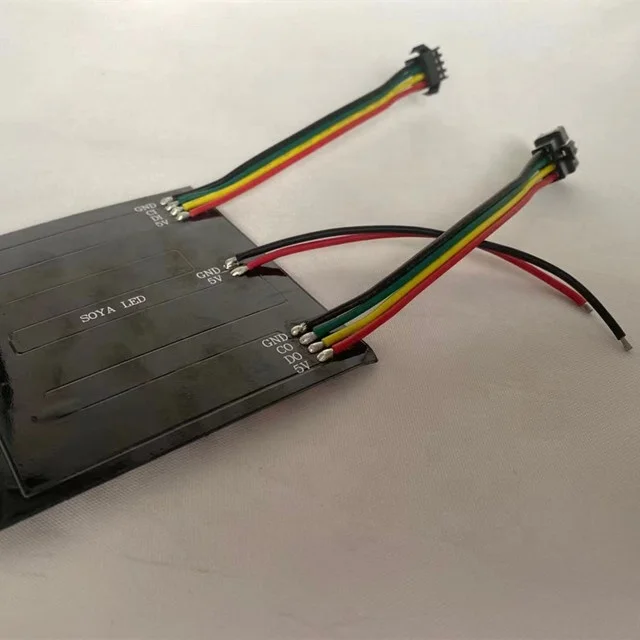

Connector	4pin JST-SM connector
