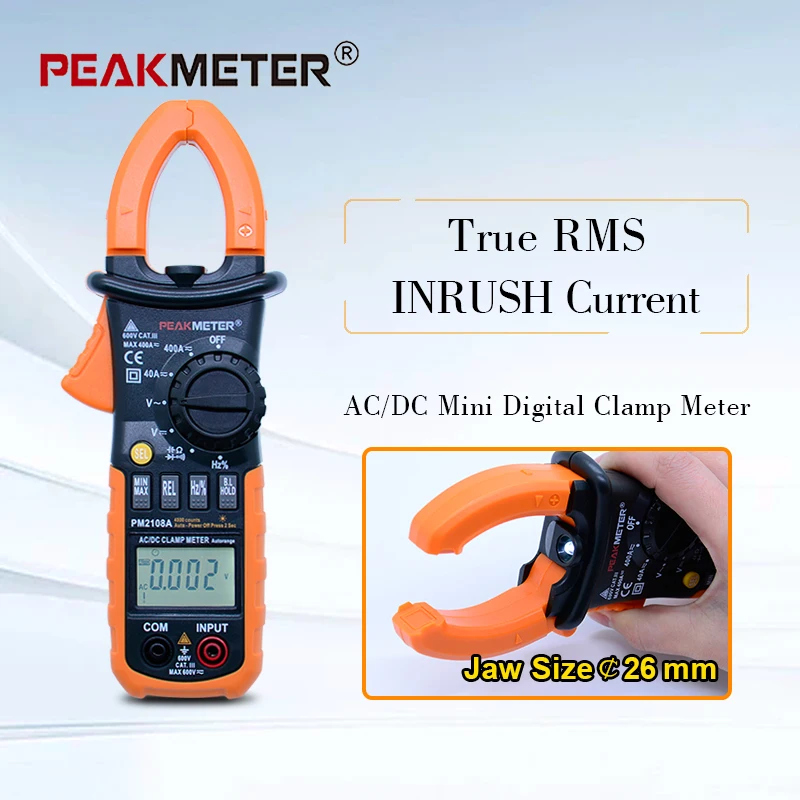

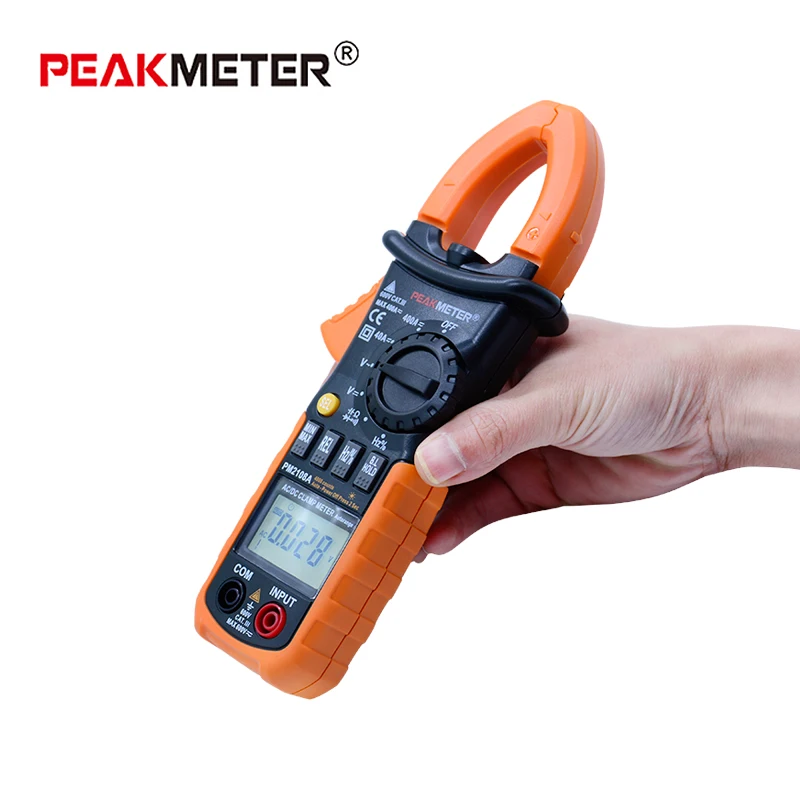

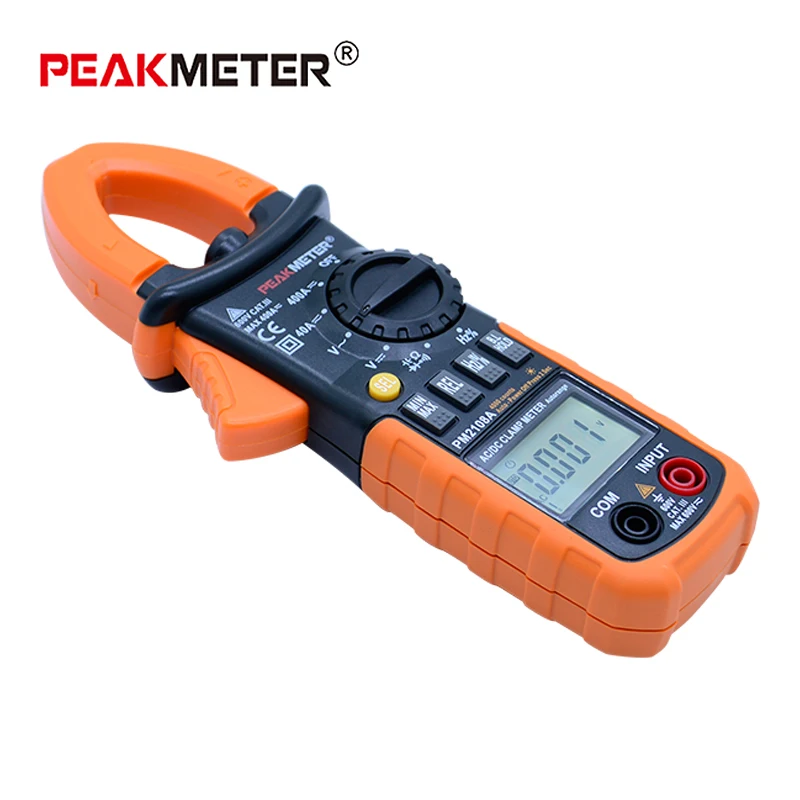

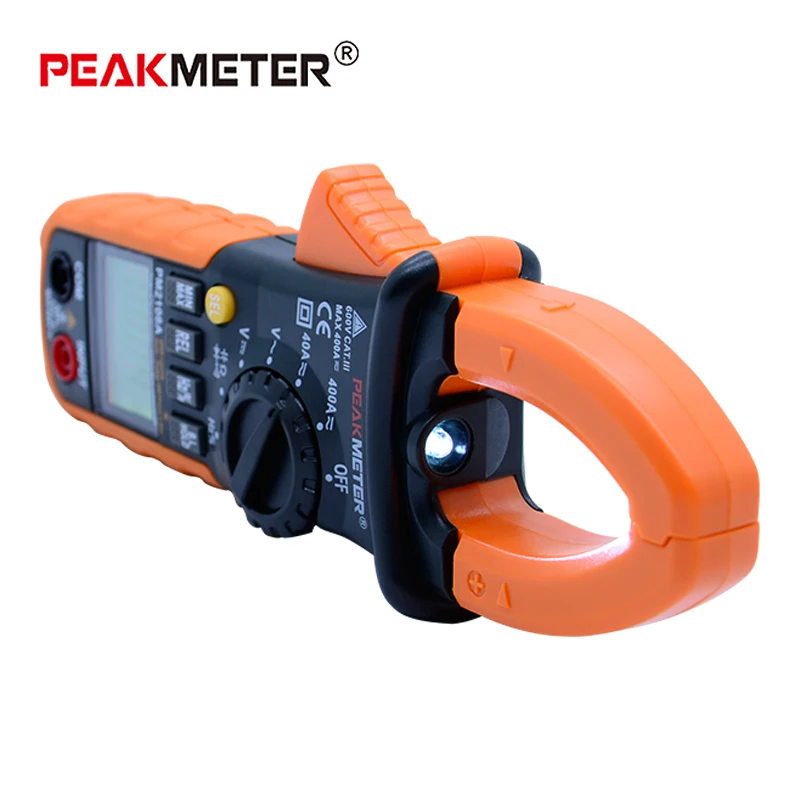

4000 Counts Auto/Manual Range Digital AC DC Current Clamp Meter with Inrush Current Test MS2108A
- Category: Clamp Meters >>>
- Supplier: Shenzhen Habotest Instrument Technology Company Limited
Share on (60382942234):
Product Overview
Description
PM2108A 4000 Counts Auto/Manual Range Digital AC DC Current Clamp Meter with Inrush Current Test
Product Description
Features (PM2108A Digital AC DC Current Clamp Meter) | ||
4000 counts LCD display | ||
Auto / manual range | ||
Auto Power Off | ||
MAX/MIN value Hold | ||
Data Hold | ||
Low Battery Display | ||
Display Backlight | ||

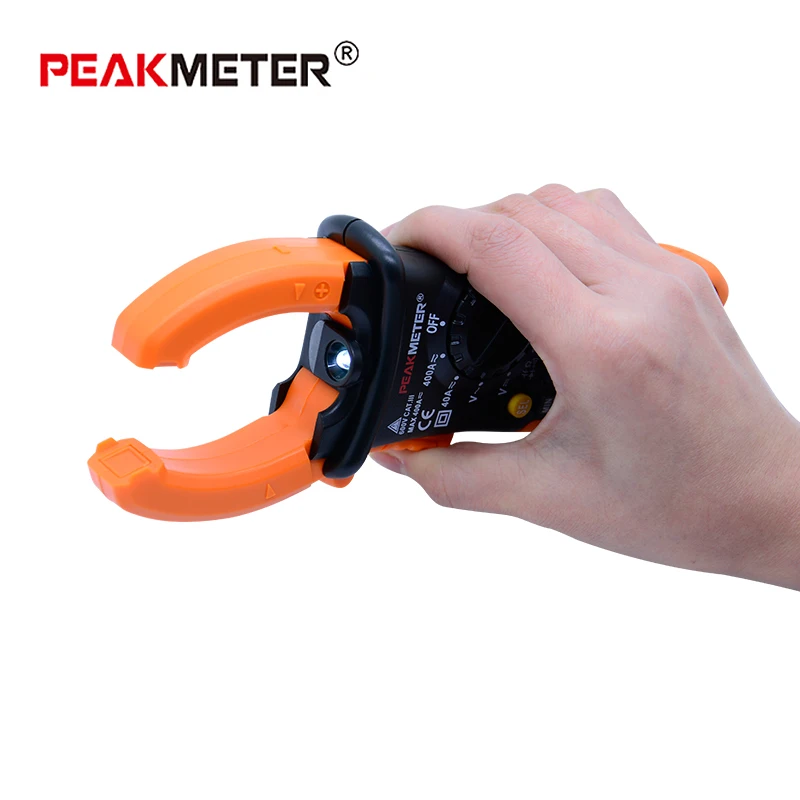

Work light | ||
Diode | 2.7V | |
Continuity Buzzer | <50Ω | |
Jaw Opening | Φ26mm/1.0” | |
Power supply | 1.5V(AAA)x3 Batteries | |
Weight | Approx 245g | |
Size | 280mmx78mmx35mm | |
Safety Rating | CE CAT.III600V RoHS | |
Specifications | ||
DC Voltage | 400mV/4V/40V/400V | ±(0.8% +3) |
600V | ±(1.0% +5) | |
AC Voltage | 4V/40V/400V/600V | ±(1.0% +5) |
DC Current | 40A/400A | ±(3.0% +10) |
AC Current | 40A/400A | ±(3.0% +10) |
Resistance | 400Ω/4kΩ/40kΩ/400KΩ/4MΩ | ±(0.8% +3) |
40MΩ | ±(1.2% +3) | |
Capacitance | 400nF/4µF/40µF/400µF/4000µF | ±(4.0% +5) |
Frequency | 10KHz to 10MHz | ±(0.5% +2) |
Duty Cycle | 10%~ 95% | ±(3.0+2%) |
Accessories
PM2108A Digital AC DC Current Clamp Meter
User’s manual | One piece |
Test lead | One set |
Gift box | One piece |
Carry case | One piece |
AAA battery | Three pieces |
Detailed Images
