Product Overview
Description

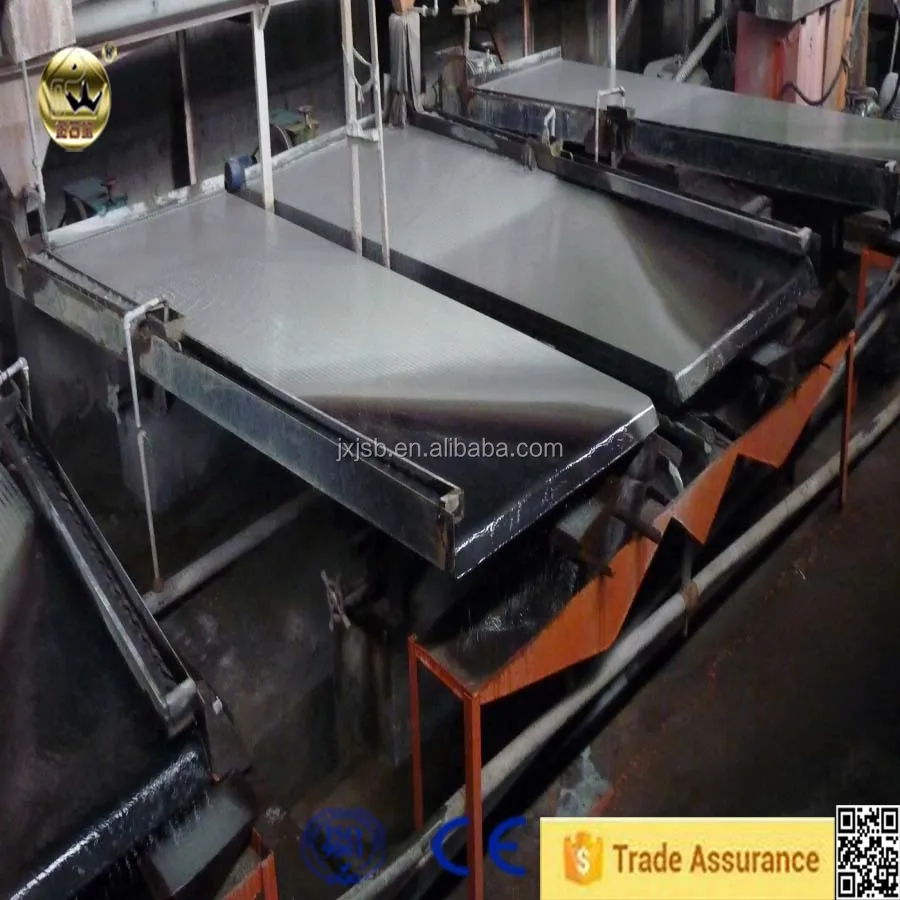

6S Gold Shaker Table

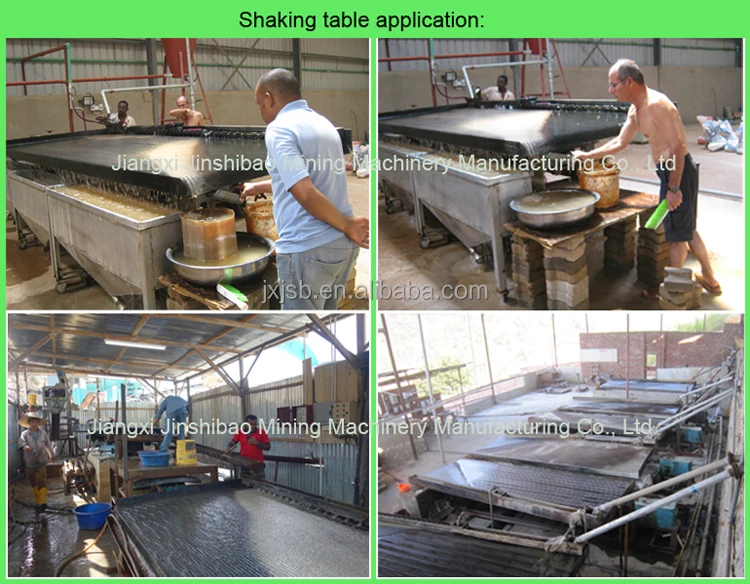

| 1.Application of 6S shaking table |
6S Gold Shaker Table is one of the main equipments of gravity concentration applied on separating Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, Niobium , other rare metals & the noble metal ore.
The shaker effective recycling granularity scope is 2-0.22 mm.
| 2.Featuresof 6S shaking table |
- High recovery ratio
- High concentration ratio
- Easy installation
- Simple operation
- Deck constructed of fiber glass
- Three different decks to choose
- Long working life
- Adjustable stroke length and speed
| 3.Working principle of 6Sshaking table |
6S Shaking table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.
| 4.Structure of 6S shaking table |
1) Head Motion
6-S shaking table is furnished with a totally enclosed self-oiling head motion of heavy cast iron to contain an oil reservoir for perfect splash lubrication.
This feature protects the moving parts, reducing operating and maintenance costs to a minimum.
2)Decks & Riffles
a) Coarse ore deck: 0.5-2mm b) Fine sand deck: 0.074-0.5mm c) Slime ore deck: 0.05-0.074mm
3)Feed and Water Box
A wooden feed distributing box with hopper and long water box are attached to the iron of the deck, giving a very even distribution of feed and water.
4)Support device
3 supporting device types of the 6S shaking table for your option:
| 5.Specificationof 6s shaking table |
Model Performance | LS | LY | LY | LY | |
Screen Size(mm) | 4500×1850×1560 | 3000×1620×1100 | 2100×1050×850 | 1100×500×430 | |
Feeding Range(mm) | Sand ore | -2 | -2 | -2 | -2 |
slime | -0.074 | -0.1 | -0.074 | -0.074 | |
Feeding Density | % | 10-30 | - | 10-30 | 10-30 |
Capacity
| Sand ore | 0.5-1.8 | 0.7-1.5 | 0.4-0.8 | 0.1-0.2 |
slime | 0.5-0.8 | 0.4-1 | 0.3-0.5 | 0.05-0.1 | |
V-belt (mm) | A-2000 | A-1033 | B-2007 | A-1245 | |
Size(mm) Long× wider × higher | 5600×1850×860 | 4075×1320×780 | 3040×1050×1020 | 1530×500×800 | |
Weight(kg) | 370 | 310 | 180 | 50 | |
