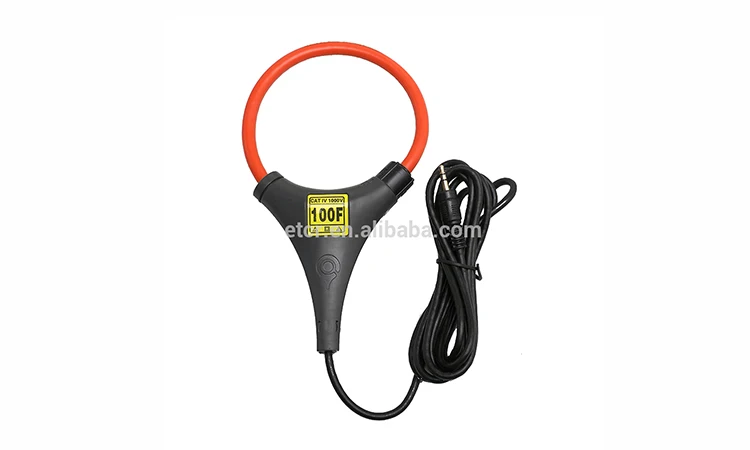

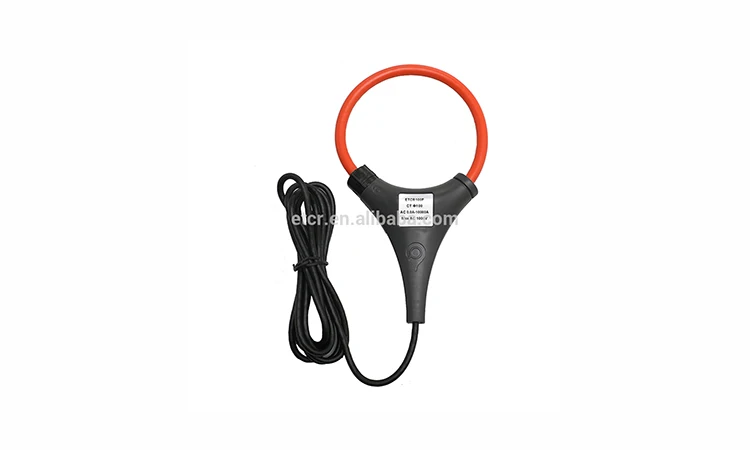

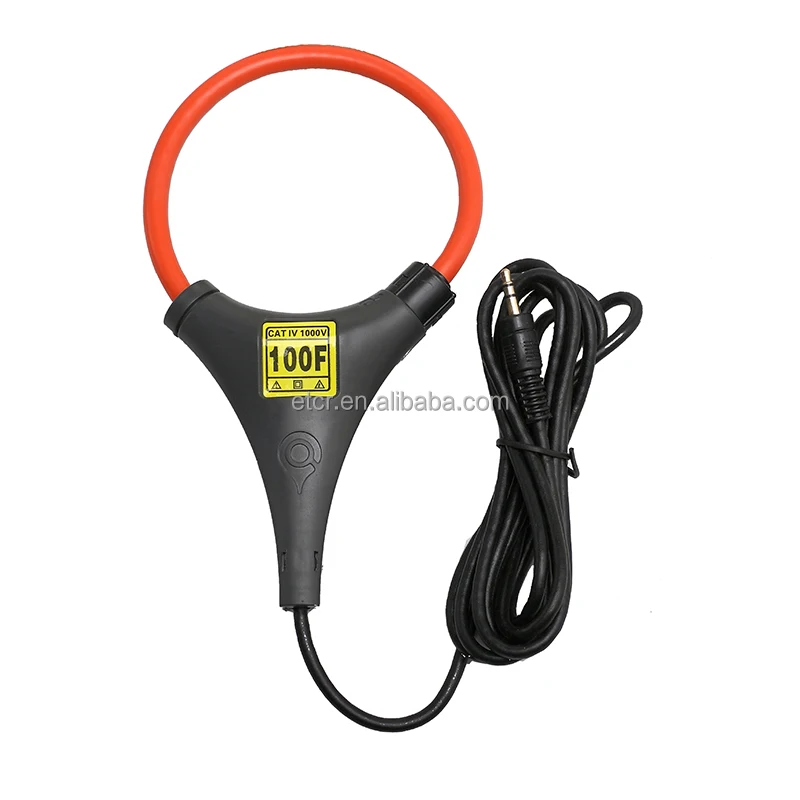

ETCR100F Flexible coil current sensor rogowski current transducer ac current measurement rogowski coil manufacturers

 testing method

Flexible CT: The output signal is current on the time differential, the output voltage signal by integrating the input current can be true to

Coil length

315mm (Can be customized)

Inner diameter

Φ100mm(Can be customized)

Diameter

φ7.5mm

Weight

115g

Range

10mA~10000A~more

Resolution

5mA

Accuracy

±0.3%FS (50Hz/60Hz; 23±2, Below 70%RH, cable in the center of the coil)

Phase Error

≤0.1°(50Hz/60Hz; 23±2)

Output Interface

3.5mm audio plug

Output Cable Length

2m

Electric field interference

No hysteresis effect, No electric interfering field

Wire Position

Being tested wire at the center of the coil, position error influence ≤ ± 0.3% FS

Current Frequency

45Hz~70Hz(The measured current frequency)

response frequency

0.1Hz~1MHz

Line Voltage

Below AC 1000V

Working Temperature and Humidity

-20~50; below 80%rh

Storage Temperature and Humidity

-10~60; below 70%rh

Insulation strength

AC 2000V/rms

Safety Specifications

IEC1010-1, IEC1010-2-032, class of pollution2, CAT IV 1000V

Accessories

Sensor: 1pcs
