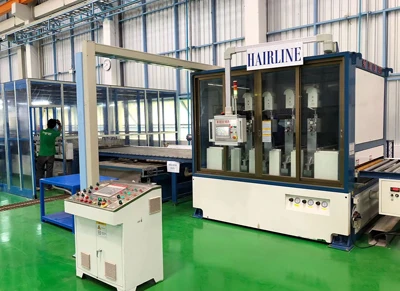

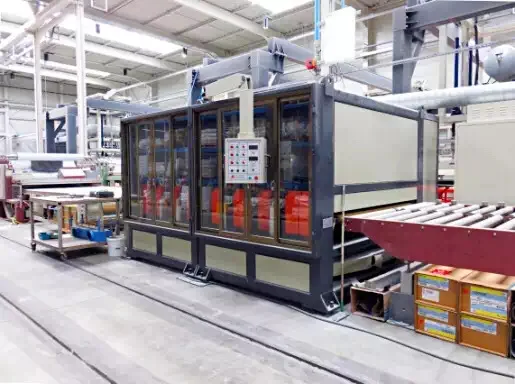

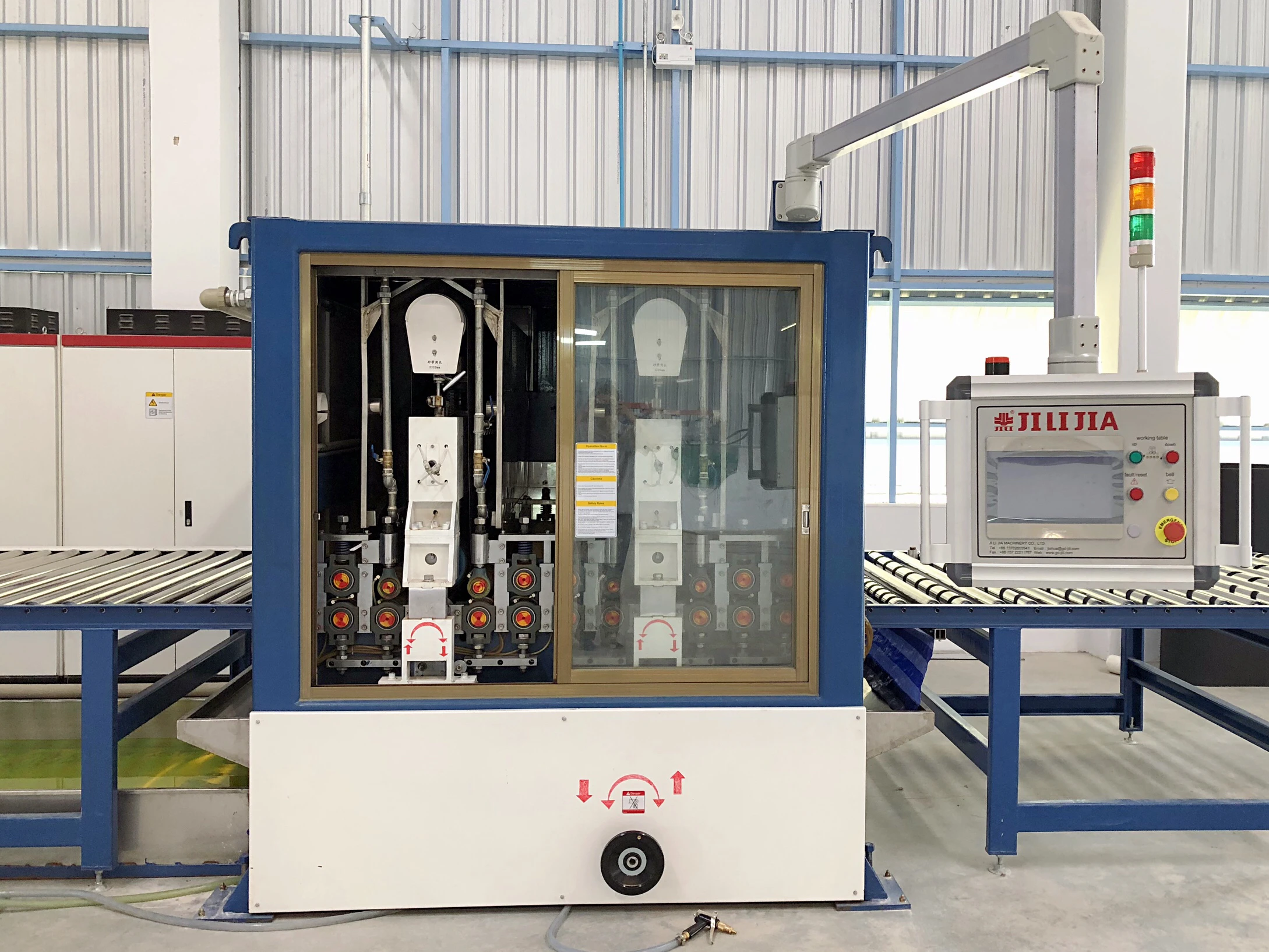

Stainless Steel Coil & Sheet Polishing Machine Line for Metal Inox No.4 Hairline Scotch Brite Surface

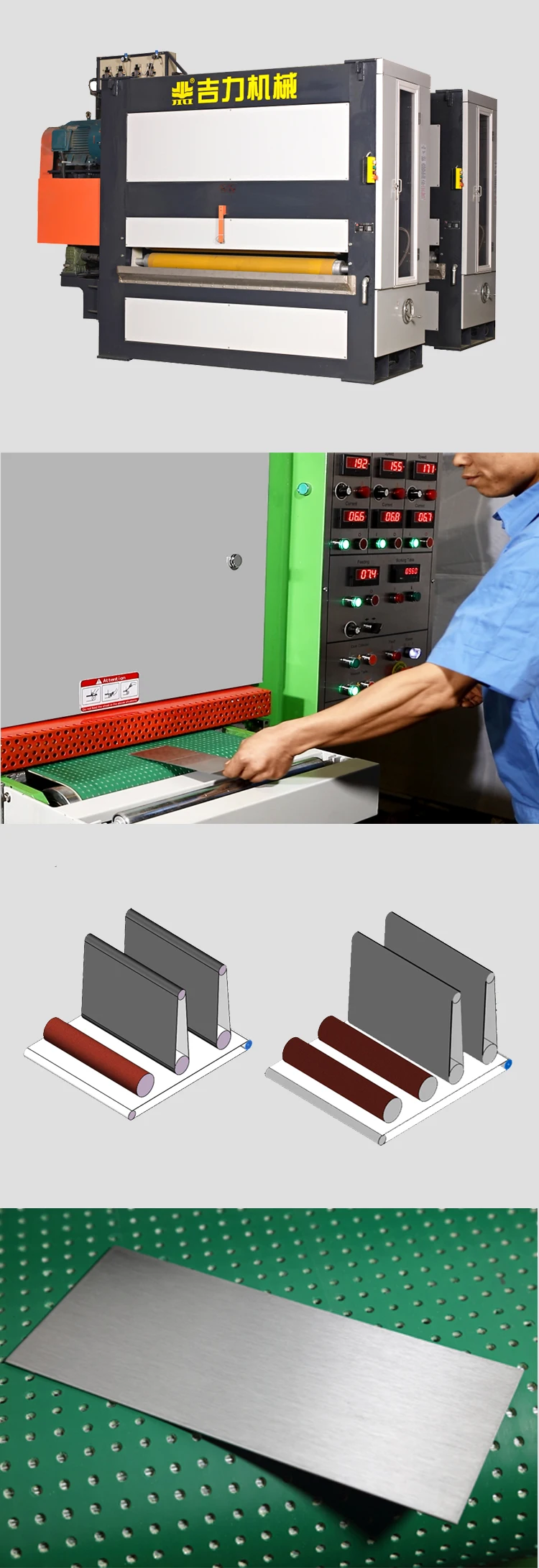

JGD series provides a polishing service for metal coil or sheet. To this end, we developed these short thread series with dry or wet polishing type in 1995’s. JGD series has a high-precision and high-rotation speed bottom contact roller, which can obtain a stable and perfect surface even in a high-speed production.

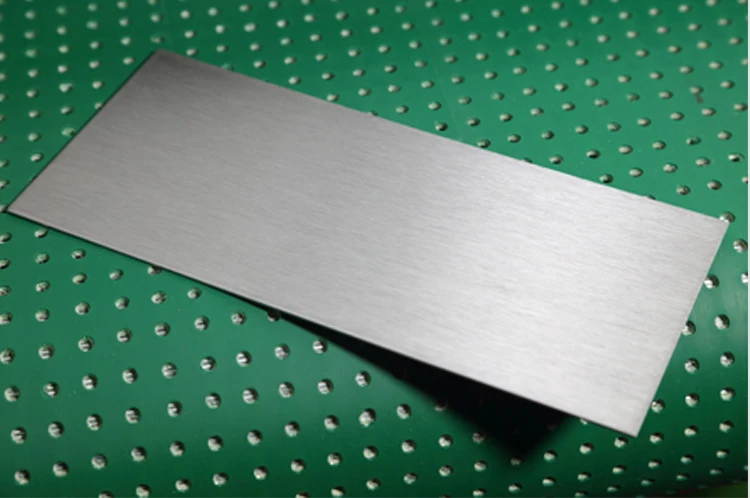

It is easy to be achieved the different surface styles by setting the parameter and changing the abrasive belt, including to obtain the finishing No.3, ("coarse polishing", with abrasive grains from G60 to G150) and No.4 ("fine polishing", abrasive grain from G180 and beyond).

In addition, we have developed bottom short thread series to solve the problem of releasing the internal stress of the sheet due to insufficient annealing of metal materials, so as to achieve the leveling of the finished products.

All JDG /JSGcan be fully integrated to install into an existing lines.

 GENERAL DATA

- The processing thickness can be adjusted electrically or manually

- With special main cross beam design, the abrasive belt can be replaced rapidly

FRAME & MATERIALS

--Ji Li Jia use only first choice materials from ISO9001 or CE certificated suppliers

- Standardized and maximum spare parts, perfect after-sales spare parts supply system

- All frames are made of welded steel, stress relieved, sanded, polished, oiled, primer-coated and painted

MOTOR

- Only use the high-quality domestic brand or Siemens brand motor

- The motor power is determined according to the processing type

CONTACT ROLLER

- It is directly driven by motor

- Each contact roller has own processing file management with strictly precision control

- The contact roller bearings have an auto oil injection system

PLC CONTROL & INTERFACE

- LCD touch screen with human-machine dialogue control

- Easy to use partition integrated console

ELECTRIC CABINET

- The main switch controls the power supply of the whole line

- One module is connected by one electric cabinet, combination or repair easily

OPTIONAL FEATURES

- PLC system from Siemens or other brands

- Electric elements from Schneider or other brands

FACTORY INSPECTION

- Two work days online detection on average before delivery.

- Our polishing test oil is of Castrol brand.
