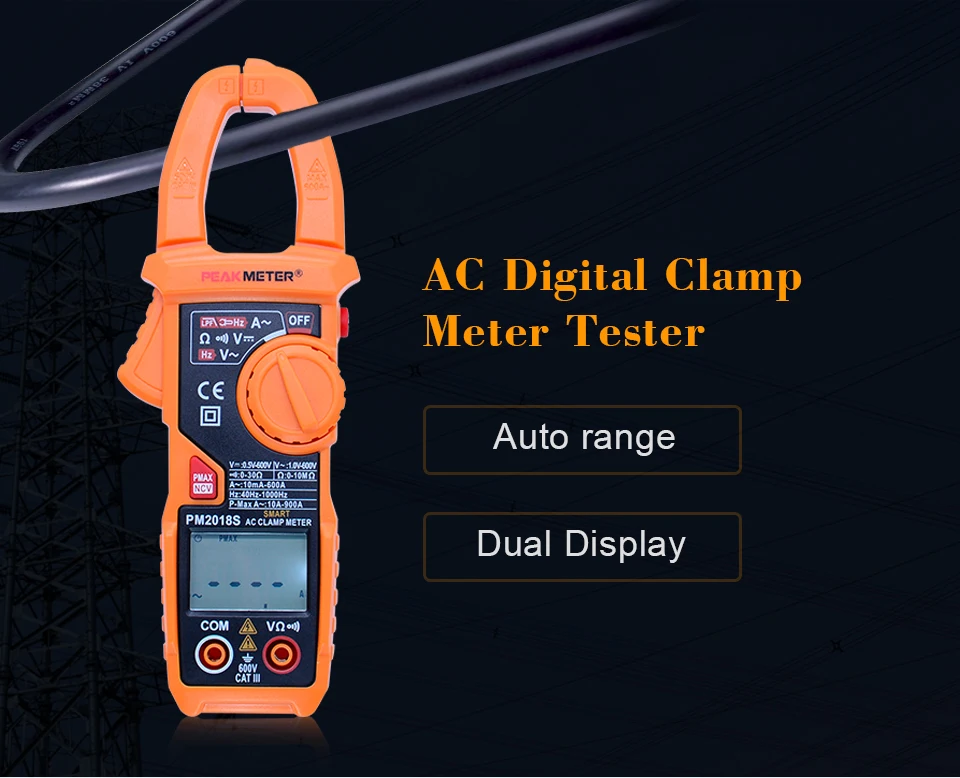

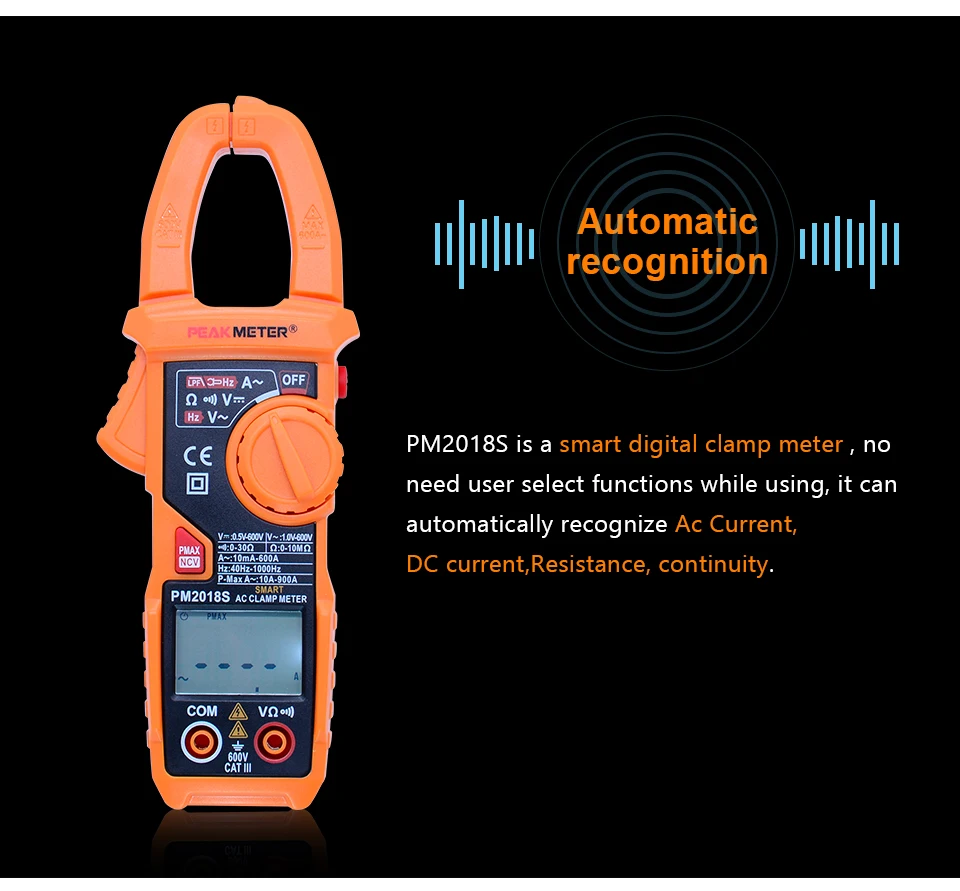

Dual Display 6000 Counts Super Smart AC Digital Clamp Meter PM2018S

Specifications (PM2018S 6000 Counts Super Smart AC Digital Clamp Meter)

DC Voltage

0.5 – 600.0V

±(0.5% +3)

AC Voltage (40 – 65Hz)

1.0 – 600V

±(0.8% +5)

Resistance

0 – 10MΩ

±(0.8% +3)

Continuity

<30Ω

<30Ω

AC Current (40 – 65Hz)

10mA – 400A

±(2.5%+5)

400A - 600A

±(3.0% +5)

Frequency

40Hz - 1000Hz

±(1.5% +5)

PEAK AC Current

10 – 900A

±(10%+3)

Features

Display

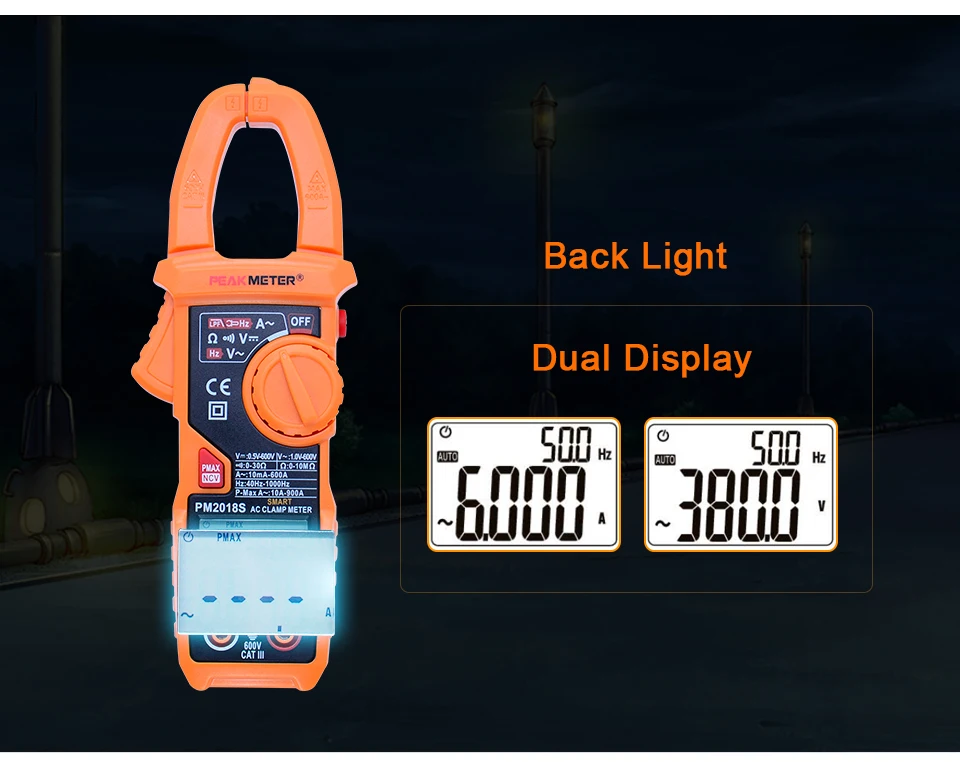

Dual display, 6000 counts

Range

Automatic

ACA (AC + DC)

6A / 60A/600A

DCV

6V / 60V 600V

ACV (AC + DC)

6V / 60V 600V

Resistance

6KΩ/ 60KΩ / 600KΩ / 6MΩ / 10MΩ

Frequency (Clamp)

1KHz

Frequency (Voltage)

1KHz

Continuity

√

V /Ω / A Auto Scan

√

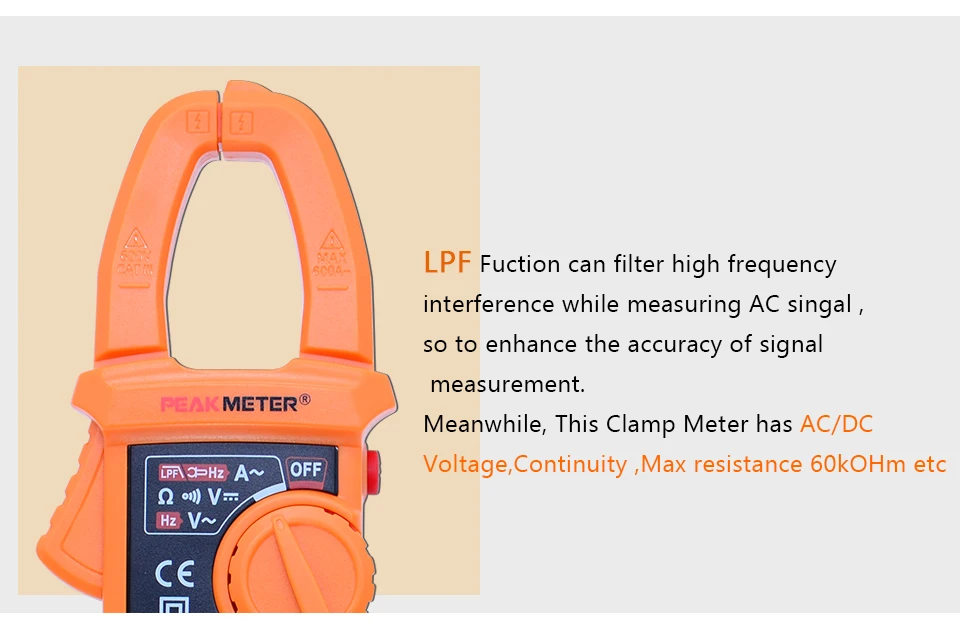

LPF (1KHz – 3dB)

√

Peak Max

√

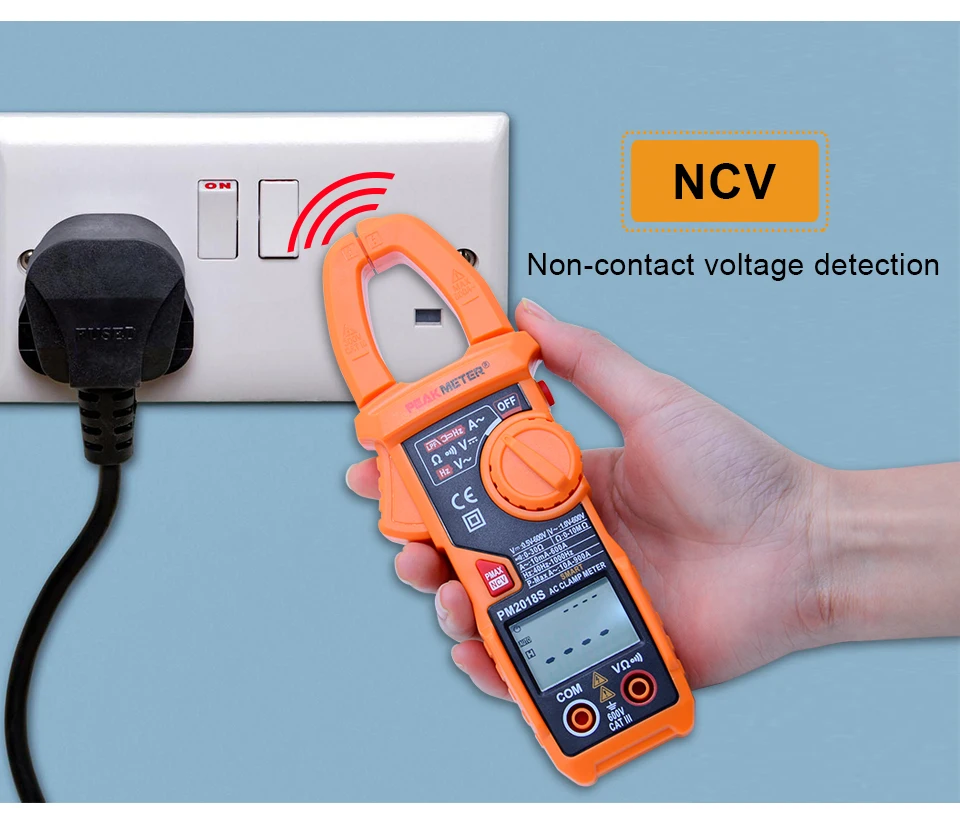

Non-contact AC Voltage Detection (NCV)

√

Data Hold

√

Back Light

√

Low-battery Indication

√

Auto Power Off

√

General Specifications

Power supply

2 x 1.5V AAA Battery

Weight

250g

Size

187 x 65 x 38 mm

Jaw size

¢24mm

Safety Rating

EN 61010-1, -2-030, EN 61010-2-033,

EN61326-1, CAT.III 1000V
