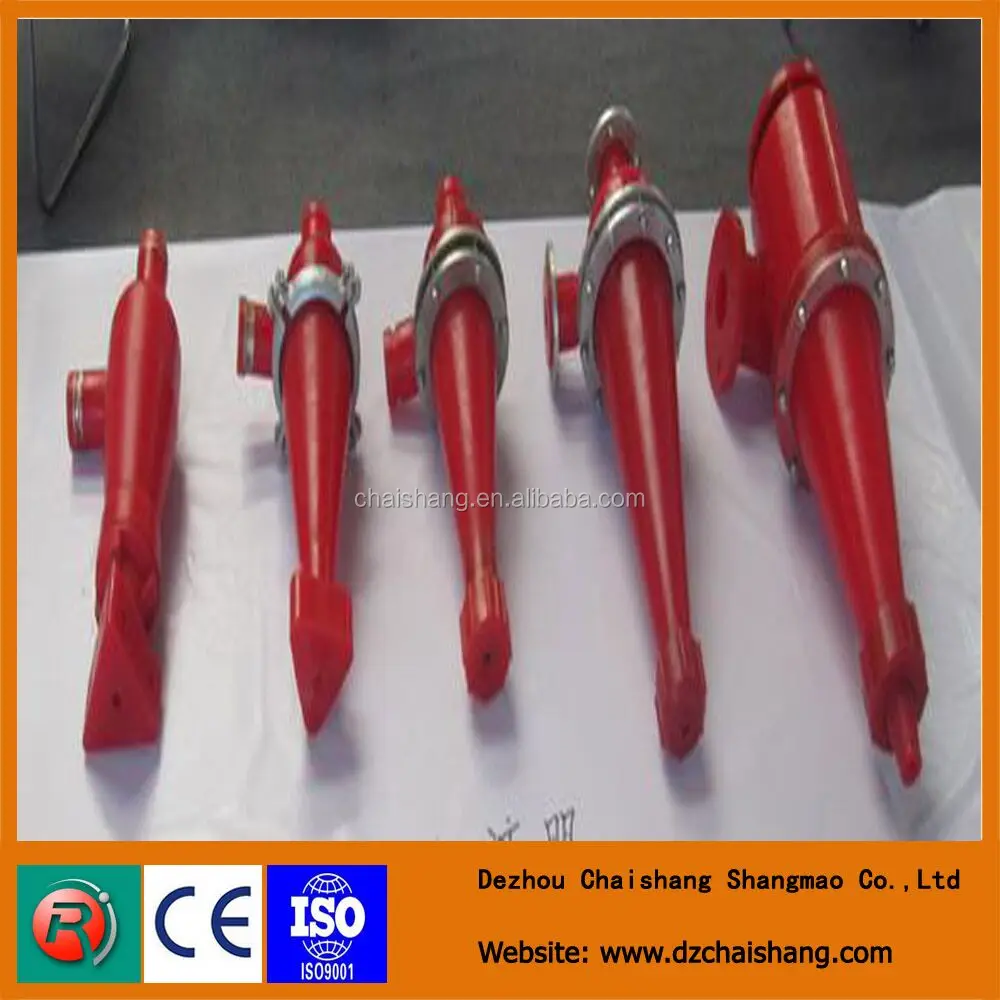

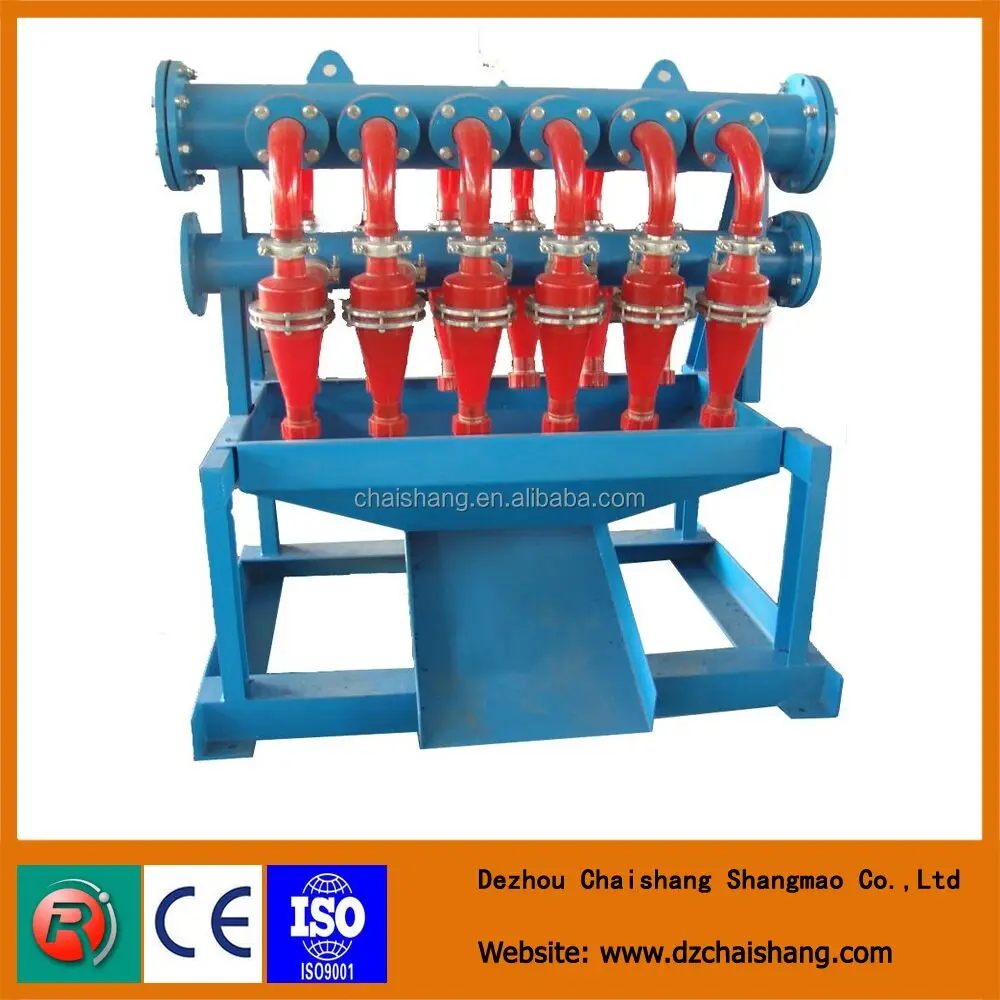

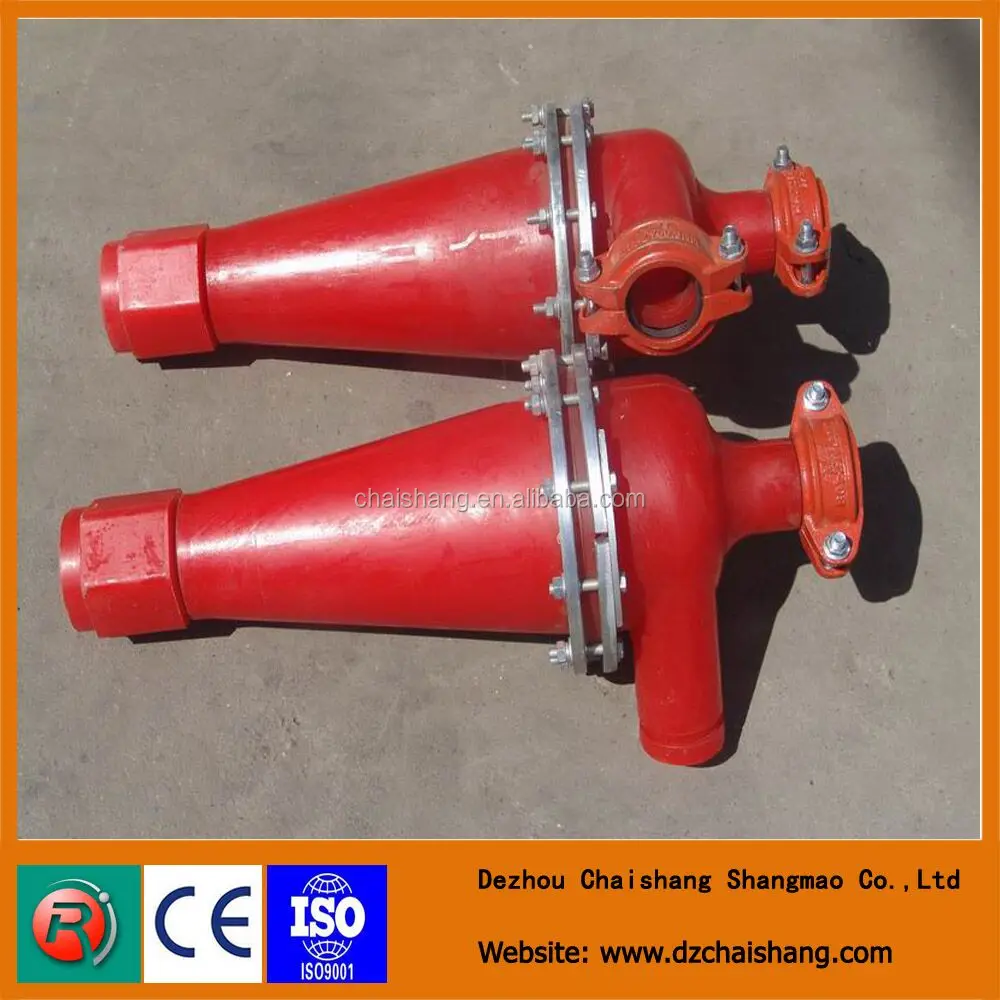

Hydrocyclone cone design oil desander

Introduction of polyurethane elastomer:

Polyurethane elastomer is a new type of polymer composite materials of between rubber and plastics, belonging to high-tech products, according to the classification of it between plastic and rubber, but many of its performance is much better than the two both with high-strength plastic and has a high elasticity of rubber. Its excellent physical properties, abrasion resistance, resilience are more than ordinary PU, it is the best replacement products for various industry.

Introduction of hydroclone:

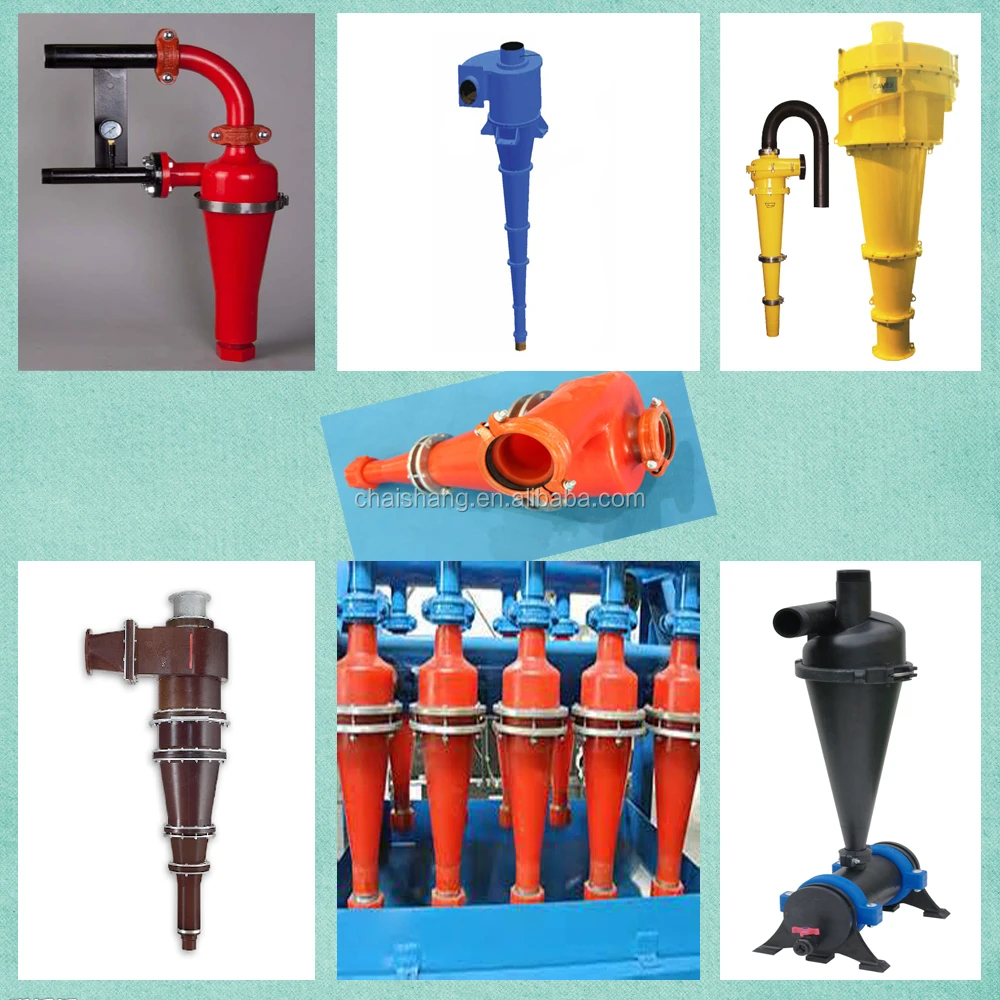

Polyurethane,rubber,ceramic cyclone is widely used in oil drilling,nonferrous,ferrous and nonmetallic concentrator hierarchical classficiation work in process and many other links,used for deslining,dehydration of slurry materials,oil desanding and desilting device;Mining classification,tailings DAMS;The coal slime water processing and one of the important equipment such as recycling of slime. Hydro cyclones are used in variety of industrial and environmental applications to successfully separate solids from liquids. It is a common fractionation equipment.Its main role is to grade and concentration.Achieve grade and mud off a variety of materials.

Structure:

Hydro cyclone consists of feed, outlet and inlet. hydro cyclone has one inlet that makes sure mud enters the cone along tangent direction. hydro cyclone has two outlets: the smaller at the bottom called underflow outlet or discharge outlet which denser or larger particles pass by, and the larger on the top called overflow outlet which lighter or finer mud pass by. The small inlet, outlet and small diameter needs high pressure while processing little capacity. On the contrary, the big inlet, outlet and big diameter needs low pressure while processing large capacity.

Feature of hydroclone:

Working Principle of hydroclone:

The working principle of hydro cyclone is centrifugal sedimentation, when two phases (or three phases) mixed liquid is fed into hydro cyclone by a certain pressure liquid and produces strong three-dimensional-elliptic rotational movement. Due to the different density of particles, the centrifugal force, the centripetal buoyancy and drag force is different.  So most coarse particles (or heavy phase) are discharged from cyclone underflow outlet, and the fine particles (or light phase) from the overflow tube, so as to achieve separation.

Dezhou Chaishang Shangmao Co.,Ltd, have been specialized in Polyurethane products more than 18 years, we are manufacturing a superior quality of Polyurethane  products. Our main products including: Polyurethane tension screen mesh, Polyurethane screen panel, polyurethane dewatering screen mesh, Polyurethane Hydro cyclone, conveyor belt scraper, polyurethane lining pipe, polyurethane flotation impeller and cover plate. Welcome domestic and foreign customers send inquiry to us, we will try our best to serve you.

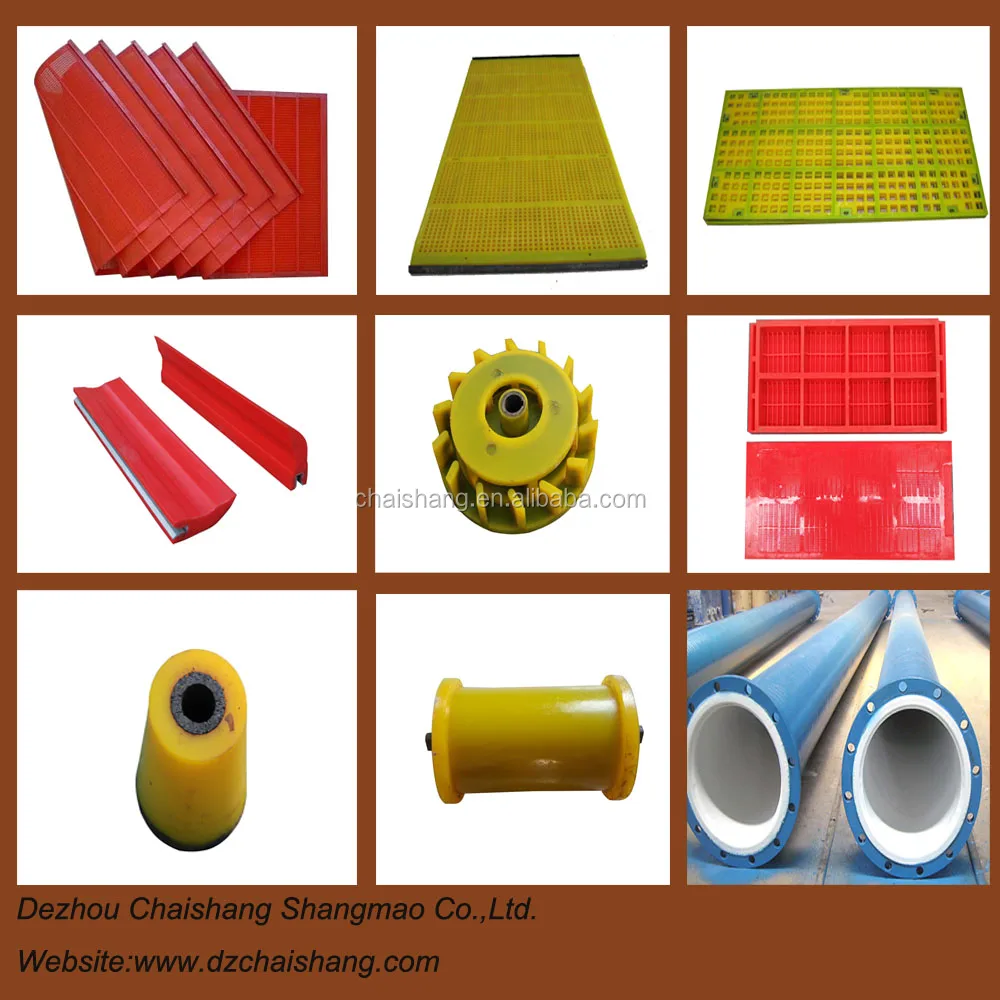

Other product pictures:

If any items you are interested in, please let me know, I will provide you the best goods and service.
