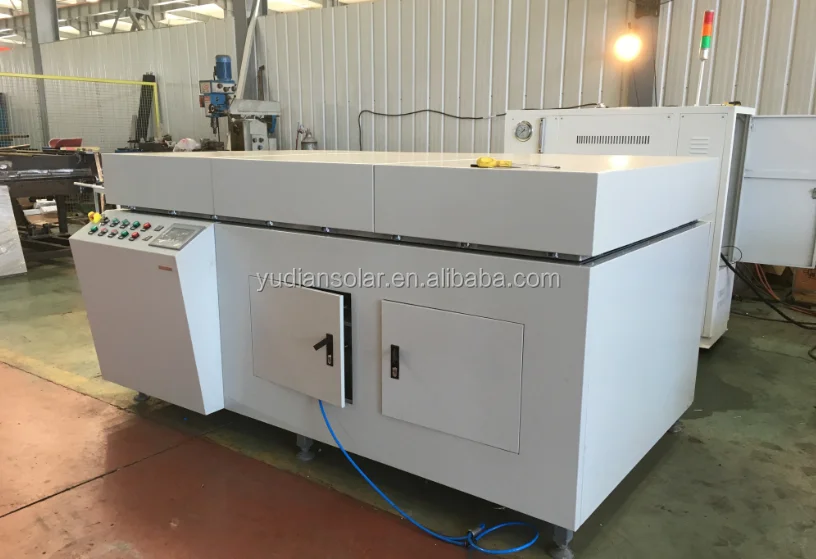

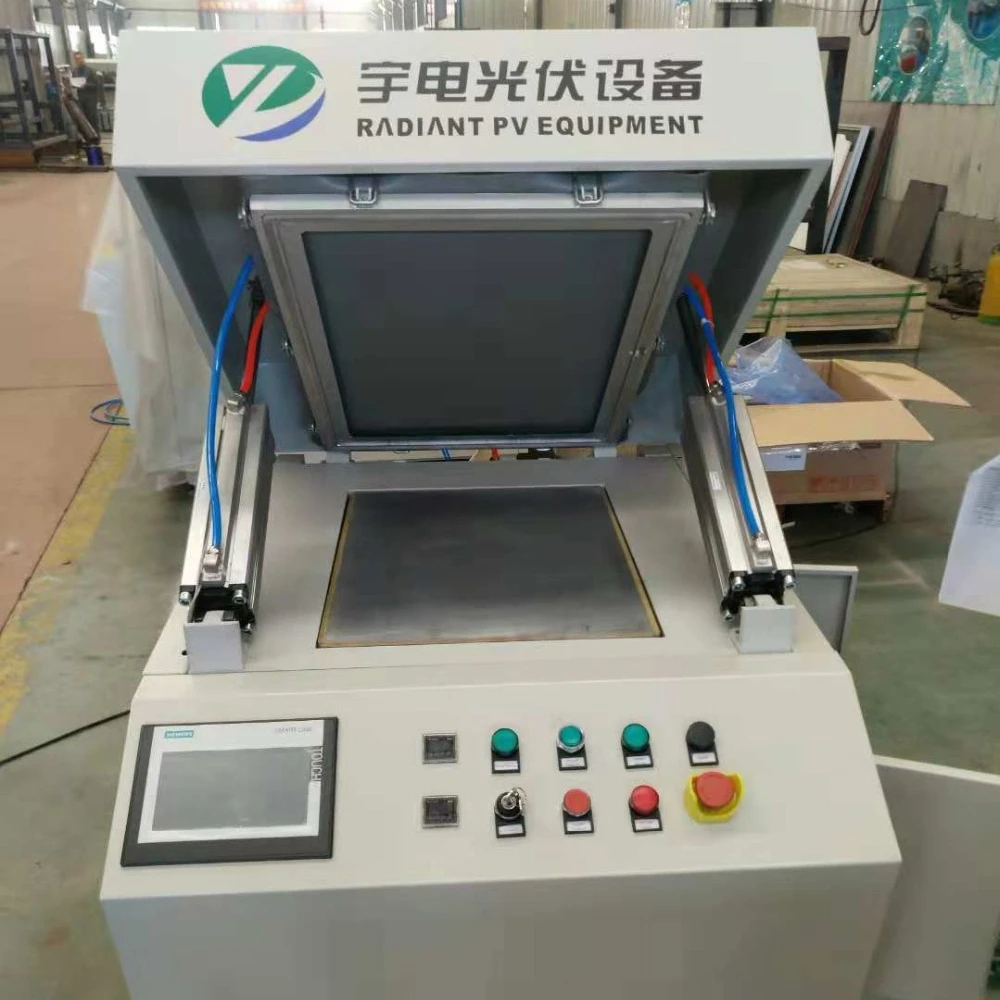

#RADIANT 0707 Laboratory Solar Panel Laminator small laminator

Share on (60394293767):


Price:$20,000.00

Quantity:


Product Overview

Description






Product Description

We are a professional PV solar laminator and relevent equipment manufacturer.
Obtained ISO9001 and CE certification system already.




Note: Customized specifications are available upon requirements.

For more information please contact us when possible



.Specification(YDS-0707)



Model

YDB0707(customized)

Laminate Length * Width

700X700mm

Dimension(mm)

1100×1300×1100mm

Weight(Kg)

0.3T(machine+ 0.2T(vacuum)

Power supply

380V 3 phase /  4wire

Peak power

6 Kw

Pumping speed

8L/S

Work power

2 Kw

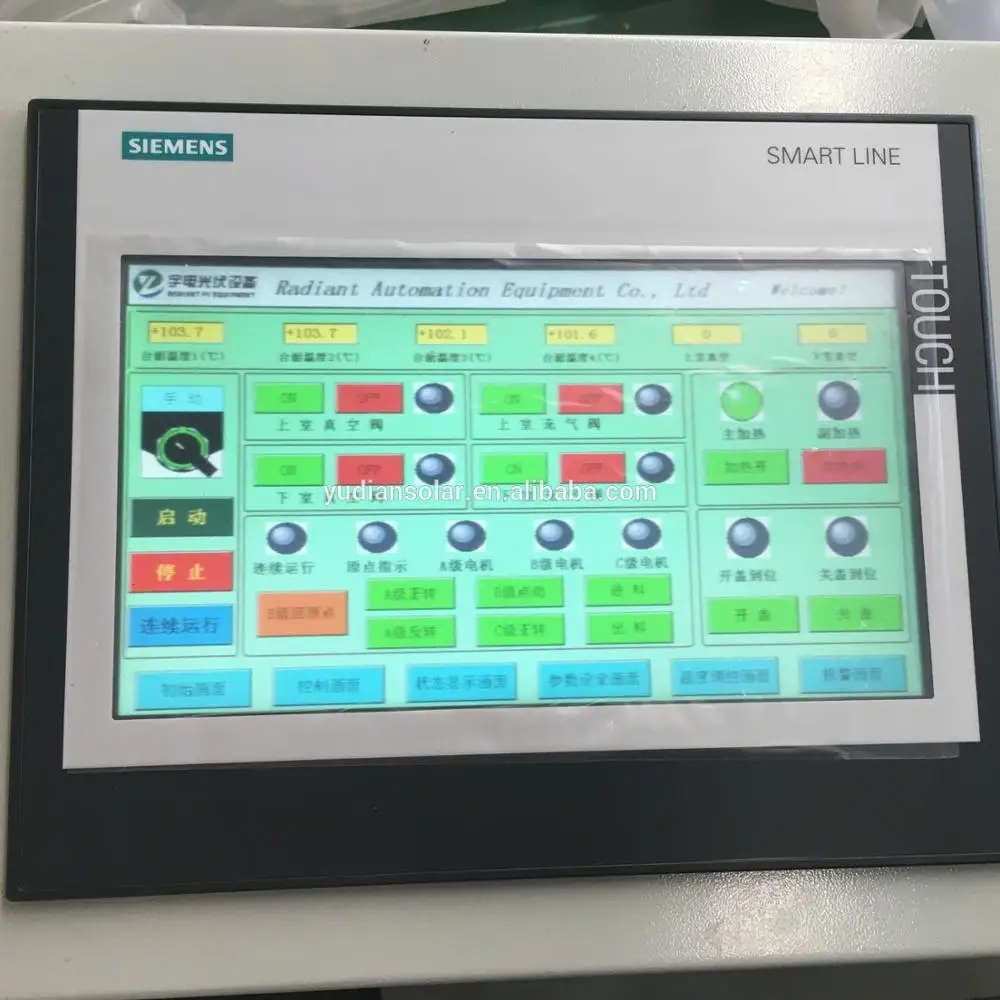

Control mode

Automatic/ Manual

Ultimate vacuum

20PA

Heating mode

Heat by Electrity

Temperature control mode

PID Control

Maximum temperature

180℃

Temperature uniformity

±3℃

Work temperature

100℃~160℃

Controllable temperature precise

≤±3℃(at the regulated set temperature value)

Unevenness of the worktable

Unevenness≤300μm/m2

Air discharge speed

Can adjust continuously within 0~50L/S

Press of compressed air

0.5—0.8MPA

Flow volume of compressed air

420—800L/S

Vaccum pump time

5—7seconds

Lamination time

20seconds

Work vacuum degre

80~20Pa

Height of laminating cavity

28mm

Cylinder Stroke length

150mm

Ambient temperature

0-50℃



Our Services

Our Service:

1,The company has a dedicated sales service team, to provide pre-sale, sale, after-sale service.

2,Free installation and commissioning, equipment operation training and maintenance technology.

3,Fixed point quality tracking service.

4,One year warranty, life-long paid maintenance.

5,The warranty period, any damage caused by the quality of parts, the company replaced free of charge.





Company Information

      Radiant has passed the IS90001 Quality management system and CE Authentication system, our PV equipments are being sold to America,Japanese,Italy,Israel,Korea,India,Kazakhstan, Kampuchea, Egypt, Mexico, Iran,Taiwan and other countries and regions.

     Our laminating machine and solar panel turnkey line are being used by many well-known enterprises such as Suntech,CEEG,Hyundai Group headquarters in South Korea,Huaneng,Shunfeng-pv, etc. At the same time, it is well-known research institutions and colleges of the Chinese Academy of Sciences, Beijing University, Nanjing University, South Korea sago Industrial University was selected as the experimental instrument.

      With honesty, leading technology, the pursuit of excellence,we Radiant company, wish to cooperate with you to create a better future for the photovoltaic industry, and will be consistent and dedicated to serve you!

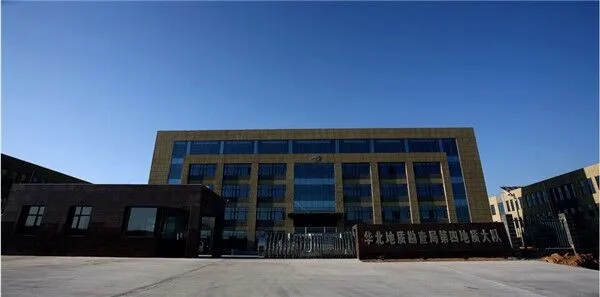

QQ20160119144424
